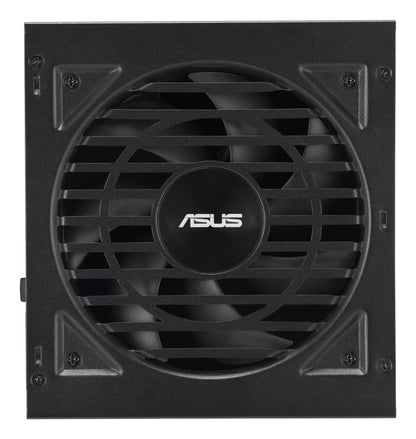

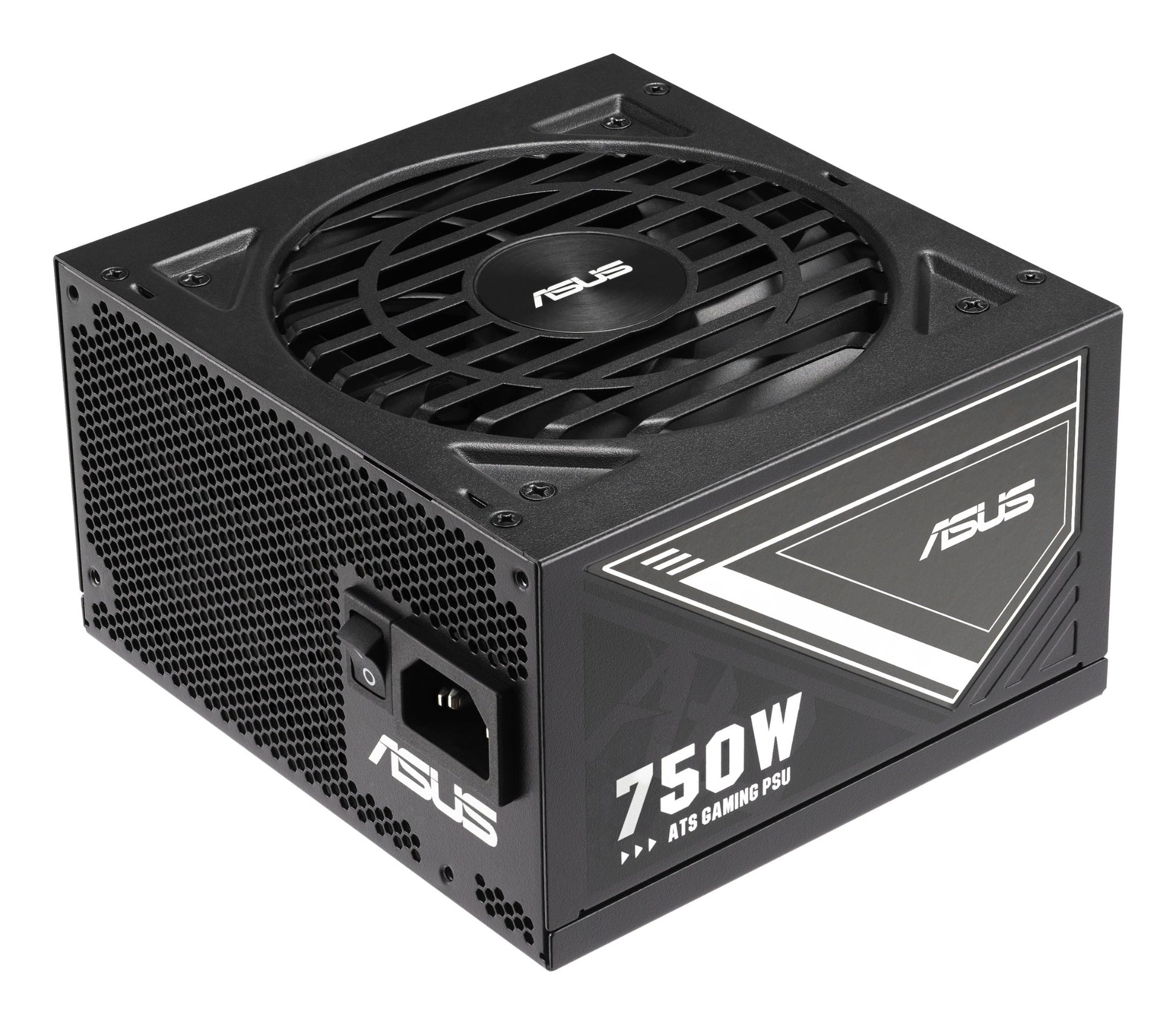

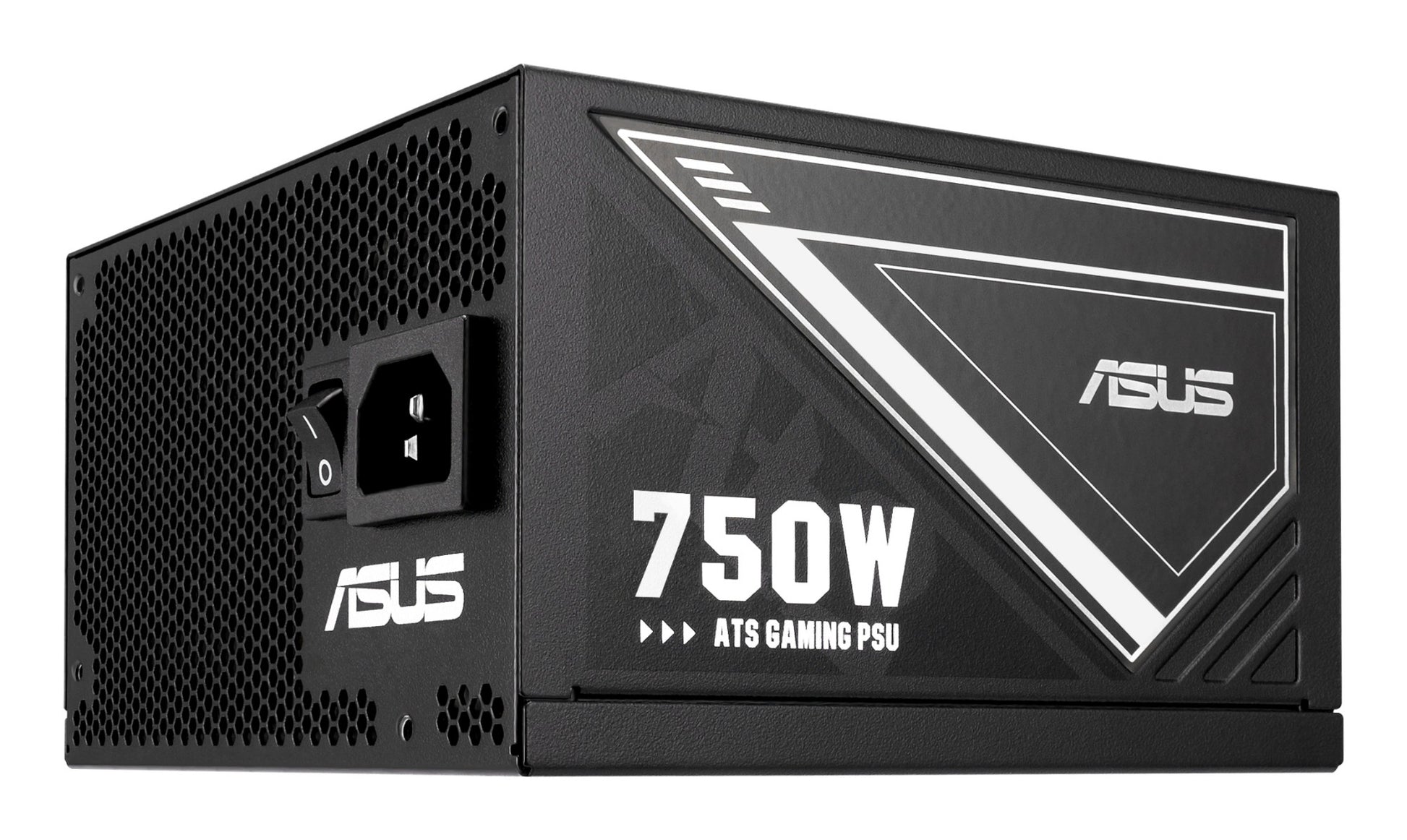

ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black

Reliable power for your system: the ASUS ATS-750G power supply unit — wattage and connector details are in the spec table.

ASUS 750W-ATS Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

With 80+ Gold certification, dual ball fan bearings, etched cables and a 3-year warranty, the PSU brings efficient and durable power delivery to reliable performance for the system build.

80 Plus Gold Certification
Heart of gold
The PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.

COOLING

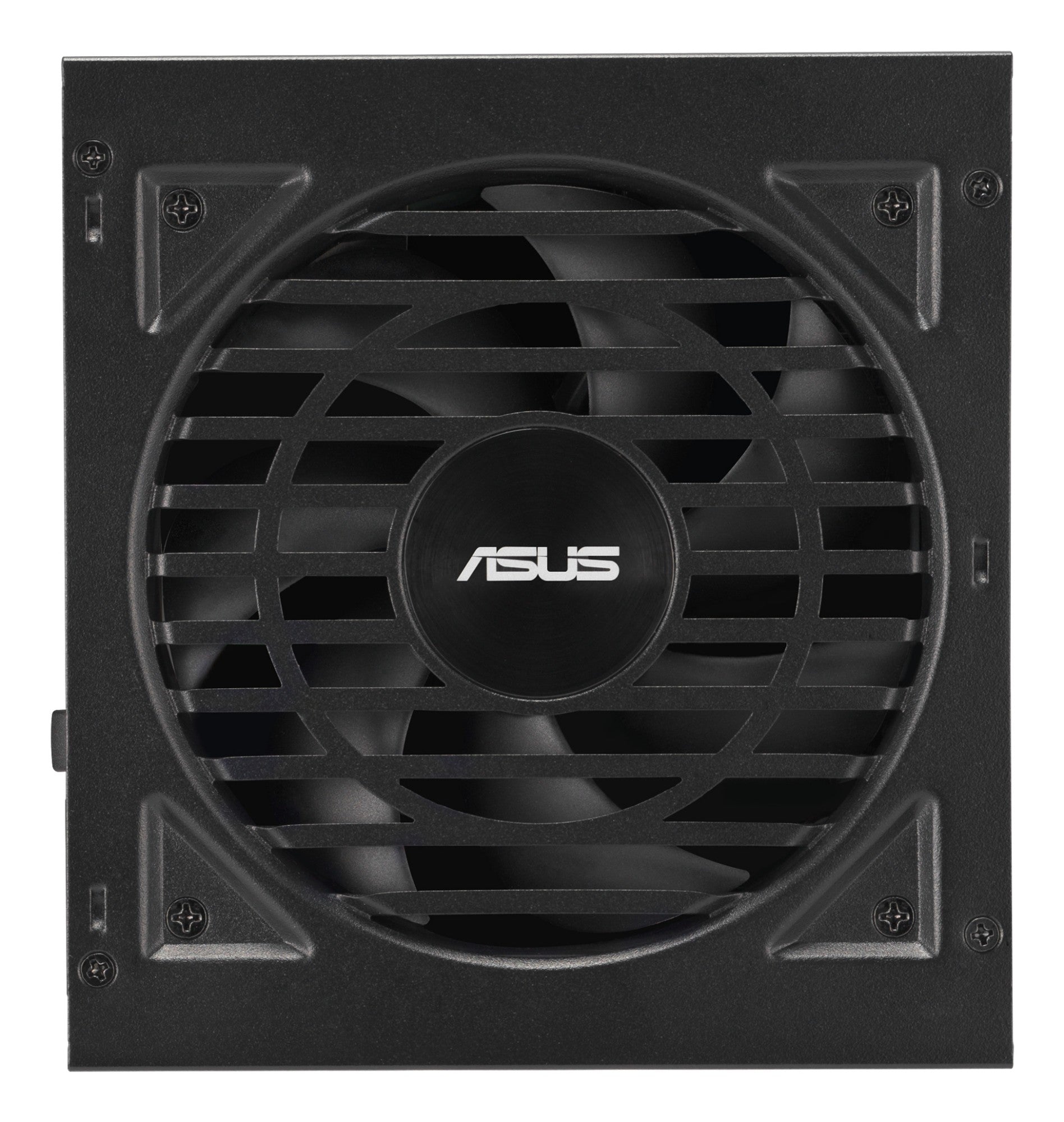

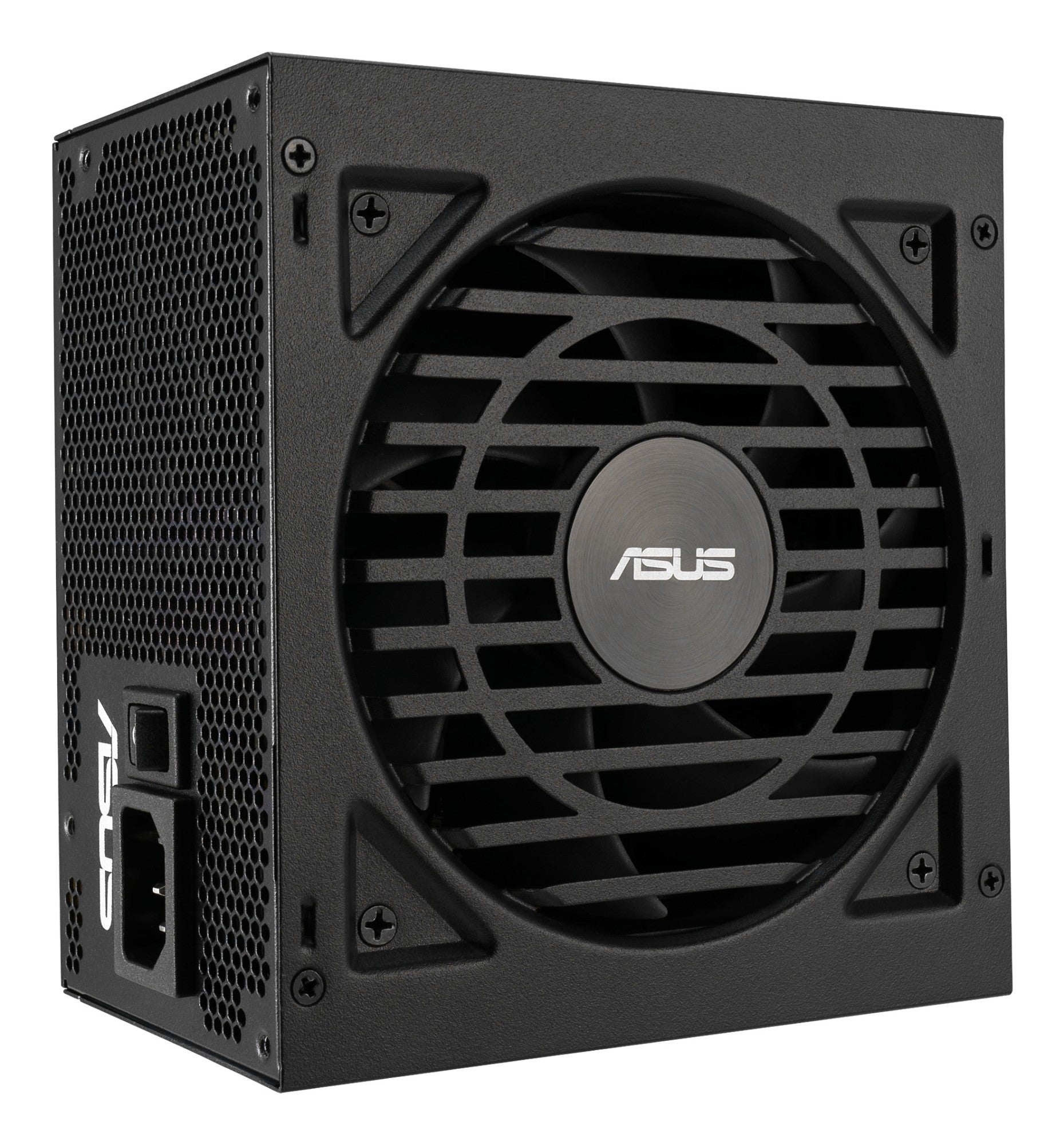

Dual Ball Fan Bearings
2X Longer Lifespan
Dual ball bearings boast an extensive lifespan of up to 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This means long-lasting, reliable cooling with minimal noise when you choose the PSU.

EXPERIENCE

Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-friendly CPU Power Connector
Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

3-year Warranty
We're so confident about the reliability of the PSUs that we back them with a 3-year warranty.

Specifications

Cooling
Number of fans	1 fan(s)
Cooling type	Active
Performance
On/off switch	Yes
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS Gold
Purpose	PC
Mean time between failures (MTBF)	120000 h
Bearing technology	Ball bearing
Design
Product colour	Black
Power
Total power	750 W
AC input voltage	110 - 240 V
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	100 W
Combined power (+12V)	750 W
Combined power (+5V)	100 W
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	15 W
Max output current (+3.3V)	20 A
Max output current (+12V)	62.5 A
Max output current (+5V)	20 A
Max output current (-12V)	0.3 A
Max output current (+5Vsb)	3 A
Power protection features	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Efficiency	92%
Ports & interfaces
Motherboard power cable length	55 cm
PCI Express power cable length	67.5 cm
CPU power cable length	65 cm

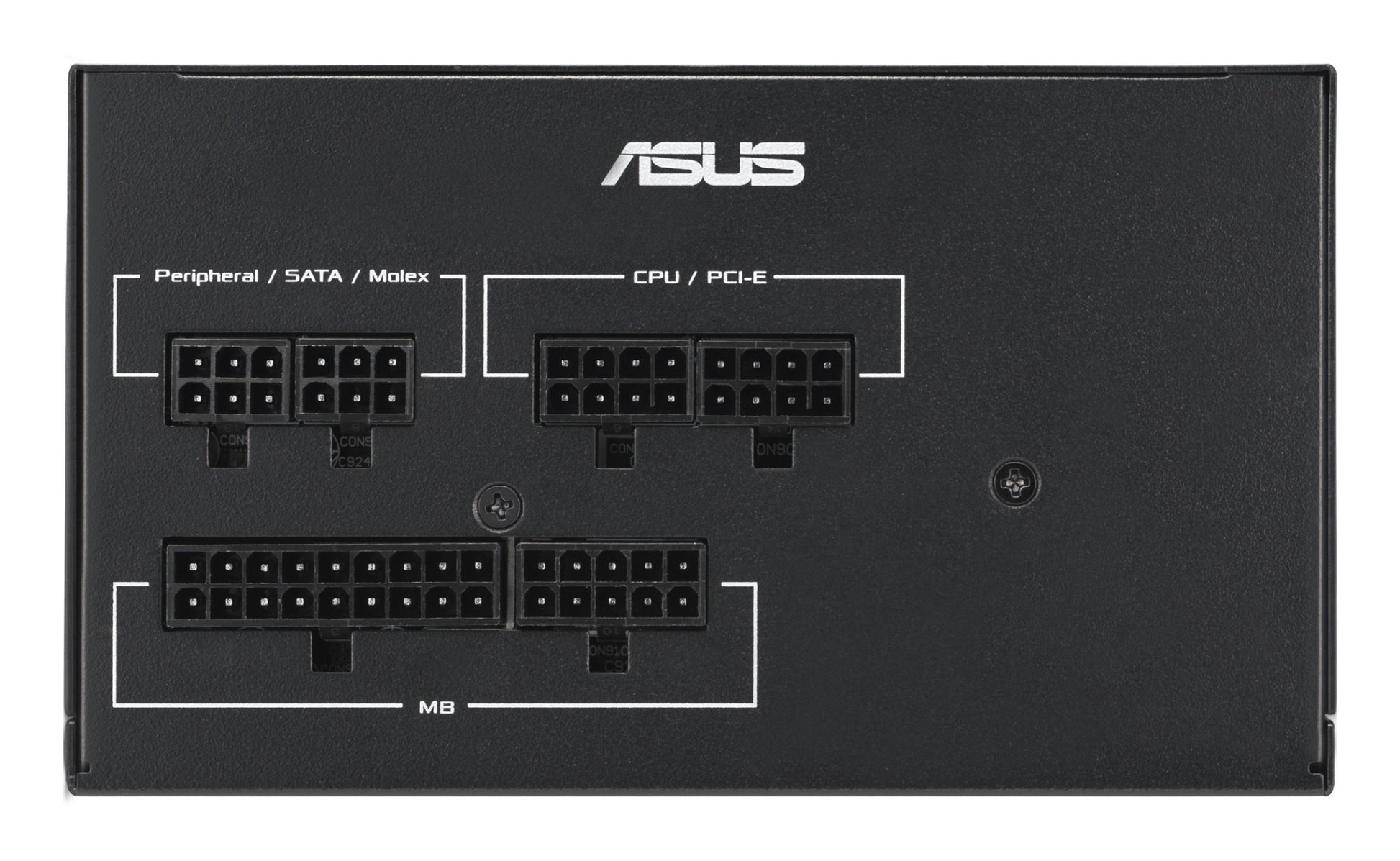

Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	3
PCI Express power connectors (6+2 pin)	2
CPU power connector (4+4 pin)	Yes
ATX power connector (20+4 pin)	Yes

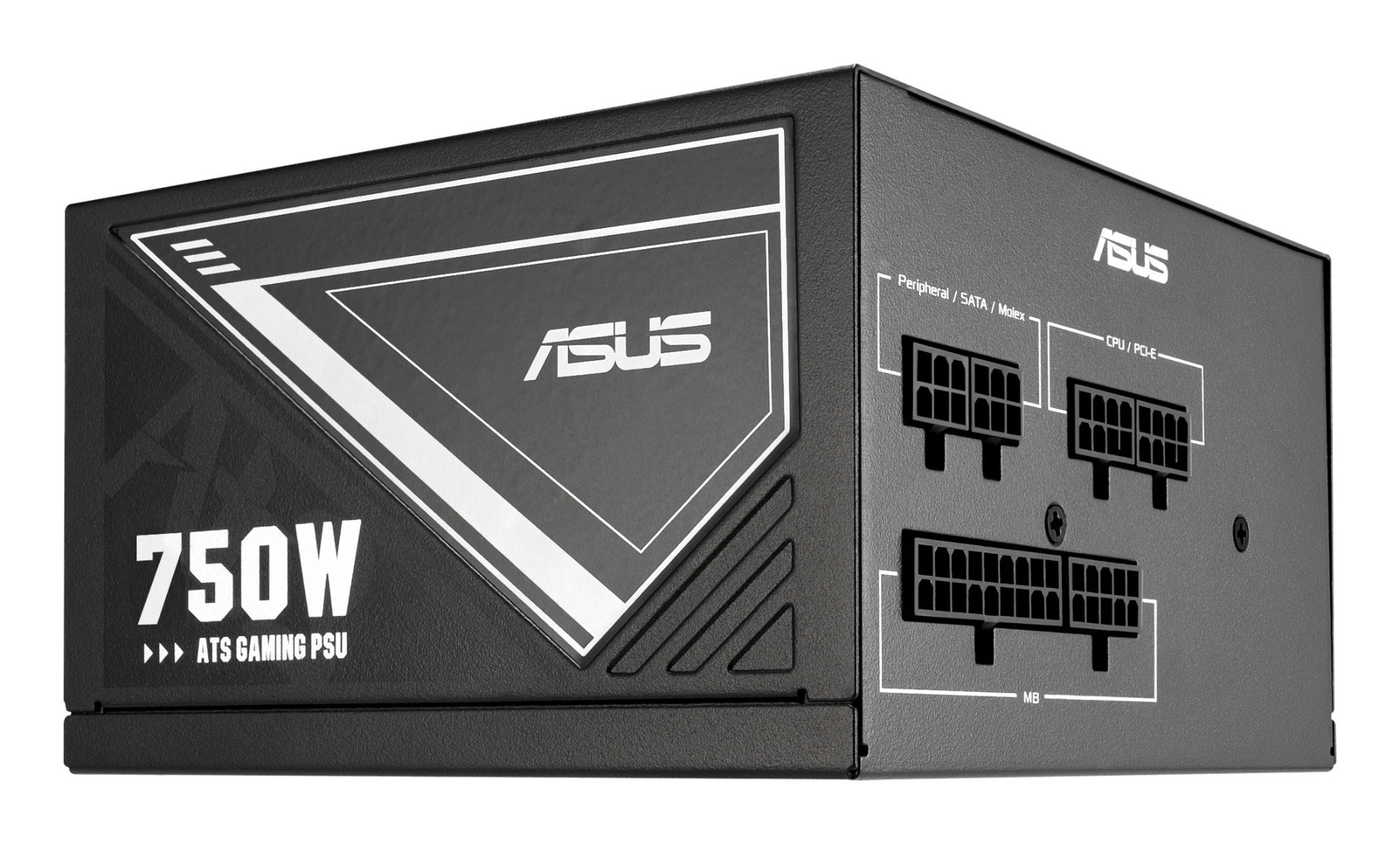

Cabling type	Fully-Modular
Certificates
Compliance certificates	RoHS
Packaging content
Cables included	AC, PCIe, SATA
Packaging content	Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1
Weight & dimensions
Width	150 mm
Depth	140 mm
Height	86 mm
Weight	1.53 kg
Packaging data
Package depth	180 mm
Package width	250 mm
Package height	115 mm
Package type	Box
Package weight	2.78 kg
