ASUS 2GB GDDR5 Graphics Card (90YV0H20)

The ASUS brings 2GB GDDR5 graphics muscle for high-refresh gaming and GPU-accelerated creative work — see the spec table for clocks, outputs and cooling.

Big Productivity in a Small Package

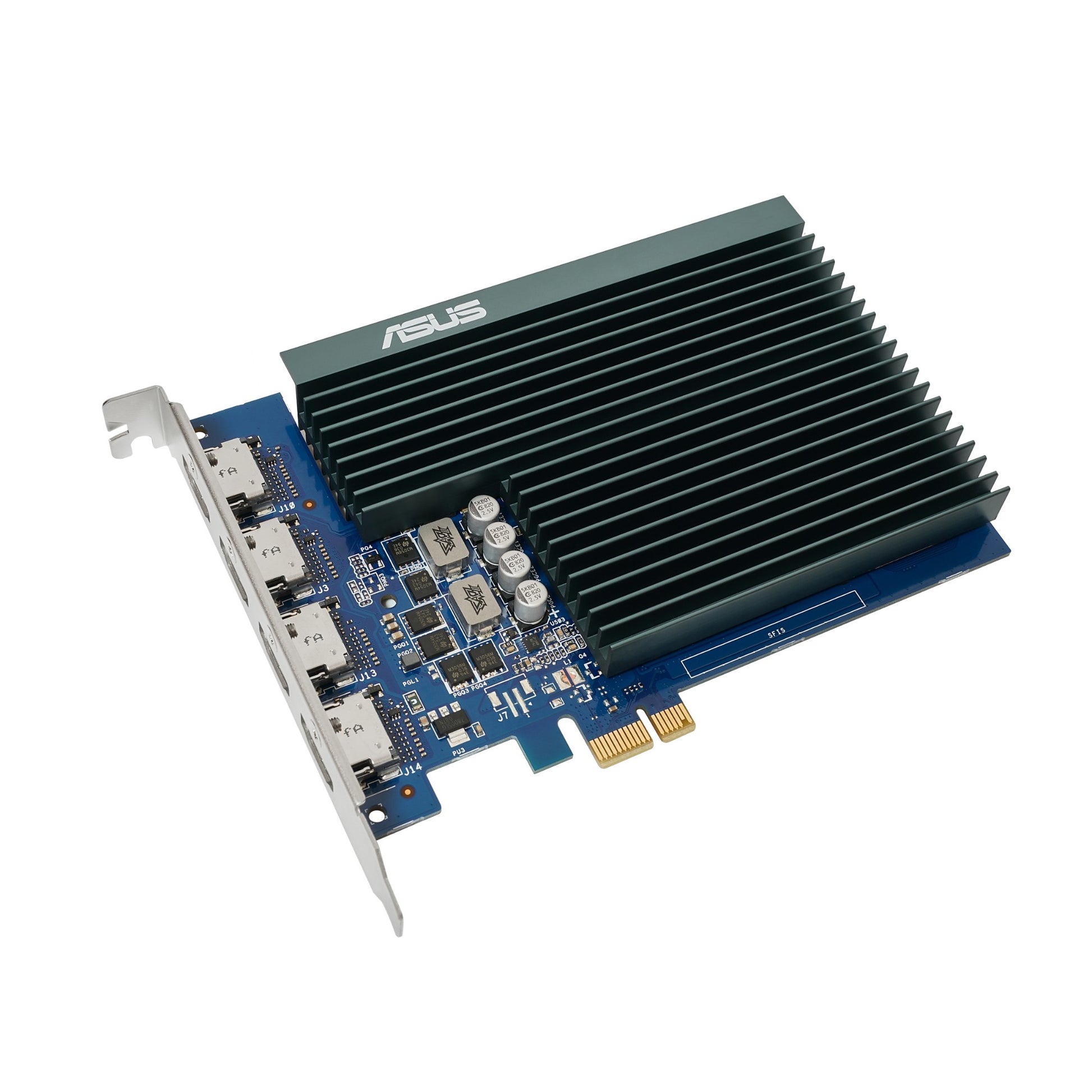

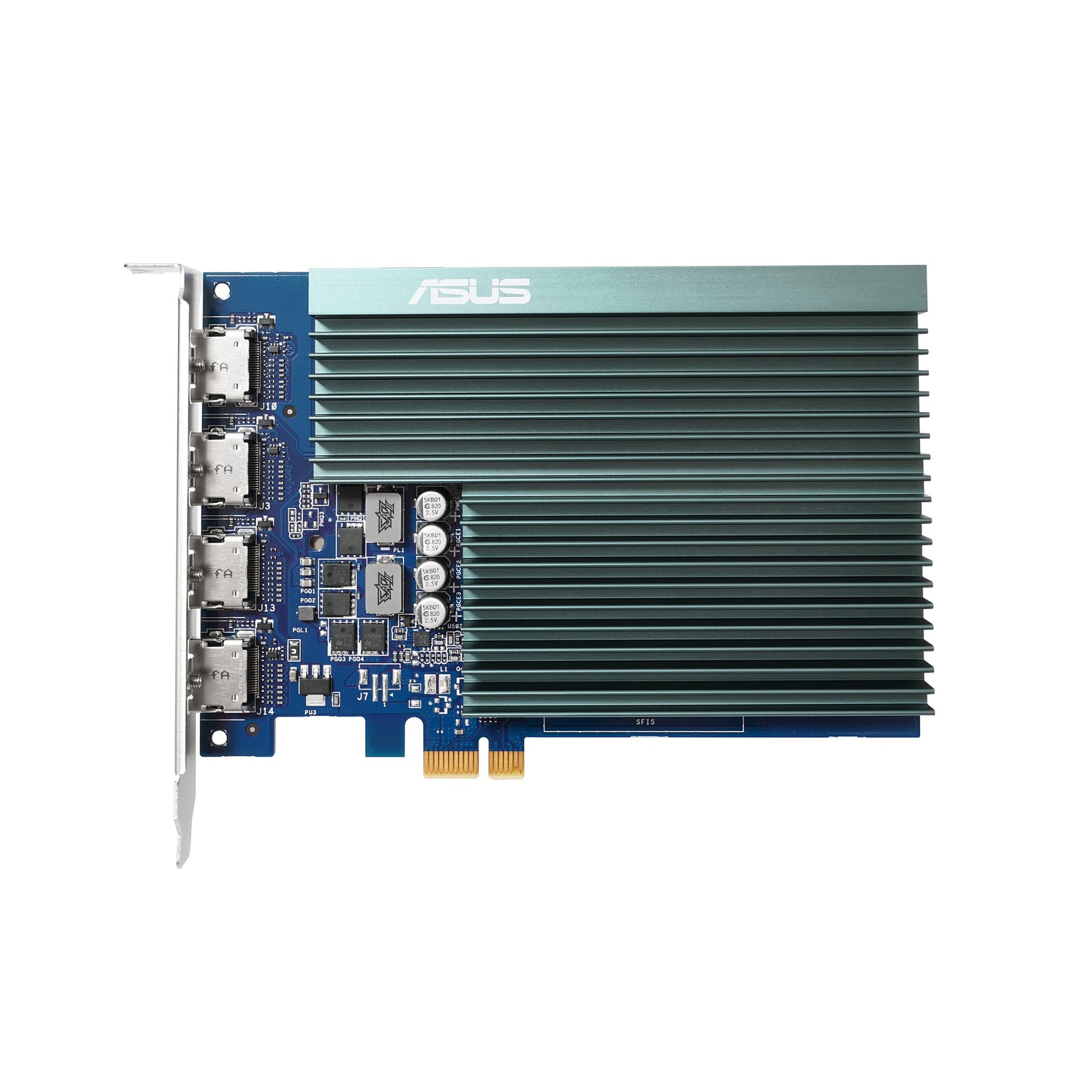

The ASUS GeForce® GT 730 is a passively-cooled single-slot graphics card that enables quiet multi-monitor productivity

COOLING

Passive Cooling
A passively-cooled design creates a quieter workspace.

ENGINEERING

4x HDMI Ports
Enable multi-monitor productivity with support for up to 4 external displays connected to the built-in HDMI ports.

Single-slot Design
A compact design increases compatibility with other PCIe peripherals and even allows multiple ASUS GT730s to be stacked in a single system.

Auto−Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

SOFTWARE

GPU Tweak II
Monitor, tweak, and tune
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Specifications

Processor
Graphics processor family	NVIDIA
Processor boost clock speed	902 MHz
Parallel processing technology support	Not supported
Maximum displays per videocard	4
CUDA cores	384
CUDA	Yes
Maximum resolution	3840 x 2160 pixels
Graphics processor	GeForce GT 730
Processor boost clock speed (OC mode)	927 MHz
Memory
Discrete graphics card memory	2 GB
Memory clock speed	5010 MHz
Graphics card memory type	GDDR5
Ports & interfaces
HDMI version	1.4b
HDMI ports quantity	4
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	0
Interface type	PCI Express x1
USB Type-C ports quantity	0
Video
OpenGL version	4.6
HDCP	Yes
Dual Link DVI	No
Performance
TV tuner integrated	No
Design
Number of fans	0 fan(s)
Illumination	No
Cooling type	Passive
Product colour	Black, Blue
Number of slots	1
SFF ready	Yes
Power
Minimum system power supply	300 W
Weight & dimensions
Height	105 mm
Depth	18 mm
Length	148 mm
Technical details
Harmonized System (HS) code	84733020
Packaging data
Package type	Box
Manual	Yes
