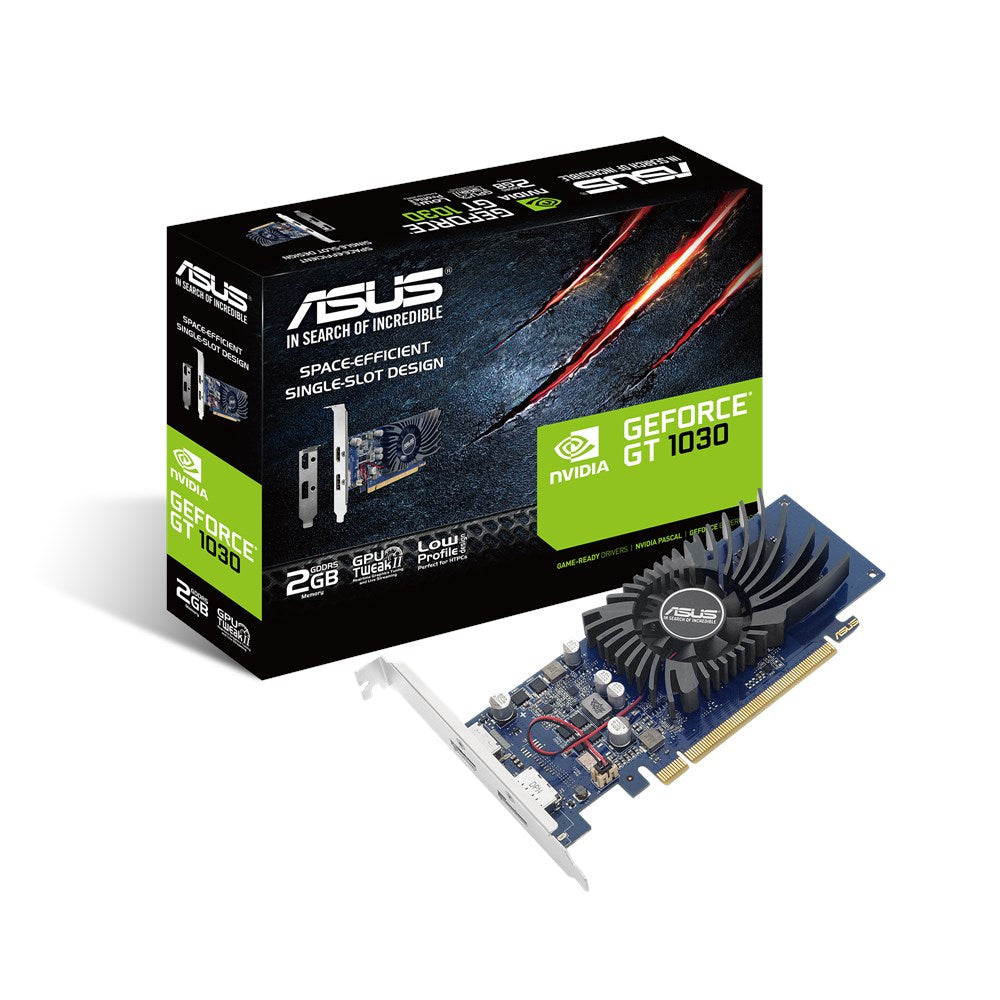

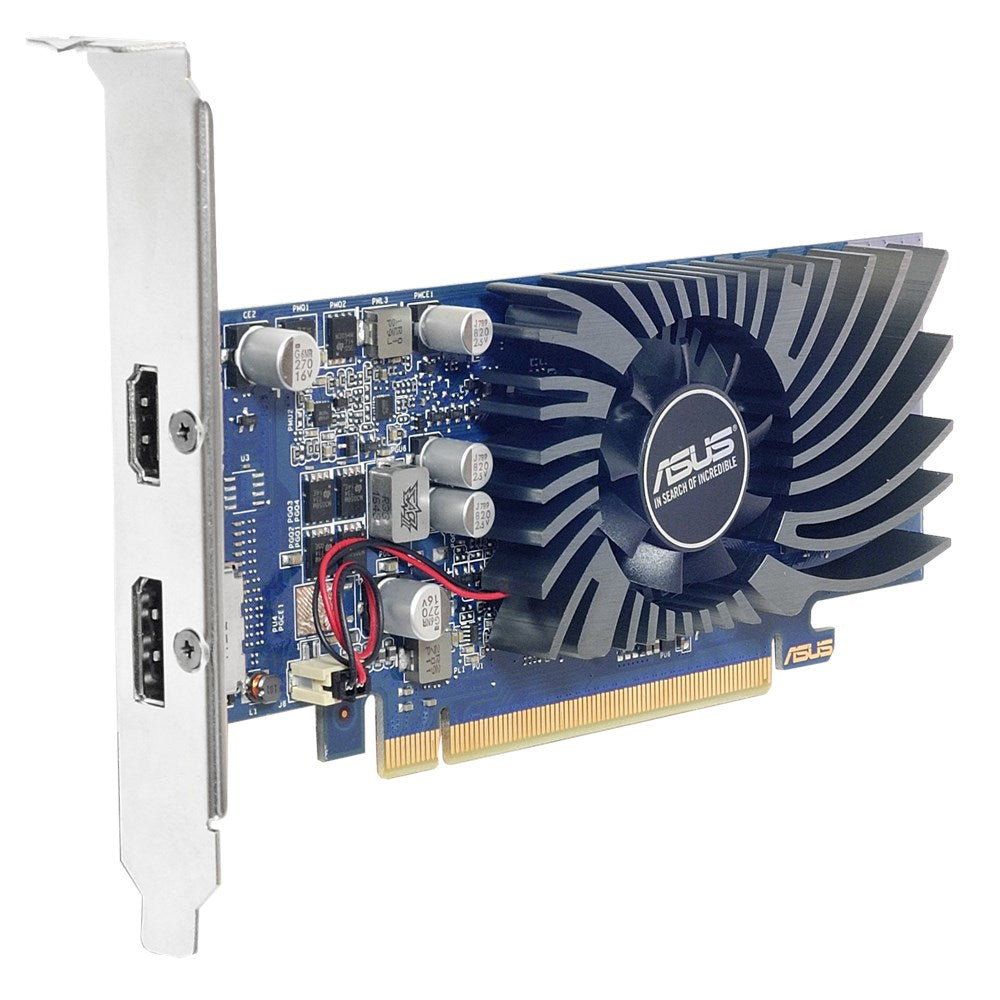

ASUS 2GB GDDR5 Graphics Card (90YV0AT2)

The ASUS brings 2GB GDDR5 graphics muscle for high-refresh gaming and GPU-accelerated creative work — see the spec table for clocks, outputs and cooling.

Graphics galore for everyone!
ASUS GeForce GT1030’s single-slot design doesn’t block neighboring PCIe slots, maximizing expansion flexibility, and the small size offers great compatibility with smaller chassis. Exclusive Auto-Extreme Technology with Super Alloy Power II components for superior stability. It also has GPU Tweak II for intuitive performance tweaking.

Space-efficient single-slot design
The slimline cooling fan and single-slot design means that GT1030 doesn’t block neighboring PCI Express slots, maximizing your ability to fit additional expansion cards. The small size also offers great compatibility with a wide variety of smaller chassis, so you can build in whatever form is best for your needs.

Auto-Extreme Technology with Super Alloy Power II
Premium quality and the best reliability
ASUS graphics cards are produced using Auto-Extreme technology, an industry-first 100% automated production process, and feature premium Super Alloy Power II components that enhance efficiency, reduce power loss, decrease component buzzing under load, and lower thermal temperatures for unsurpassed quality and reliability.

GPU Tweak II
Tweak Till Your Heart's Content
Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.

Gaming Booster
One-click Performance Up
- Visual effects: Boost your performance by turning off windows visual effects.
- System Services: Automatically or manually turn off windows services or process.
- Memory Defragmentation: Re-arrange & free your system memory without closing any processes.

Specifications

Processor
FireStream	No
Graphics processor family	NVIDIA
Processor frequency	1266 MHz
Processor boost clock speed	1506 MHz
Maximum displays per videocard	2
CUDA cores	384
CUDA	Yes
Maximum resolution	7680 x 4320 pixels
Graphics processor	GeForce GT 1030
Memory
Discrete graphics card memory	2 GB
Memory clock speed	6008 MHz
Memory bus	64 bit
Graphics card memory type	GDDR5

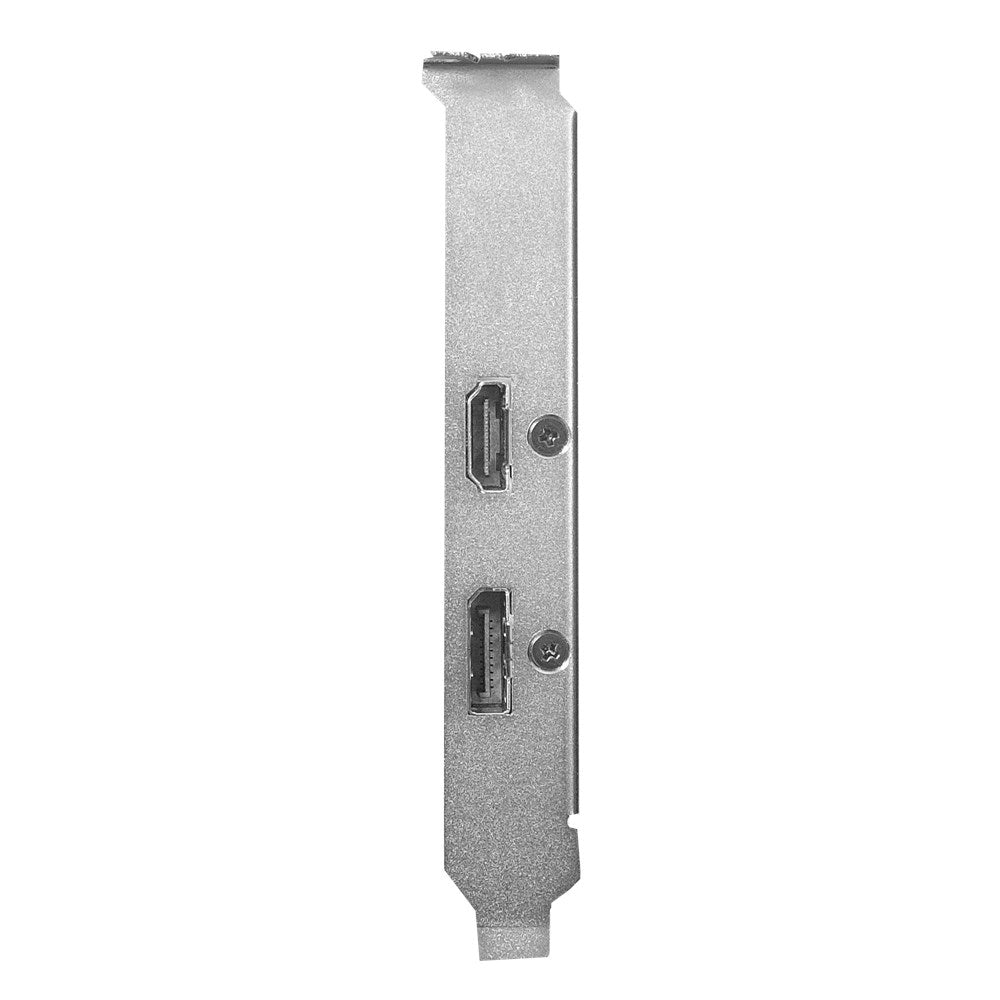

Ports & interfaces
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI-I ports quantity	0
DVI-D ports quantity	0
DisplayPorts quantity	1
Interface type	PCI Express 3.0
USB Type-C ports quantity	0
Video
DirectX version	12.0
OpenGL version	4.5
HDCP	Yes
Full HD	Yes
Dual Link DVI	No
PhysX	Yes
Performance
TV tuner integrated	No
Design
Number of fans	1 fan(s)
Illumination	No
Cooling type	Active
Product colour	Black, Blue
Bracket height	Low-Profile (LP)
Software
Windows operating systems supported	Windows 10
Bundled software	ASUS GPU Tweak
Technical details
Harmonized System (HS) code	84733020
Weight & dimensions
Height	69 mm
Depth	21 mm
Length	169 mm
Packaging data
Package type	Box
Drivers included	Yes
User guide	Yes
