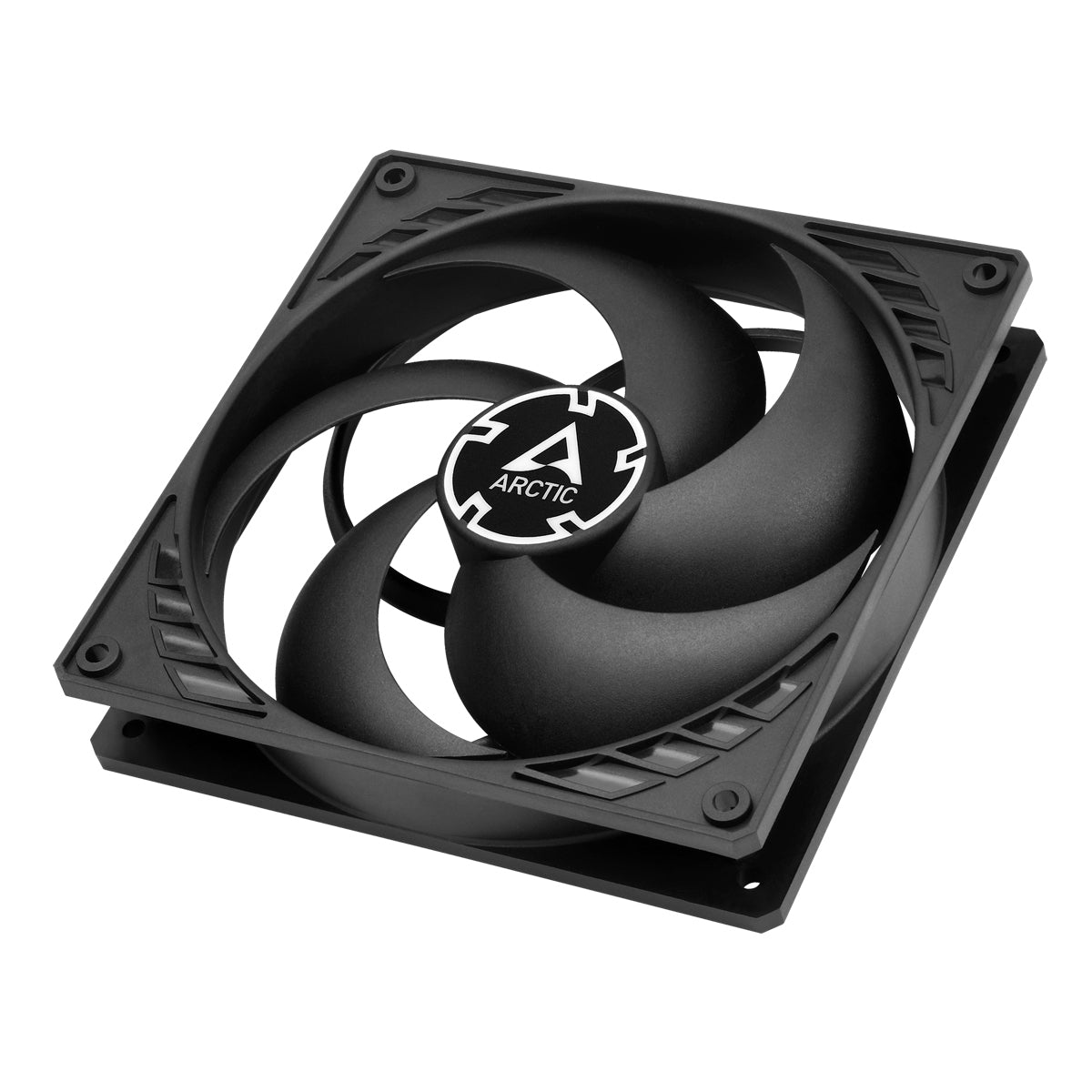

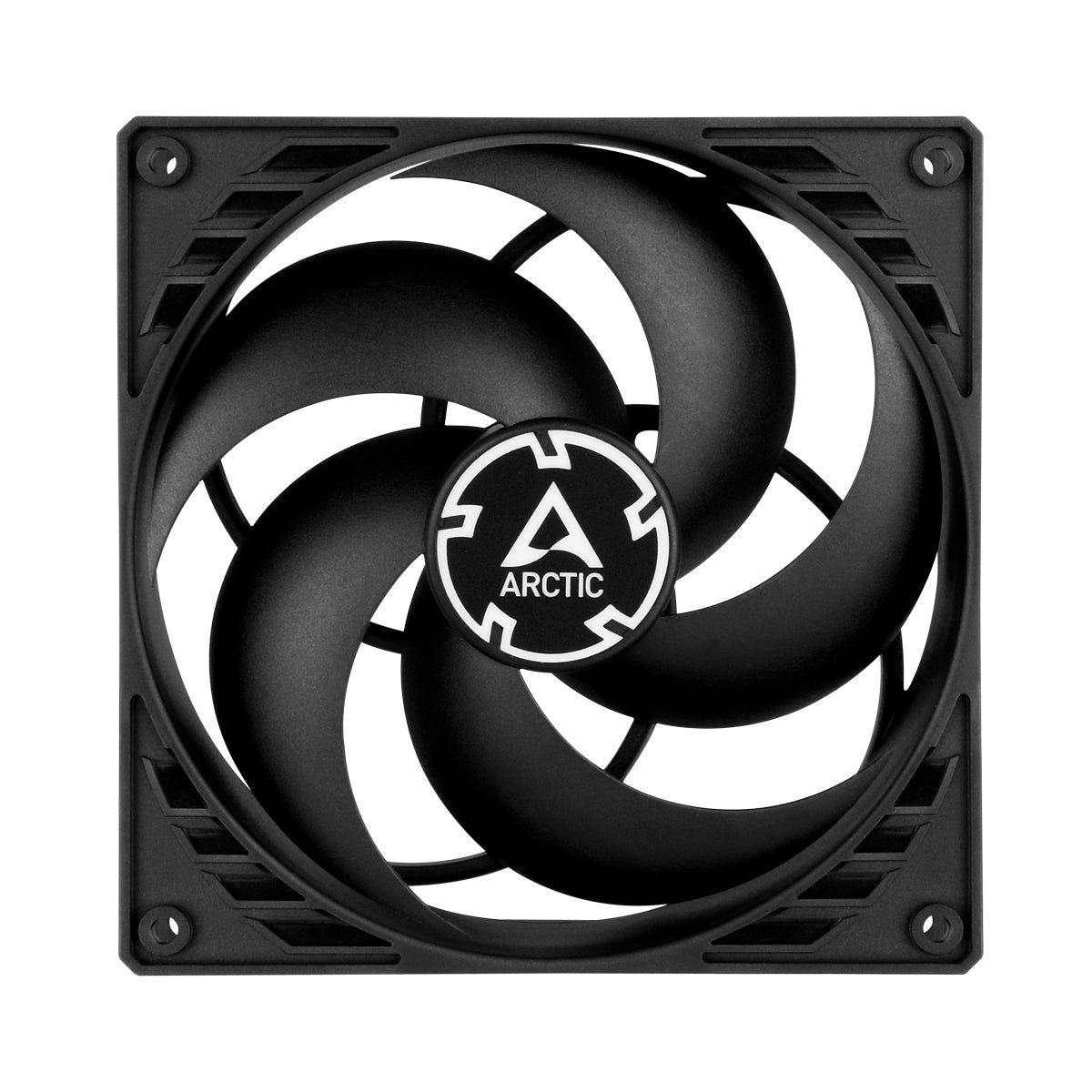

ARCTIC P14 Value Pack Computer case Fan 14 cm Black Cooling

Keep temperatures in check with the ARCTIC P14 Value Pack Computer — fitment and noise details are in the spec table.

The P14 fan features completely redesigned fan blades and is optimised for high static pressure.
Thus, the P14 is especially effective when used on heatsinks and with higher air resistance.

Specifications

Performance
Suitable location	Computer case
Fan connector	3-pin
Rotational speed (max)	1700 RPM
Noise level	0.3 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Type	Fan
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	72.8 cfm
Airflow	123.76 m³/h
Number of fans	1 fan(s)
Design
Product colour	Black
Cable length	0.4 m
Illumination LED	No
Display type	Not applicable
Power
Starting voltage	2.1 V
Voltage	12 V
Rated current	0.15 A
Weight & dimensions
Package depth	146 mm
Package width	139 mm
Package height	145 mm
Width	140 mm
Depth	140 mm

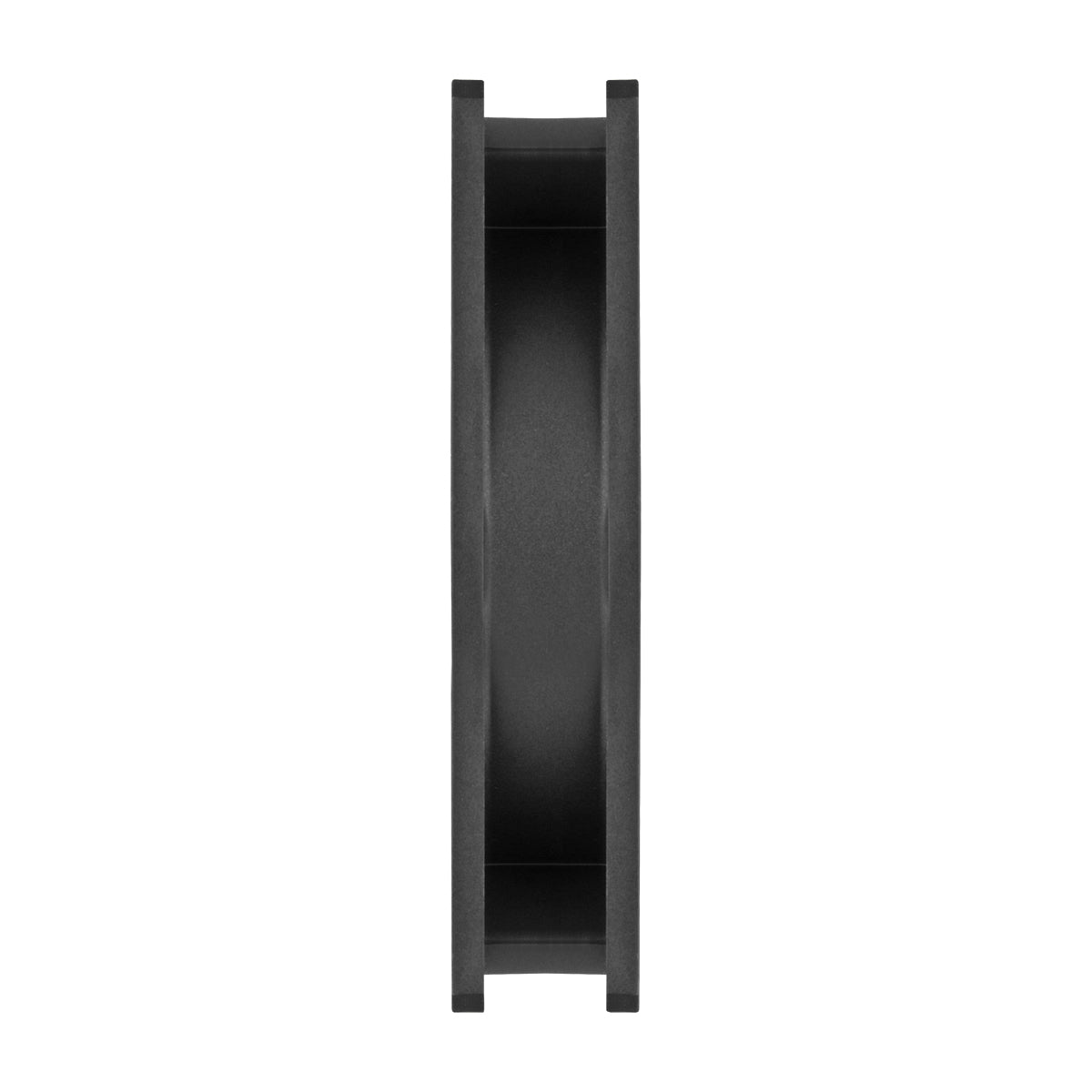

Height	27 mm
Weight	191 g
Packaging data

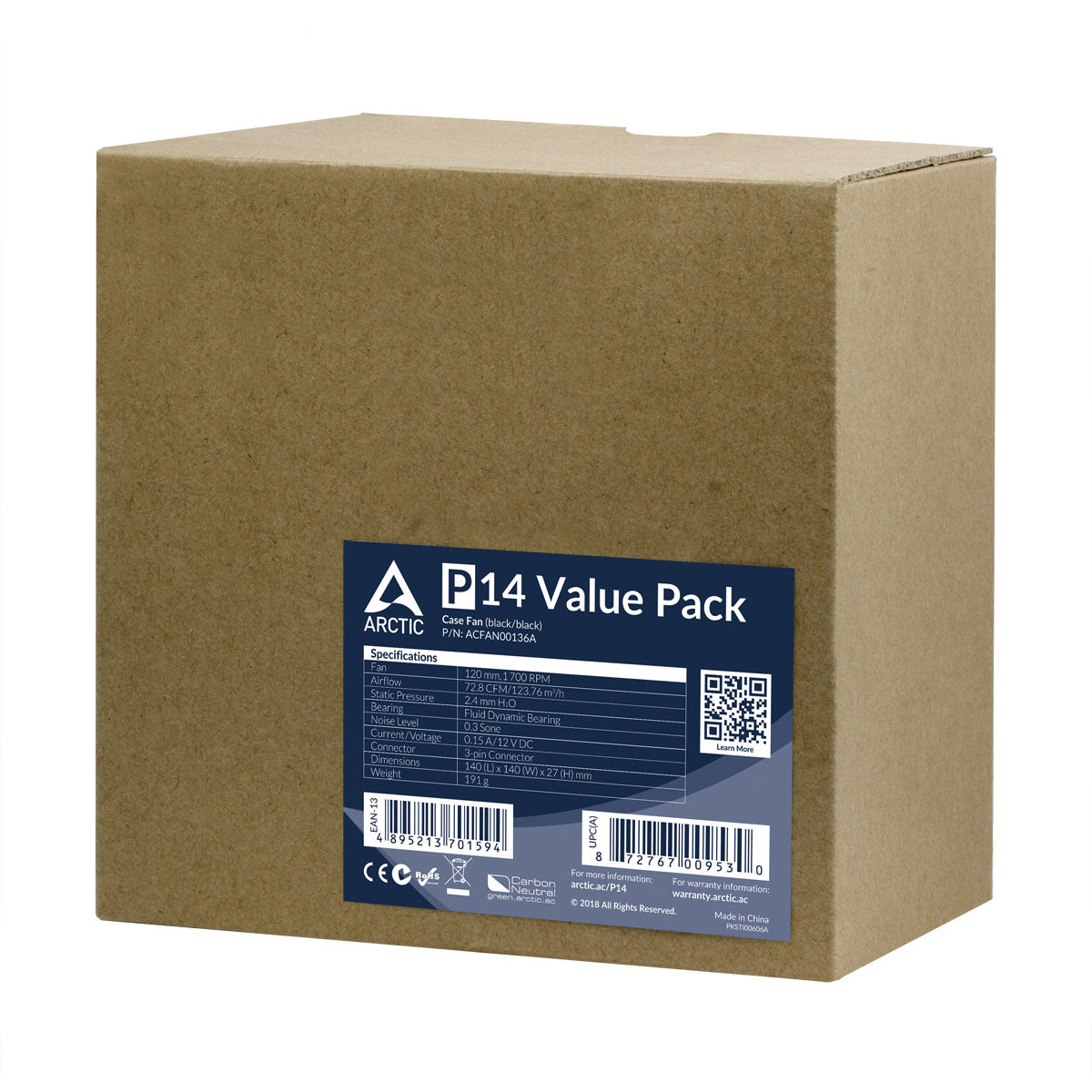

Package type	Box
Packaging content
Screws included	Yes
Number of screws	20
Other features
Country of origin	China
Harmonized System (HS) code	84733080
