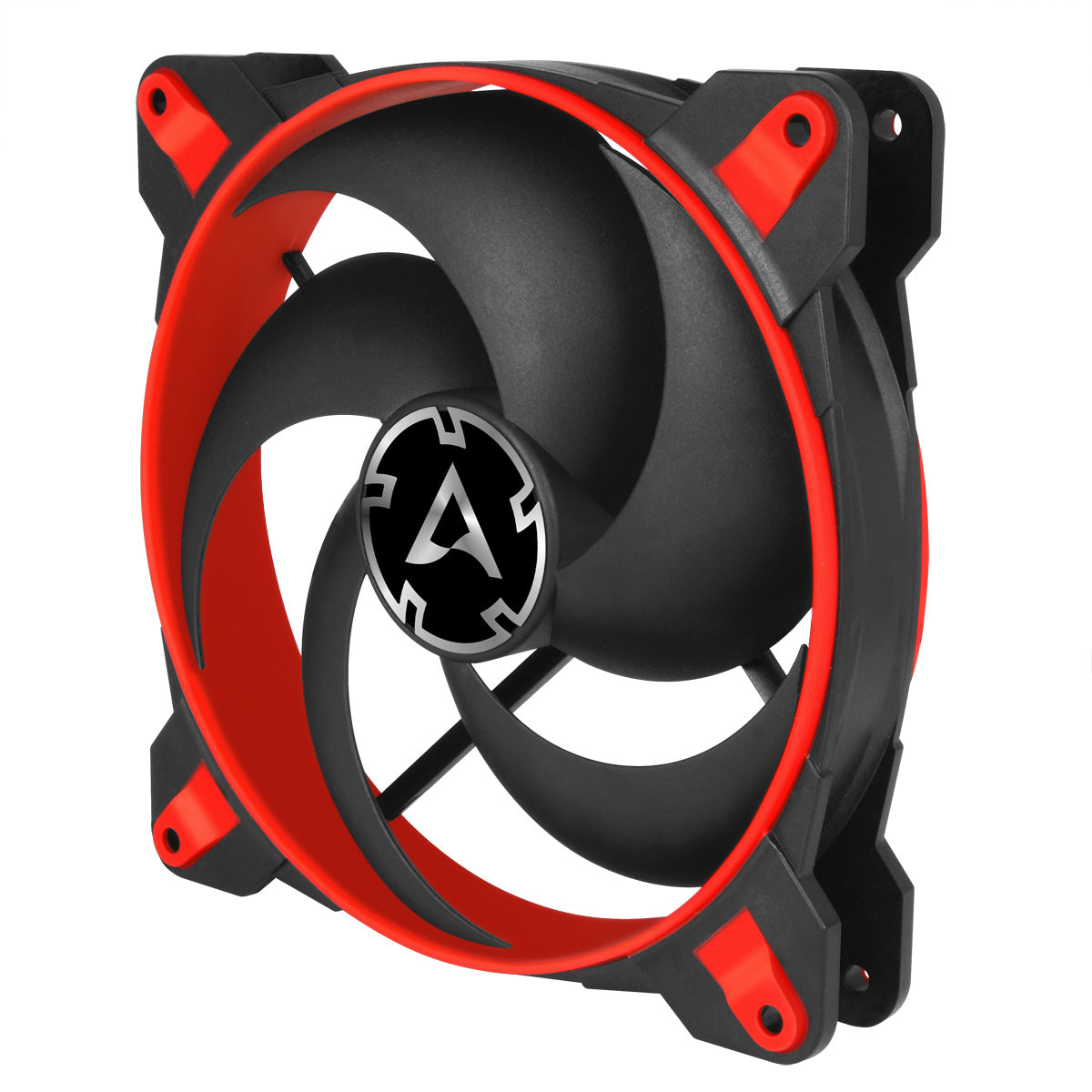

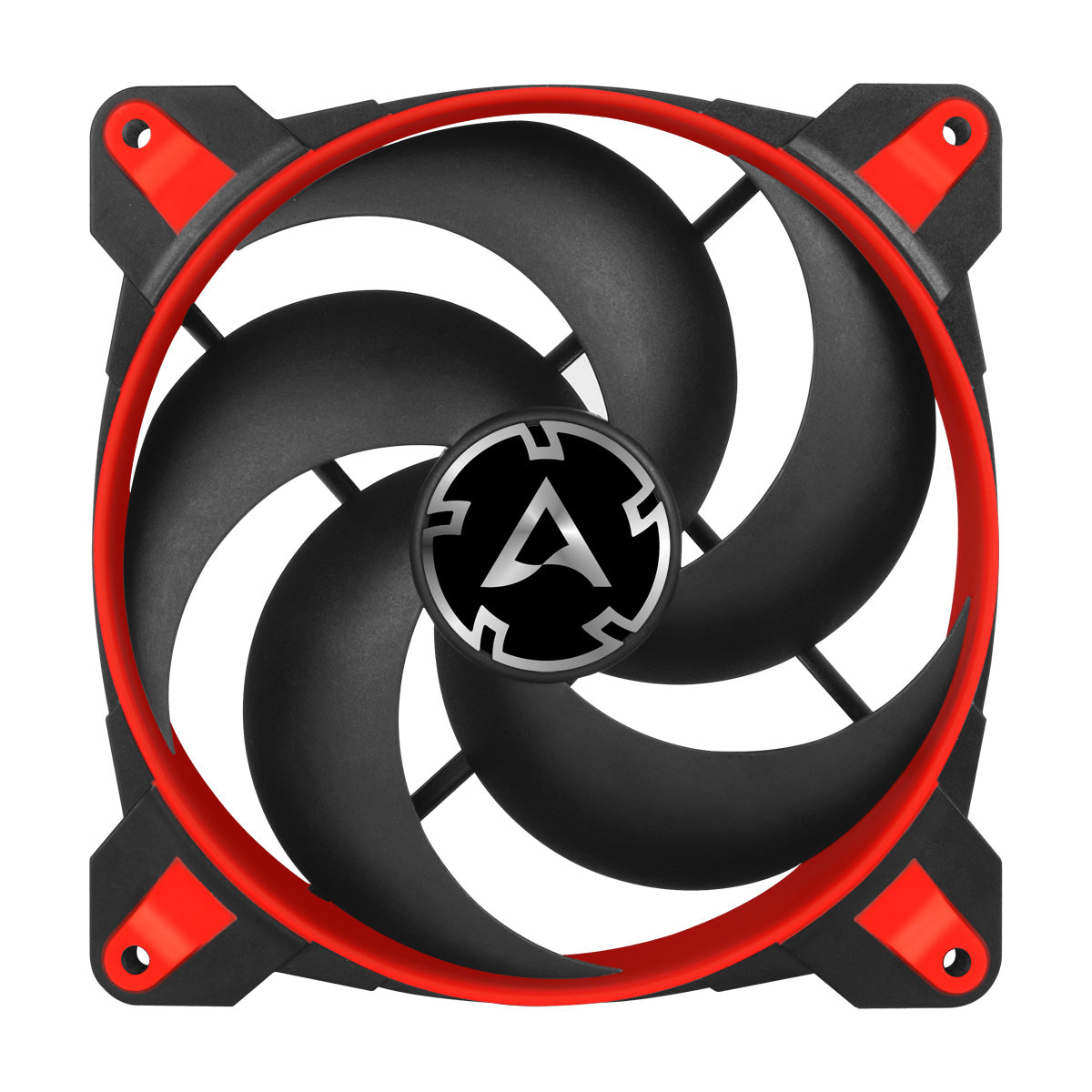

ARCTIC BioniX P140 (Red) – Pressure-optimised 140 mm Gaming Fan with PWM PST Cooling

Keep temperatures in check with the ARCTIC BioniX P140 (Red) – — fitment and noise details are in the spec table.

BioniX P140
Pressure-optimised 140 mm Gaming Fan with PWM PST

The BioniX P140 fan features completely redesigned fan blades and is optimised for high static pressure. Thus, the BioniX P140 is especially effective when used on heatsinks and with higher air resistance.
The wide RPM range from 200 to 1950 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC's PWM Sharing Technology (PST).
The newly developed motor with a low coil temperature significantly increases the life span of the fan. Therefore we have extended the warranty to 10 years.

Specifications

Performance
Suitable location	Computer case
Fan connector	4-pin + 4-pin
Pulse-width modulation (PWM) support	Yes
Rotational speed (min)	200 RPM
Rotational speed (max)	1950 RPM
Noise level	0.45 sone
Bearing type	Fluid Dynamic Bearing (FDB)
Noise level (high speed)	25.5 dB
Type	Fan
Fan diameter	14 cm
Supported processor sockets	Not supported
Compatible processor series	Not supported
Maximum airflow	77.6 cfm
Airflow	131.92 m³/h
Number of fans	1 fan(s)
Number of fan blades	5
Design
Product colour	Black, Red
Cable length	0.4 m
Power
Voltage	12 V
Power consumption (typical)	1.8 W
Weight & dimensions
Package depth	148 mm
Package width	148 mm
Package height	35 mm
Width	140 mm
Package weight	230 g
Depth	140 mm
Height	28 mm
Weight	181 g
Packaging data
Package type	Box
Packaging content
Screws included	Yes
Number of screws	4
Other features
Country of origin	China
Harmonized System (HS) code	84733080
