When the power cuts out, the APC keeps your desktop, NAS or router running — long enough to save work and shut down safely.

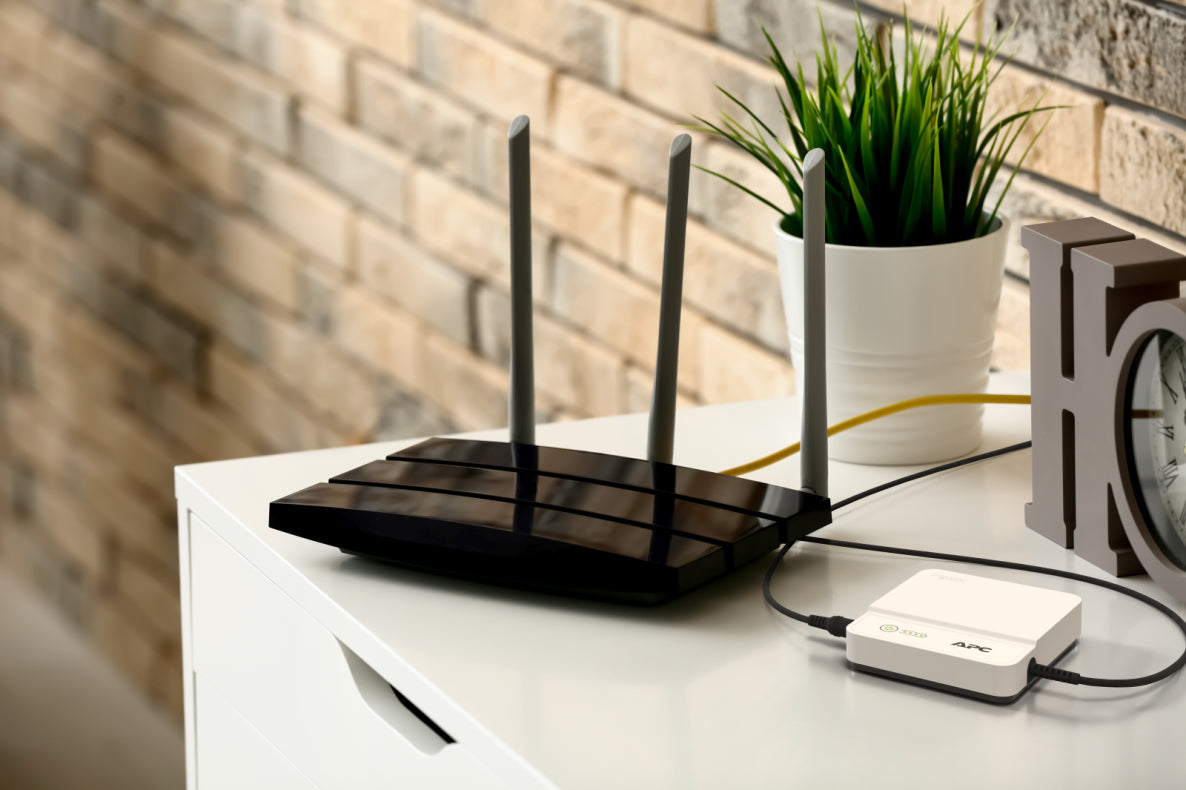

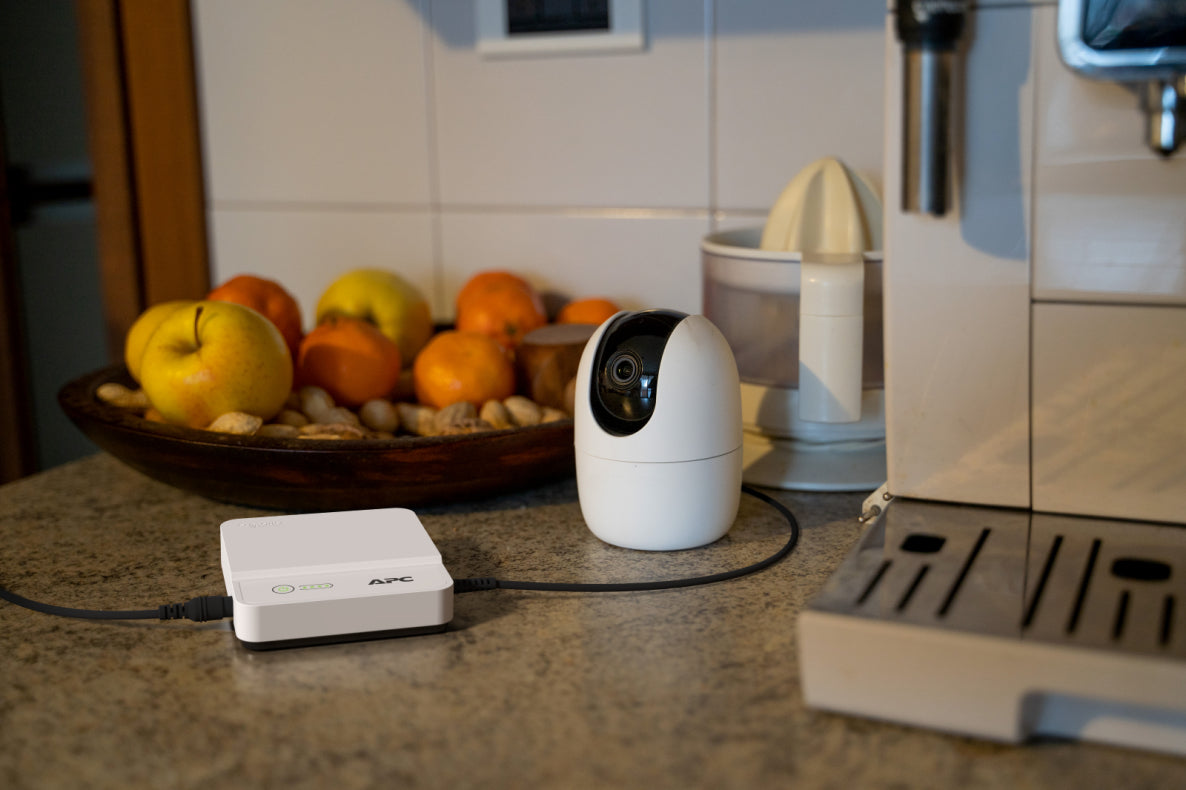

Protect your WiFi, stay onlineThe APC Back-UPS Connect is an uninterruptible power supply (UPS) specifically designed to power compatible routers, modems, VoIP systems, baby monitors, IP cameras and other smart home devices during a power outage. This way you keep your WiFi online and stay connected, even during a power outage.

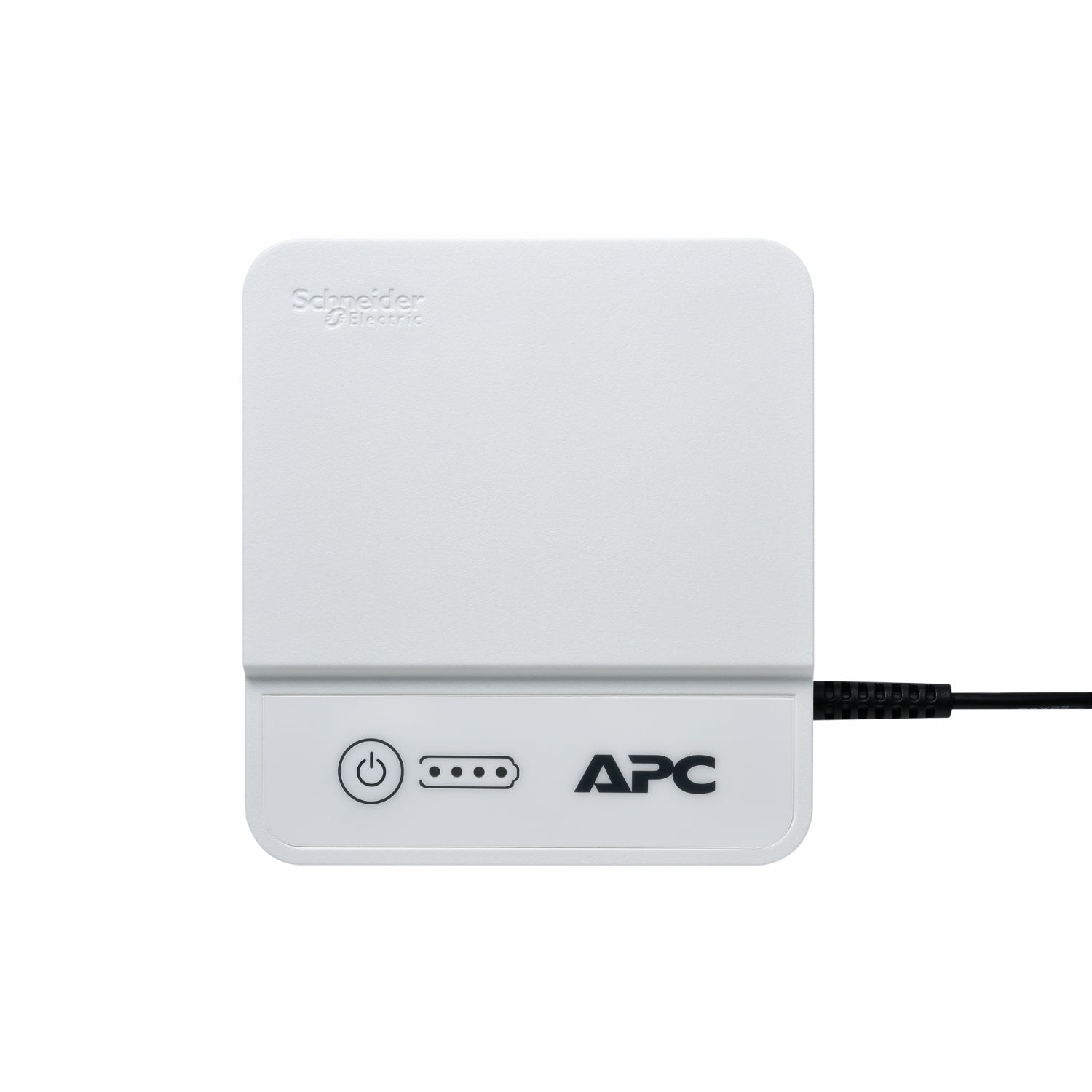

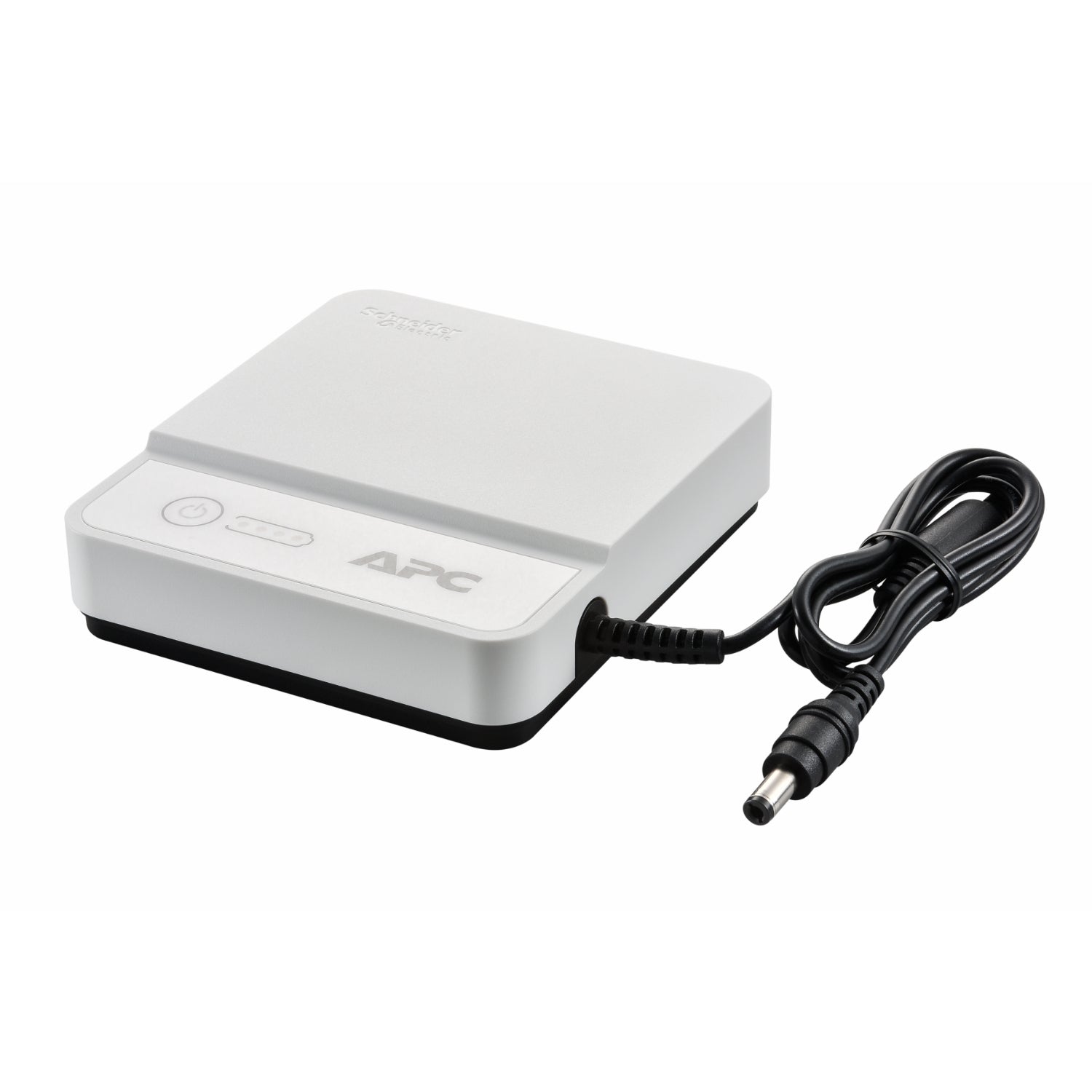

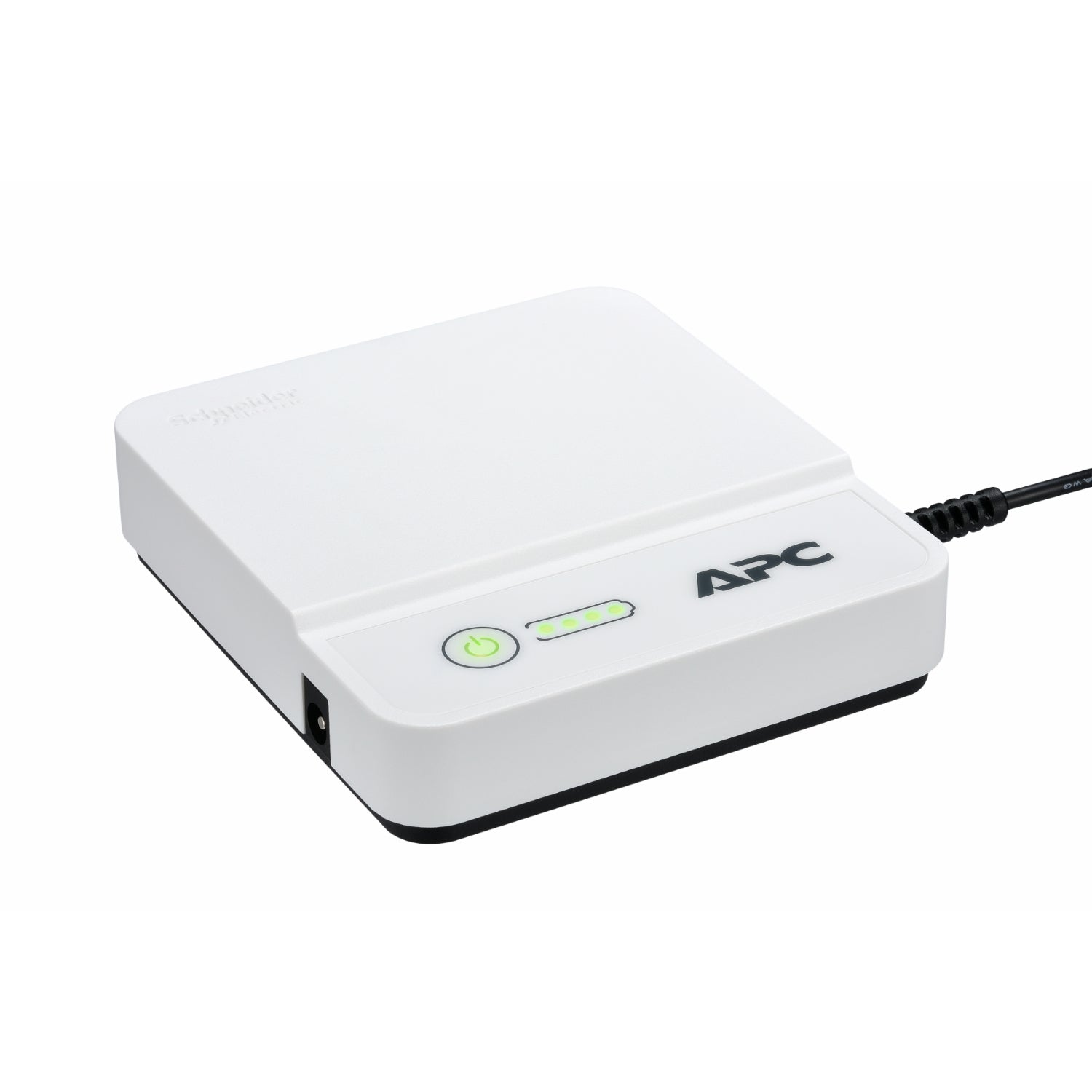

The Back-UPS Connect is a reliable, flexible and affordable 12V DC UPS with lithium-ion battery that guarantees continuity for connected equipment during power outages.
Battery capacity and runtimeWith a 7500mAh / 27.75Wh battery, it can provide up to 4 hours* of runtime, depending on the connected equipment. *At a load of 5 Watts.
For a further estimate of the runtime, see the runtime table between the product images.

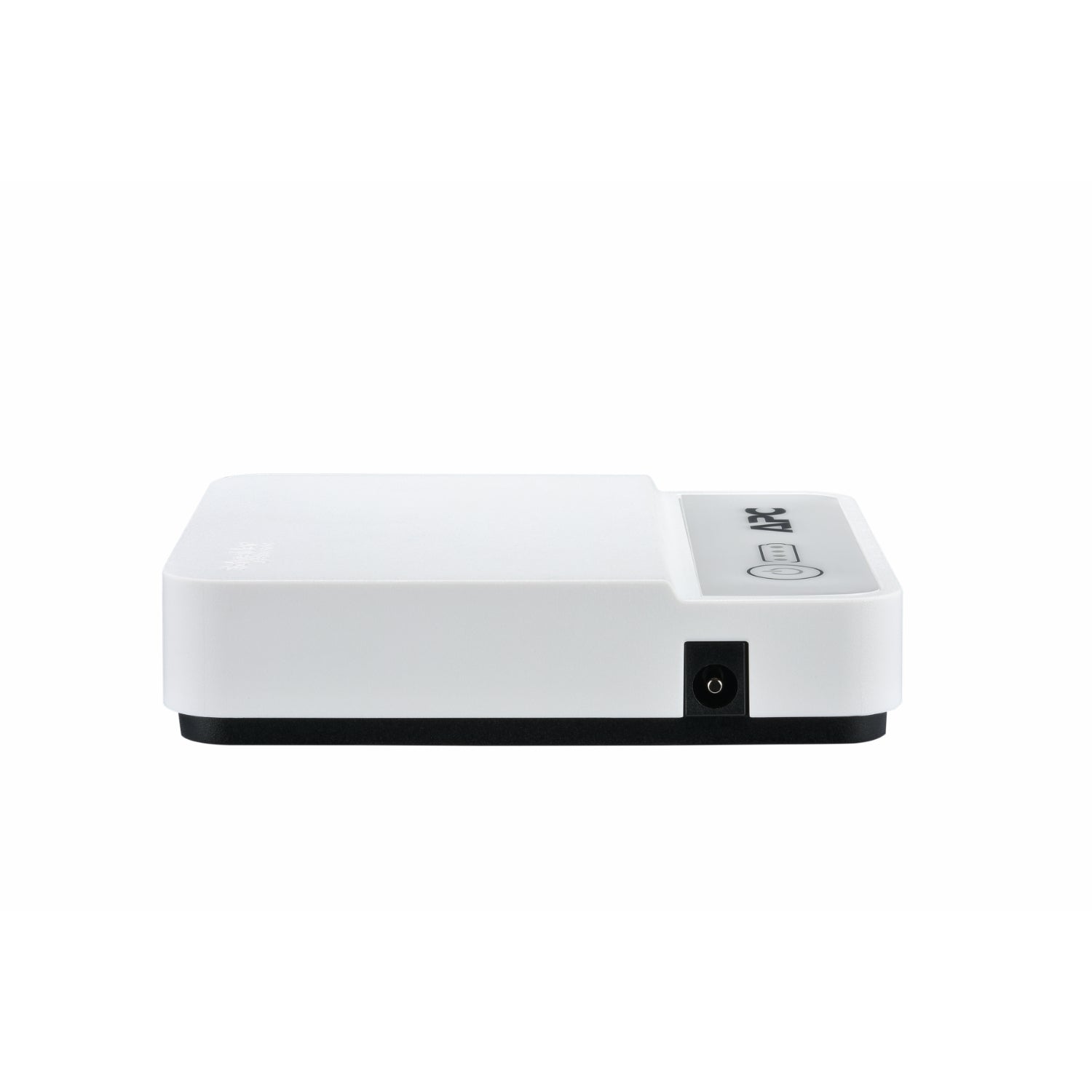

ConnectorsInput/Output configuration
Input connector Barrel - center pin 2.5 mm; 5525 DC jack (default)
Output connector Barrel - center pin 2.5 mm; 5525 DC jack (default)
Output cable length 80 cm

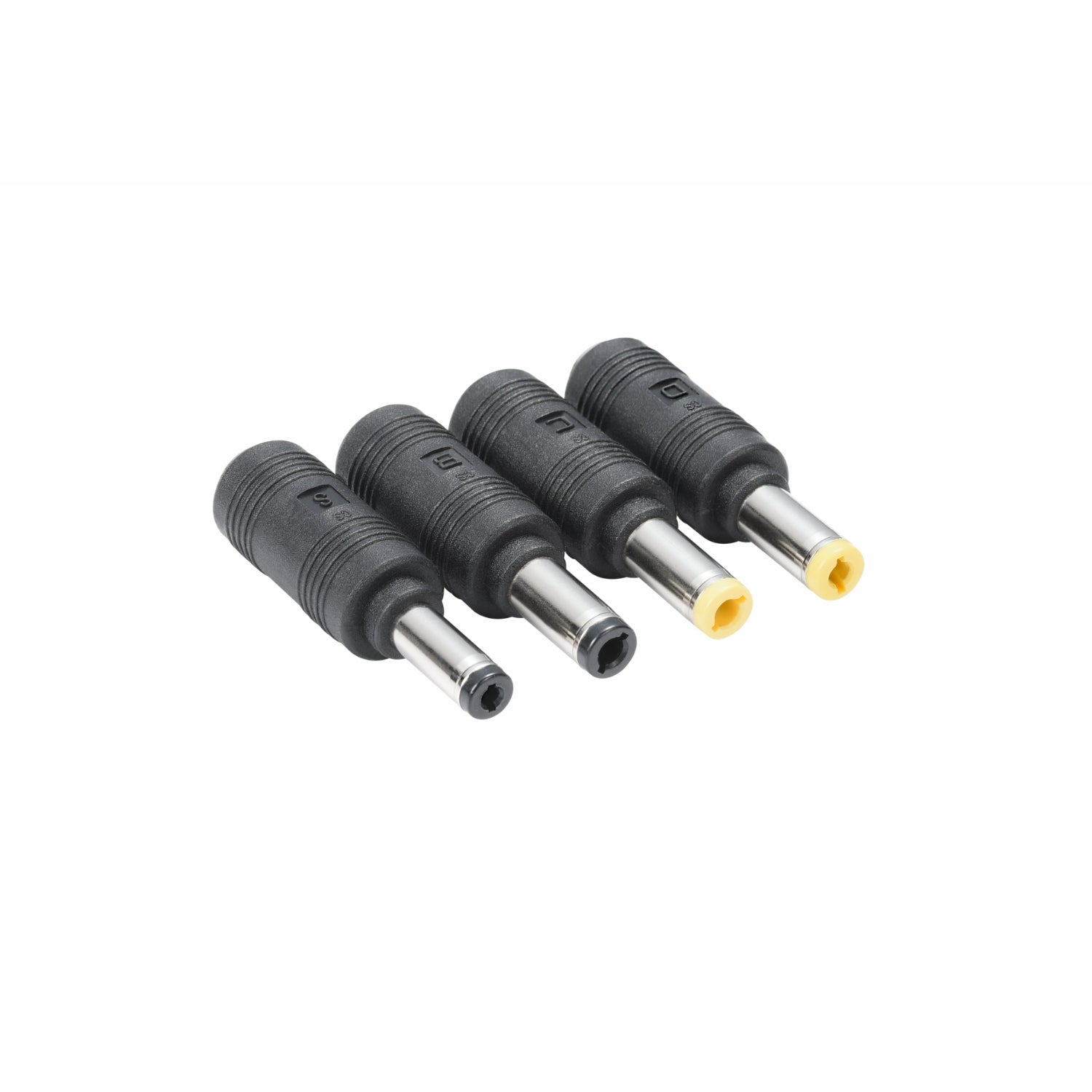

Additional DC tips 2.1 mm and 1.7 mm
Specifications
| Power |
|---|
| Output power |
36 W |
| Input operation voltage (min) |
12 V |
| Output operation voltage (min) |
12 V |
| Performance |
|---|
| LED indicators |
Yes |
| Battery |
|---|
| Battery technology |
Lithium-Ion (Li-Ion) |
| Battery recharge time |
9 h |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Form factor |
Compact |
| Product colour |
White |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 50 °C |
| Technical details |
|---|
| Sustainability certificates |
Green Premium |
| Weight & dimensions |
|---|
| Weight |
300 g |
| Width |
99 mm |
| Height |
25 mm |
| Depth |
109 mm |
