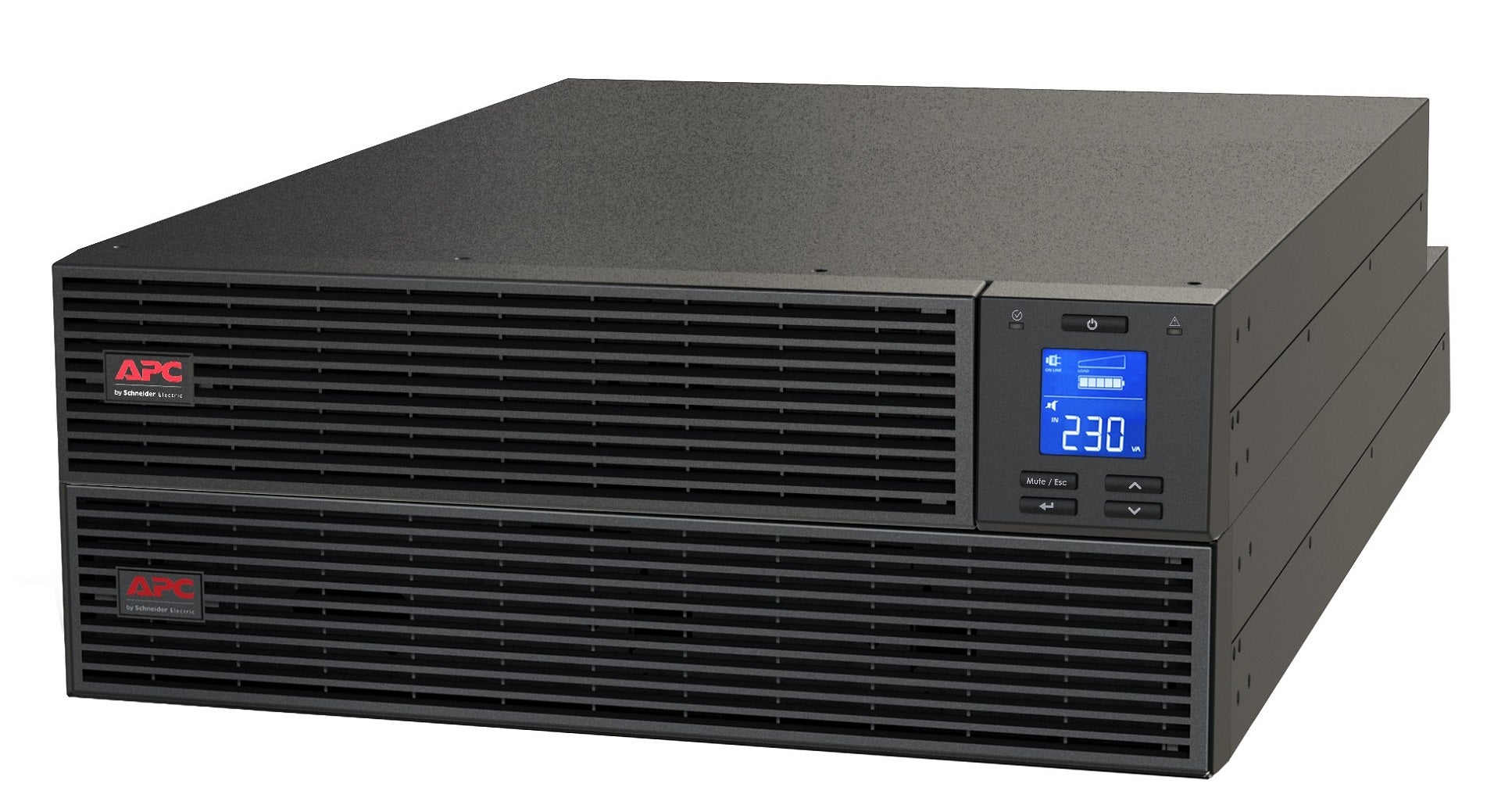

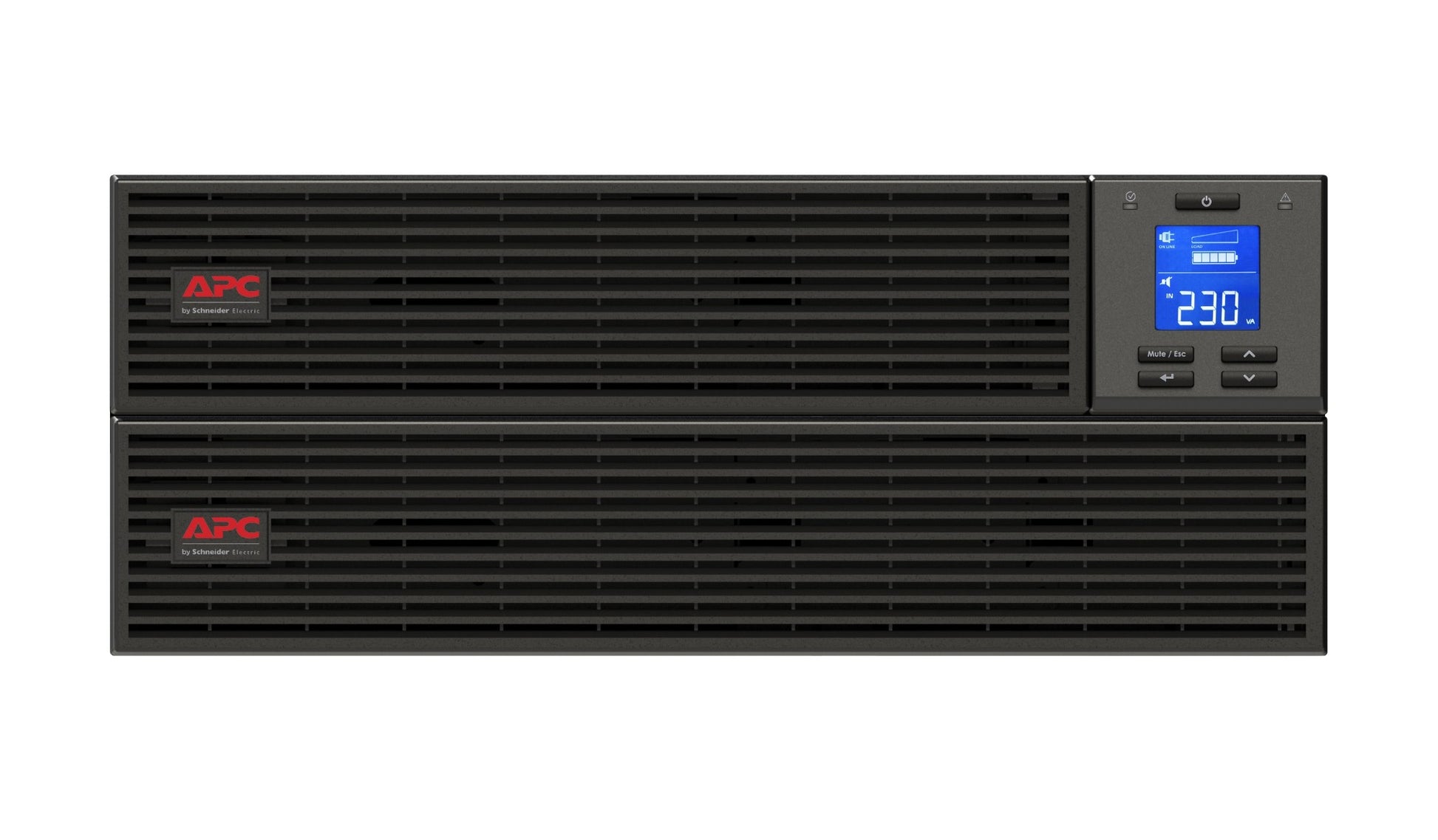

APC SRV 10kVA 10000W Online UPS (10KRIRK)

When the power cuts out, the APC SRV keeps your desktop, NAS or router running at up to 10000W — long enough to save work and shut down safely.

APC Easy UPS SRV RM 10000VA 230V ,with RailKit, External Battery Pack.

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

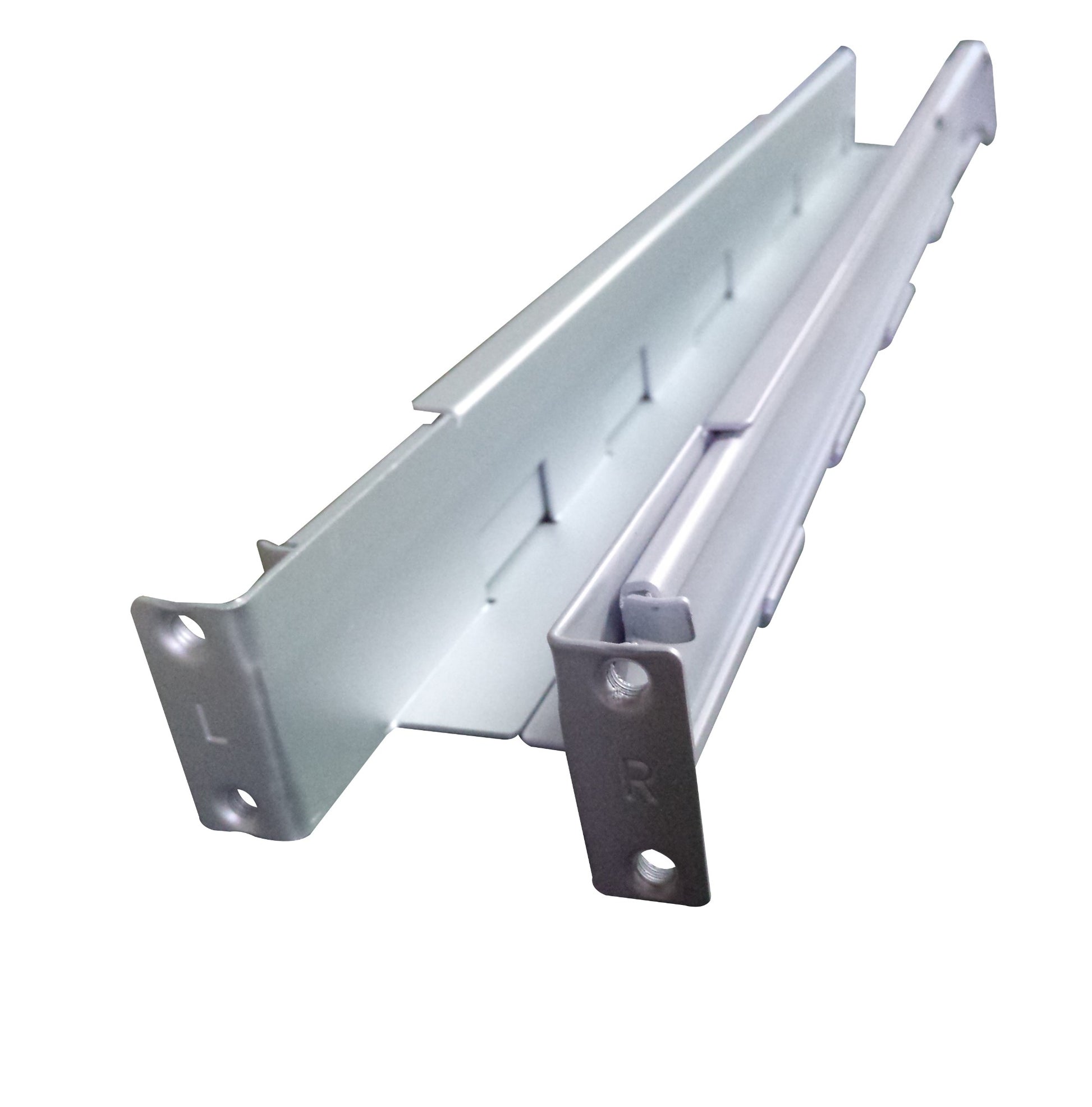

Includes: CD with software, Rack Mounting support rails, User Manual.

Specifications

Power
Output power	10000 W
Input operation voltage (min)	220 V
Input operation voltage (max)	240 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	10 kVA
ECO mode	Yes
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Auto-restart	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Input frequency	40/70 Hz

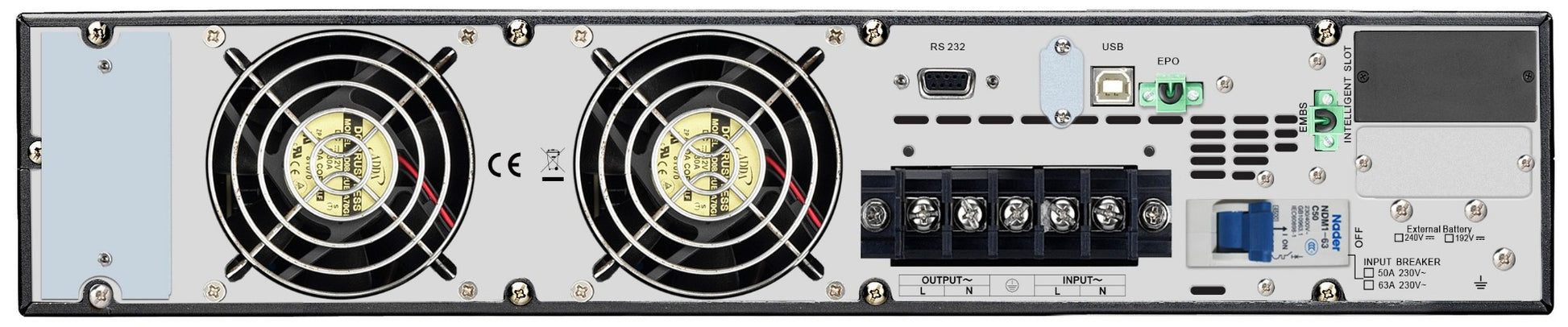

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
SmartSlot	Yes
AC outlet types	Hard Wire 3-wire (1P + N + E)
Serial ports quantity	1
SmartConnect port	No
Battery
Automatic battery test	Yes
Design
Form factor	Rackmount
Certification	REACH
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 14763.6 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging content
Rack mount kit	Yes
Manual	Yes
Management card included	No
Weight & dimensions
Weight	68 kg
Width	438 mm
Height	173 mm
Depth	710 mm
Other features
Input connection type	HardWire 3-wire
Nominal output voltage	230 V
Nominal input voltage	230 V

Downloads

• Datasheet (PDF)
