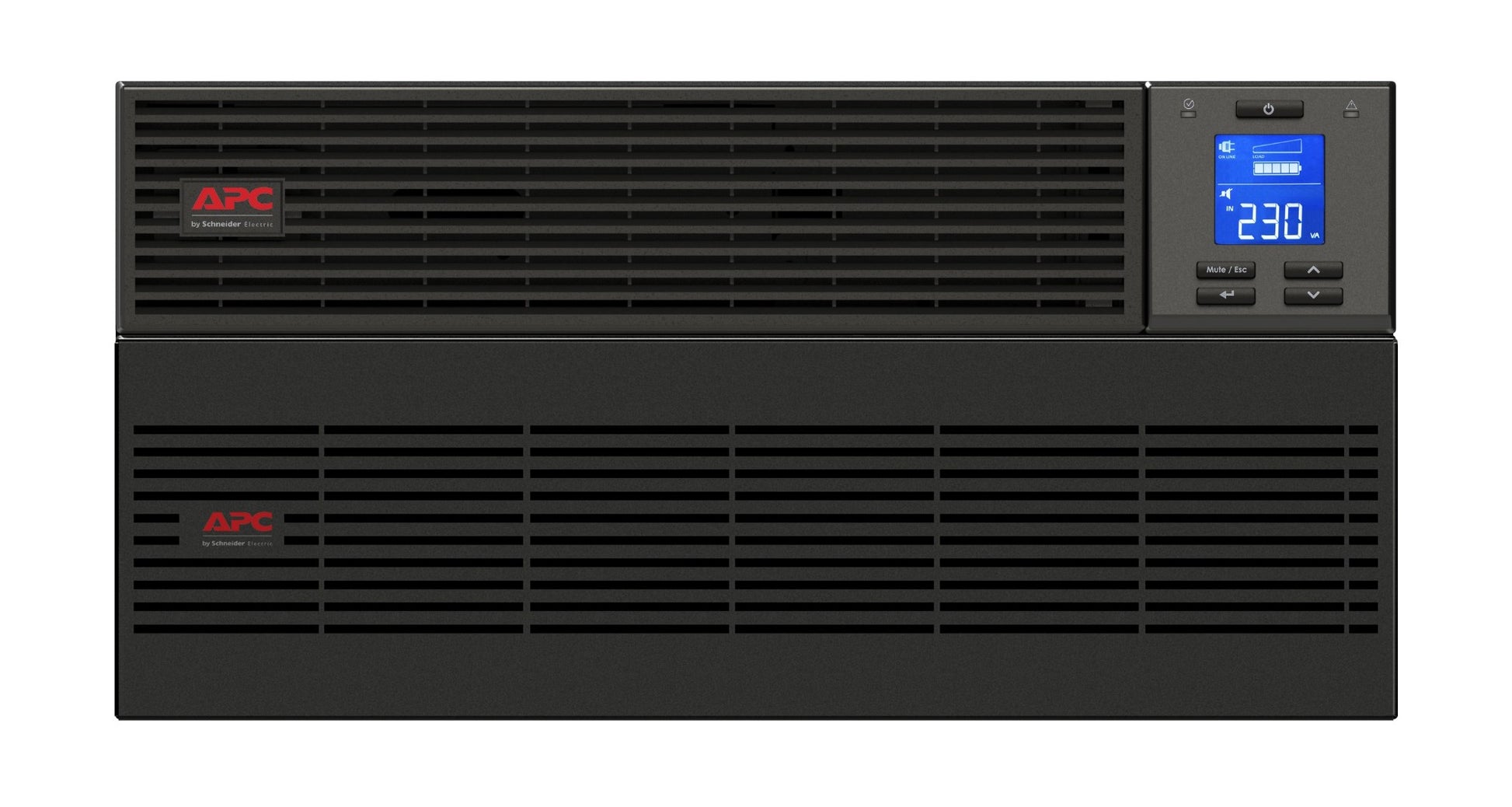

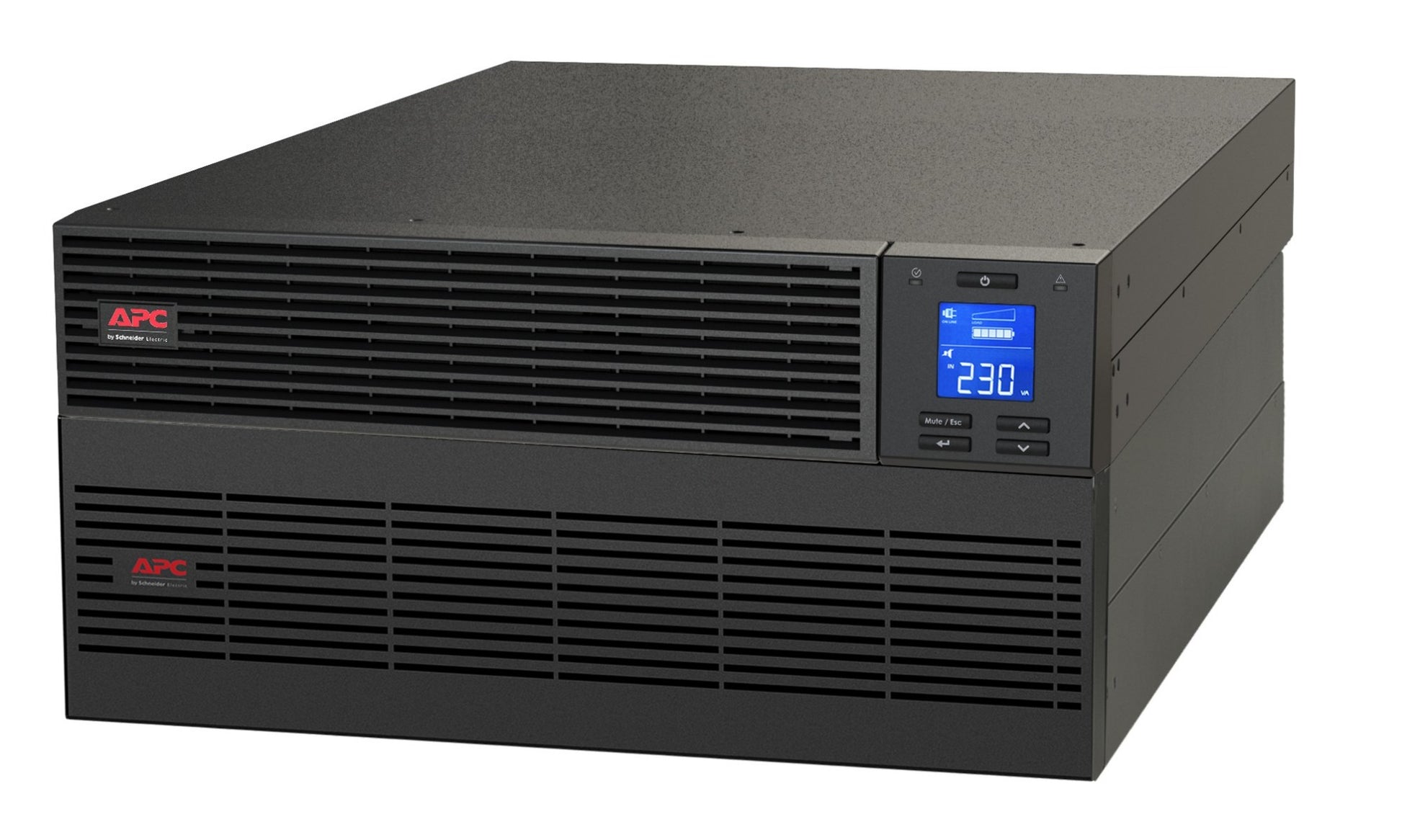

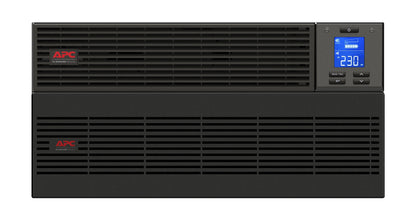

APC SRV 10kVA 10000W Online UPS (0KRILRK)

When the power cuts out, the APC SRV keeps your desktop, NAS or router running at up to 10000W — long enough to save work and shut down safely.

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

Includes: CD with software, USB cable, User Manual.

Specifications

Power
Output power	10000 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	600 J
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	10 kVA
ECO mode	Yes
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Auto-restart	Yes
LED indicators	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Input frequency	40/70 Hz

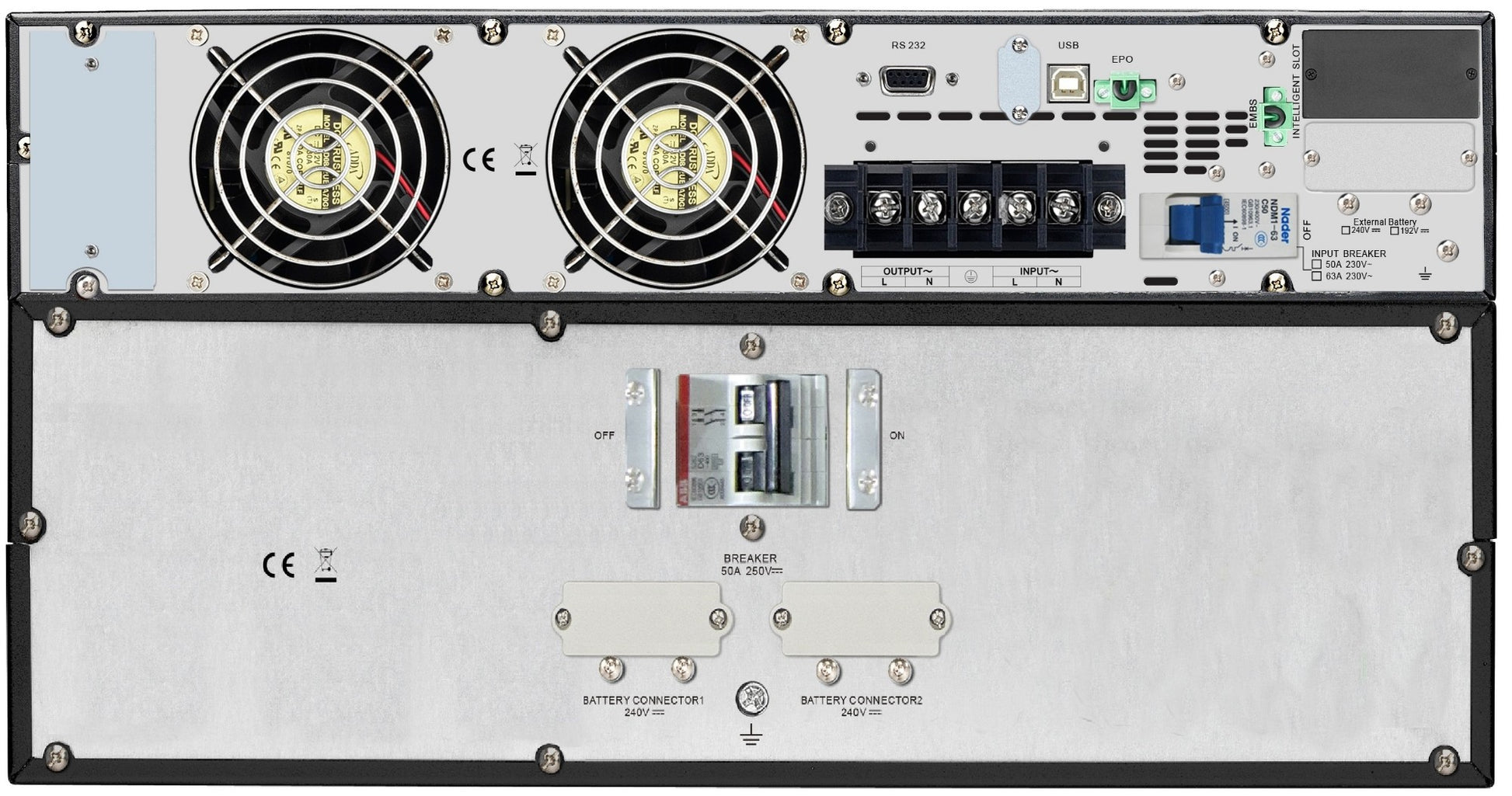

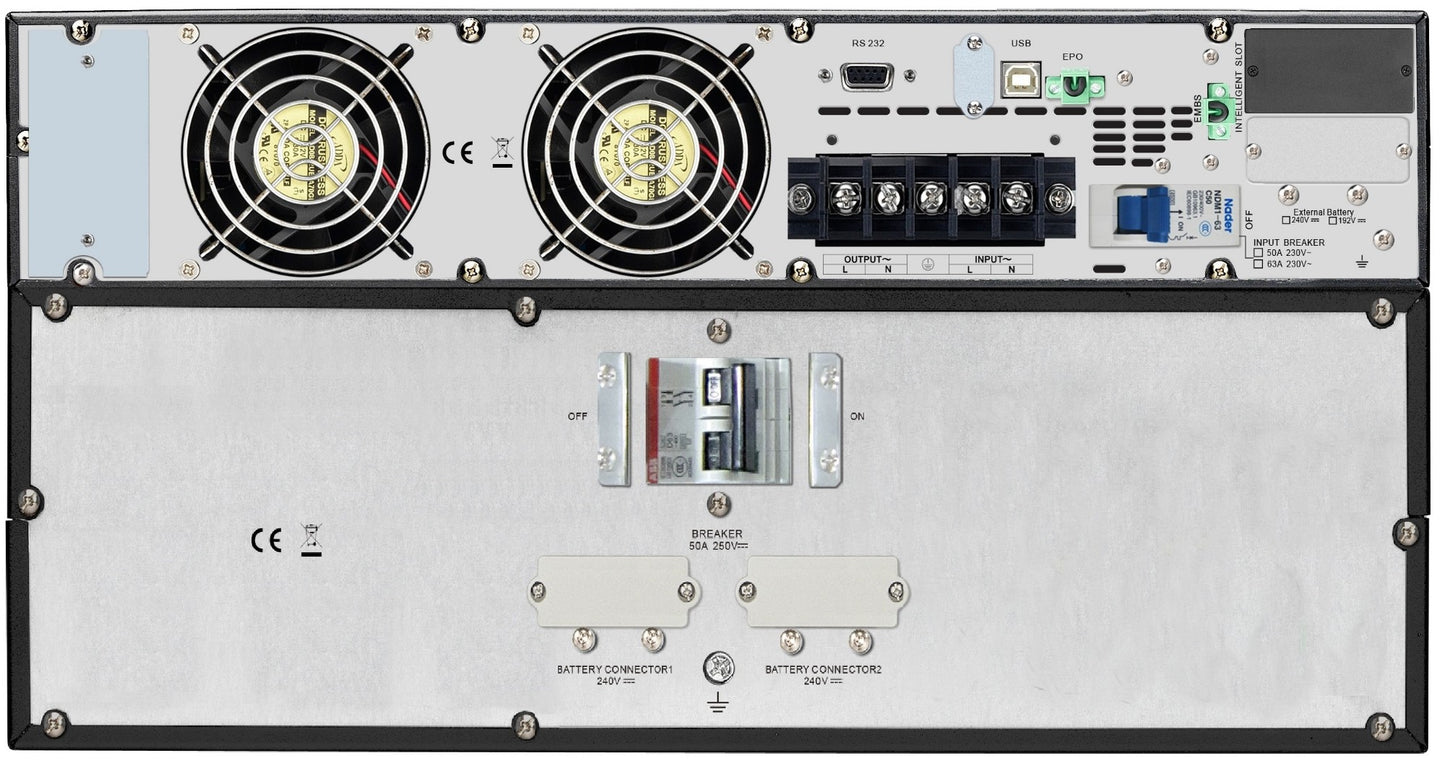

Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
SmartSlot	Yes
AC outlet types	Hard Wire 3-wire (1P + N + E)
SmartConnect port	No
Battery
Hot-swap battery	Yes
Automatic battery test	Yes
Design
Rack capacity	5U
Form factor	Rackmount
Product colour	Black
Certification	CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 14763 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging content
Cables included	USB cable
Manual	Yes
Management card included	No
Weight & dimensions
Weight	78 kg
Width	438 mm
Package weight	79 kg
Height	220 mm
Depth	615 mm
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V

Downloads

• Datasheet (PDF)
