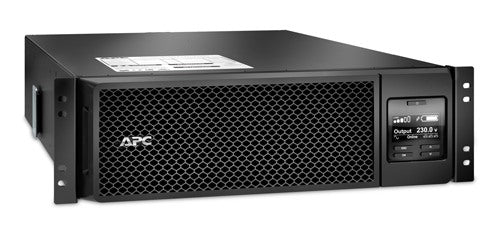

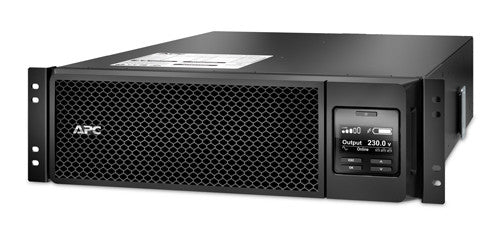

APC Smart-UPS 5kVA Online Rackmount UPS
APC Smart-UPS 5kVA Online Rackmount UPS
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your rack running — long enough to save work and shut down safely.
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
| Power | |
|---|---|
| Output power | 4500 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 275 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 480 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 5 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Pure sine |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Temperature voltage compensation | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 45/65 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Cabling technology | 10/100Base-T |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Power plug | Terminal |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 1 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Mini Tower |
| Product colour | Black |
| Certification | CE, DNV, EAC, RCM, VDE, REACH |

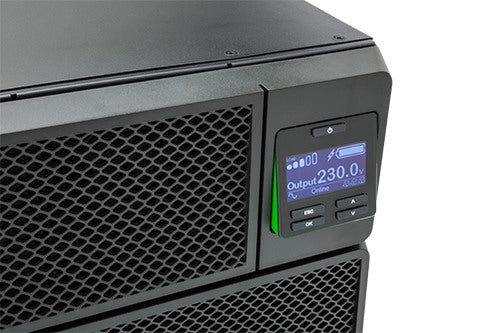

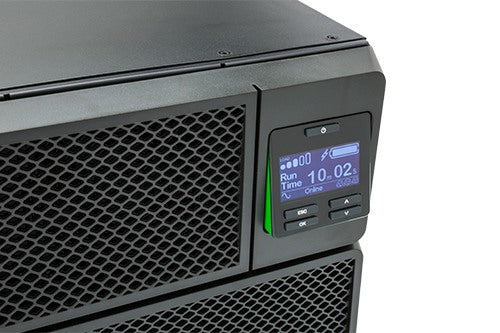

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 46266.7 |
| Compliance certificates | RoHS |
| Packaging content | |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Weight & dimensions | |
| Package width | 610 mm |
| Package depth | 960 mm |
| Package height | 330 mm |
| Weight | 54.4 kg |
| Width | 432 mm |
| Package weight | 66.9 kg |
| Height | 130 mm |
| Depth | 719 mm |
