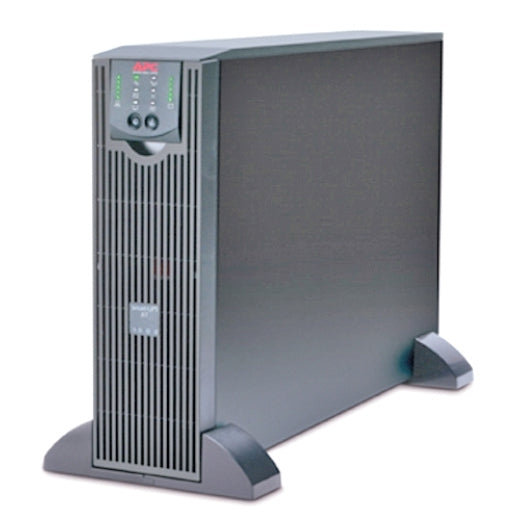

APC Smart-UPS 3kVA Online UPS (XLIX554)
APC Smart-UPS 3kVA Online UPS (XLIX554)
Regular price
£2,503.14 GBP
Regular price
Sale price
£2,503.14 GBP
Taxes included.
Quantity
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your desktop, NAS or router running — long enough to save work and shut down safely.
High density, double-conversion on-line power protection with scalable runtime.
Specifications
| Power | |
|---|---|
| Output power | 2100 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 480 J |
| Efficiency | 92% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Ports & interfaces | |
| Cable length | 2.4 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| SmartSlot | Yes |
| AC outlets quantity | 13 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler, IEC Jumpers |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Noise level | 55 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 2.5 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Replacement battery cartridge | APCRBC140 |
| Design | |
| Form factor | Rackmount/Tower |
| Certification | EN/IEC 62040-1-1, EN/IEC 62040-2, GOST, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4310.05 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Package width | 603 mm |
| Package depth | 980 mm |
| Package height | 347 mm |
| Weight | 54.7 kg |
| Width | 130 mm |
| Package weight | 63.6 kg |
| Height | 432 mm |
| Depth | 660 mm |
| Packaging data | |
| Cables included | RS-232 |
| Manual | Yes |
