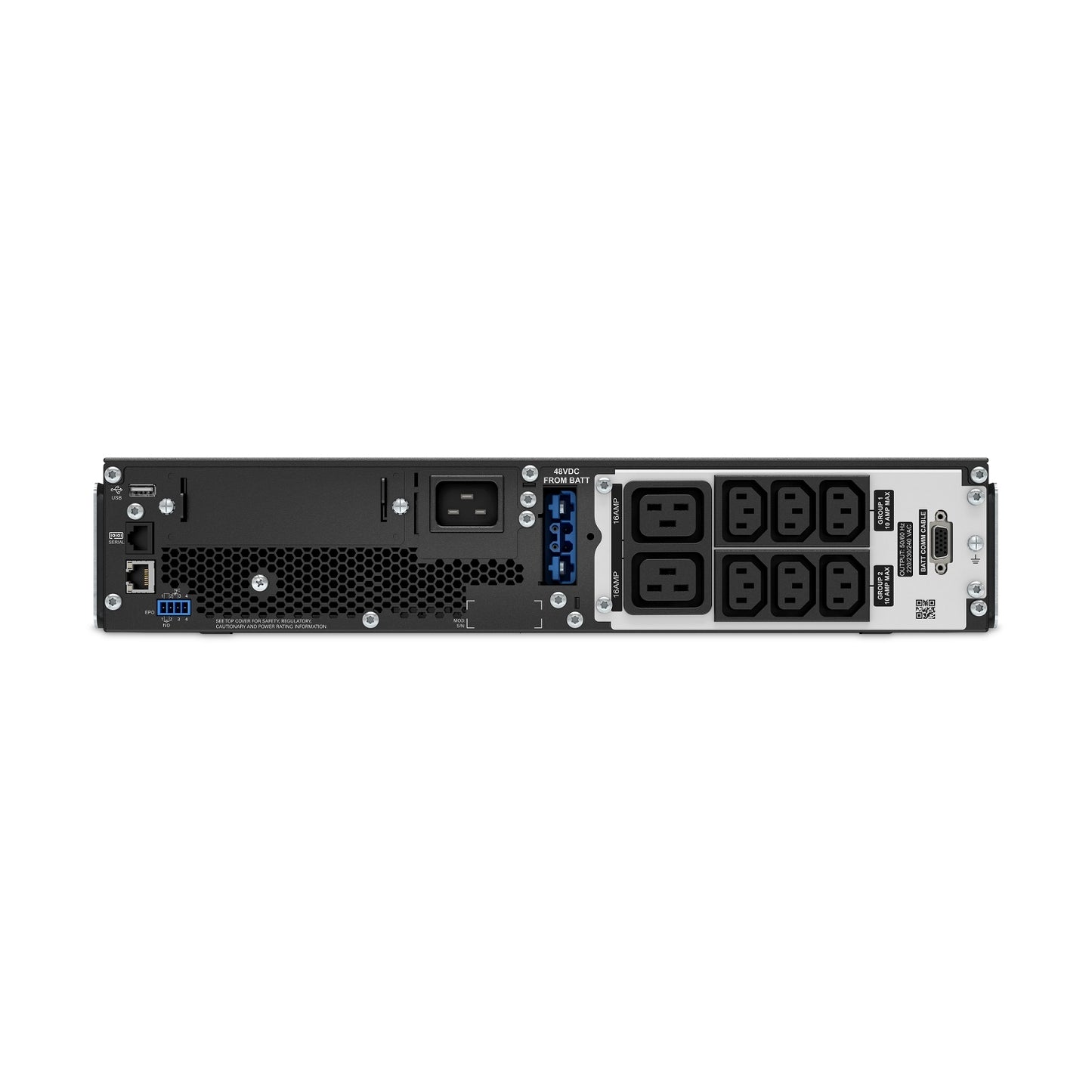

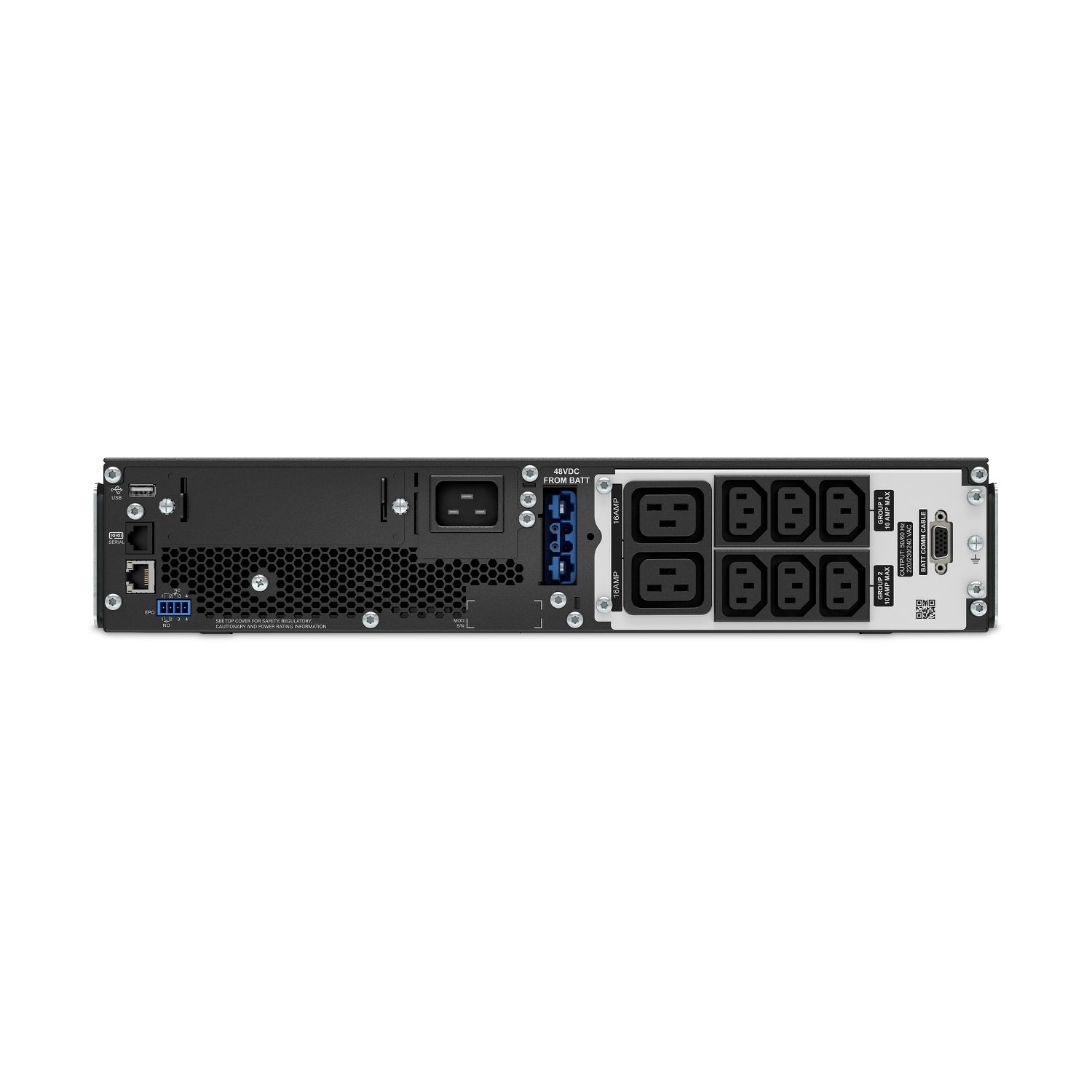

APC Smart-UPS 3kVA Online Rackmount UPS
APC Smart-UPS 3kVA Online Rackmount UPS
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your rack running — long enough to save work and shut down safely.
This APC Smart-UPS SRT3000UXI-LI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
Specifications
| Power | |
|---|---|
| Output power | 2700 W |
| Input operation voltage (min) | 50 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Crest factor | 3:1 |
| Output power capacity | 3 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Ports & interfaces | |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Number of output IEC jumpers | 8 |
| Design | |
| Rack capacity | 2U |
| Form factor | Compact |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 4848.09 |
| Weight & dimensions | |
| Weight | 22 kg |
| Width | 85 mm |
| Height | 432 mm |
| Depth | 508 mm |
