APC

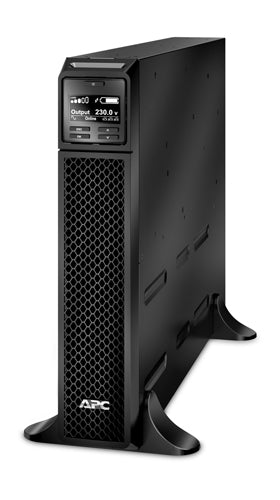

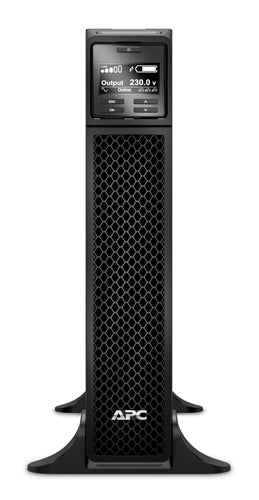

APC Smart-UPS 2200VA Online UPS

£1,872.09 GBP

Sale Sold out

Taxes included.

Condition New

When the power cuts out, the APC Smart-UPS keeps your desktop, NAS or router running — long enough to save work and shut down safely.

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

Power
Output power	1980 W
Input operation voltage (min)	100 V
Input operation voltage (max)	275 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Surge energy rating	340 J
Efficiency	92.2%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	2.2 kVA
Ports & interfaces
Cable length	2.44 m
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
SmartSlot	Yes

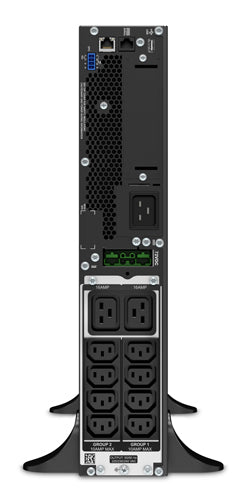

AC outlets quantity	10 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
Number of output IEC jumpers	2
SmartConnect port	No
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Auto-restart	Yes
LED indicators	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Web-based management	Yes
Input frequency	40/70 Hz
Battery
Battery life (max)	5 year(s)
Battery capacity	367 VAh
Number of batteries supported	1
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	3 h

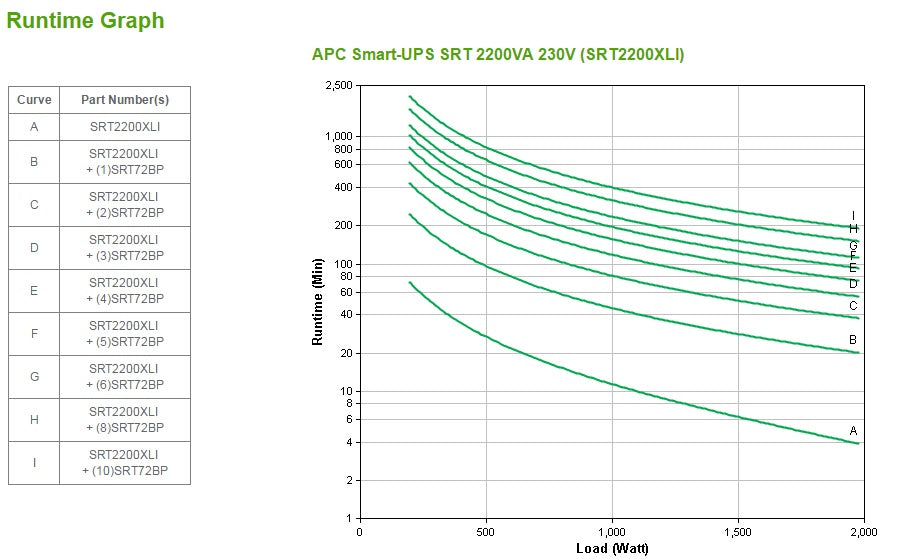

Typical backup time at half load	11.6 min
Typical backup time at full load	3.9 min
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
International Protection (IP) code	IP20
Form factor	Rackmount/Tower
Product colour	Black
Certification	CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	ENERGY STAR, Green Premium
Harmonized System (HS) code	85078000
Total carbon footprint (kg of CO2e)	3634.43
Compliance certificates	RoHS
Packaging data
Packaging content	Power cord Removable support feet
Quick installation guide	Yes
Cables included	USB cable
Bracket	Yes
Software CD	Yes
Package width	599 mm
Package depth	810 mm
Package height	246 mm
Package weight	30.8 kg
Management card included	No
Weight & dimensions
Weight	25 kg
Width	85 mm
Height	432 mm
Depth	584 mm
Logistics data
Products per pallet	12 pc(s)
Other features
Interface	SmartSlot
Nominal output voltage	230 V
Nominal input voltage	230 V
