APC Smart-UPS 2200VA Line-Interactive Rackmount UPS (UXINCLI)
APC Smart-UPS 2200VA Line-Interactive Rackmount UPS (UXINCLI)
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your rack running — long enough to save work and shut down safely.

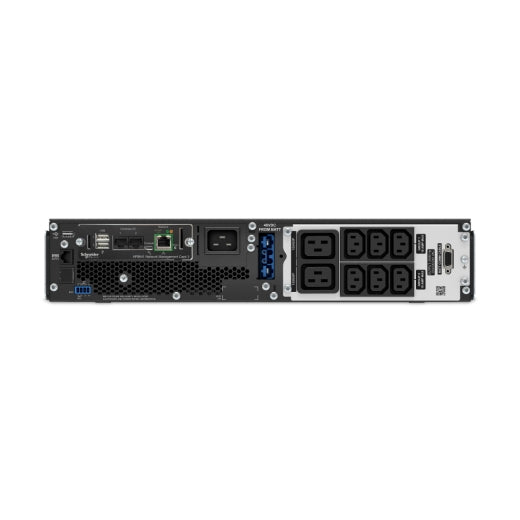

This APC Smart-UPS SRT2200UXI-NCLI is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty, and has to be used with an external Lithium-ion battery sold separately.
Specifications
| Power | |
|---|---|
| Output power | 1980 W |
| Input operation voltage (min) | 50 V |
| Input operation voltage (max) | 230 V |
| Output operation voltage (max) | 230 V |
| Surge energy rating | 432 J |
| Output power capacity | 2.2 kVA |
| Ports & interfaces | |
| Cable length | 1.8 m |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 8 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Noise level | 50 dB |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Heat dissipation | 317 BTU/h |
| Package type | Box |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount |
| Product colour | Black |
| Certification | CE, EAC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 3558.01 |
| Weight & dimensions | |
| Package width | 749 mm |
| Package depth | 594 mm |
| Package height | 246 mm |
| Weight | 22 kg |
| Width | 85 mm |
| Package weight | 29.6 kg |
| Height | 432 mm |
| Depth | 508 mm |
