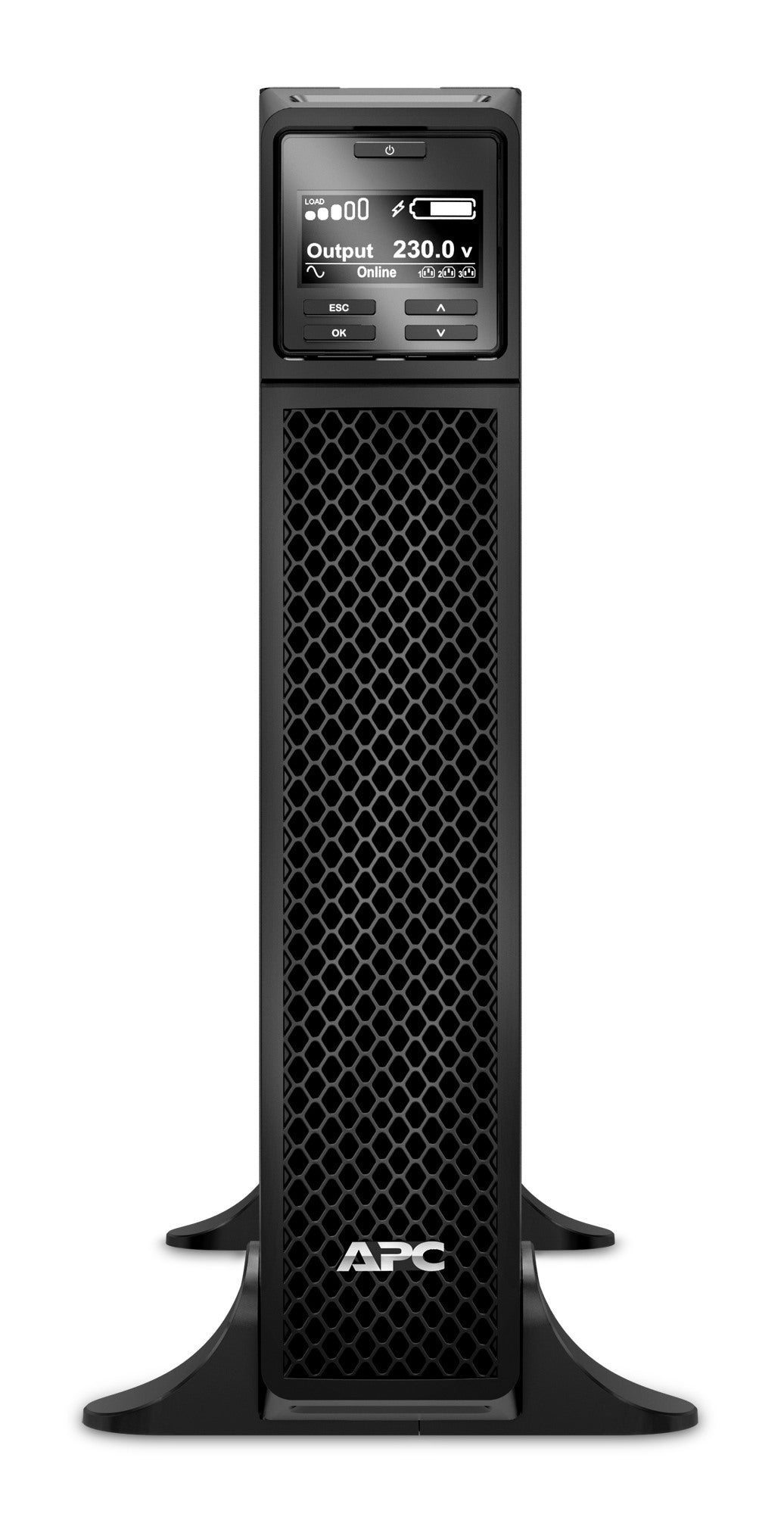

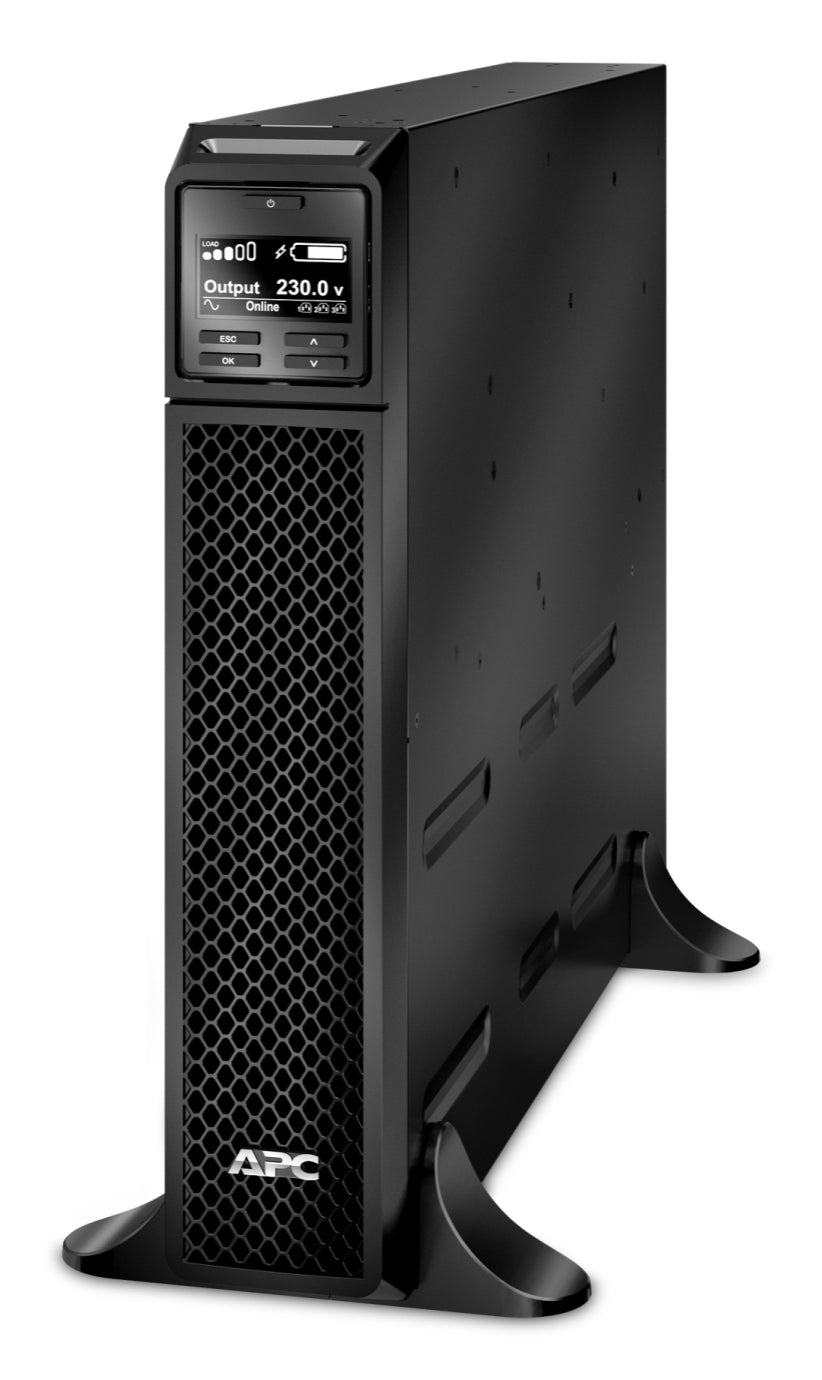

APC Smart-UPS 1000VA 1000W Online UPS
APC Smart-UPS 1000VA 1000W Online UPS
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your desktop, NAS or router running at up to 1000W — long enough to save work and shut down safely.

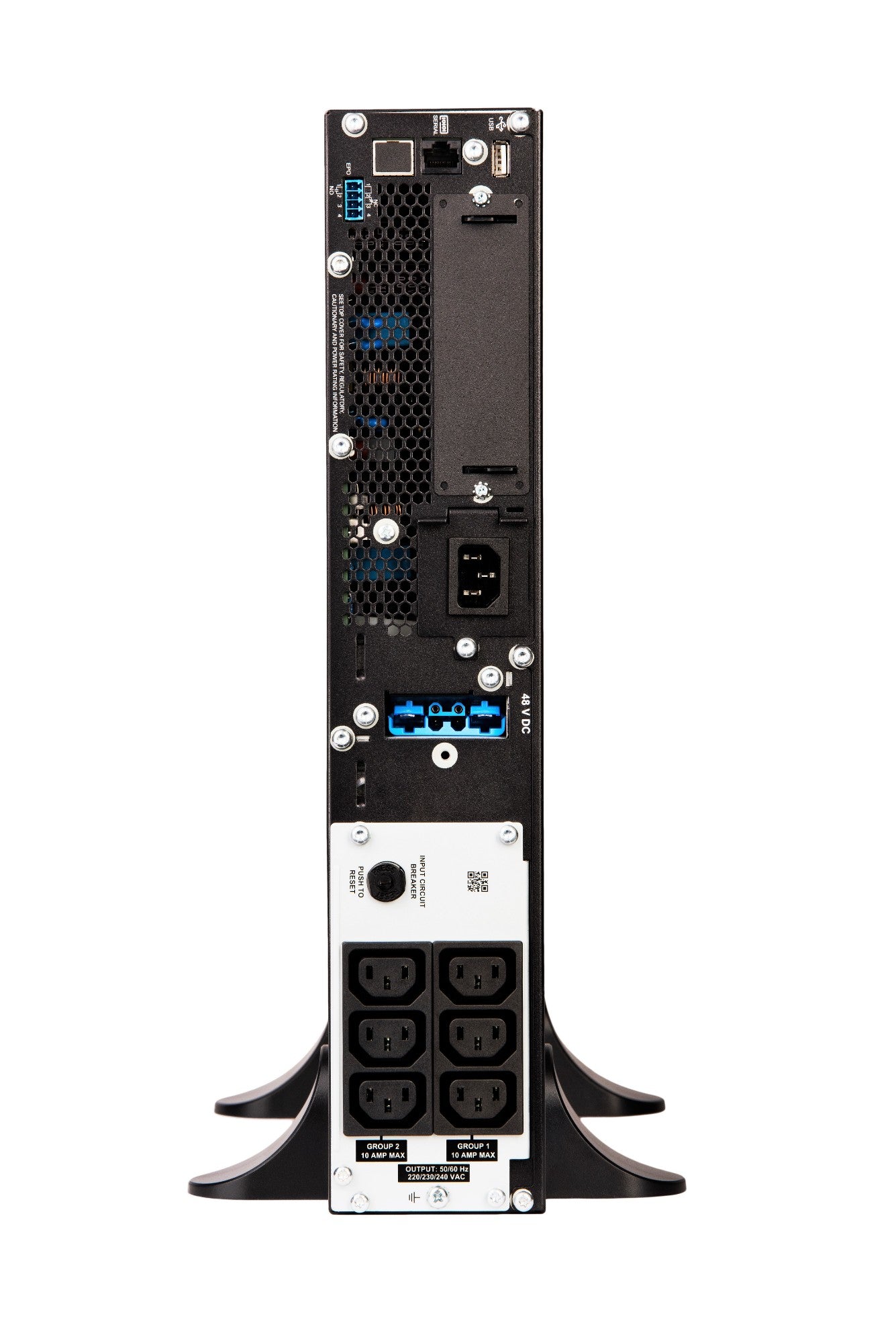

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with 1x IEC 320 C14 input and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately.
Specifications
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 240 V |
| Output operation voltage (min) | 50 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| ECO mode | Yes |
| Ports & interfaces | |
| Cable length | 1.8 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 12 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Serial ports quantity | 1 |
| SmartConnect port | No |
| Performance | |
| Audible alarm modes | Alarm when on battery, Battery replacement |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Auto-restart | Yes |
| LED indicators | Yes |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery voltage | 48 V |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |

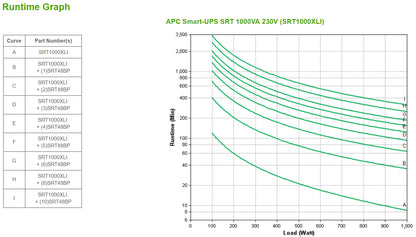

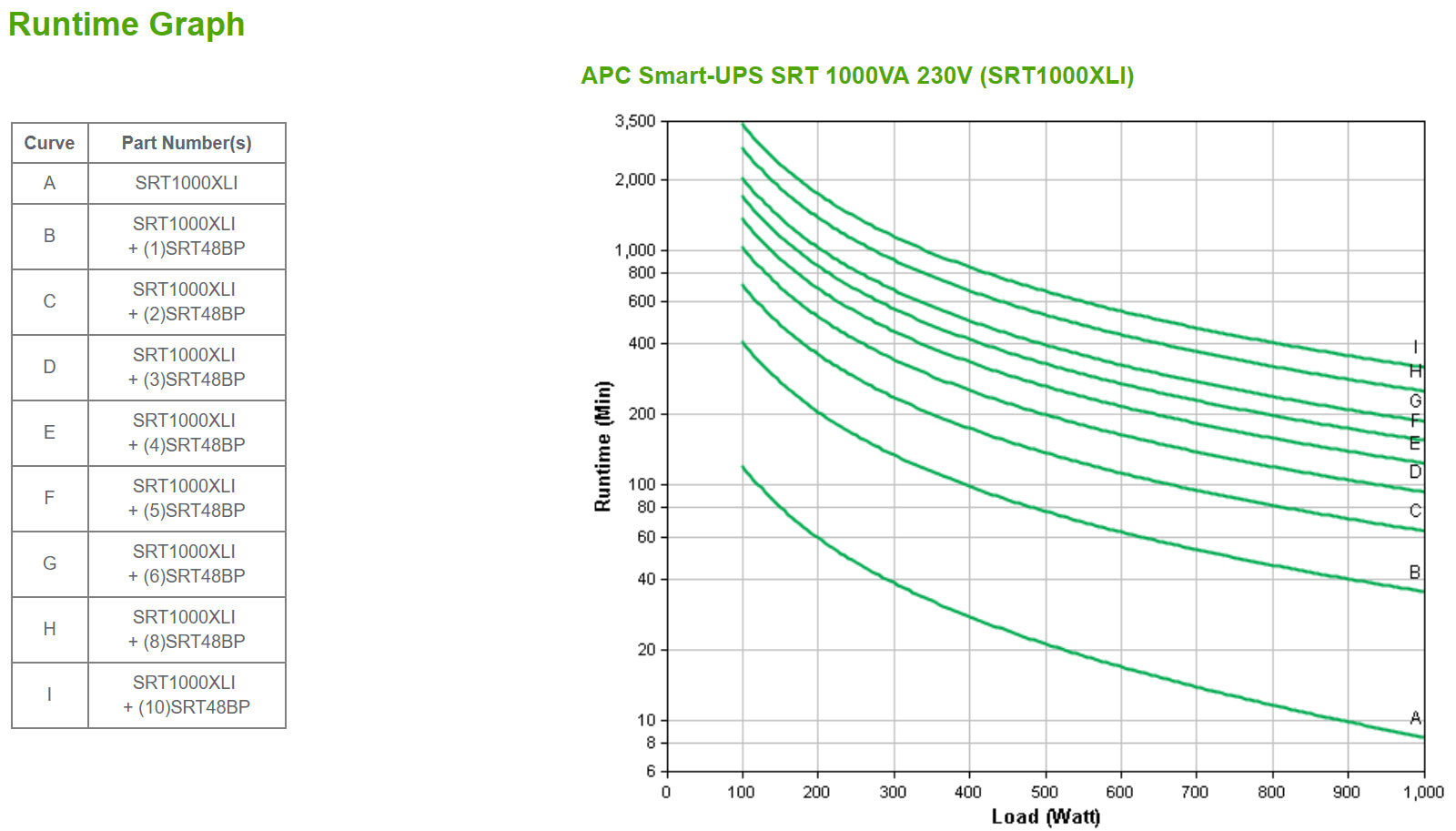

| Typical backup time at half load | 21 min |
| Typical backup time at full load | 8 min |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Battery weight | 29.6 kg |
| Design | |
| International Protection (IP) code | IP20 |
| Rack capacity | 2U |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Cooling type | Active |
| Certification | CE, EAC |
| Built-in fan | Yes |

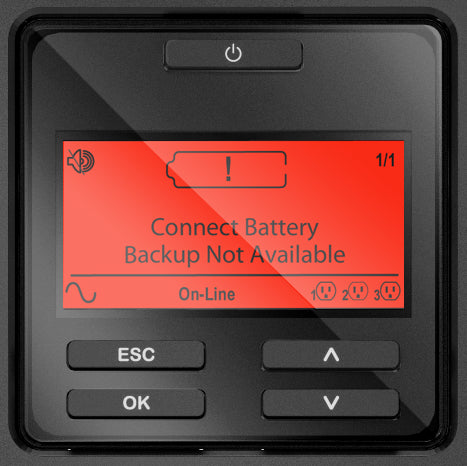

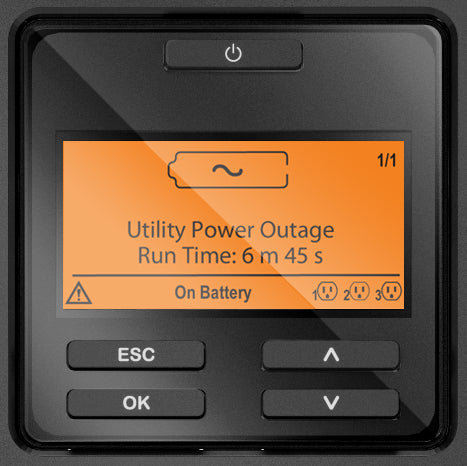

| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | Green Premium |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1839.69 |
| Compliance certificates | CE |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | USB cable |
| Management card included | No |
| Weight & dimensions | |
| Weight | 20.5 kg |
| Width | 85 mm |
| Height | 432 mm |
| Depth | 505 mm |
| Battery width | 59.4 cm |
| Battery depth | 74.9 cm |
| Battery height | 24.6 cm |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
