APC Smart-UPS 1000VA 1000W Online Rackmount UPS
APC Smart-UPS 1000VA 1000W Online Rackmount UPS
Couldn't load pickup availability
When the power cuts out, the APC Smart-UPS keeps your rack running at up to 1000W — long enough to save work and shut down safely.

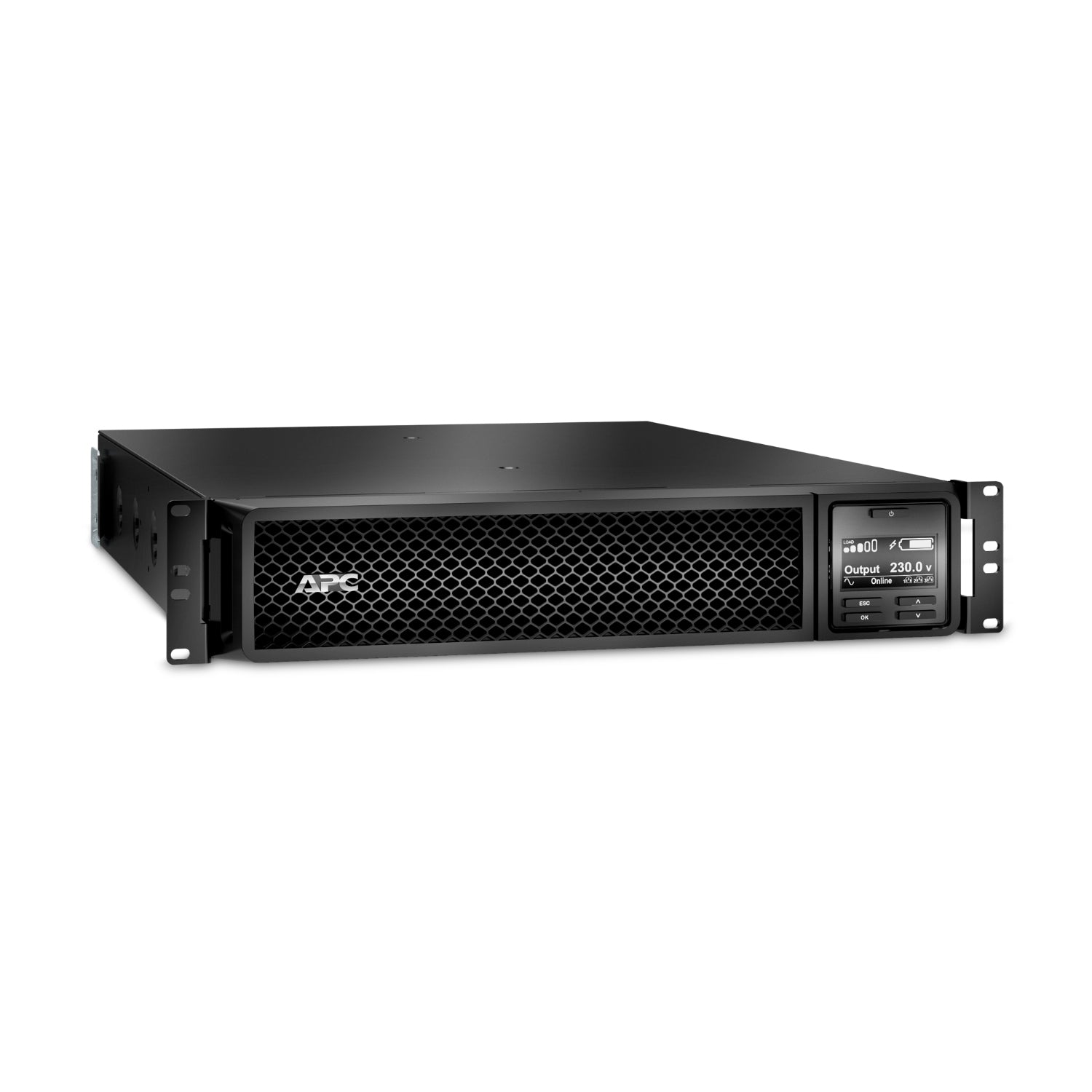

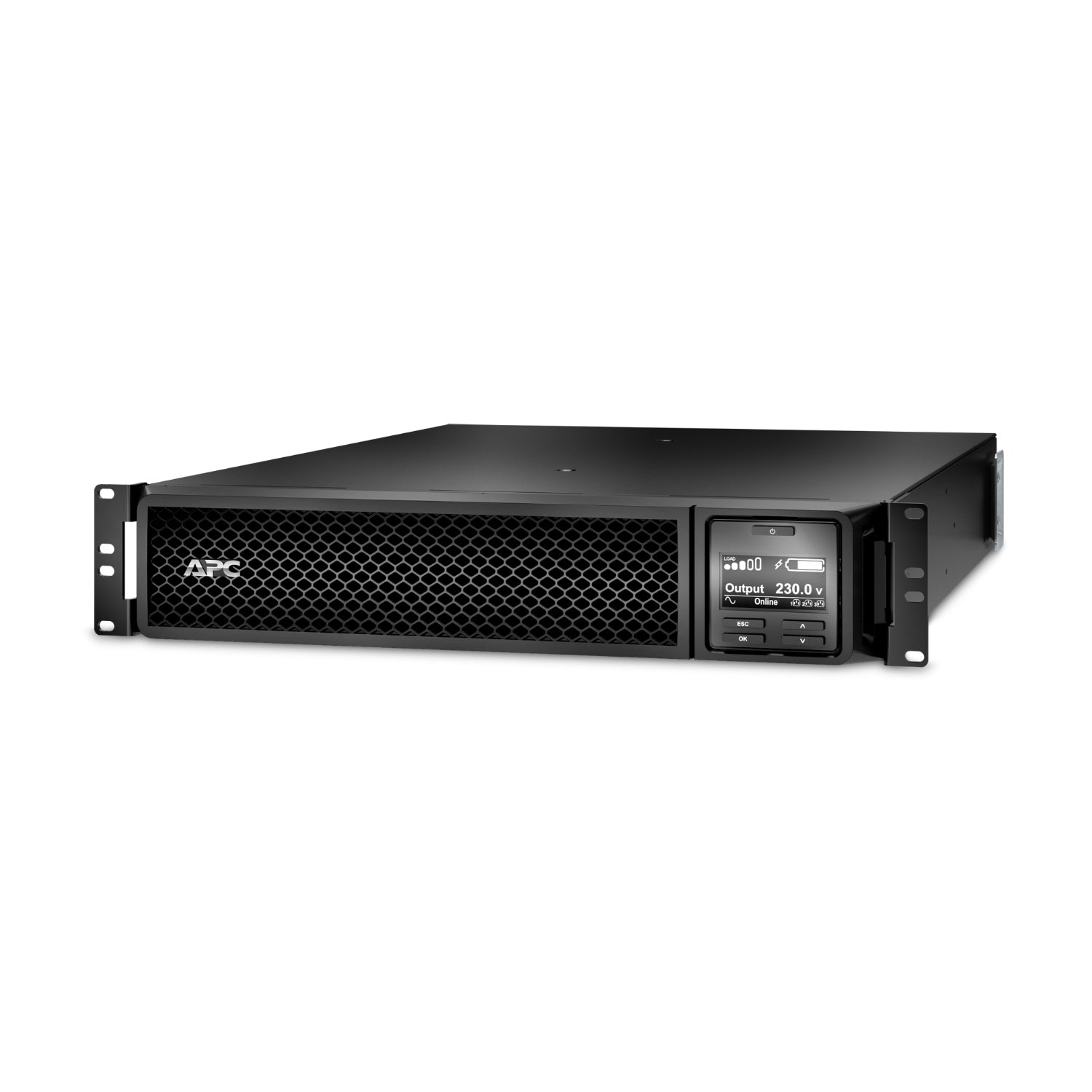

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Specifications
| Power | |
|---|---|
| Output power | 1000 W |
| Input operation voltage (min) | 50 V |
| Input operation voltage (max) | 150 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 432 J |
| Emergency Power Off (EPO) | Yes |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| Ports & interfaces | |
| Cable length | 1.5 m |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| USB 2.0 ports quantity | 1 |
| SmartConnect port | No |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |

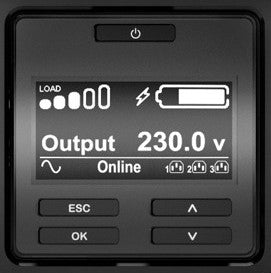

| LED indicators | Status |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 40/70 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Certification | CE, EAC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | Green Premium |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 1843.14 |
| Compliance certificates | RoHS |
| Packaging content | |
| Management card included | No |
| Weight & dimensions | |
| Package width | 594 mm |
| Package depth | 749 mm |
| Package height | 246 mm |
| Weight | 21 kg |
| Width | 432 mm |
| Package weight | 29.6 kg |
| Height | 85 mm |
| Depth | 505 mm |
| Logistics data | |
| Products per pallet | 12 pc(s) |
