APC Rackmount UPS

When the power cuts out, the APC keeps your rack running — long enough to save work and shut down safely.

Extended Runtime

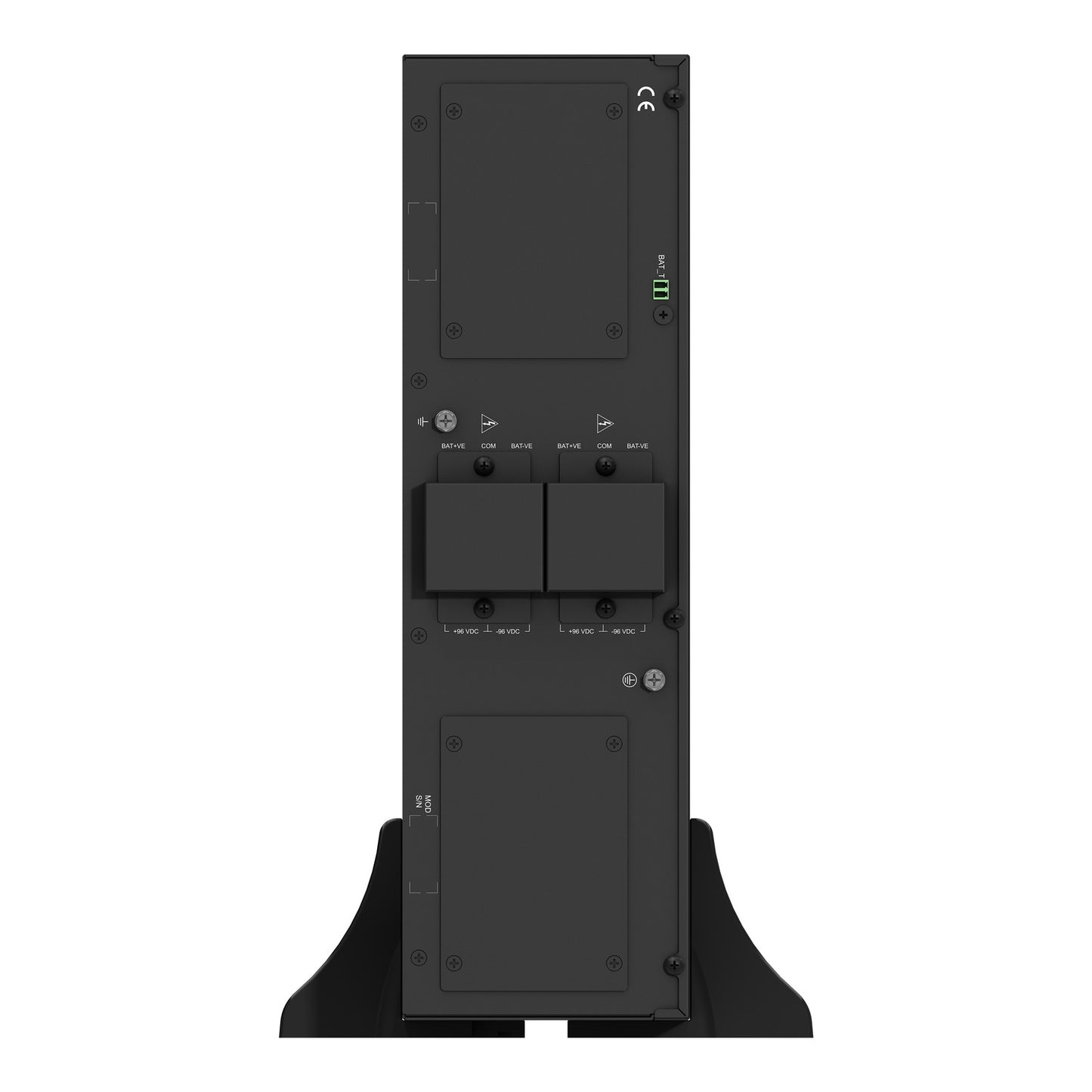

The SRTG192XLBP4 is an external runtime battery module from APC (Schneider Electric), designed as an ideal complement to SRTG models with 5kVA to 10kVA capacity. The module provides reliable, long-term power support for critical IT environments.

Form Factor

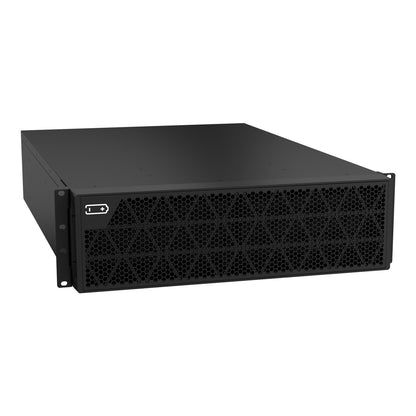

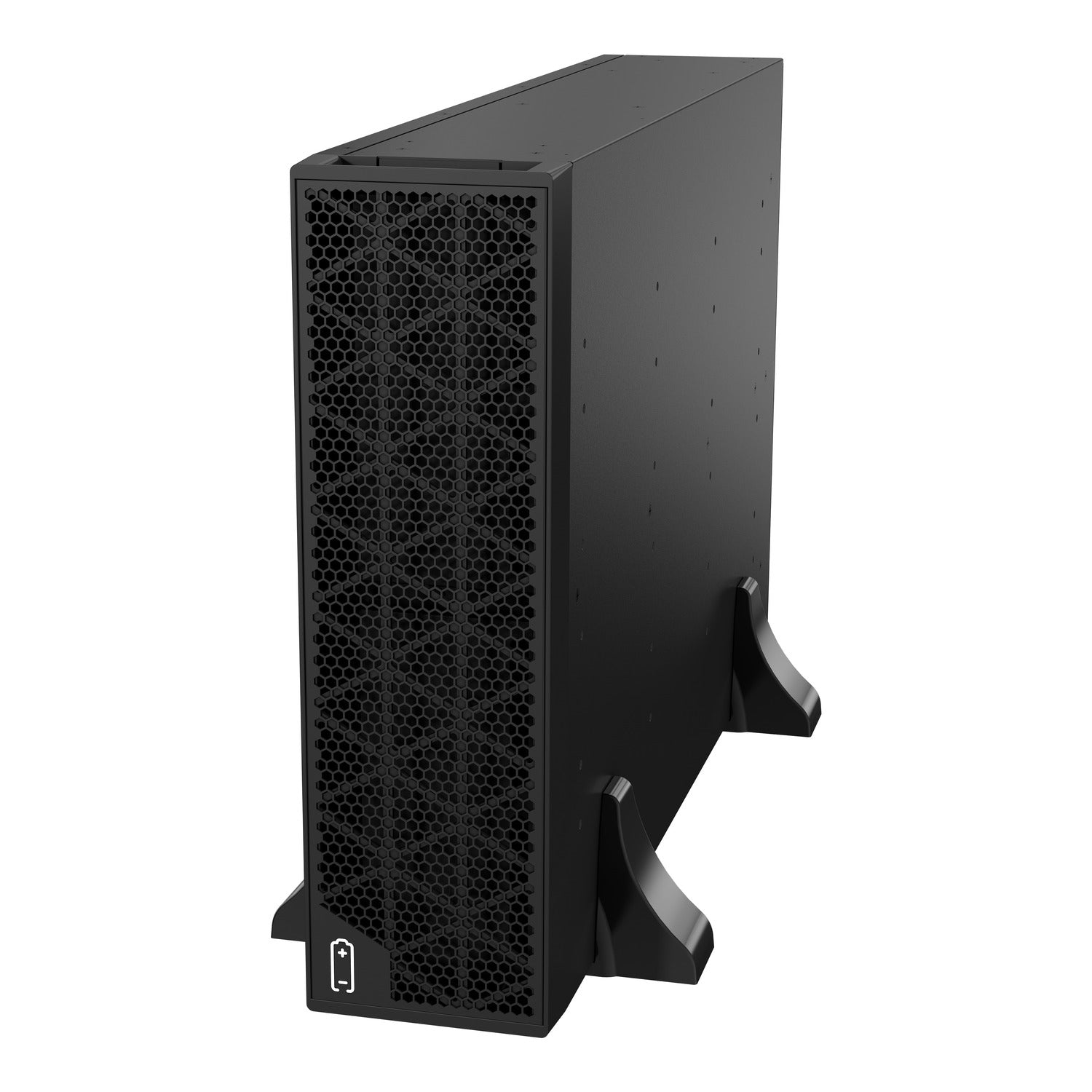

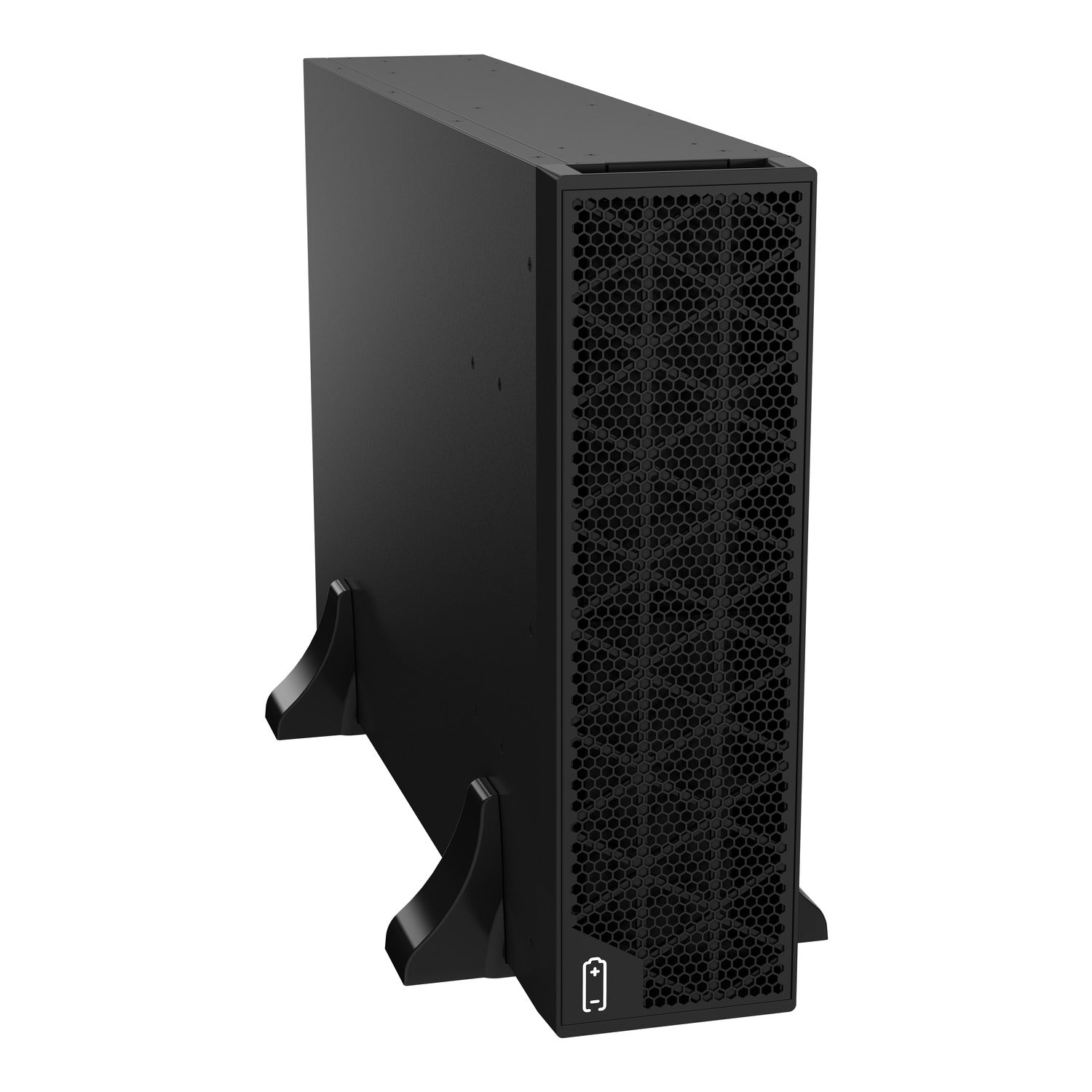

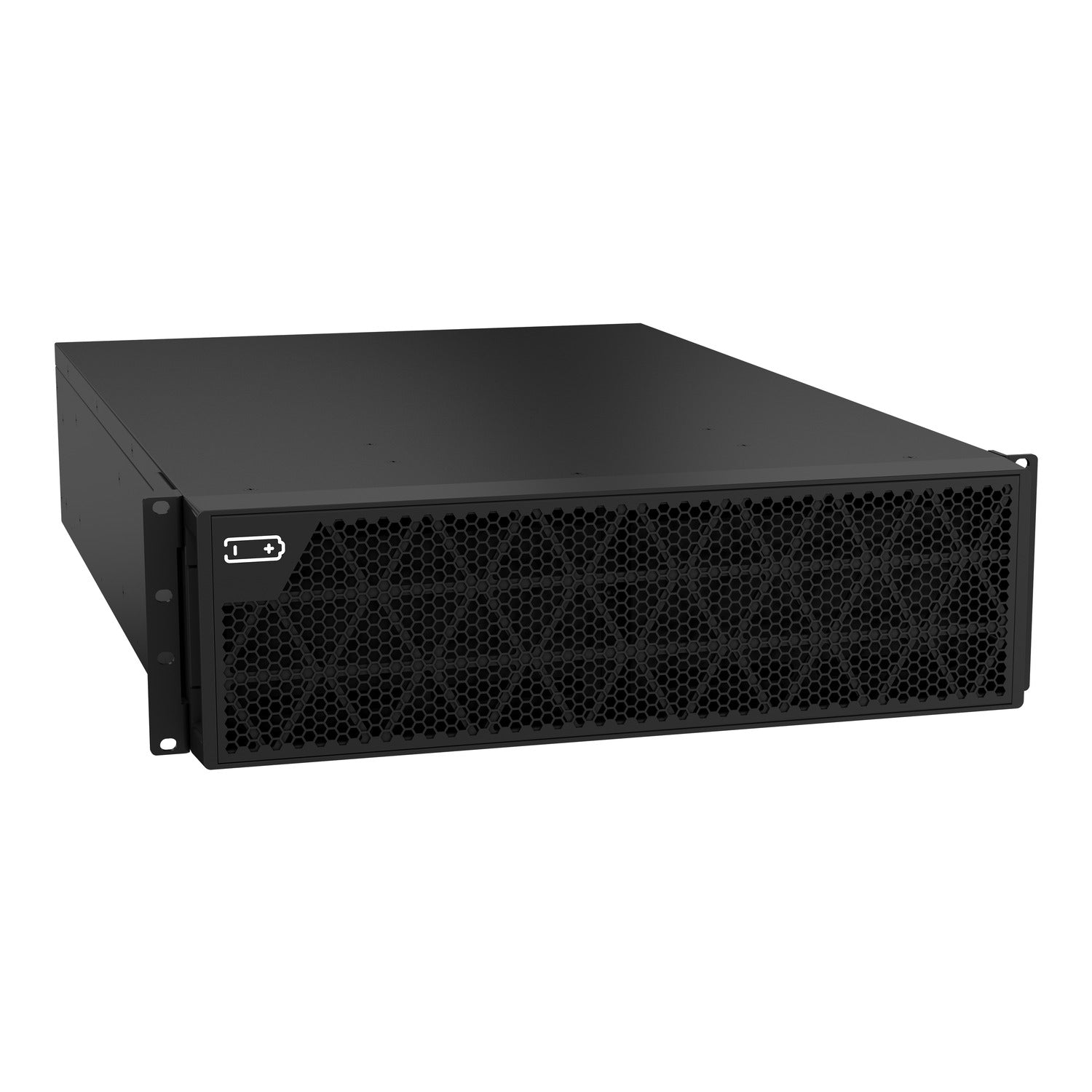

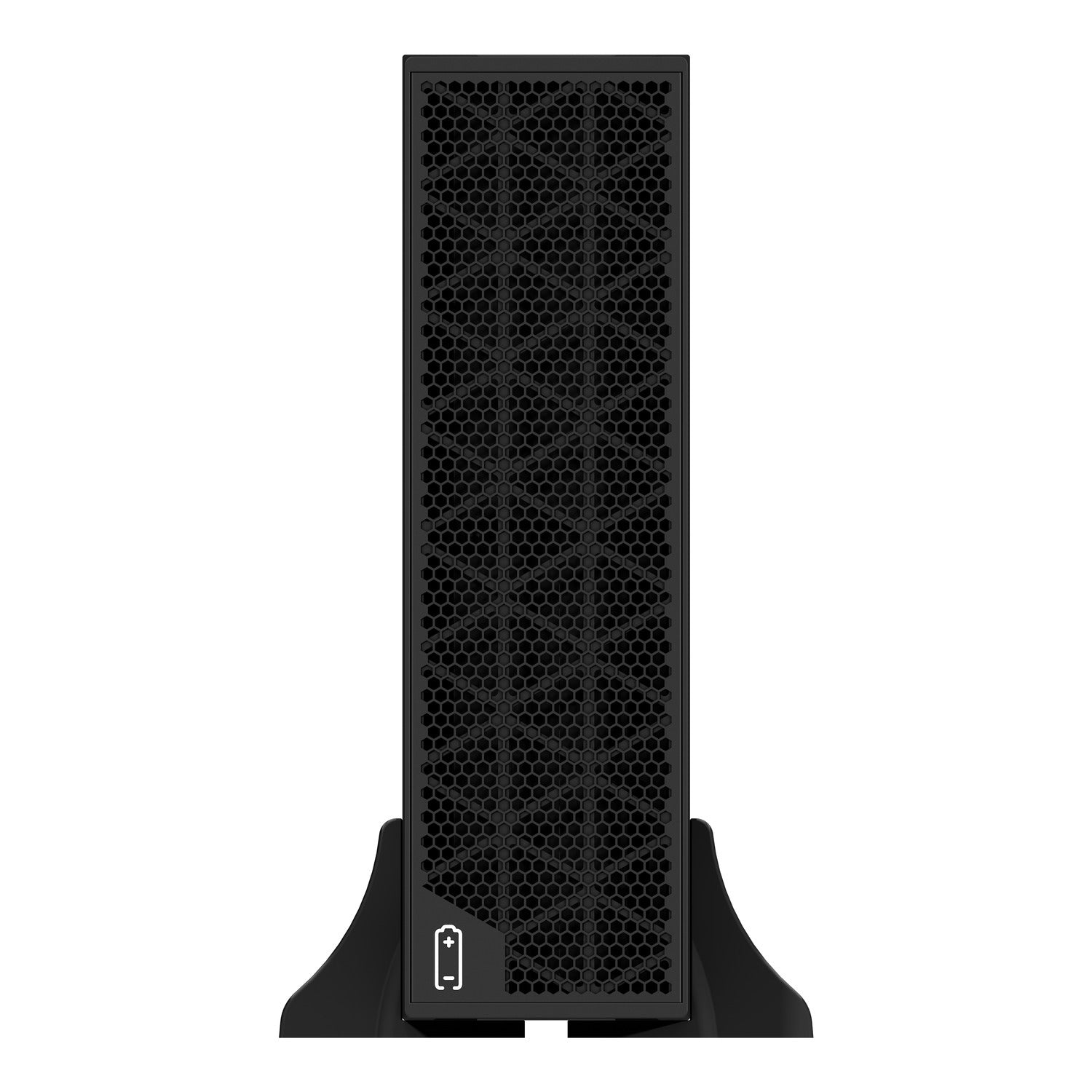

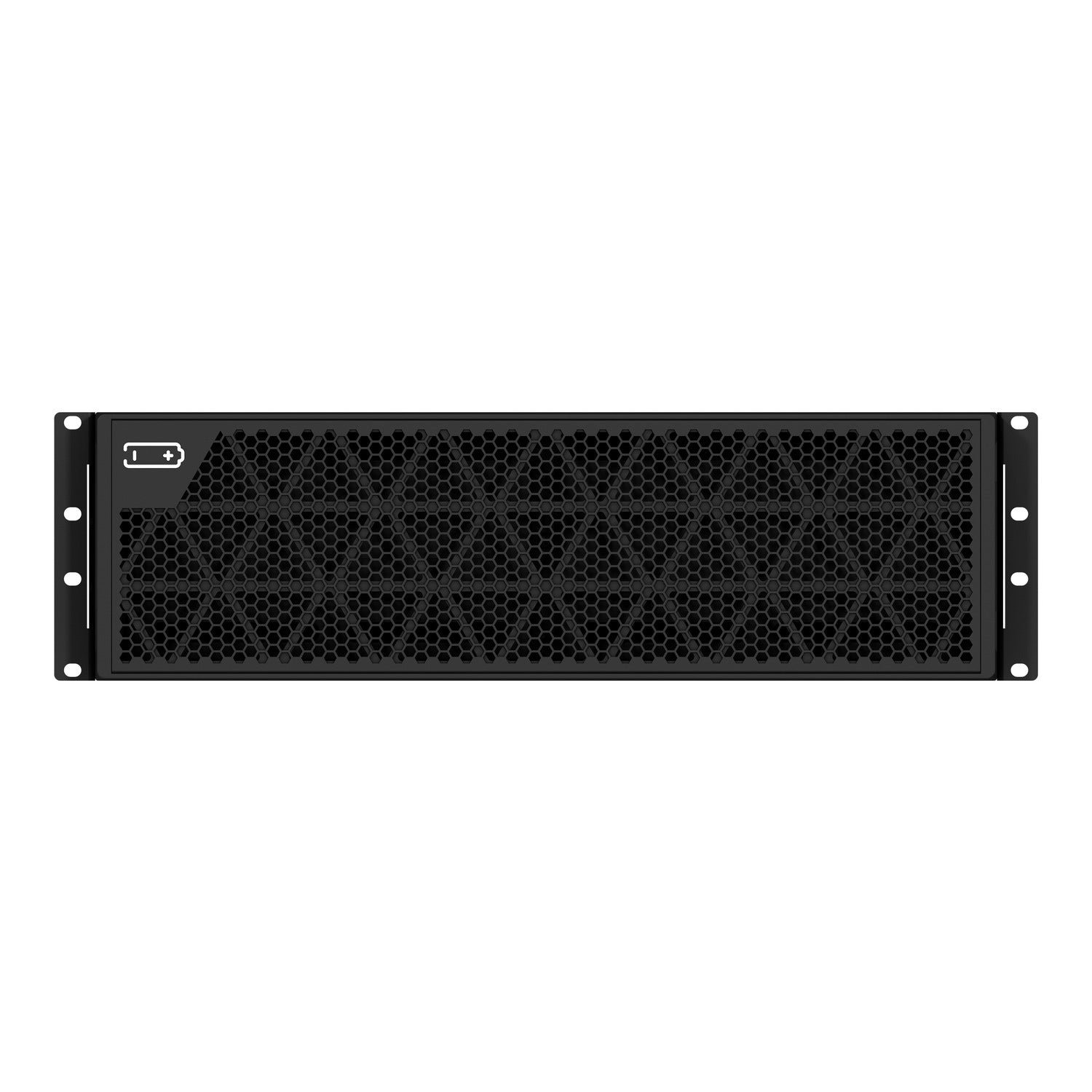

Comes standard as a tower model with stabilizing feet. With the optional rackmount brackets (SRTGRK1), the UPS can also be adapted for horizontal 19-inch rack mounting, occupying 3U/RU. Key Features:

Voltage: 192V DC, compatible with SRT 5kVA/6kVA/8kVA/10kVA SRTG On-Line UPS systems
Battery type: VRLA, with an expected lifespan of 3–5 years
Modular design: Includes 4 replaceable APCRBC174 battery cartridges
Expandable: Connect up to 4 battery packs for extended runtime

Specifications

Features
Battery technology	Sealed Lead Acid (VRLA)
Battery voltage	192 V
Product colour	Black
Weight & dimensions
Weight	91 kg
Width	440 mm
Height	130 mm
Depth	683 mm
Packaging data
Package width	580 mm
Package height	335 mm
Package depth	780 mm
Package weight	101.5 kg
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 2011.68 m
Non-operating altitude	0 - 15240 m
