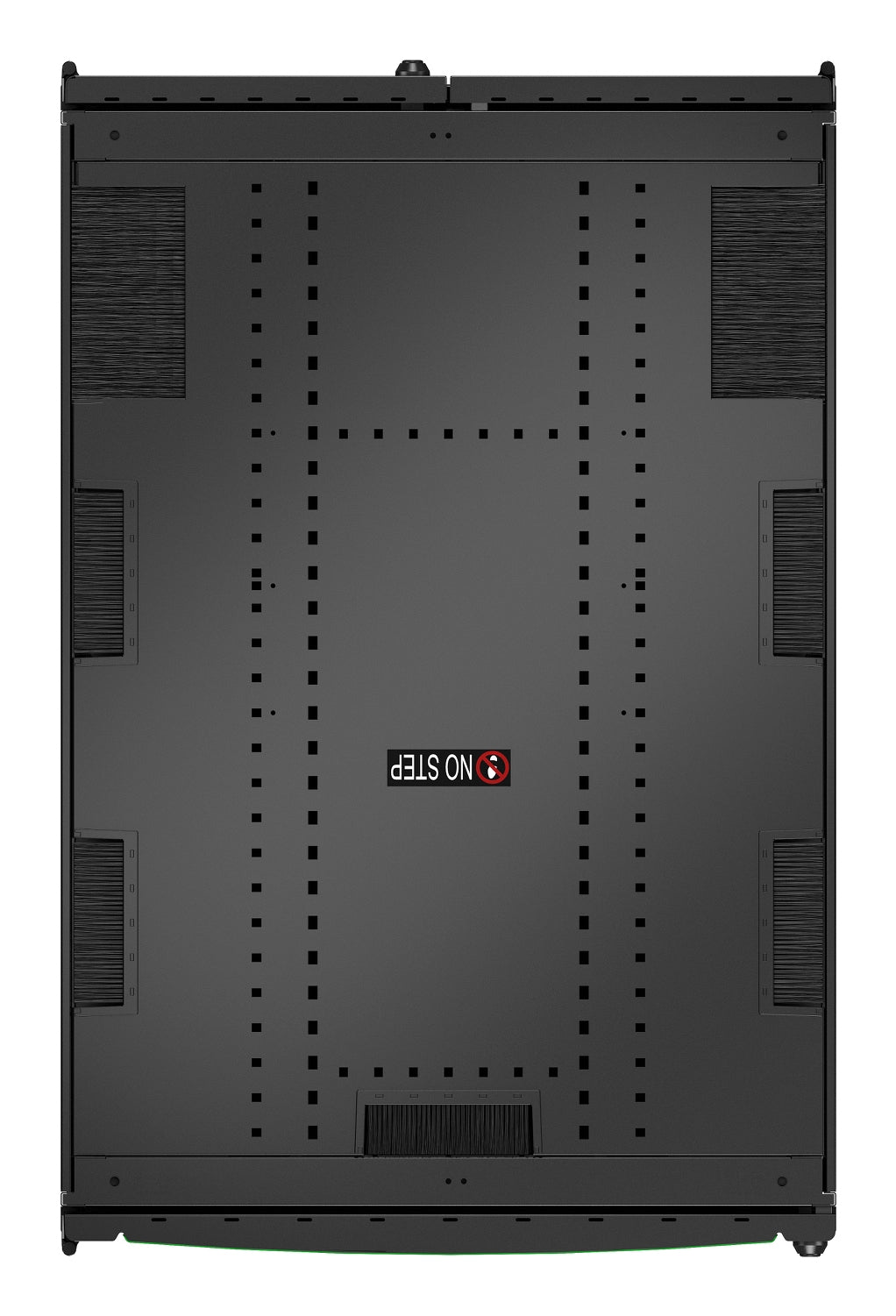

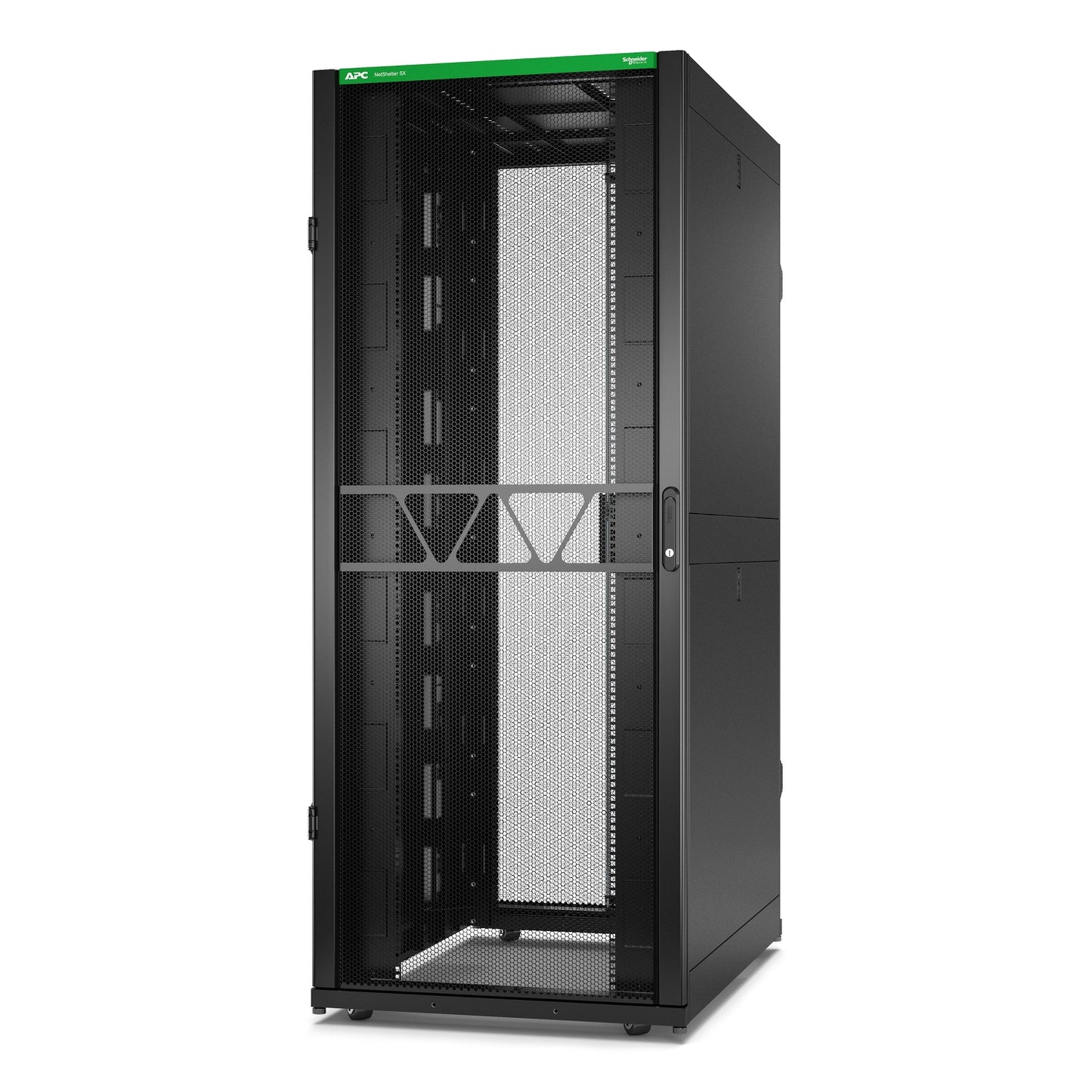

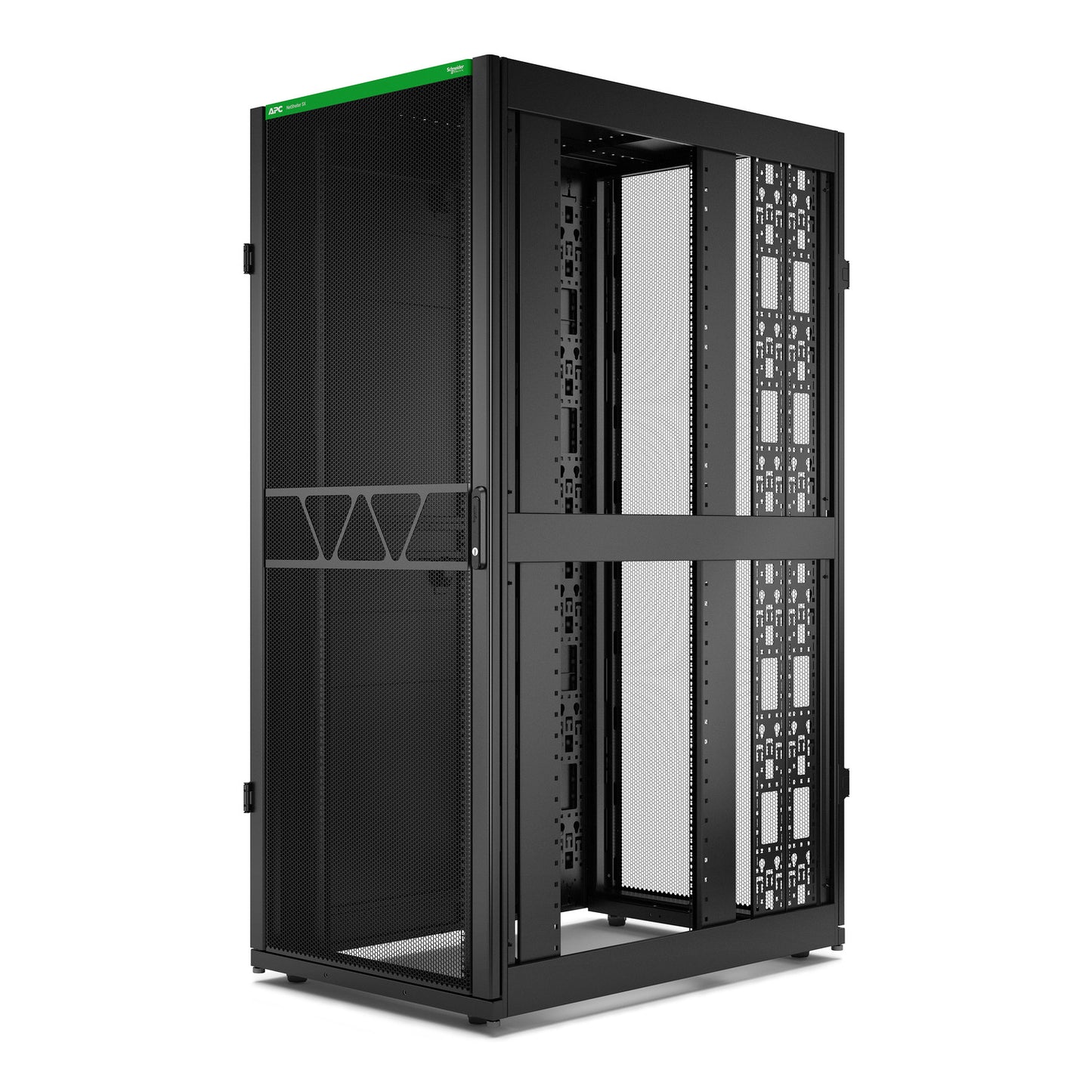

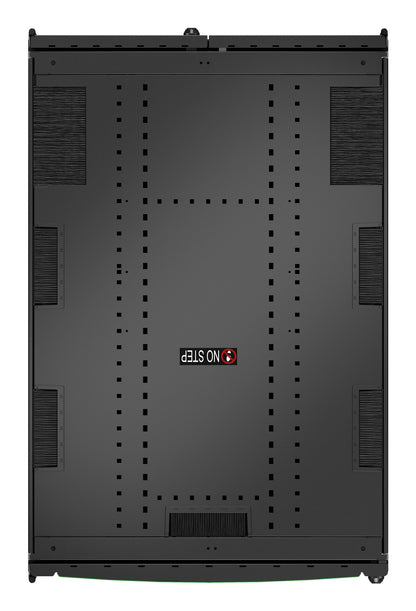

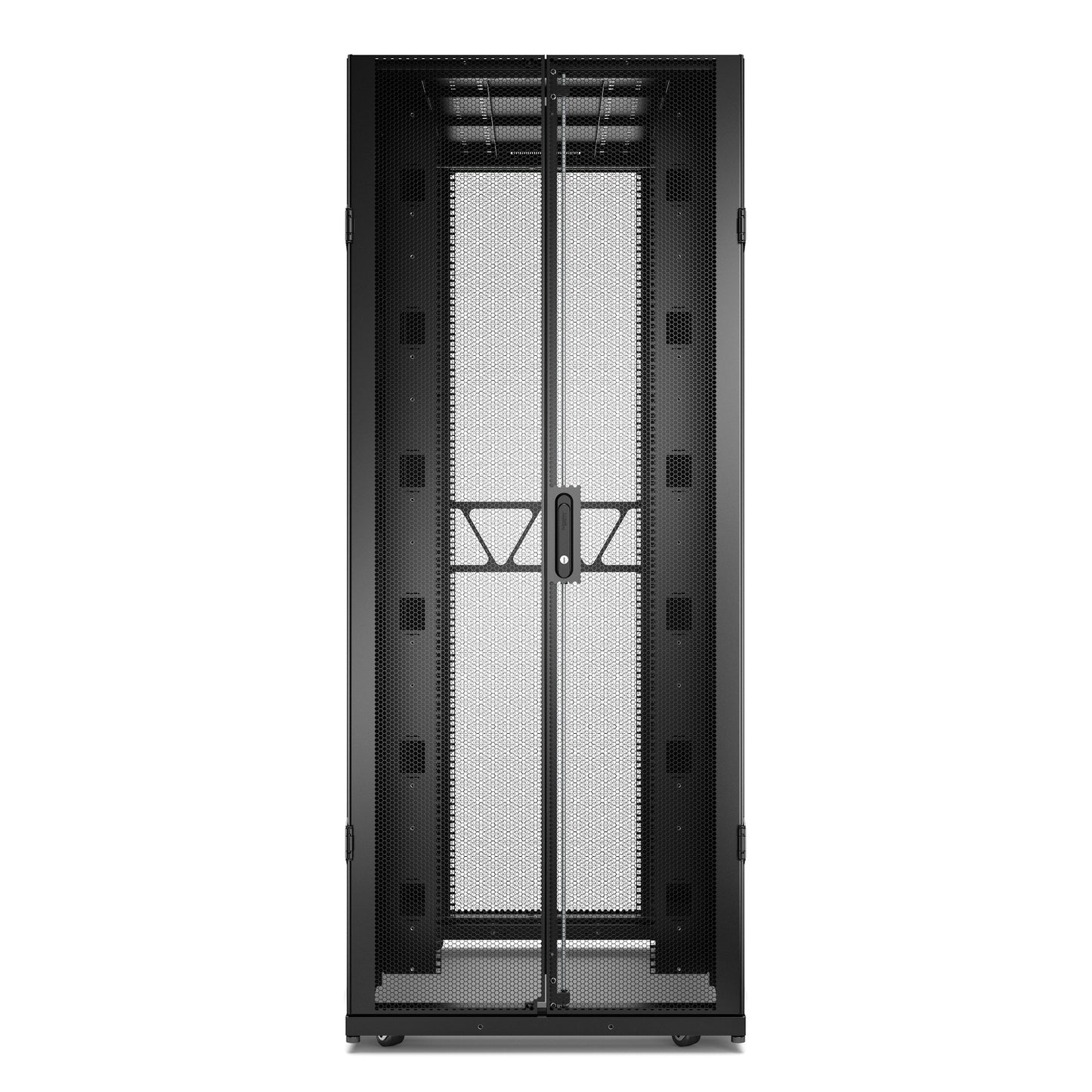

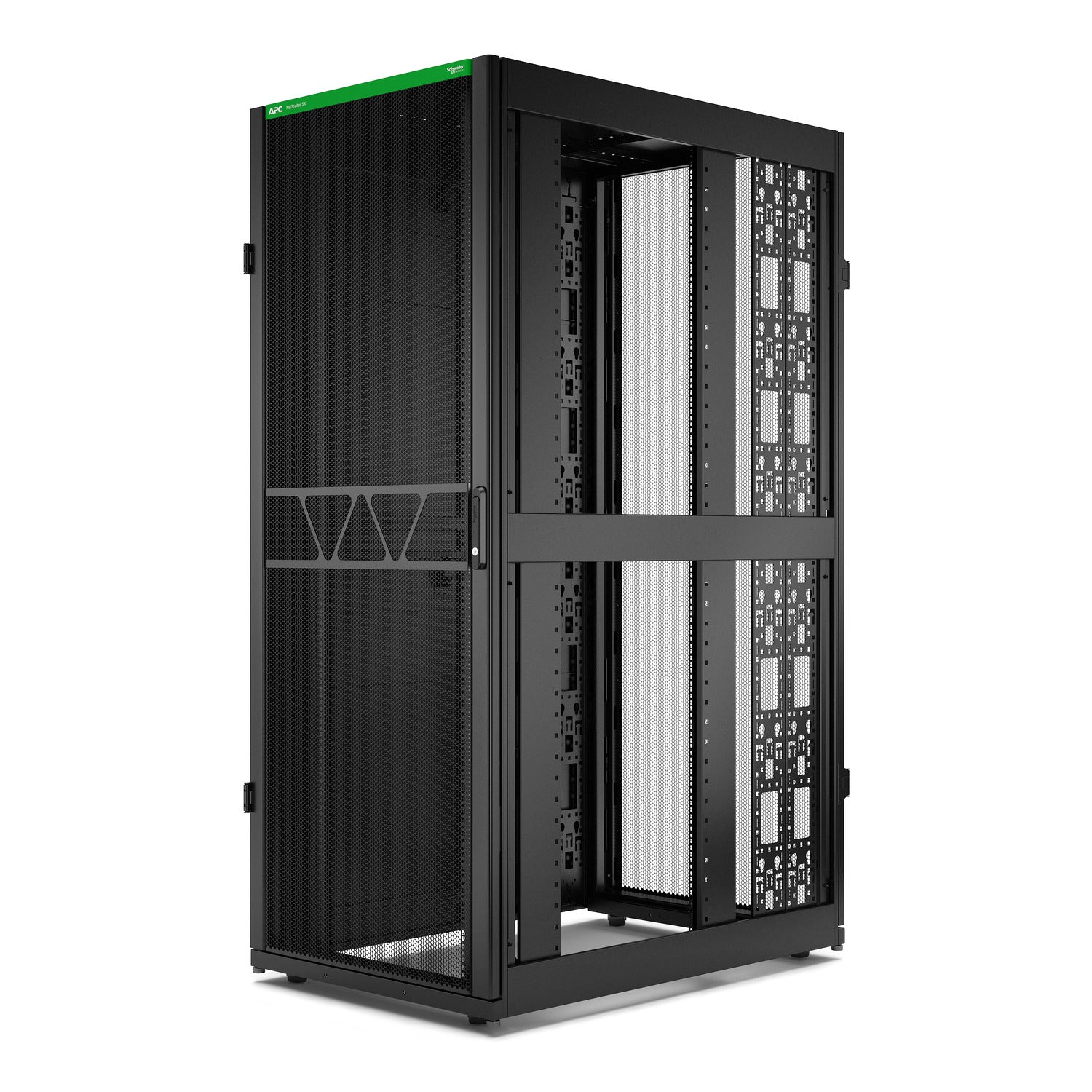

APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 800W x 1200D mm, with Sides, Black
APC NetShelter SX Server Rack Gen 2, 42U, 1991H x 800W x 1200D mm, with Sides, Black
Couldn't load pickup availability
Build a tidy install with the APC NetShelter SX Server Rack — dimensions and mounting details are in the spec table.
Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built sustainably with all-steel construction, it lasts for years and can be used for various applications. It also boasts a 3.3% decarbonization rate and ships in sturdy, recyclable packaging.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Rack capacity | 42U |
| Maximum weight capacity (rolling) | 1020 kg |
| Adjustable feet | Yes |
| Side panel key lock | Yes |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 1814 kg |
| Product colour | Black |
| Door opening angle | 270° |
| Weight & dimensions | |
| Package depth | 1323 mm |
| Package width | 948 mm |
| Package height | 2128 mm |
| Package weight | 219.7 kg |
| Mounting depth (max) | 104.8 cm |
| Mounting depth (min) | 28.6 cm |
| Width | 800 mm |
| Depth | 1200 mm |
| Height | 1991 mm |
| Weight | 177.8 kg |
| Technical details | |
| Doesn't contain | SVHC |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Country of origin | China |
