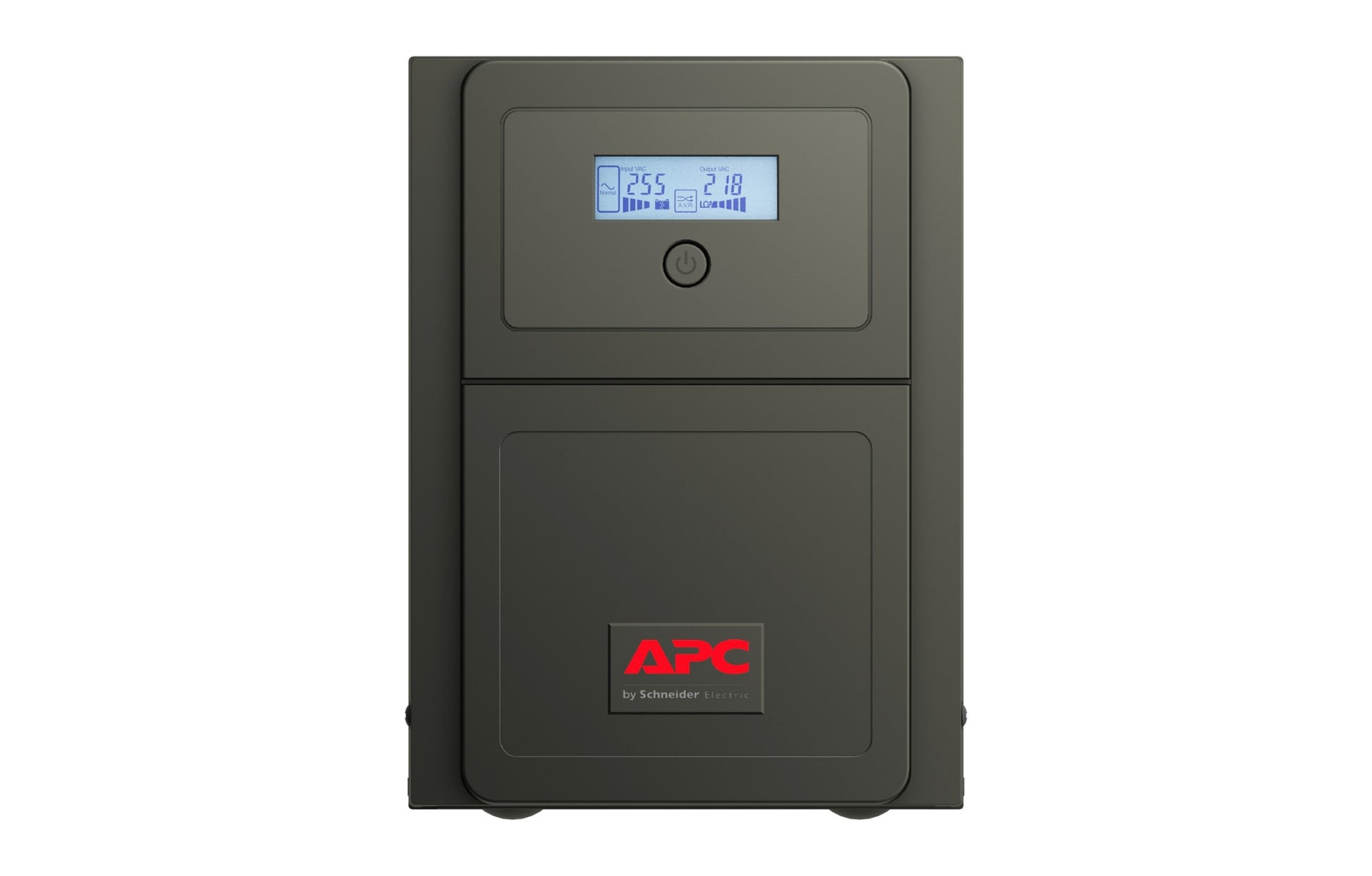

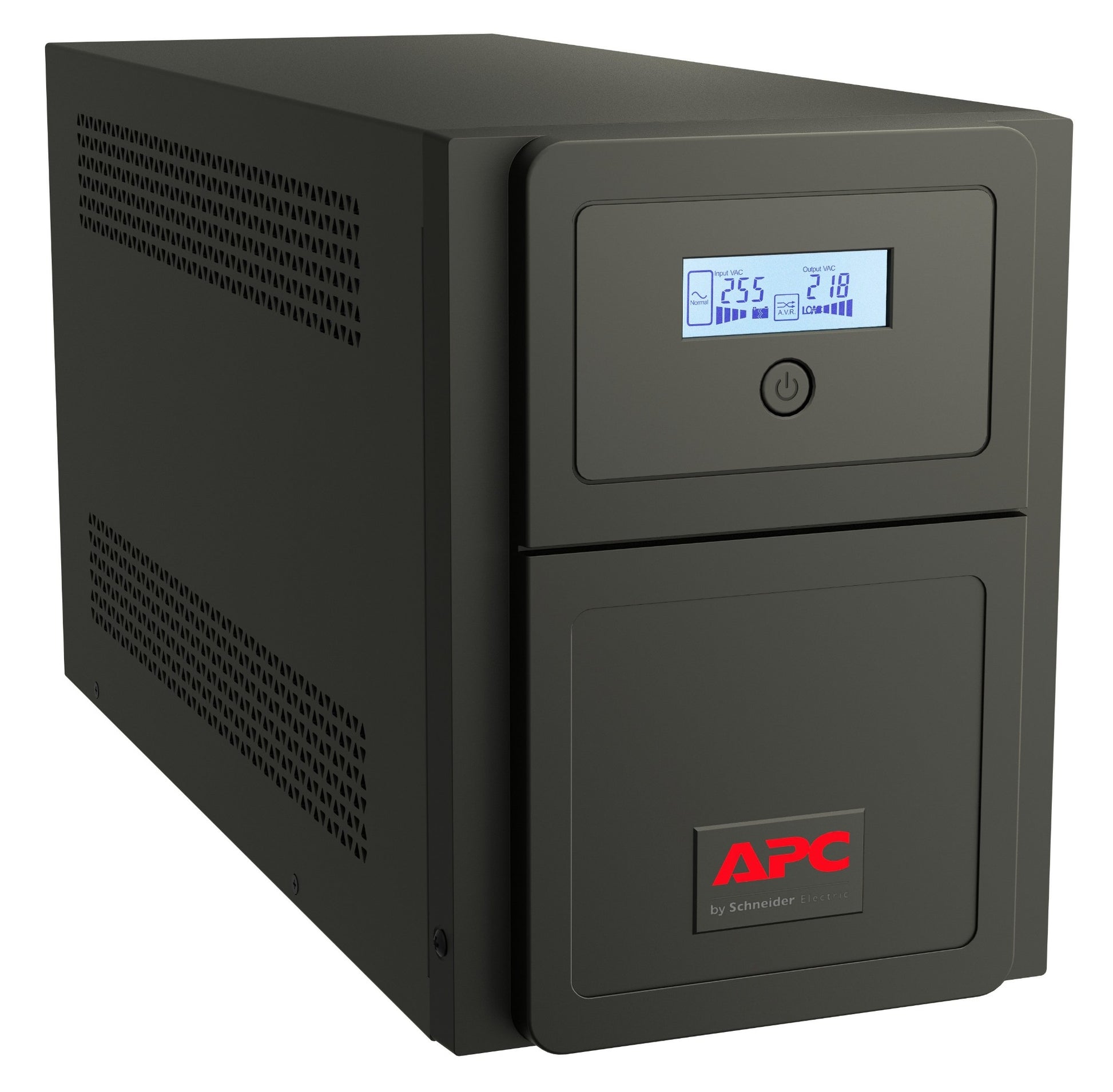

APC Easy UPS 750VA Line-Interactive UPS
APC Easy UPS 750VA Line-Interactive UPS
Couldn't load pickup availability
When the power cuts out, the APC Easy UPS keeps your desktop, NAS or router running — long enough to save work and shut down safely.

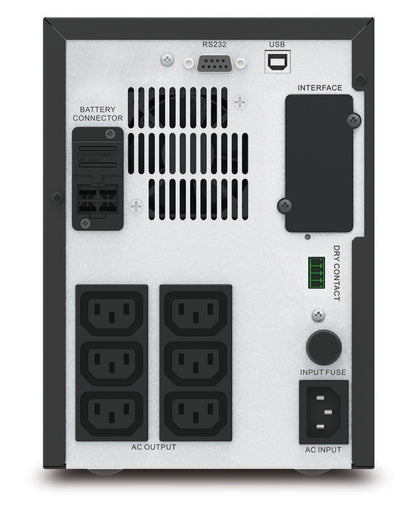

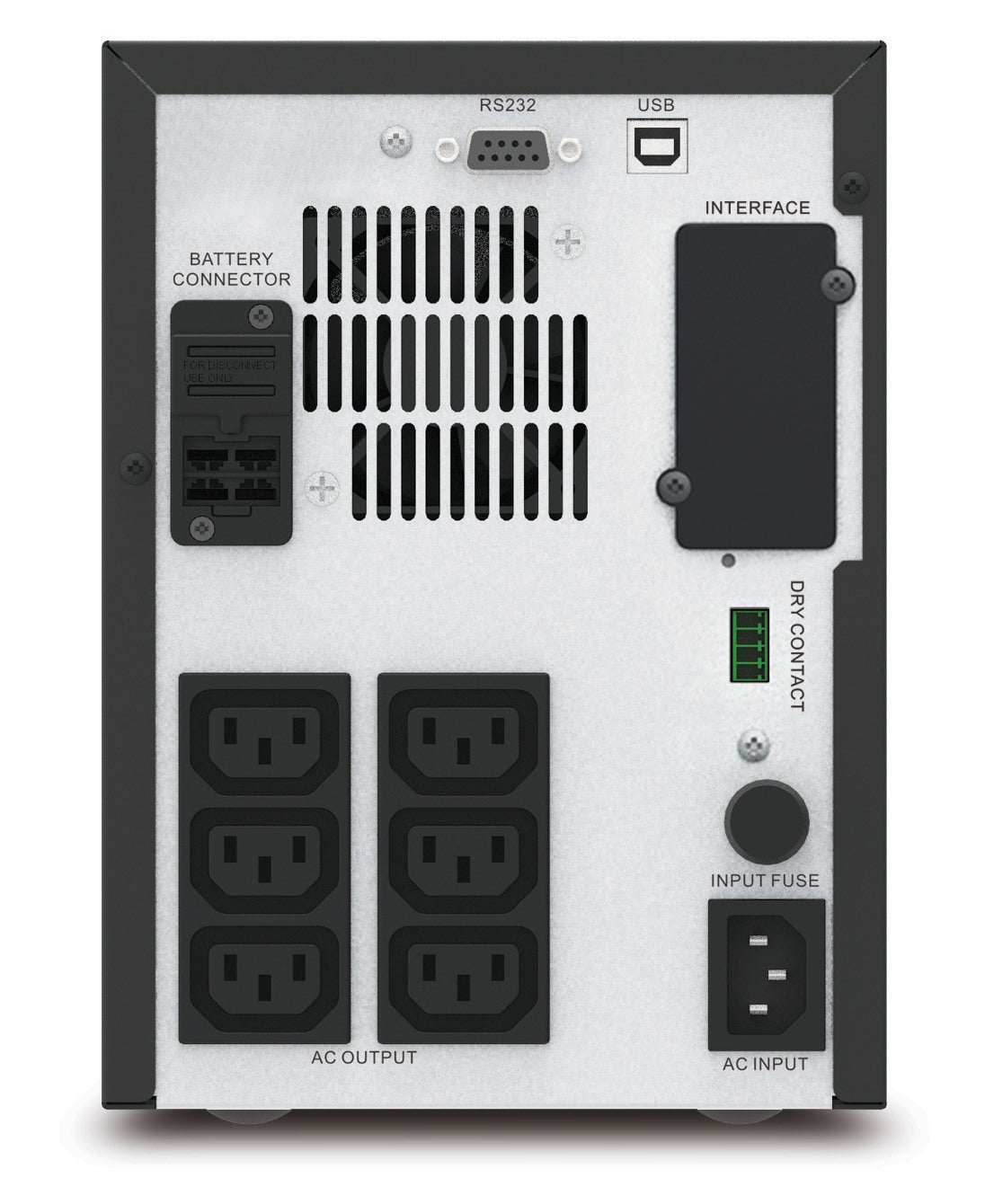

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 750VA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C14 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV206.
Specifications
| Power | |
|---|---|
| Output voltage regulation | -1 - 1% |
| Output power | 525 W |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 295 V |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Maximum current | 8 A |
| Crest factor | 3:1 |
| Output power capacity | 0.75 kVA |
| Performance | |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| Power protection features | Overload, Short circuit |
| Noise level | 45 dB |
| Audible alarm(s) | Yes |
| Features | |
| Output frequency | 50/60 Hz |
| Input frequency | 45/65 Hz |
| Ports & interfaces | |
| USB port | Yes |
| SmartSlot | No |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | C13 coupler |
| SmartConnect port | No |
| Battery | |
| Battery life (max) | 5 year(s) |
| Number of batteries supported | 2 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Cold start | Yes |
| Design | |
| International Protection (IP) code | IP20 |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Management card included | No |
| Weight & dimensions | |
| Weight | 13.6 kg |
| Width | 160 mm |
| Height | 220 mm |
| Depth | 410 mm |
| Battery width | 27.2 cm |
| Battery depth | 50.8 cm |
| Battery height | 33.9 cm |
| Battery weight | 16.6 kg |
