APC

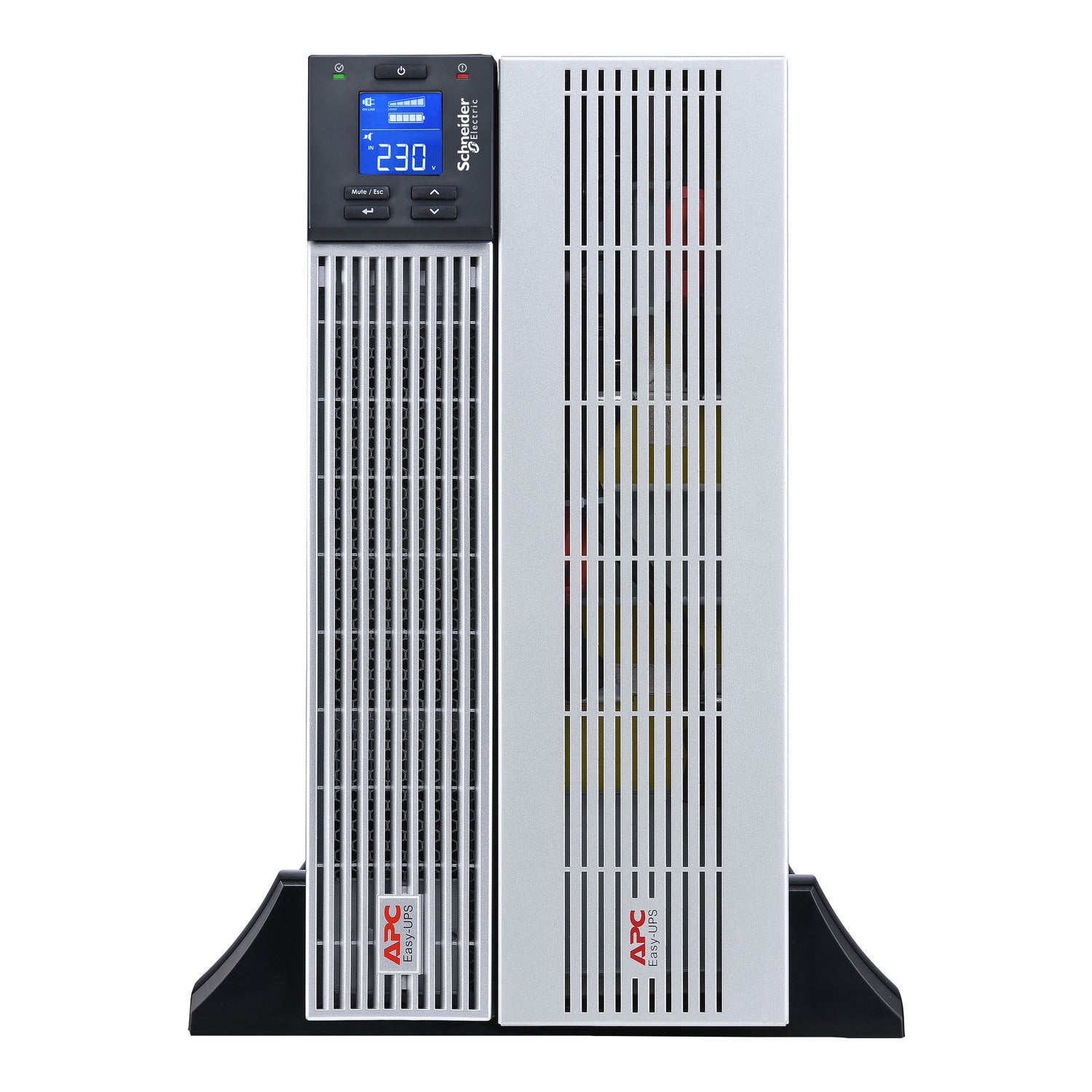

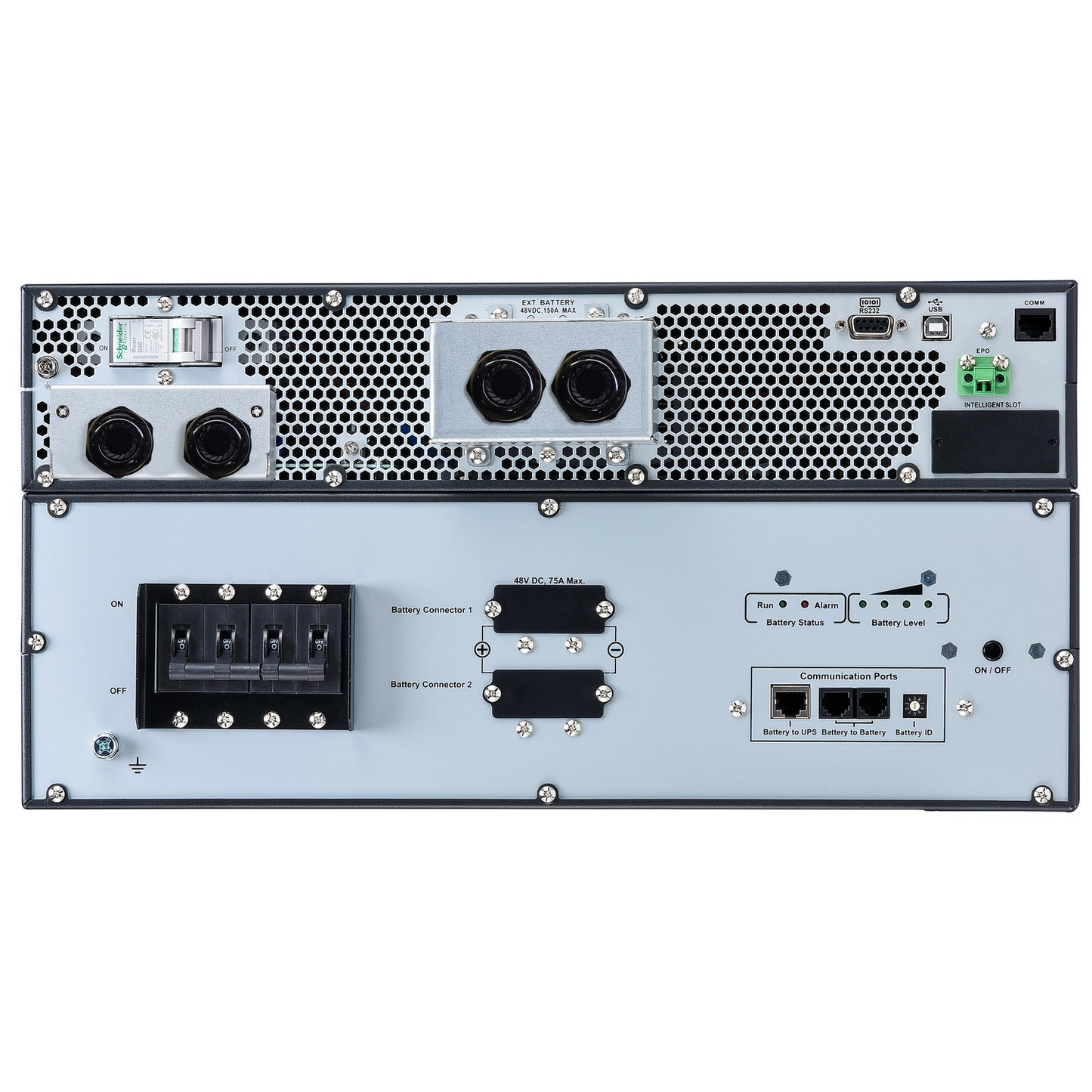

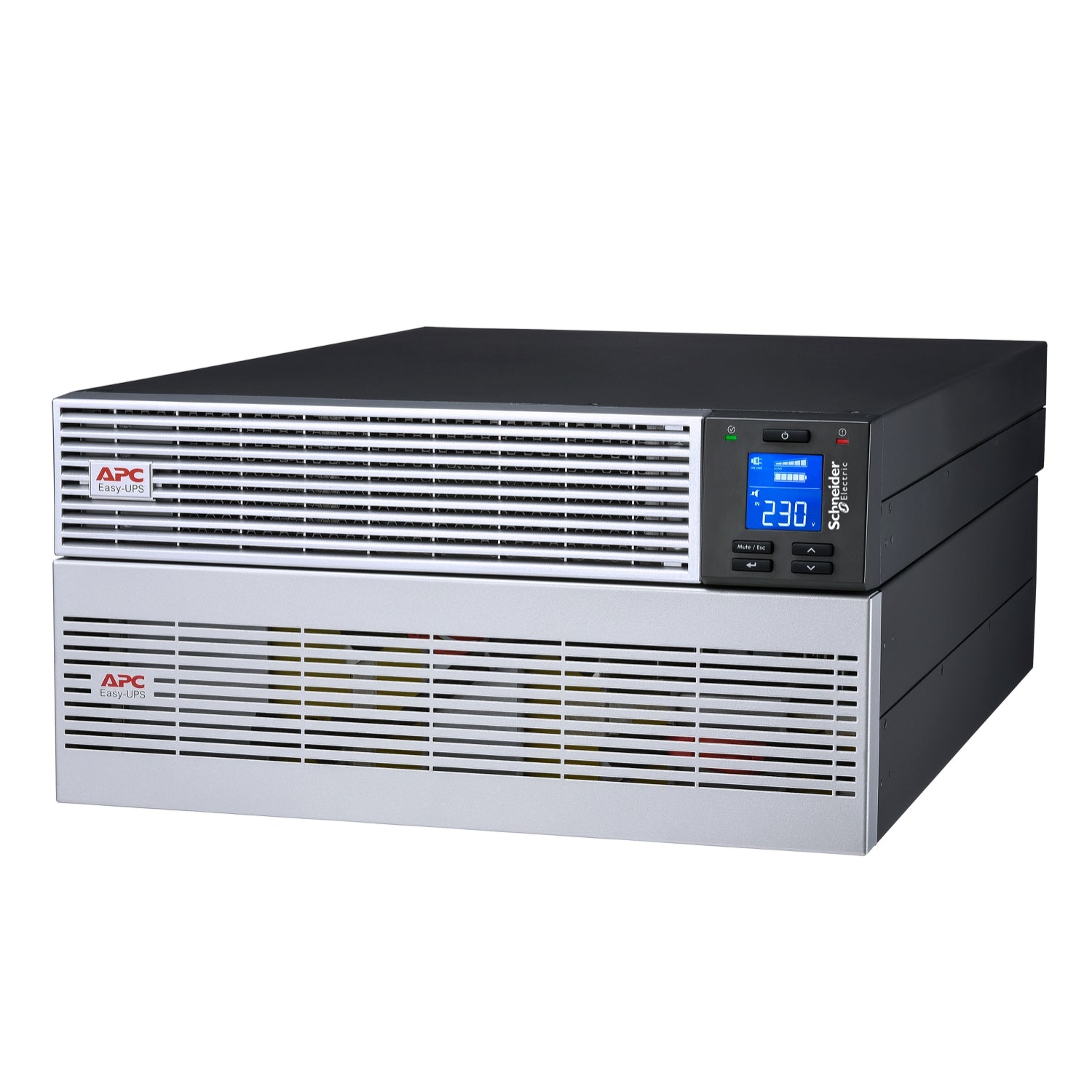

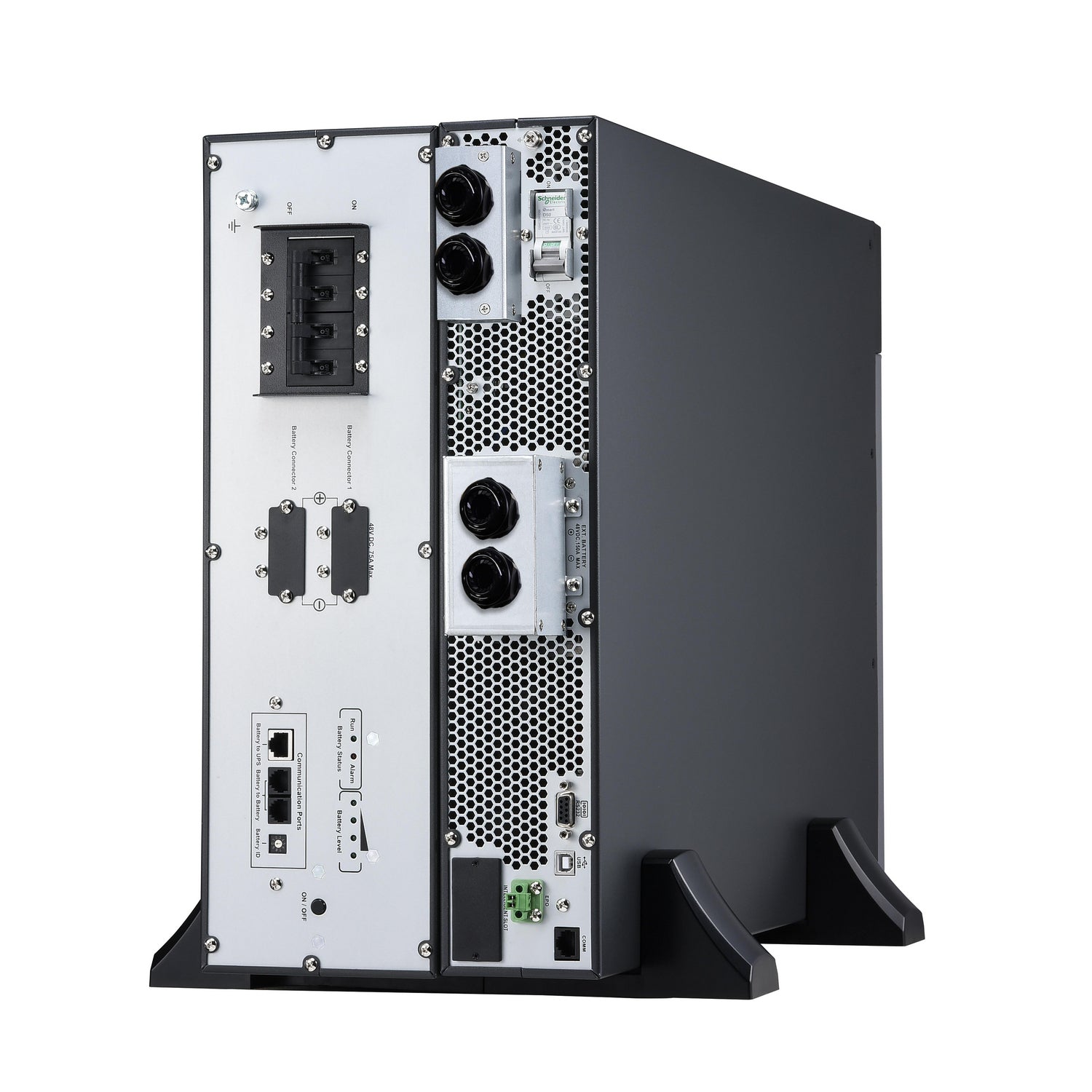

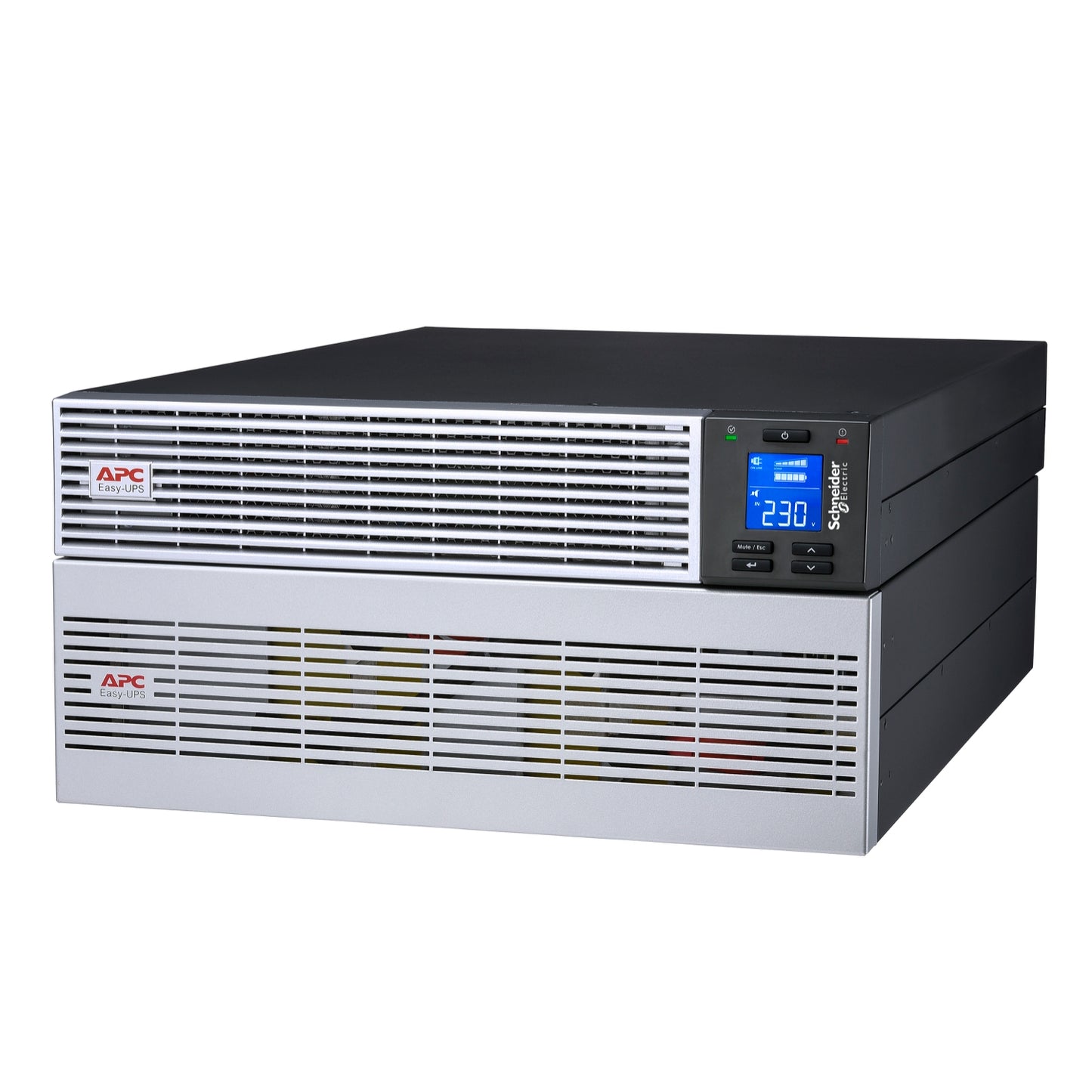

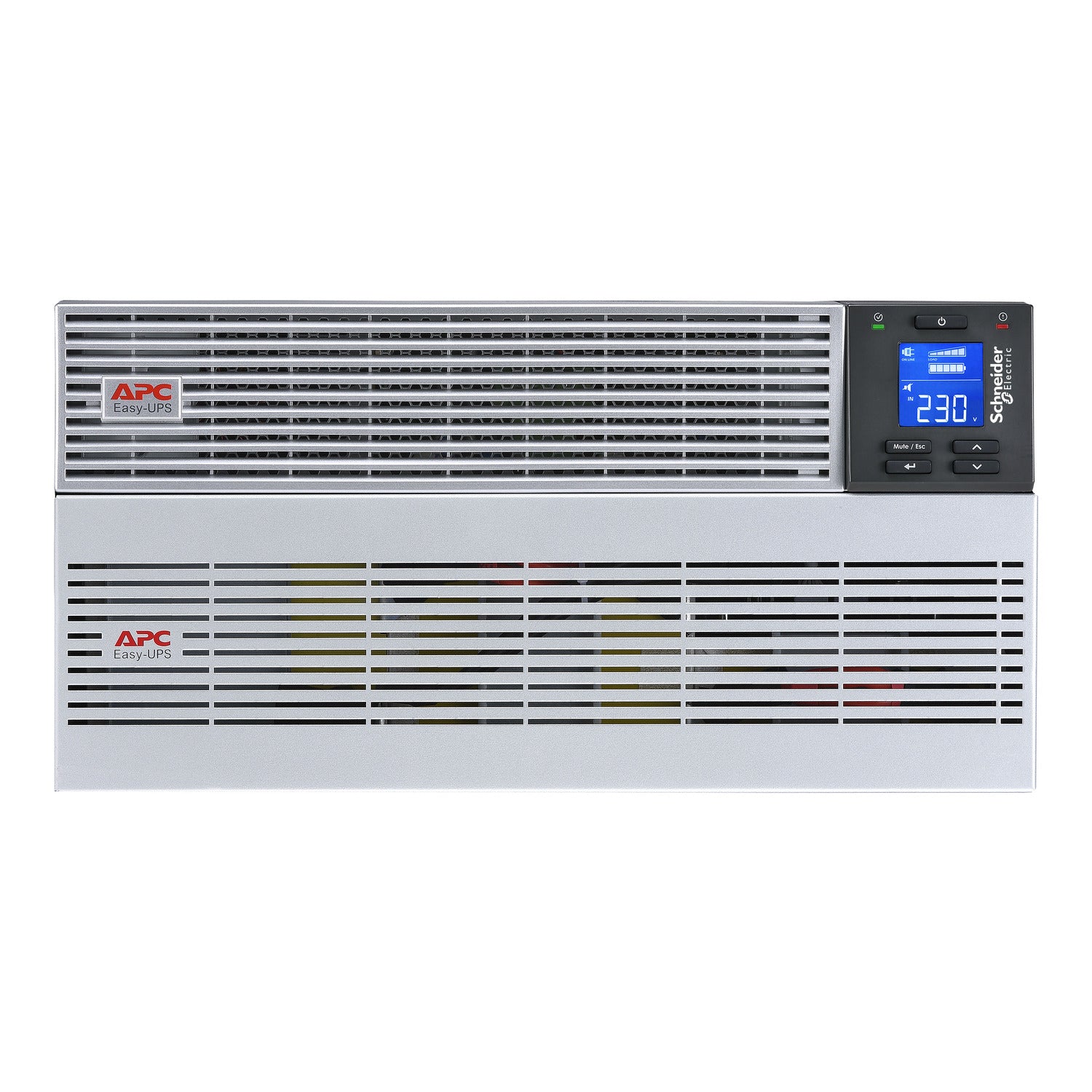

APC Easy UPS 6kVA Online UPS

£6,351.34 GBP

Sale Sold out

Taxes included.

Condition New

When the power cuts out, the APC Easy UPS keeps your desktop, NAS or router running — long enough to save work and shut down safely.

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 6000VA Extendeded runtime model with rail kit Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 93.5% efficiency in on-line double conversion mode and up to 97% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 686.4mm (depth) x 133mm (height) 5U in total which includes 2U Power module and 3U external battery pack. The net weighs is 69.7kg. Up to 3 external lithium-ion battery packs support at maximum. It's ideal for Micro Data Center and Server room, Industrial Automation , Equipment Manufacturing. CB, CE, UN38.3 External Battery Pack, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.

Specifications

Power
Output power	6000 W
Input operation voltage (min)	120 V
Input operation voltage (max)	300 V
Output operation voltage (min)	230 V
Surge energy rating	600 J
Efficiency	93.5%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	6 kVA
Single-phase input voltage supported	230 V
Performance
Audible alarm modes	Alarm when on battery, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
Noise level	57.3 dB
Features
Output frequency	50/60 Hz
Country of origin	China
Input frequency	40/70 Hz
Ports & interfaces
USB port	Yes
Battery
Battery life (max)	10 year(s)
Battery voltage	48 V
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	5 h
Design
International Protection (IP) code	IP20
Rack capacity	5U

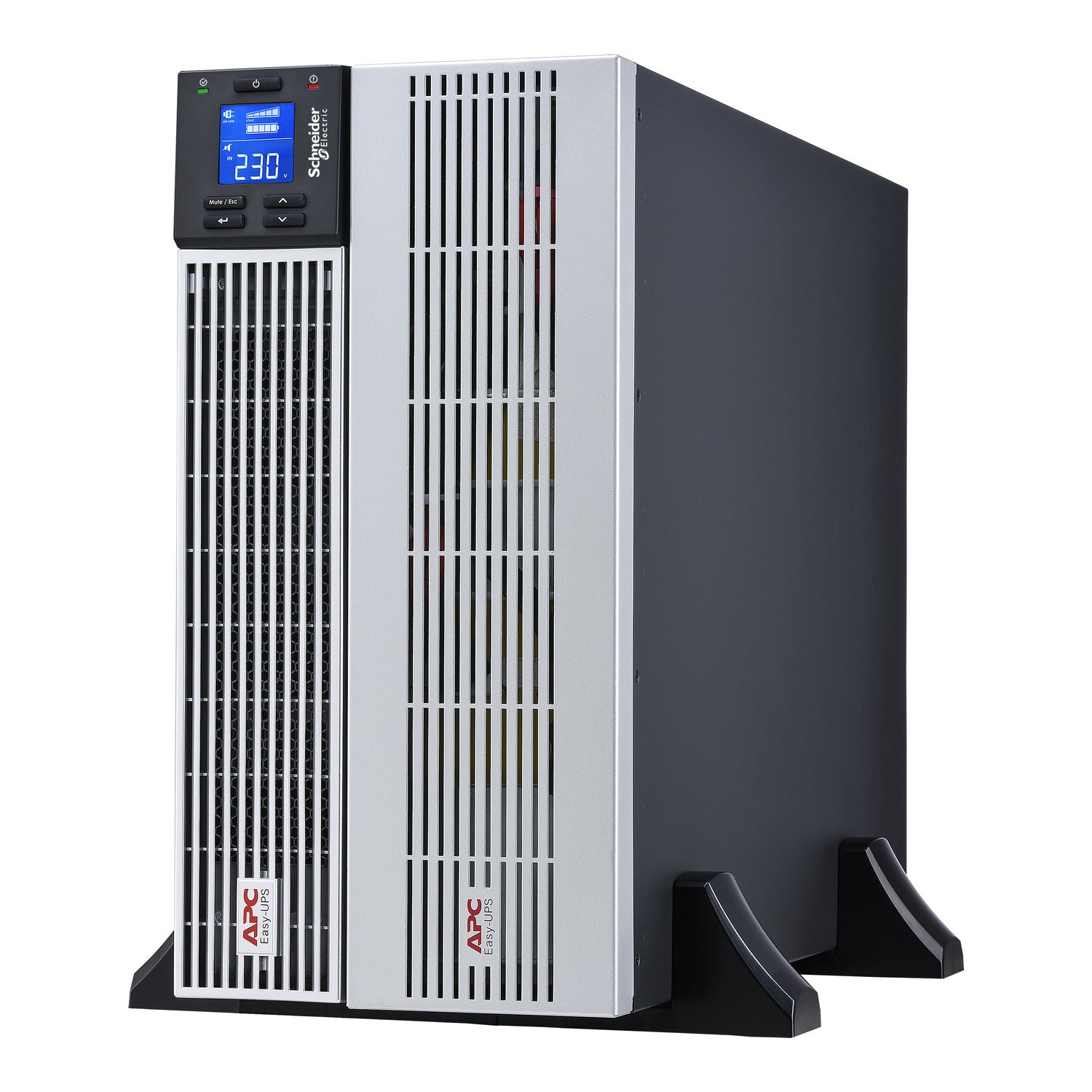

Form factor	Rackmount/Tower
Product colour	Black, Silver
Certification	CB; CE; UKCA; RCM; IRAM; TISI; UN 38.3; IEC 62619
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output voltage	230 V
Mounting	horizontal and vertical
Total carbon footprint (kg of CO2e)	789.2474559231015
Compliance certificates	RoHS, REACH, WEEE
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Packaging content
Cables included	Phone (RJ-11), RJ-45, RS-232, USB cable
Manual	Yes

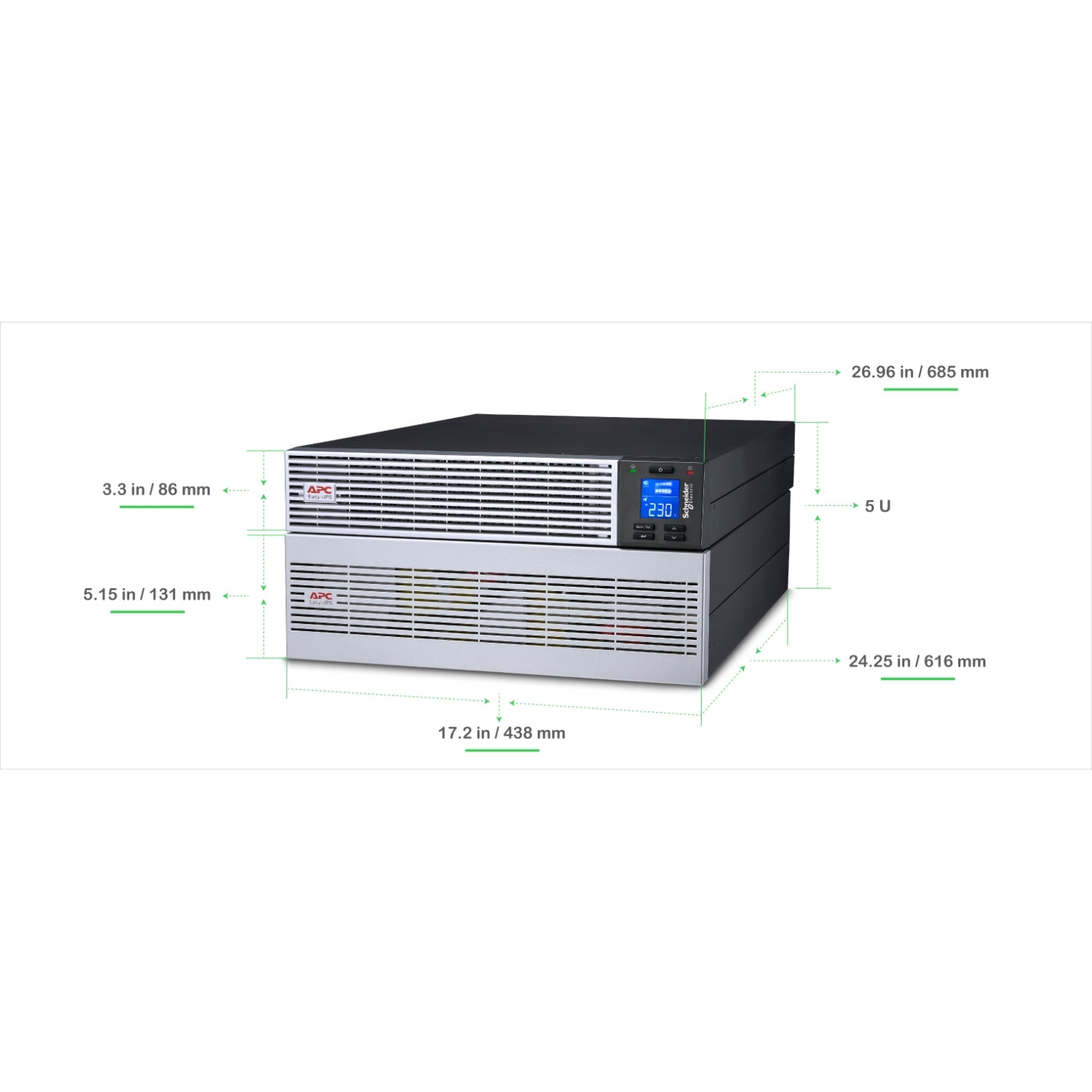

Weight & dimensions
Package width	600 mm
Package depth	800 mm
Package height	652 mm
Weight	69.2 kg
Width	438 mm
Package weight	8.59 kg
Height	217 mm
Depth	685 mm
Logistics data
Customs product code (TARIC)	8504409590
Other features
Output connection type	hard wire 3-wire (1P + N + E) for 1 zone(s)
