APC

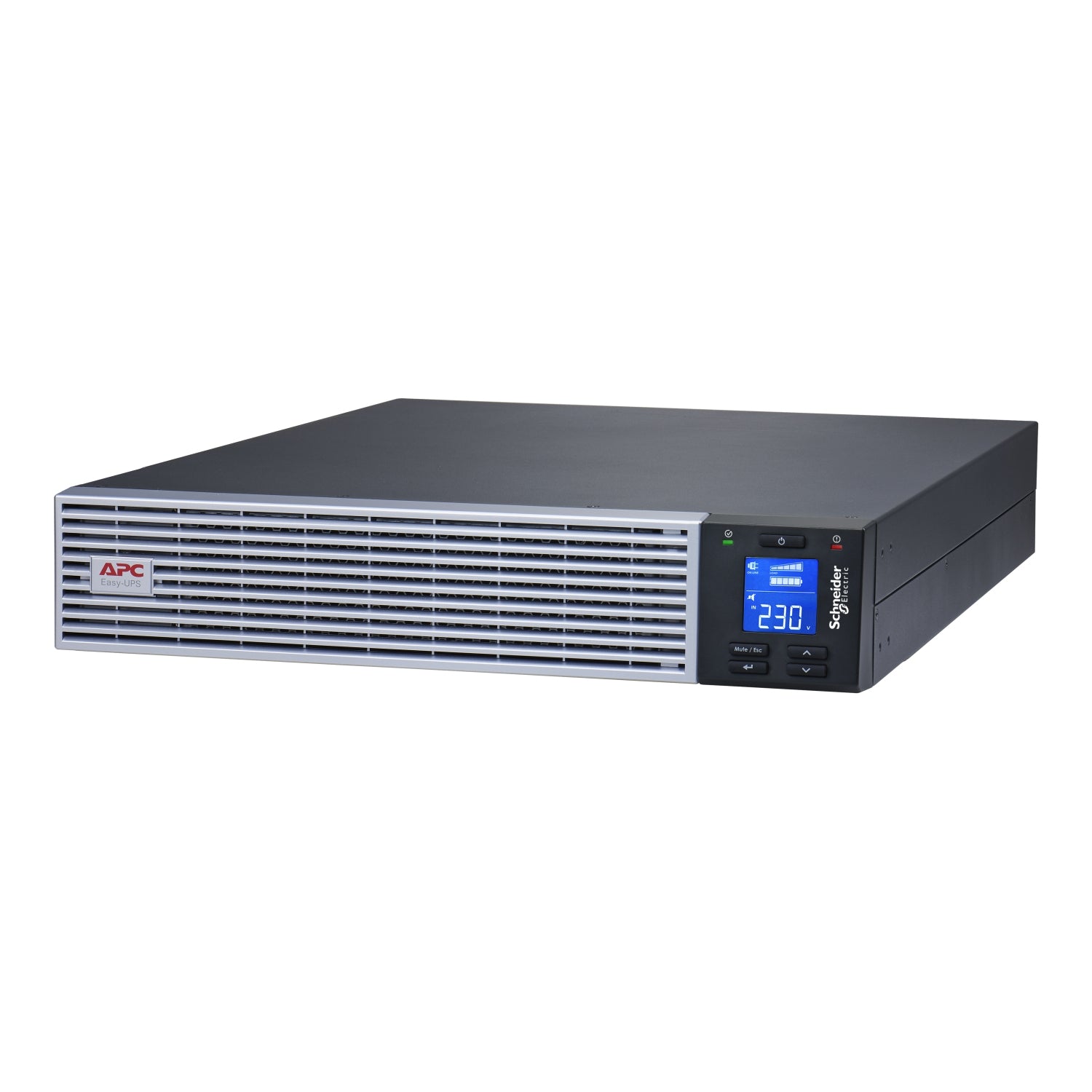

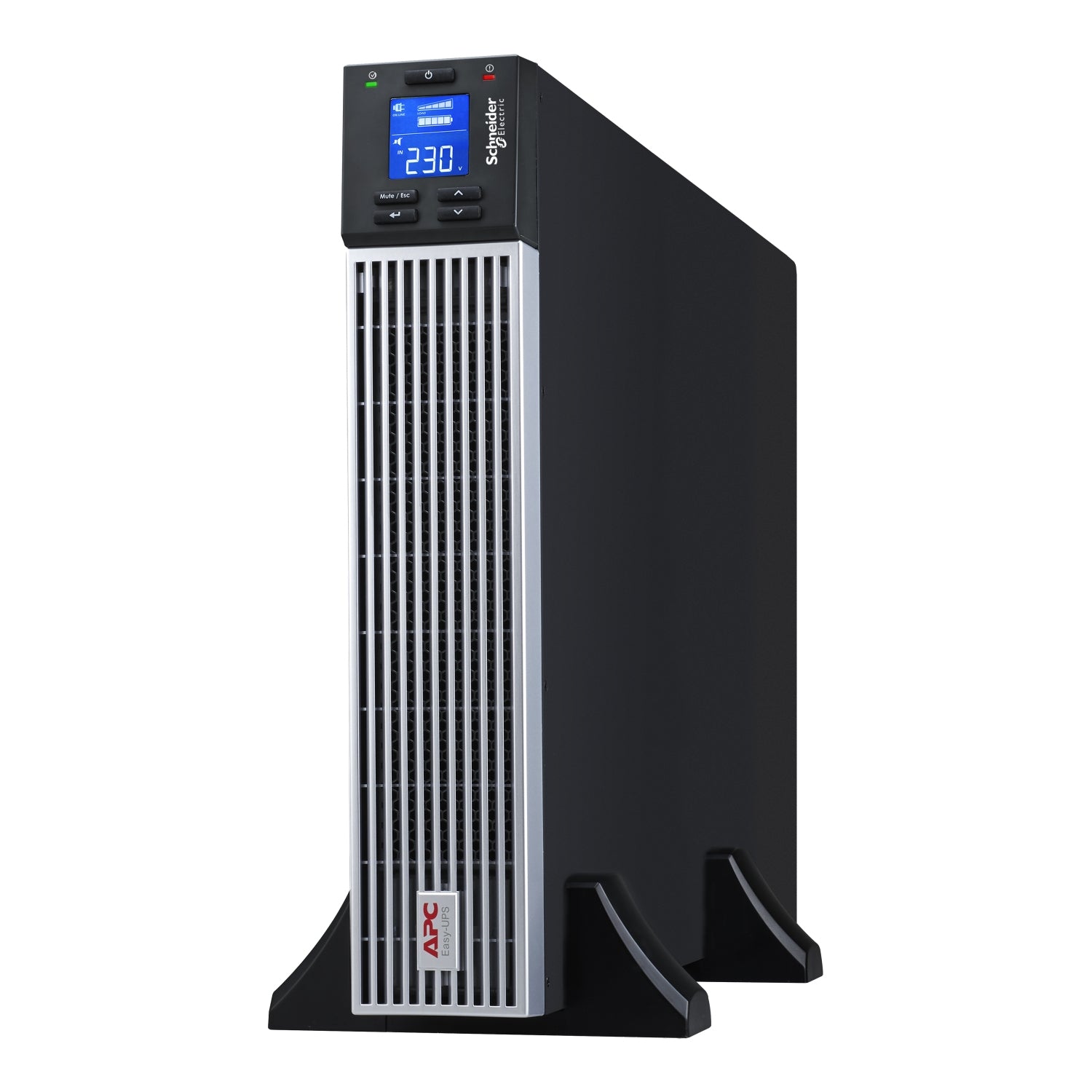

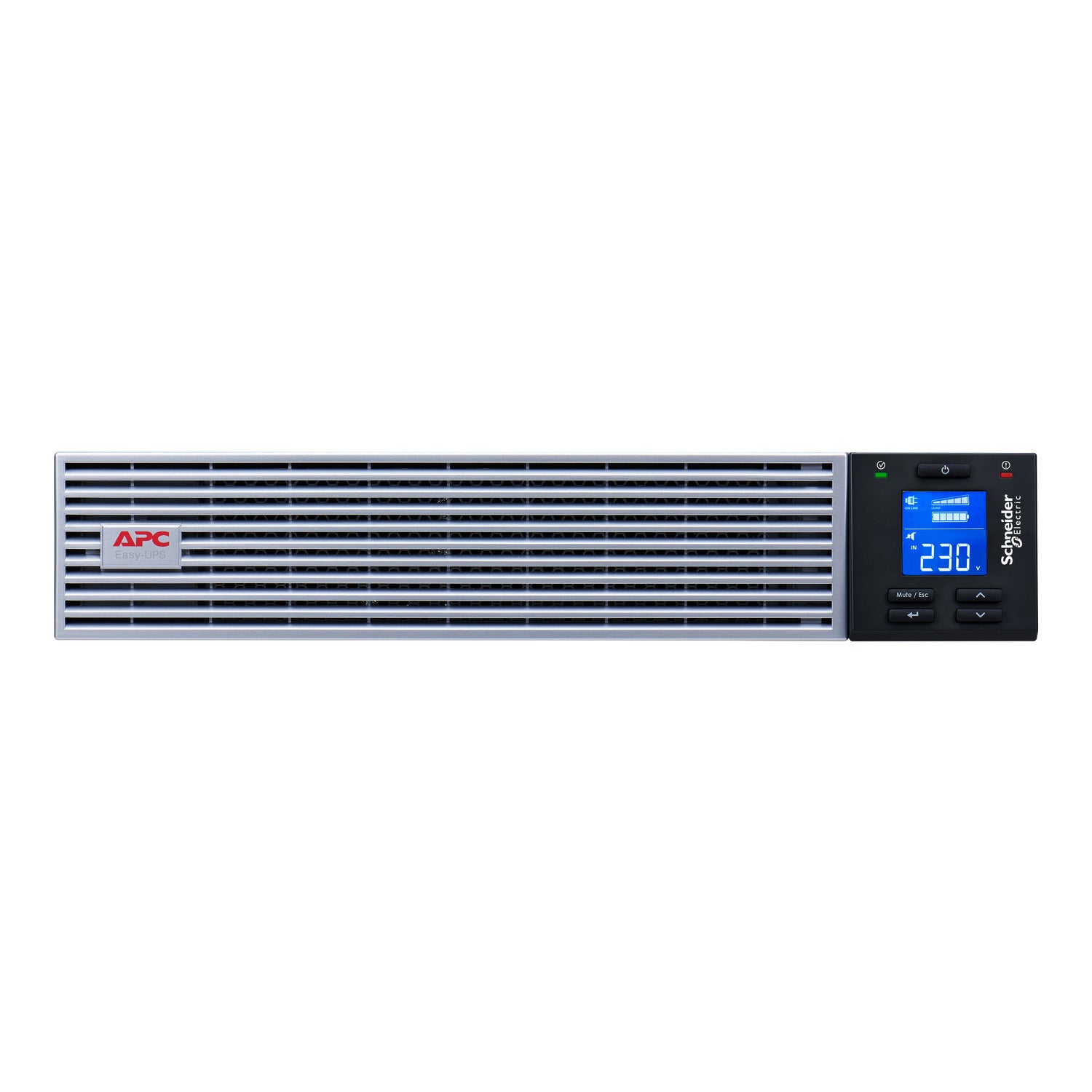

APC Easy UPS 3kVA Online Rackmount UPS

£2,204.45 GBP

Sale Sold out

Taxes included.

Condition New

When the power cuts out, the APC Easy UPS keeps your rack running — long enough to save work and shut down safely.

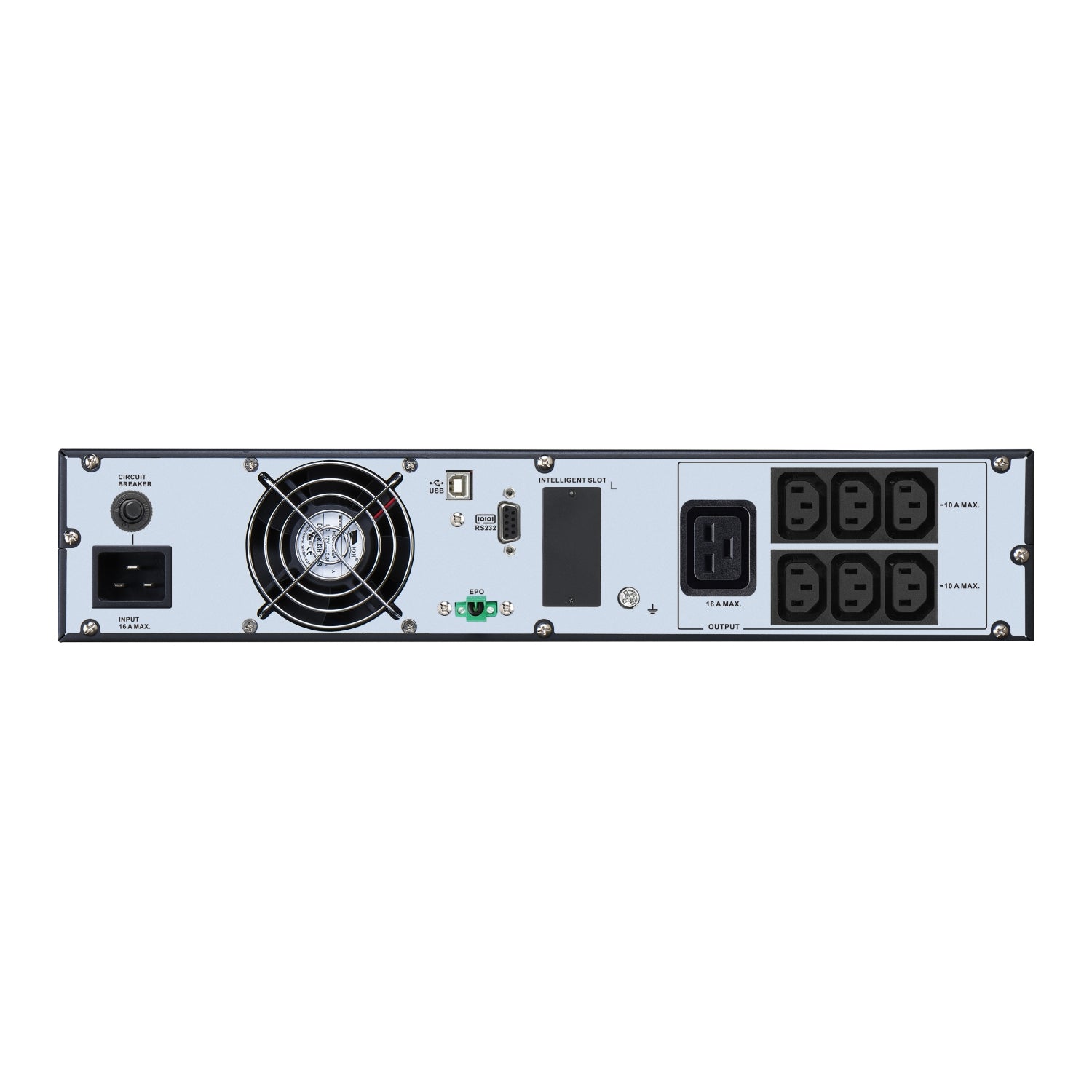

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line lithium-ion 2U UPS provides pure sine wave power to support critical electronics during power disruptions. The SRVL comes with IEC 320 C20 input, 6x IEC 320 C13 and 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. With purchased Network Management Card and license, the UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Emergency Power Off (EPO) function can remotely shut off the UPS in an emergency. It comes with a 5-year warranty. The SRVL comes with a easy-to-read 90 degree rotatable LCD display for detailed and accurate information on UPS status. This lithium-ion UPS is ideal for Surveillance, Co-working space, Healthcare IT, ATMs, Micro Data centers, and Server rooms.

Specifications

Power
Output power	2700 W
Input operation voltage (min)	110 V
Input operation voltage (max)	300 V
Output operation voltage (max)	230 V
Surge energy rating	945 J
Efficiency	90%
Emergency Power Off (EPO)	Yes
Crest factor	3:1
Output power capacity	3 kVA
ECO mode	Yes
Single-phase input voltage supported	230 V
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Noise level	50 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Country of origin	Taiwan
Input frequency	40 - 70 Hz
Power source type	AC
Detachable power cord	Yes
Heat dissipation	1024 BTU/h
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
RS-232 ports	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-B
Battery
Battery life (max)	10 year(s)
Battery voltage	48 V
Battery technology	Lithium-Ion (Li-Ion)
Battery recharge time	1.5 h
Typical backup time at full load	9 min
Replacement battery cartridge	RBCV183-LI
Design
International Protection (IP) code	IP20
Rack capacity	2U
Form factor	Rackmount/Tower
Product colour	Black, Silver
Cooling type	Active
Certification	CB; CE; UKCA; UN 38.3; IEC 62619
Built-in fan	Yes
Control type	Buttons
Display type	LCD
Operational conditions
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Output voltage	230 V
Mounting	horizontal and vertical
Total carbon footprint (kg of CO2e)	5751.29672688249
Compliance certificates	RoHS, REACH, WEEE
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes
Packaging content
Cables included	Output power cable, Phone (RJ-11), RJ-45, RS-232, USB cable
Rack mount kit	Yes

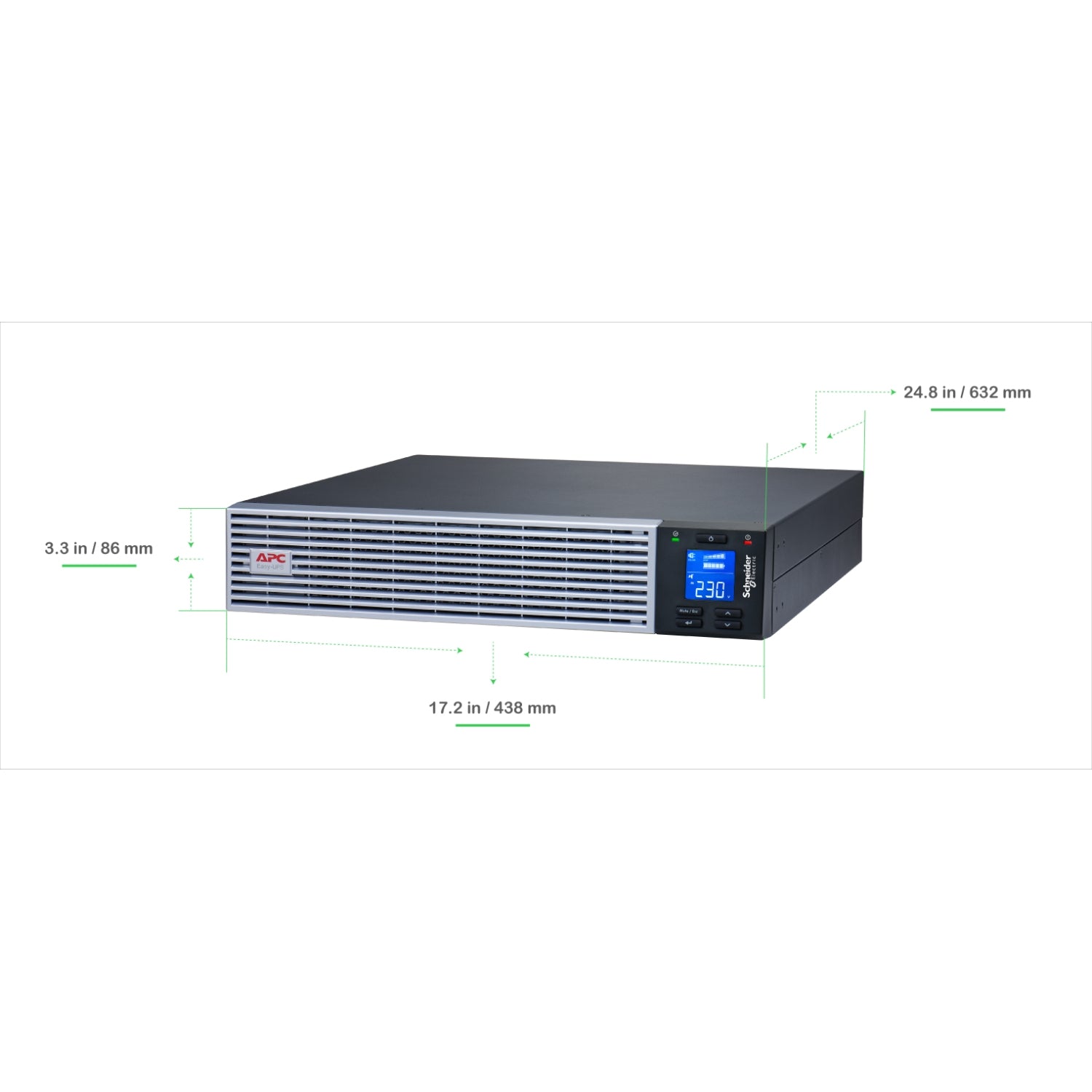

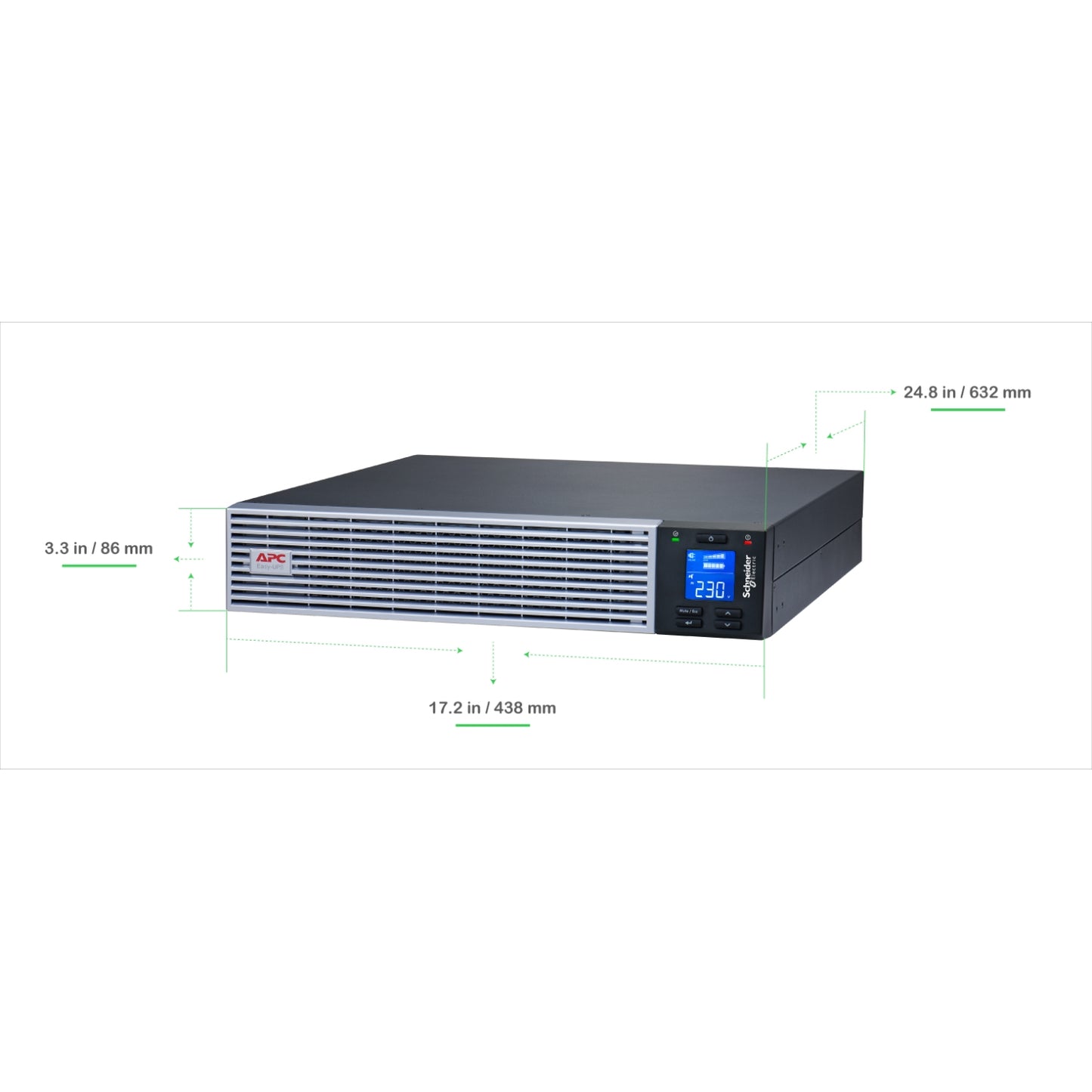

Weight & dimensions
Package width	600 mm
Package depth	800 mm
Package height	240 mm
Weight	21.2 kg
Width	438 mm
Package weight	29.1 kg
Height	86 mm
Depth	632 mm
Logistics data
Customs product code (TARIC)	8504409590
Other features
Input connection type	IEC 60320 C20
Output connection type	6 IEC 60320C13; 1 IEC 60320C19
