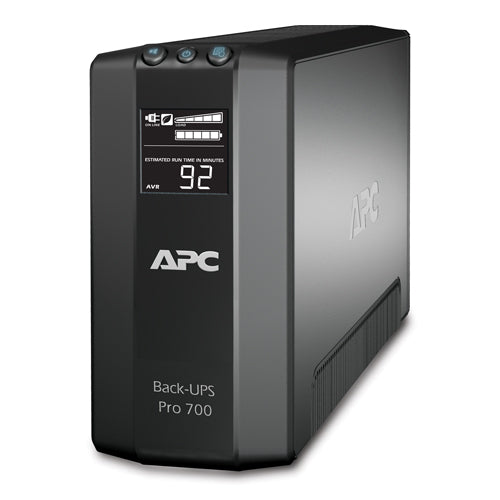

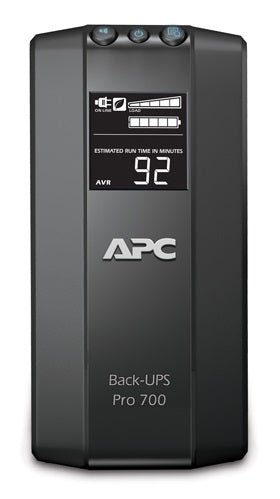

APC BR700 700VA 420W Line-Interactive UPS

APC BR700 700VA 420W Line-Interactive UPS

£187.90 GBP
£187.90 GBP
Sale Sold out
Taxes included.
Condition

When the power cuts out, the APC BR700 keeps your desktop, NAS or router running at up to 420W — long enough to save work and shut down safely.

APC BR700G. UPS topology: Line-Interactive, Output power capacity: 0.7 kVA, Output power: 420 W. AC outlet types: NEMA 5-15P, NEMA 5-15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Cable length: 1.8 m. Certification: FCC Part 15 Class B, FCC Part 68, NOM, UL 1778

Specifications

Power
Output power 420 W
Input operation voltage (min) 88 V
Input operation voltage (max) 143 V
Output operation voltage (max) 120 V
Surge energy rating 354 J
Output power capacity 0.7 kVA
Ports & interfaces
Cable length 1.8 m
AC outlets quantity 6 AC outlet(s)
AC outlet types NEMA 5-15P, NEMA 5-15R
Power plug NEMA 5-15P
Ethernet LAN (RJ-45) ports 2
Performance
UPS topology Line-Interactive
Waveform Sine
Response time 12 ms
LED indicators Yes
Noise level 45 dB
Audible alarm(s) Yes
Features
Input frequency 50/60 Hz
Heat dissipation 48.5 BTU/h
Battery
Battery life (max) 5 year(s)
Battery voltage 12 V
Battery capacity 9 Ah
Battery technology Sealed Lead Acid (VRLA)
Battery recharge time 12 h
Design
Form factor Tower
Product colour Black
Certification FCC Part 15 Class B, FCC Part 68, NOM, UL 1778
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 3000 m
Weight & dimensions
Package width 442 mm
Package depth 138 mm
Package height 252 mm
Weight 7.15 kg
Width 91 mm
Package weight 8 kg
Height 190 mm
Depth 310 mm
