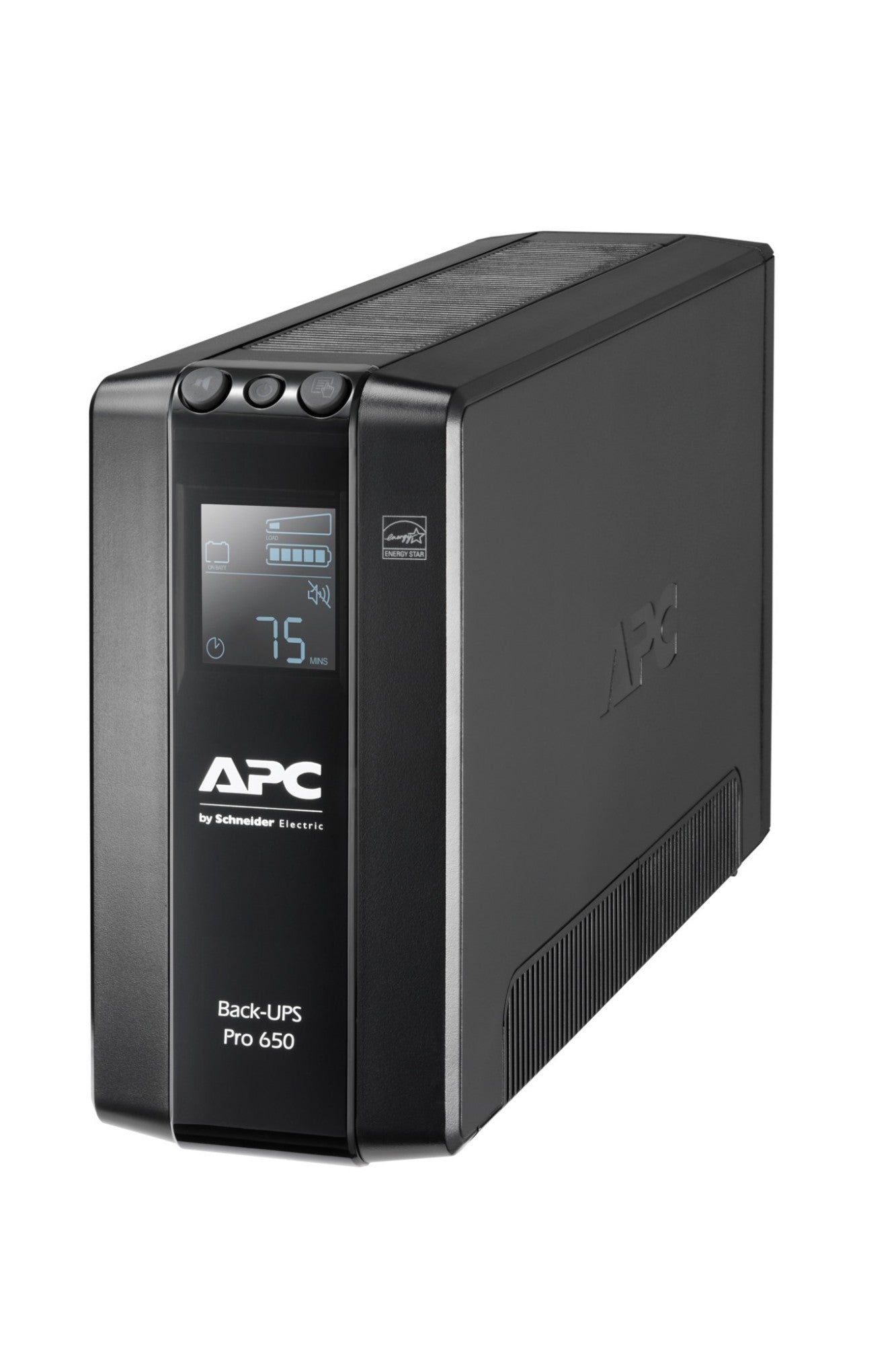

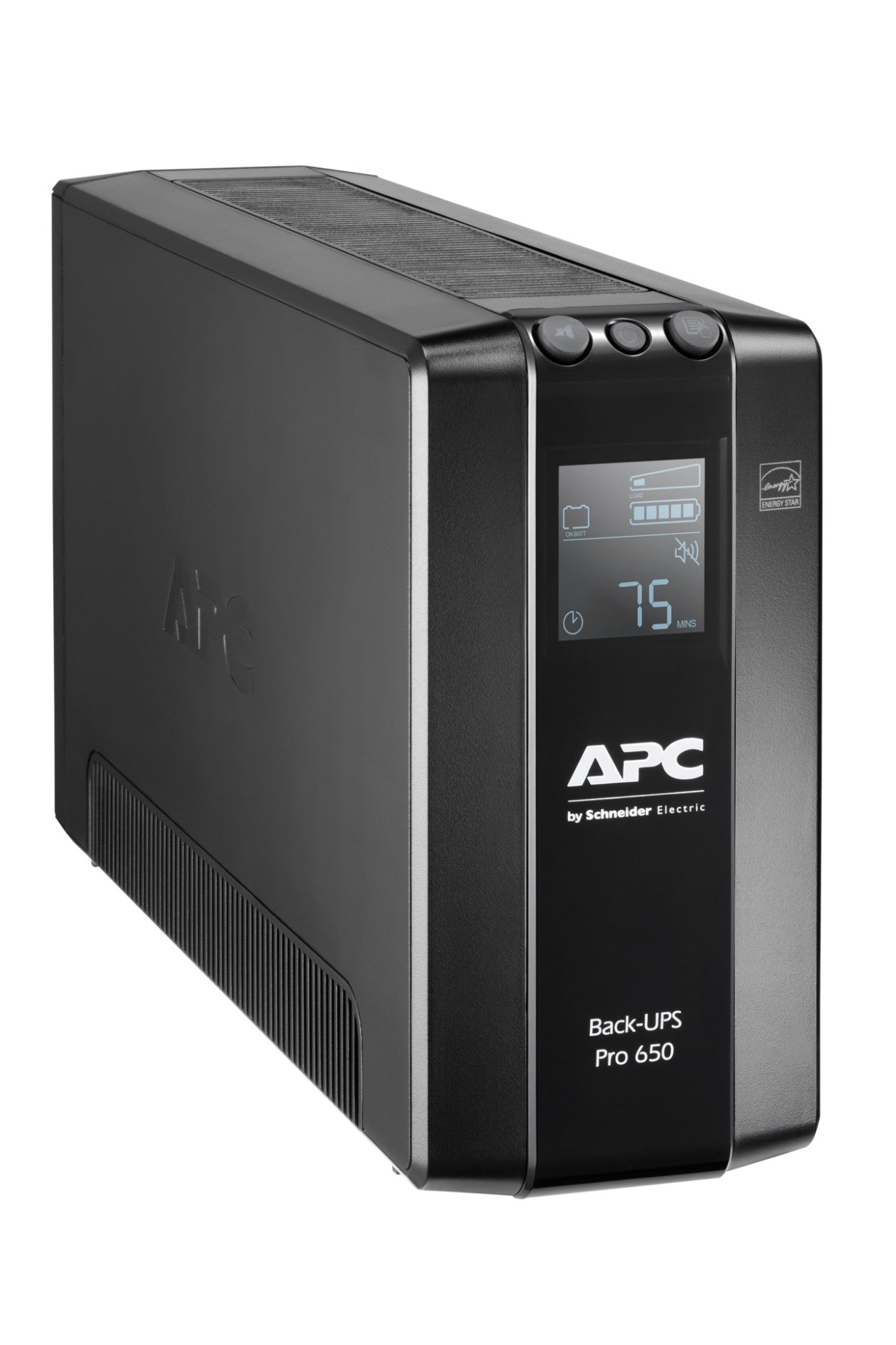

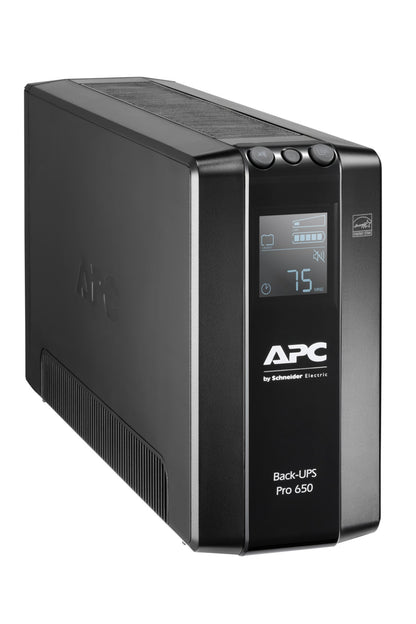

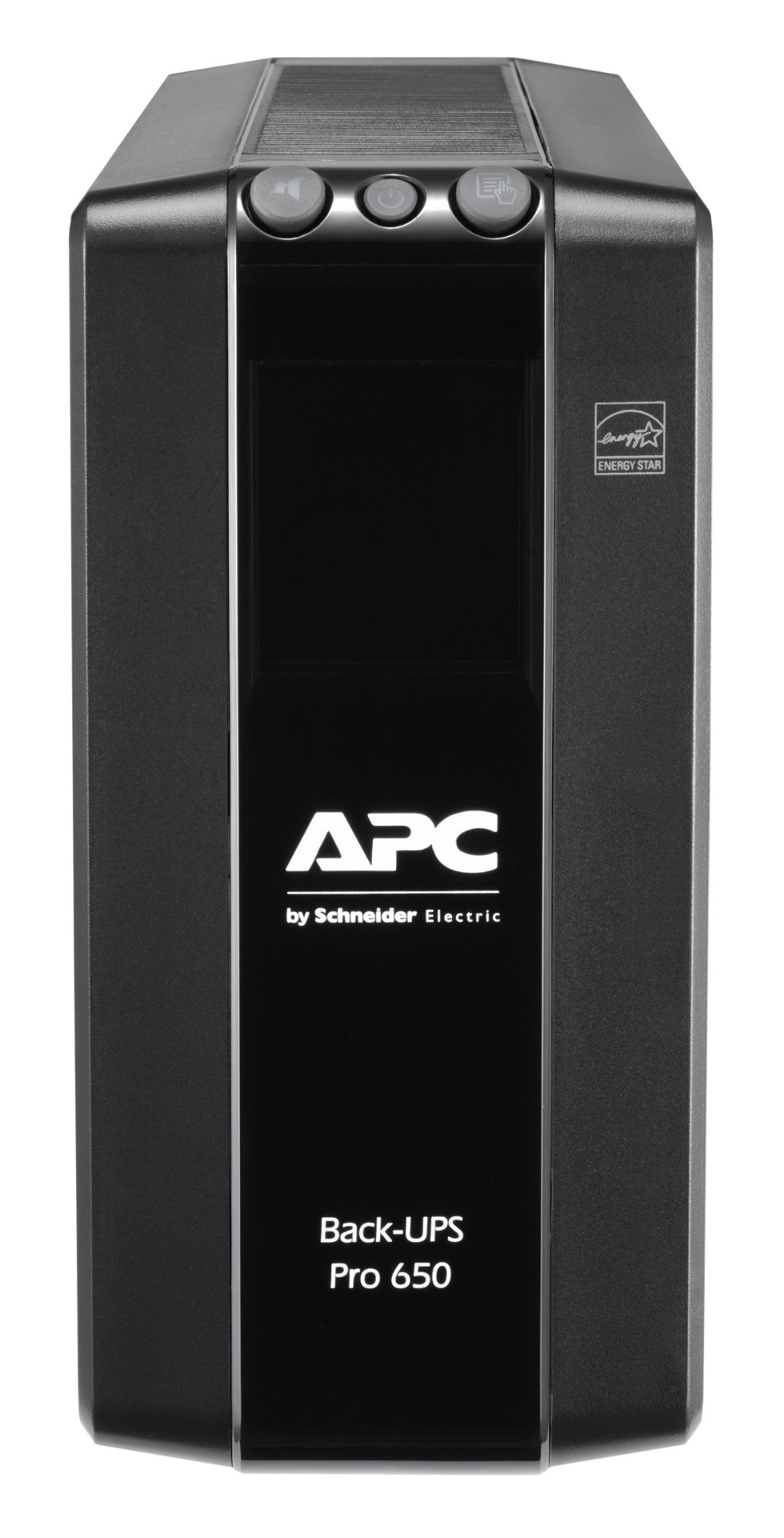

APC BR650 650VA 390W Line-Interactive UPS

When the power cuts out, the APC BR650 keeps your desktop, NAS or router running at up to 390W — long enough to save work and shut down safely.

Security through emergency power

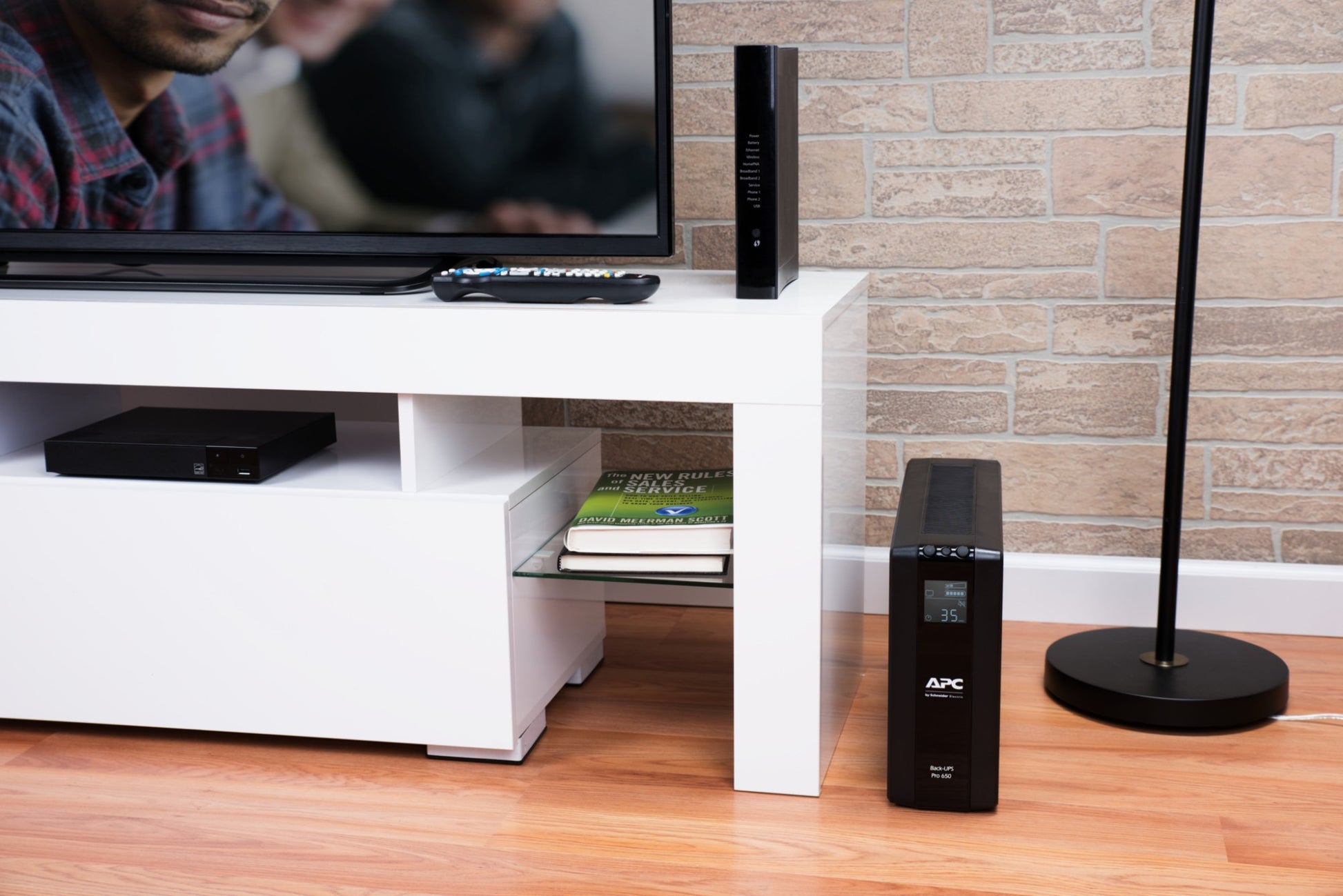

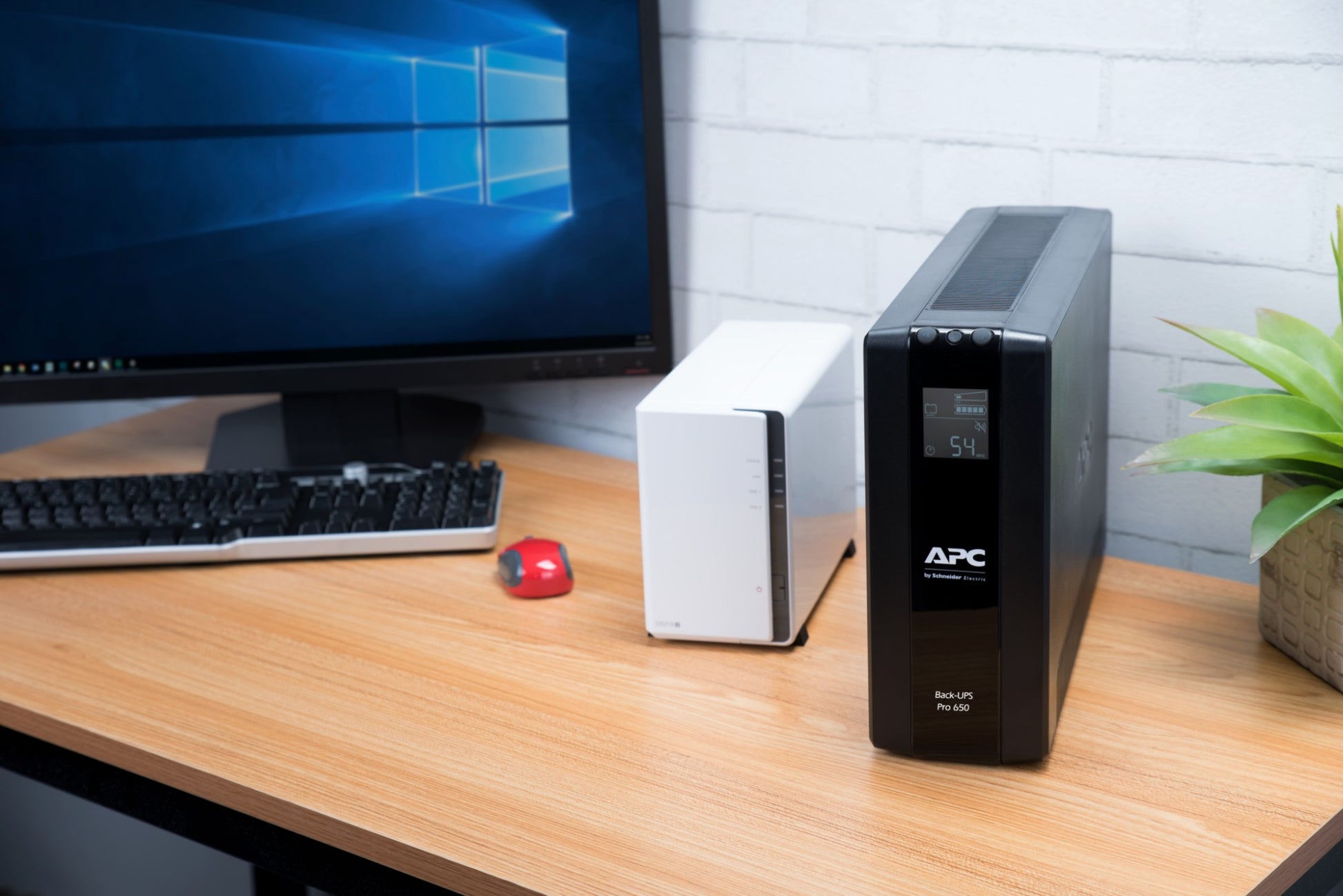

The APC Back-UPS PRO BR650MI has a built-in battery that ensures that all connected equipment, such as a PC, NAS, router, modem and media box, continues to work if the power goes out. In addition, this APC emergency power supply can also automatically shut down a NAS or PC in time via the USB connection. Useful when the APC ups is almost empty. This prevents downtime, damage to equipment, and loss of data.

Safety and convenience
In addition, this safe APC Back-UPS PRO protects valuable equipment against peak voltage caused by lightning strikes, for example. With these UPS you can secure both your power and network connections (1Gbit). Because the APC Back-UPS PRO is also equipped with an LCD screen, it is easy to use.

Insurance
Despite the high risk of lightning strikes and surges, APC has full confidence in its products and offers this APC Back-UPS:
- Equipment protection policy of 150,000 euros

Extend the lifespan
The internal battery cartridge (APCRBC110) can be replaced easily, safely and independently by the user. This without having to switch off the APC BR650MI or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Back-UPS.

Warranty extension
The factory warranty of the BR650MI is 3 years and can be upgraded to 6 years with the APC service pack (WBEXTWAR3YR-SP-01).

Save on operational costs
The BR650MI features a customizable AVR, which extends battery life and maximizes runtime by correcting low and high voltages without discharging the battery. In addition, the UPS has Greenmode, a smart power-saving operating mode that optimally combines efficiency and protection. Furthermore, the emergency power supply has 6 Battery+surge protected outputs. PowerChute Serial Shutdown software and a USB cable are also included.

Specifications

Power
Output power	390 W
Input operation voltage (min)	176 V
Input operation voltage (max)	294 V
Maximum current	10 A
Output power capacity	0.65 kVA
ECO mode	Yes
Ports & interfaces
Cable length	1.83 m
USB port	Yes
SmartSlot	No
Cabling technology	10/100/1000Base-T(X)

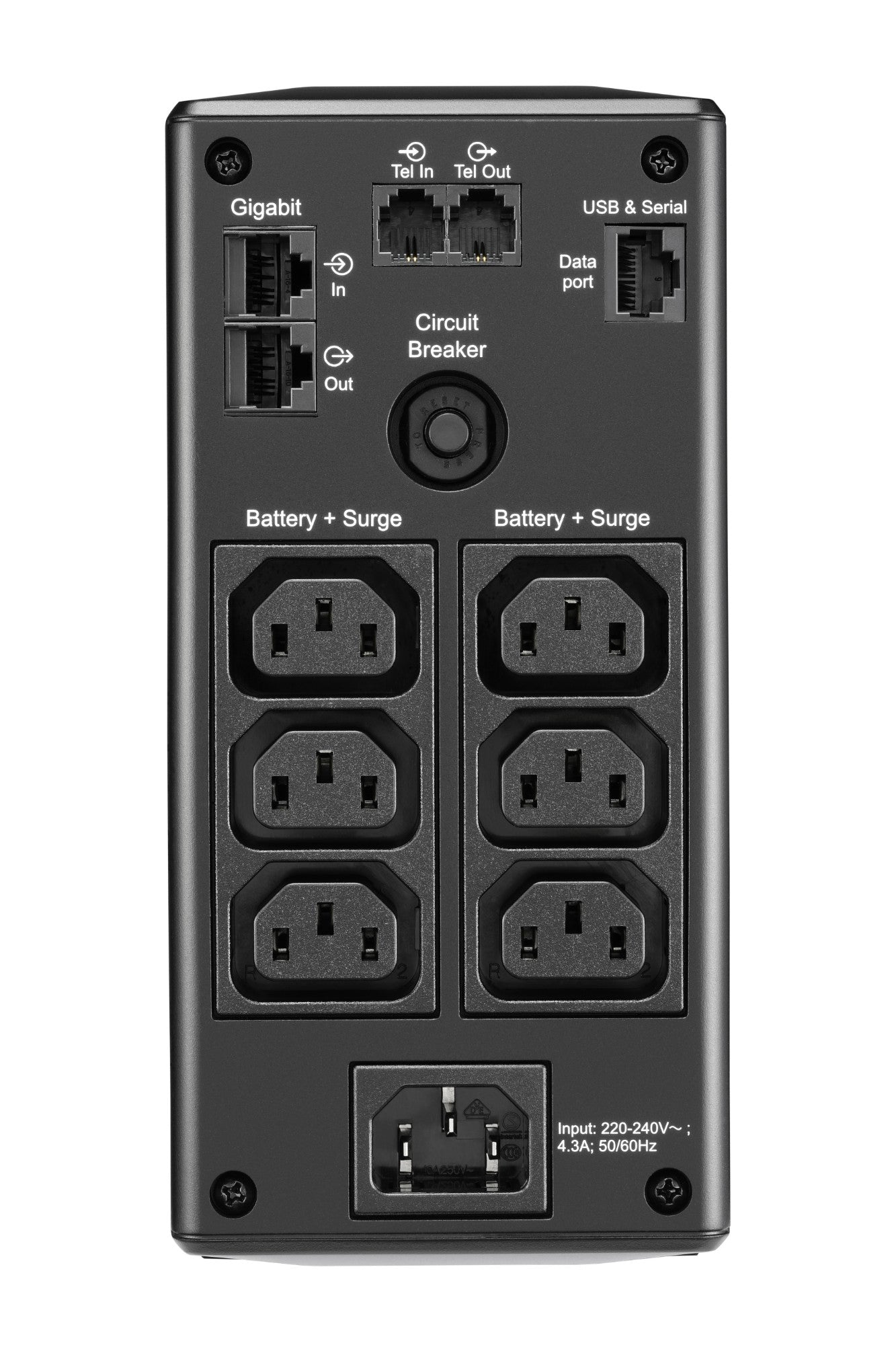

AC outlets quantity	6 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
SmartConnect port	No
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Response time	12 ms
LED indicators	Yes
Surge protection	Yes
Surge protection features	Network
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Battery
Battery life (max)	5 year(s)
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	12 h
Hot-swap battery	Yes
Cold start	Yes
Automatic battery test	Yes
Design
Form factor	Tower
Product colour	Black
Cooling type	Passive
Certification	A-tick, C-tick, CE, EAC, GS Mark, RCM, TISI
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Technical details
Sustainability certificates	Green Premium
Harmonized System (HS) code	85078000
Packaging content
Cables included	USB cable
Manual	Yes
Management card included	No
Weight & dimensions
Package width	440 mm
Package depth	143 mm
Package height	255 mm
Weight	6.4 kg
Width	91 mm
Package weight	7.4 kg
Height	190 mm
Depth	310 mm
Other features
Nominal output voltage	230 V
Nominal input voltage	230 V
