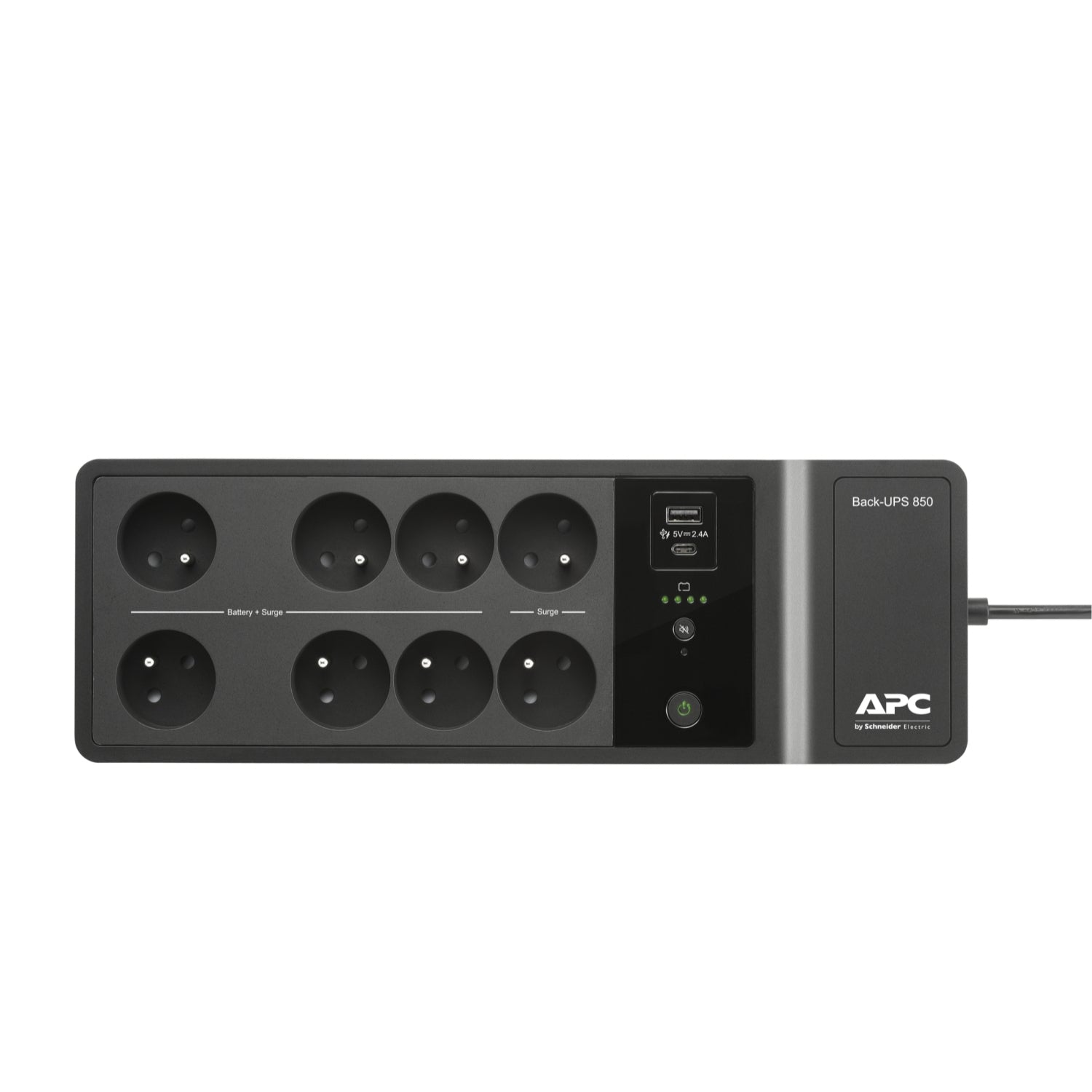

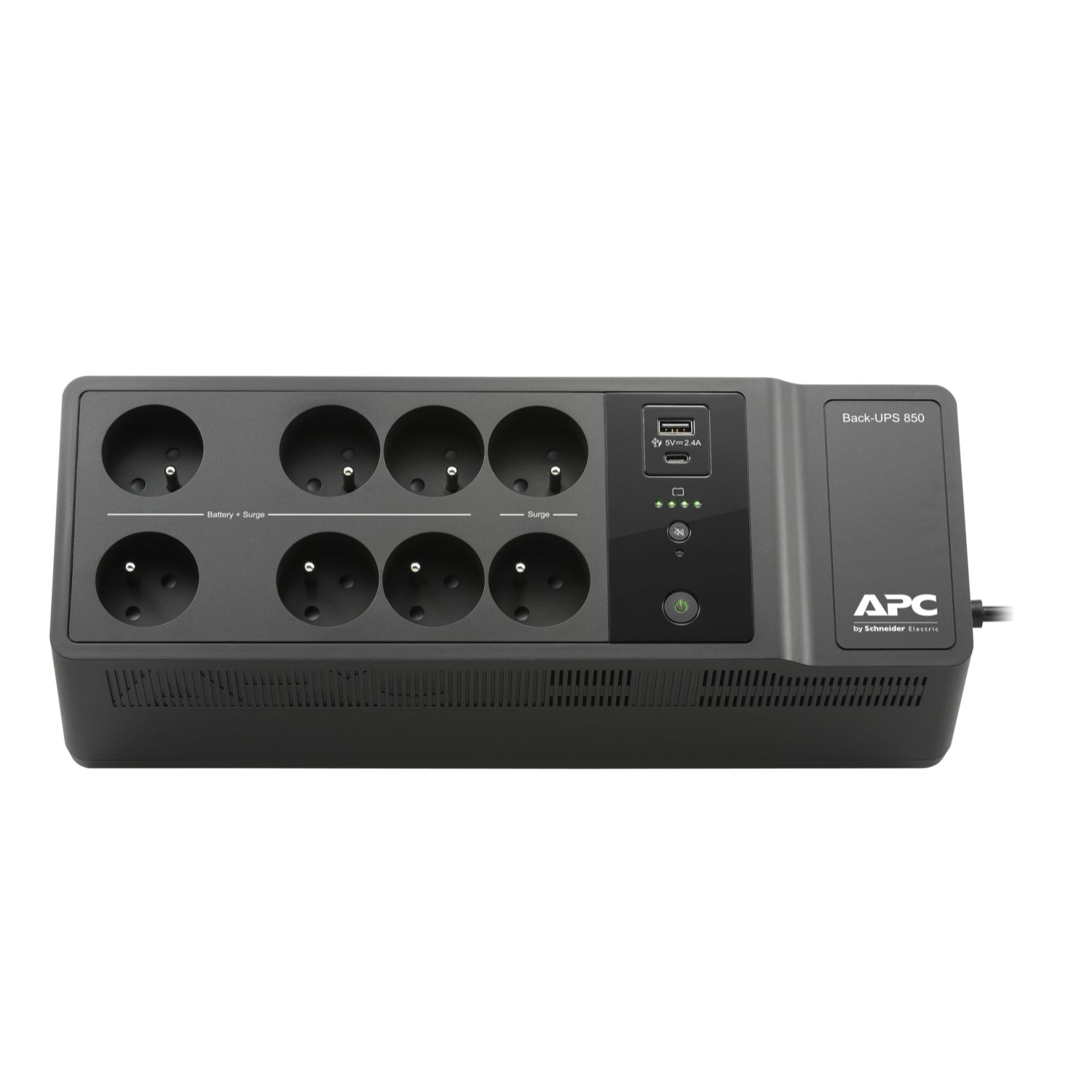

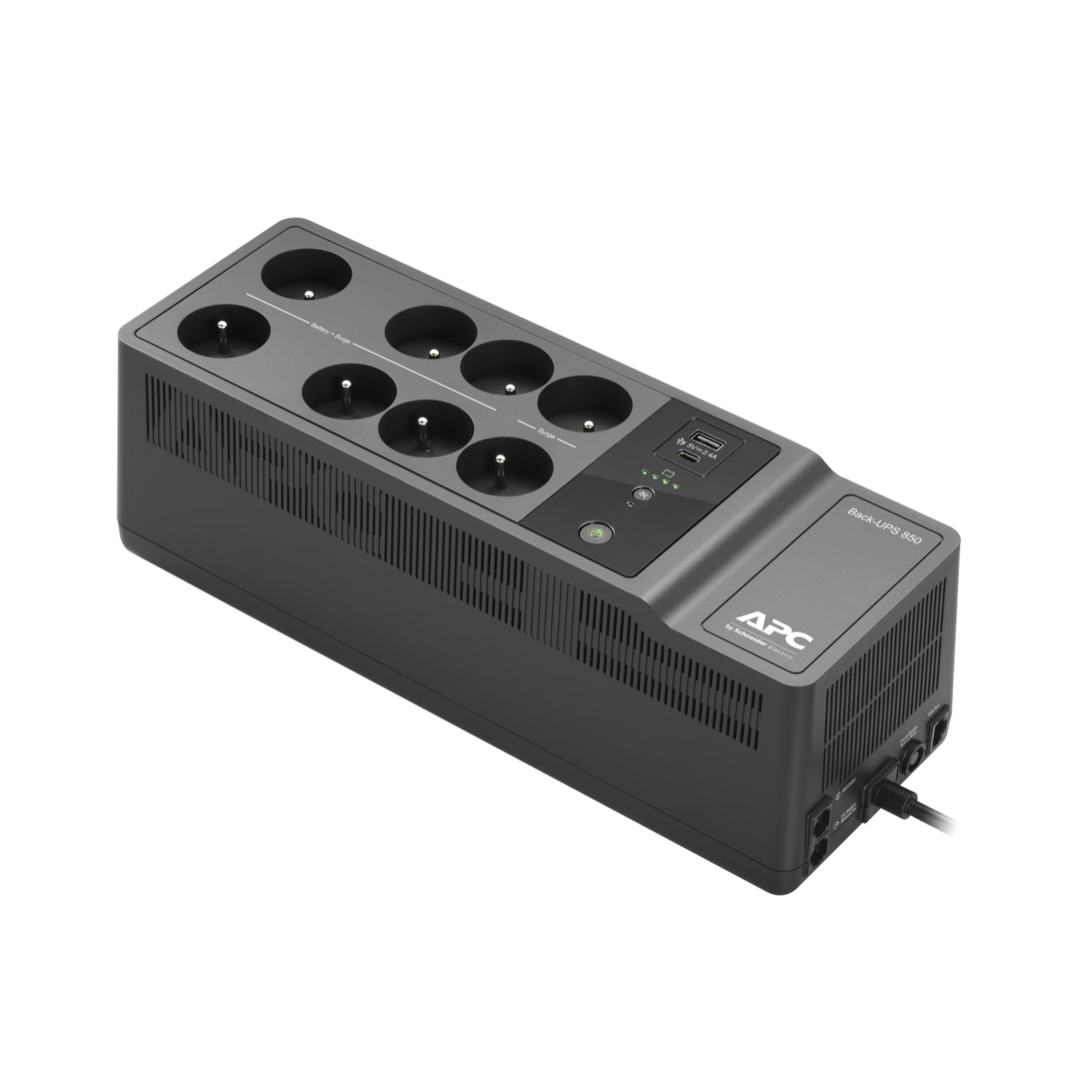

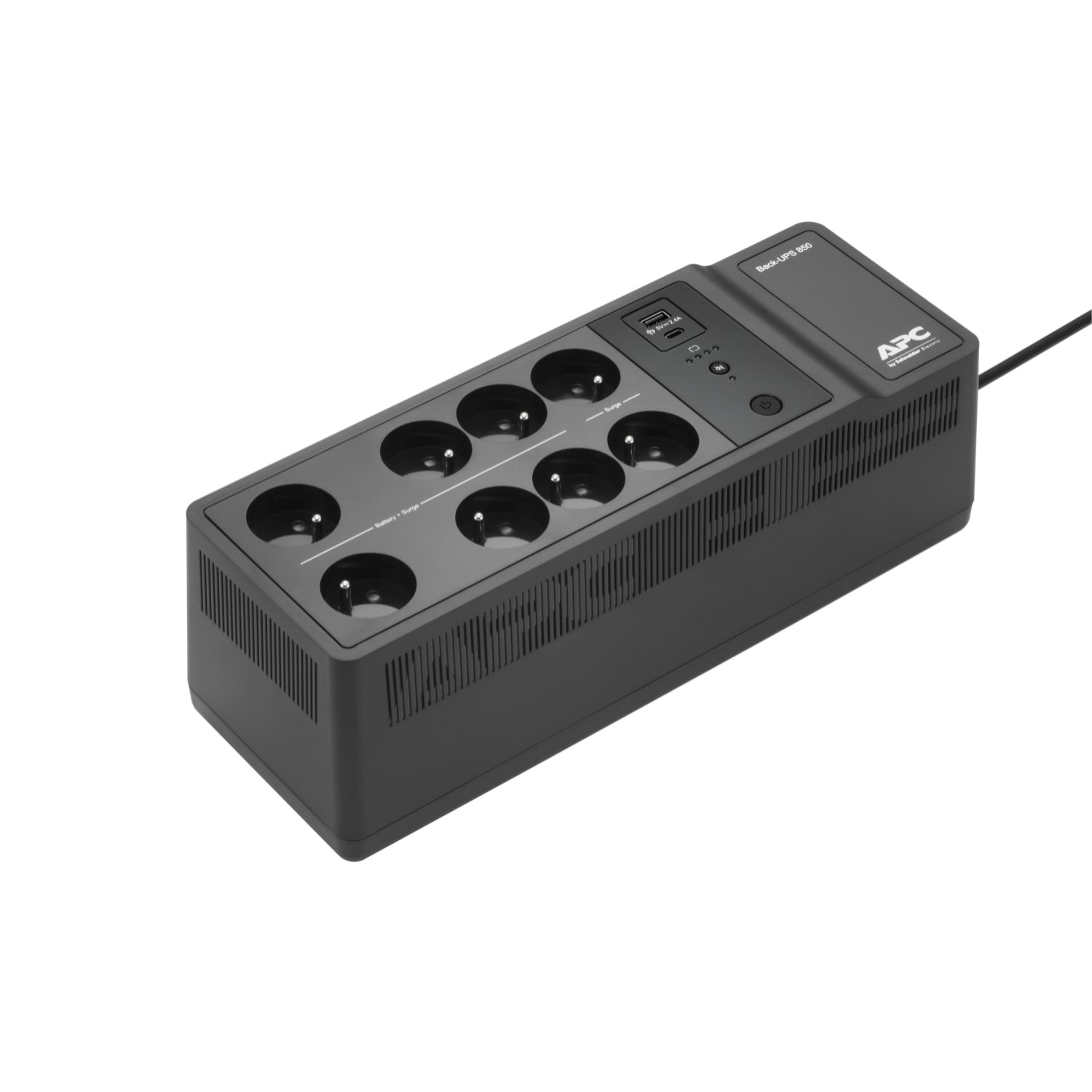

APC 850VA 520W UPS (850G2FR)

When the power cuts out, the APC 850VA keeps your desktop, NAS or router running at up to 520W — long enough to save work and shut down safely.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery charging indicator
Lets you know when your battery is charging and when it is fully charged.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Cold-start capable
Provides temporary battery power when the utility power is out.

Dataline surge protection
Provides protection of connected equipment from power surges on the data lines.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Simple battery replacement
Increases UPS availability by allowing quick, easy battery replacement.

USB charging ports
Simultaneously charge mobile devices, including smartphones and tablets.

USB connection
Use your PC to access additional power protection and management features for your UPS via a USB Port.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Specifications

Power
Output power	520 W
Input operation voltage (min)	220 V
Input operation voltage (max)	230 V
Output operation voltage (min)	220 V
Output operation voltage (max)	230 V
Surge energy rating	310 J
Maximum current	6 A
Efficiency	80%
Output power capacity	0.85 kVA
Ports & interfaces
Cable length	1.83 m
USB port	Yes
SmartSlot	No
Cabling technology	10/100Base-T
AC outlet types	Type E
Ethernet LAN (RJ-45) ports	1
USB port type	USB Type-C
SmartConnect port	No
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Waveform	Sine
LED indicators	Yes
Surge protection	Yes
Surge protection features	Digital Subscriber Line (DSL)
Noise level	45 dB
Audible alarm(s)	Yes
Features
Output frequency	47/63 Hz
Input frequency	47/63 Hz
Battery
Battery life (max)	5 year(s)
Battery recharge time	16 h
Replacement battery cartridge	1
Design
Form factor	Compact
Product colour	Black
Certification	CE, EAC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Non-operating altitude	0 - 4500 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging content
Manual	Yes
Management card included	No
Weight & dimensions
Package width	186 mm
Package depth	441 mm
Package height	190 mm
Weight	4.5 kg
Width	130 mm
Package weight	5 kg
Height	120 mm
Depth	365 mm

Downloads

• Datasheet (PDF)
