APC

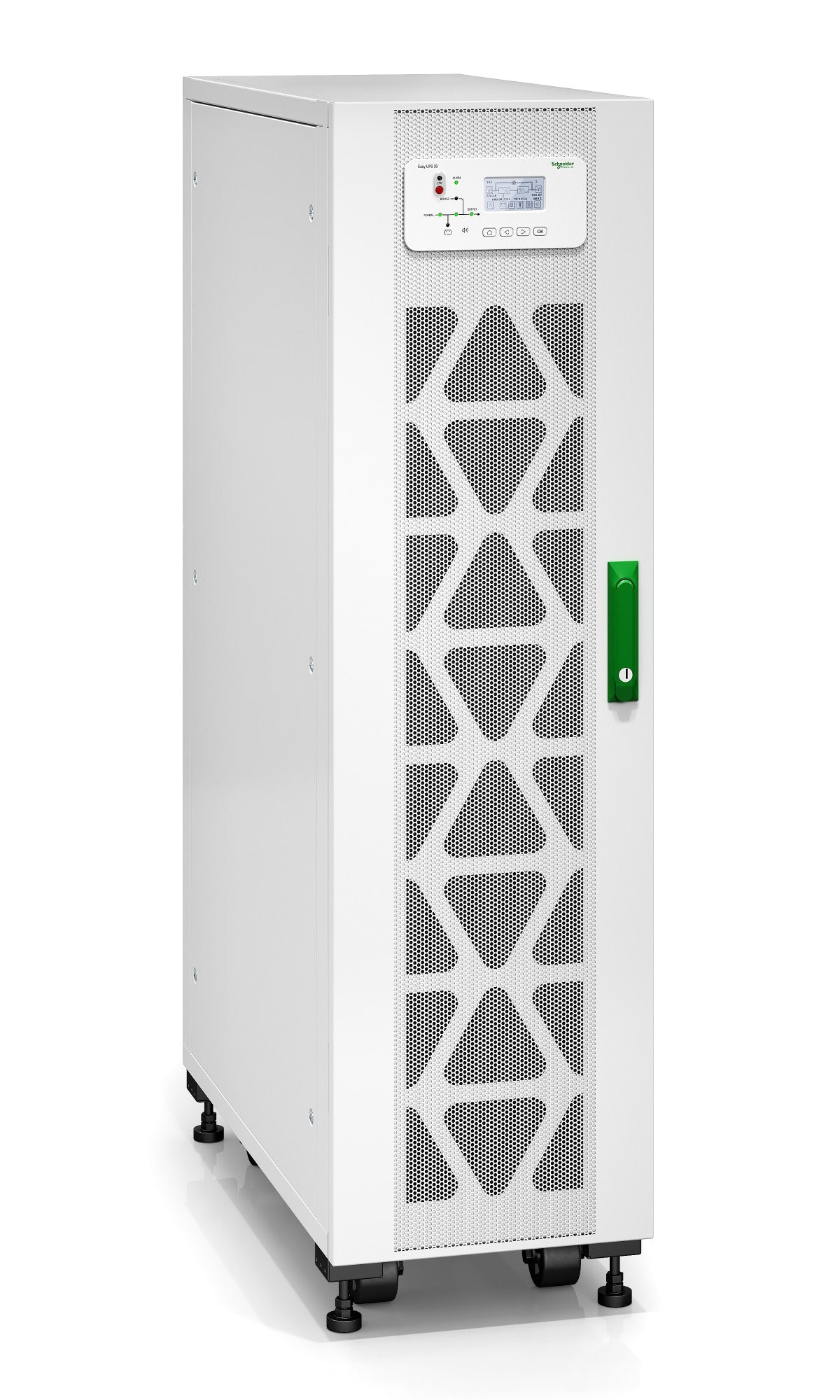

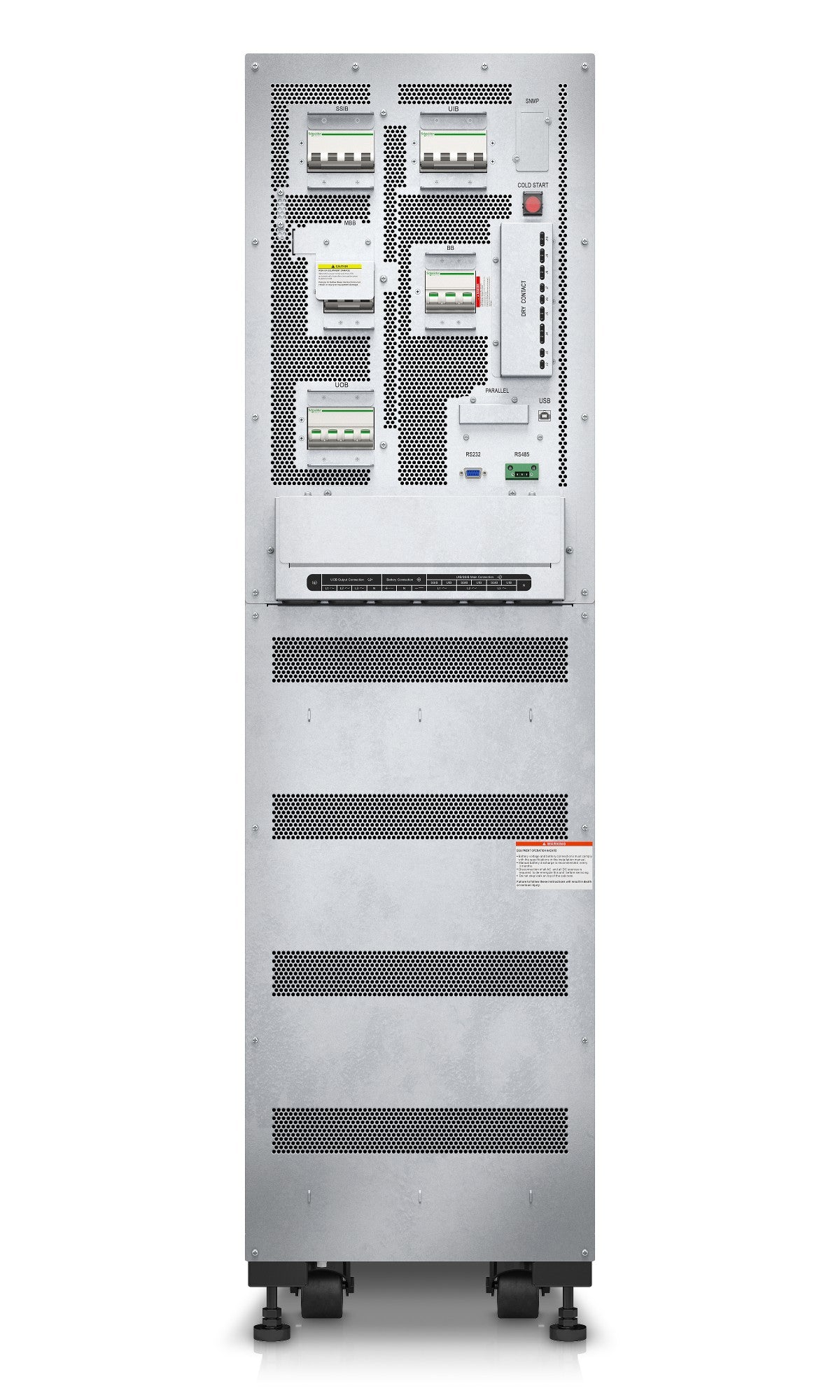

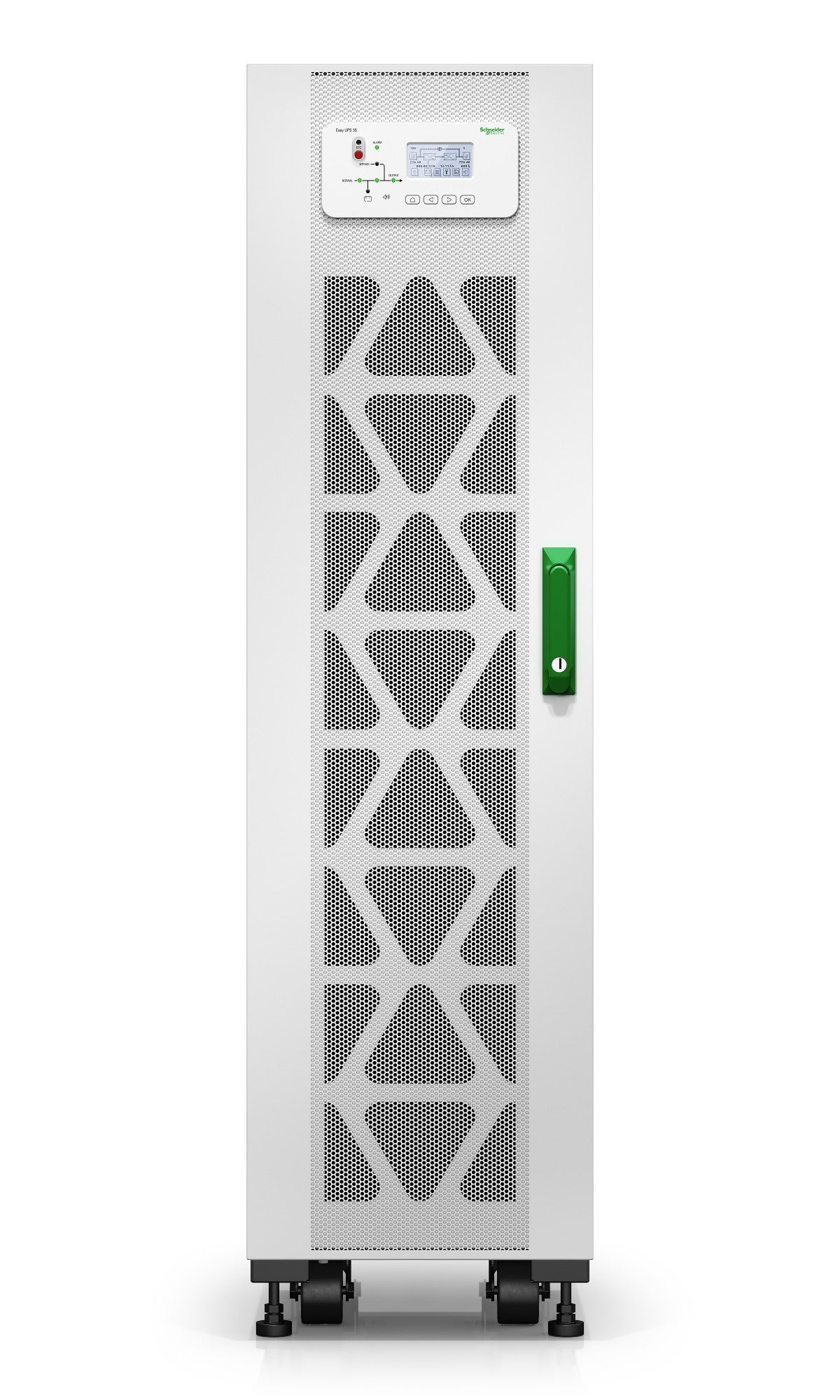

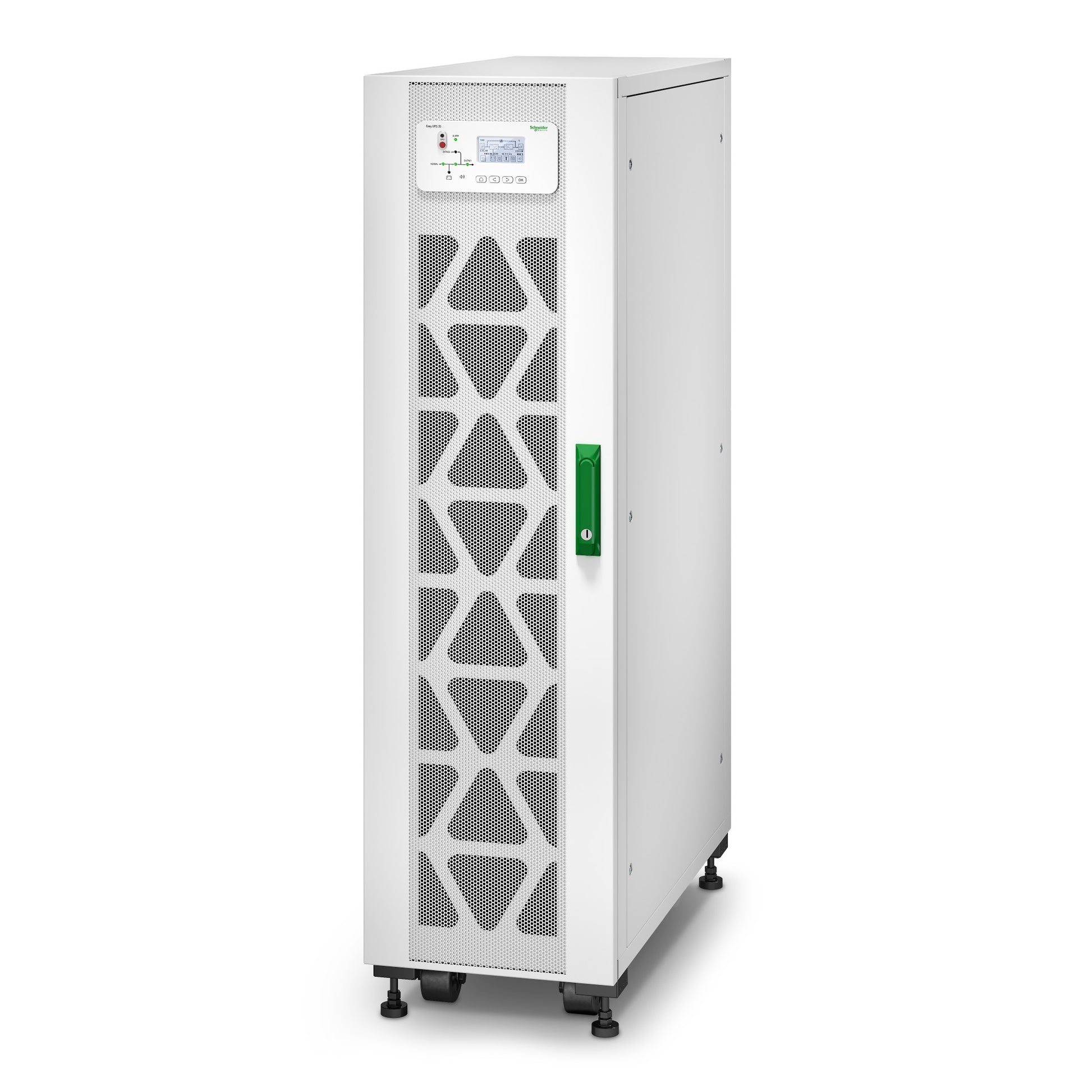

APC 20kVA 20000W Online UPS

£5,495.57 GBP

Sale Sold out

Taxes included.

Condition New

When the power cuts out, the APC 20kVA keeps your desktop, NAS or router running at up to 20000W — long enough to save work and shut down safely.

APC Easy 3S. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 220 V. Form factor: Tower, Product colour: White, Display type: LED. Compliance certificates: RoHS, Certification: CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH. Width: 380 mm, Depth: 928 mm, Height: 1400 mm

Specifications

Power
Input power factor	0.99
Output power	20000 W
Input operation voltage (min)	304 V
Input operation voltage (max)	477 V
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Maximum current	37 A
Output voltage Total Harmonic Distortion (THD)	3%
Input current Total Harmonic Distortion (THD)	3%
Output power capacity	20 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Pure sine
Number of output phases	3
Number of input phases	3
Features
Output frequency	50/60 Hz
Input frequency	45/65 Hz
Ports & interfaces
SmartSlot	Yes
SmartConnect port	No
Battery
Number of batteries supported	3
Battery voltage	220 V
Battery technology	Sealed Lead Acid (VRLA)
Design
International Protection (IP) code	IP20
Form factor	Tower
Product colour	White
Certification	CE, EAC, IEC 62040-1-1, IEC 62040-2, IEC 62040-3, IEC 62040-4, ISTA 2B, RCM, WEEE, REACH
Display type	LED
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Technical details
Output voltage	400 V
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging content
Quick installation guide	Yes
Management card included	No
Weight & dimensions
Package width	563 mm
Package depth	1014 mm
Package height	1640 mm
Weight	122 kg
Width	380 mm
Package weight	158 kg
Height	1400 mm
Depth	928 mm
