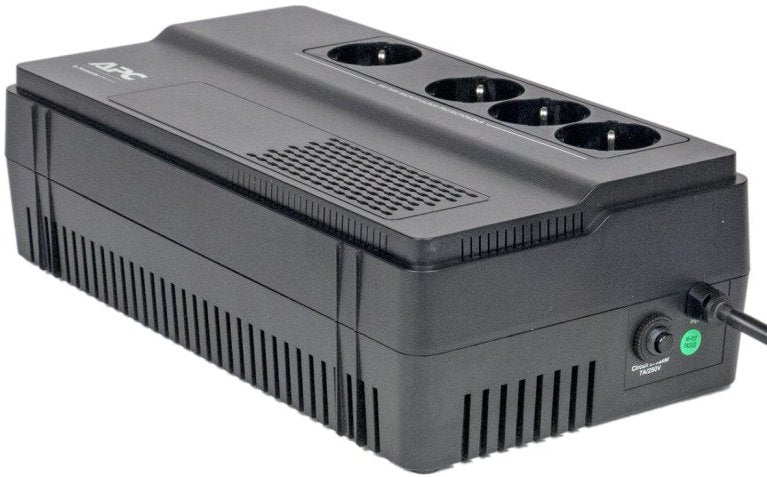

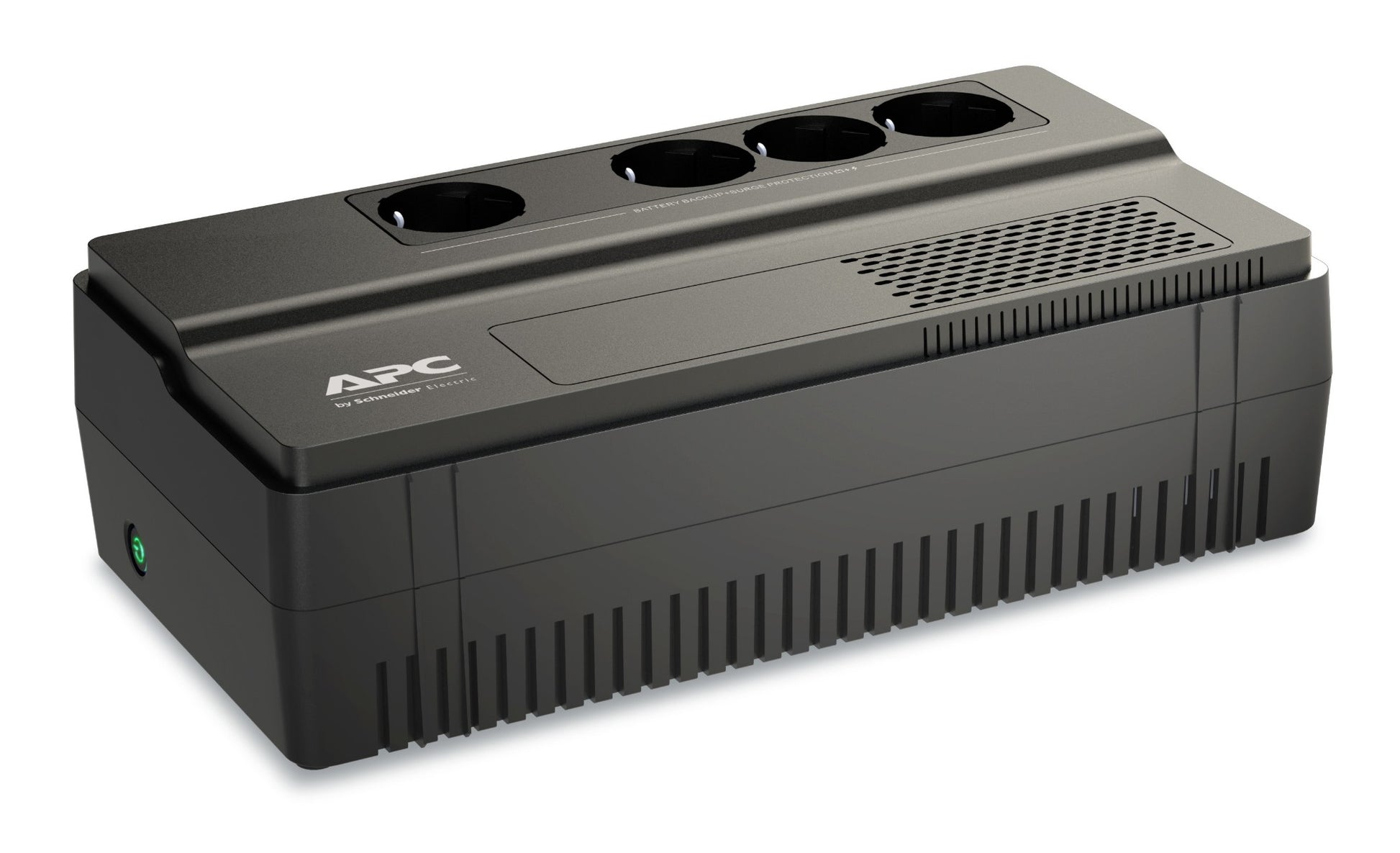

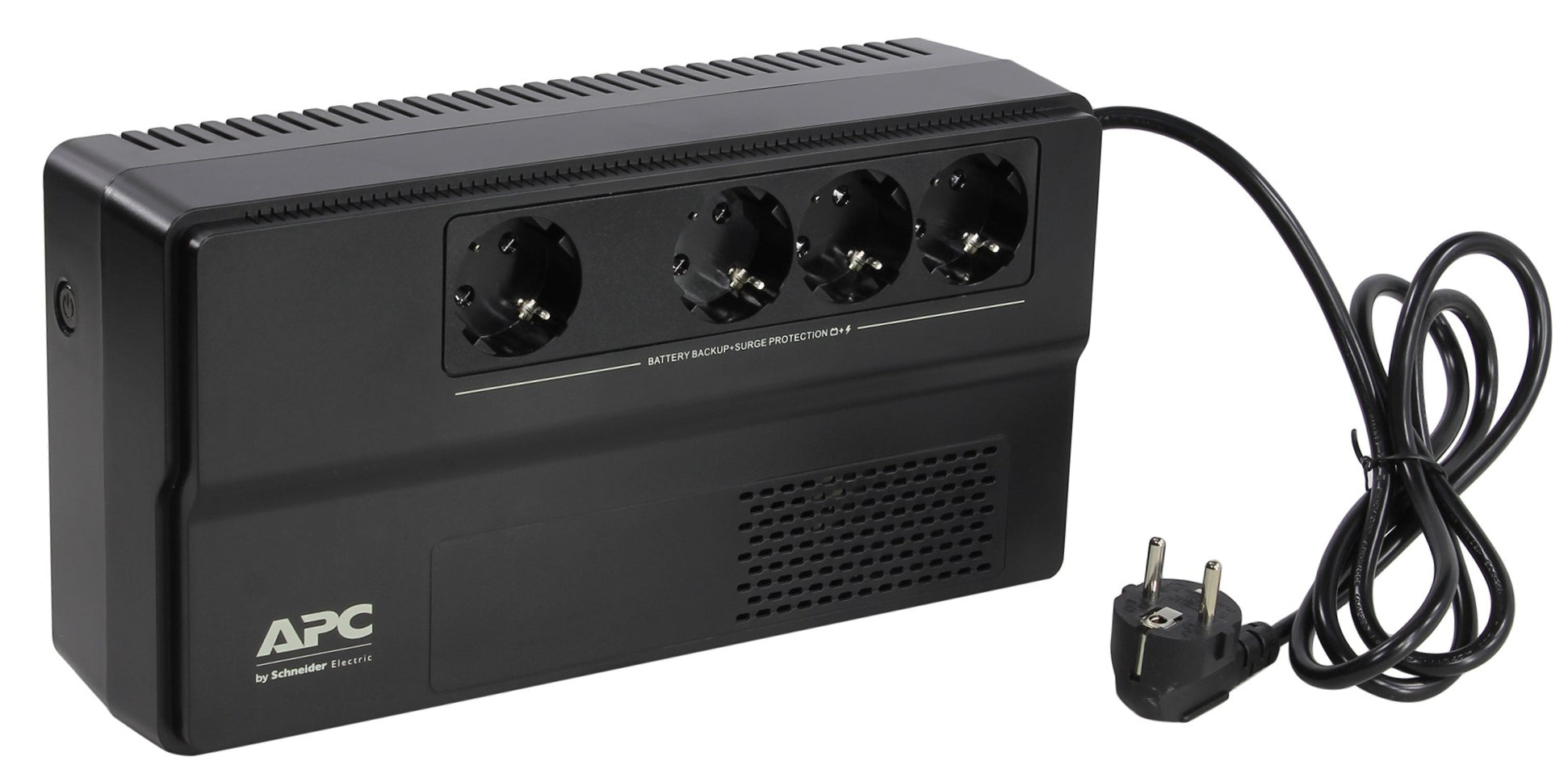

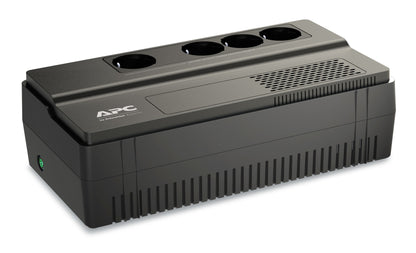

APC 1000VA 600W Line-Interactive UPS

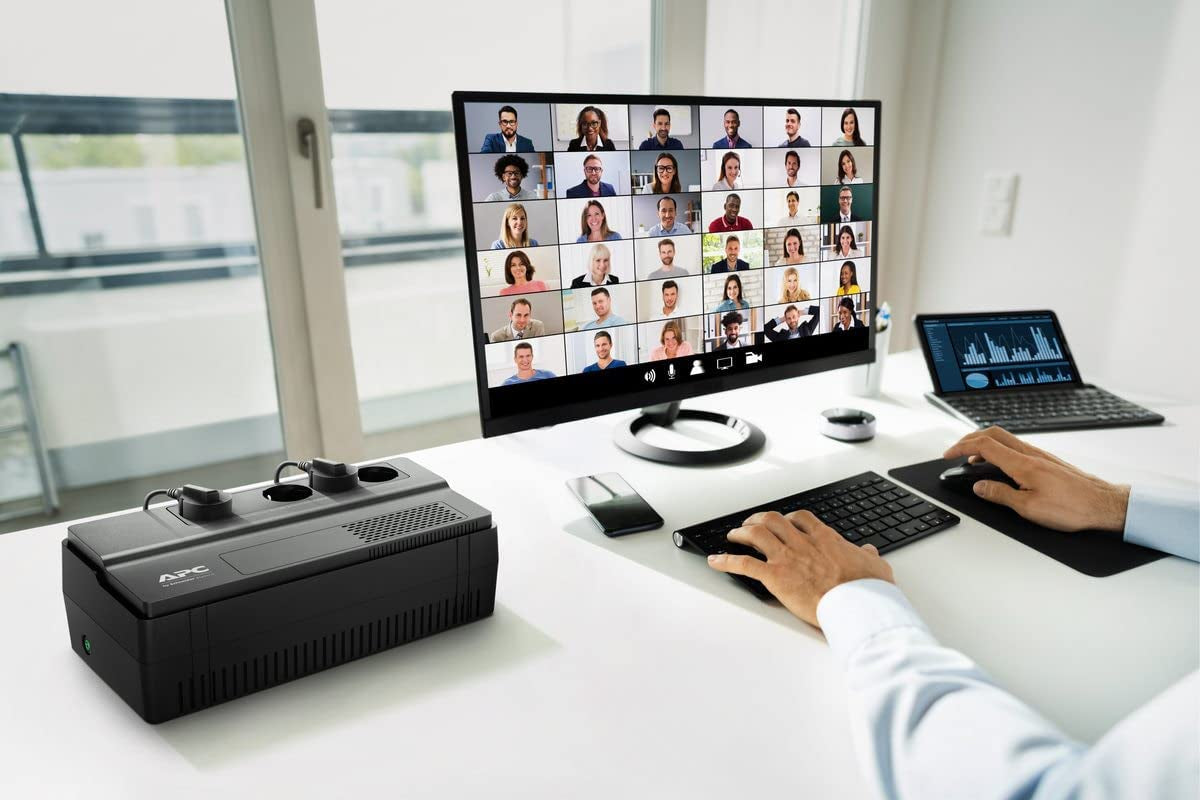

When the power cuts out, the APC 1000VA keeps your desktop, NAS or router running at up to 600W — long enough to save work and shut down safely.

Automatic Voltage Regulation (AVR)

Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.

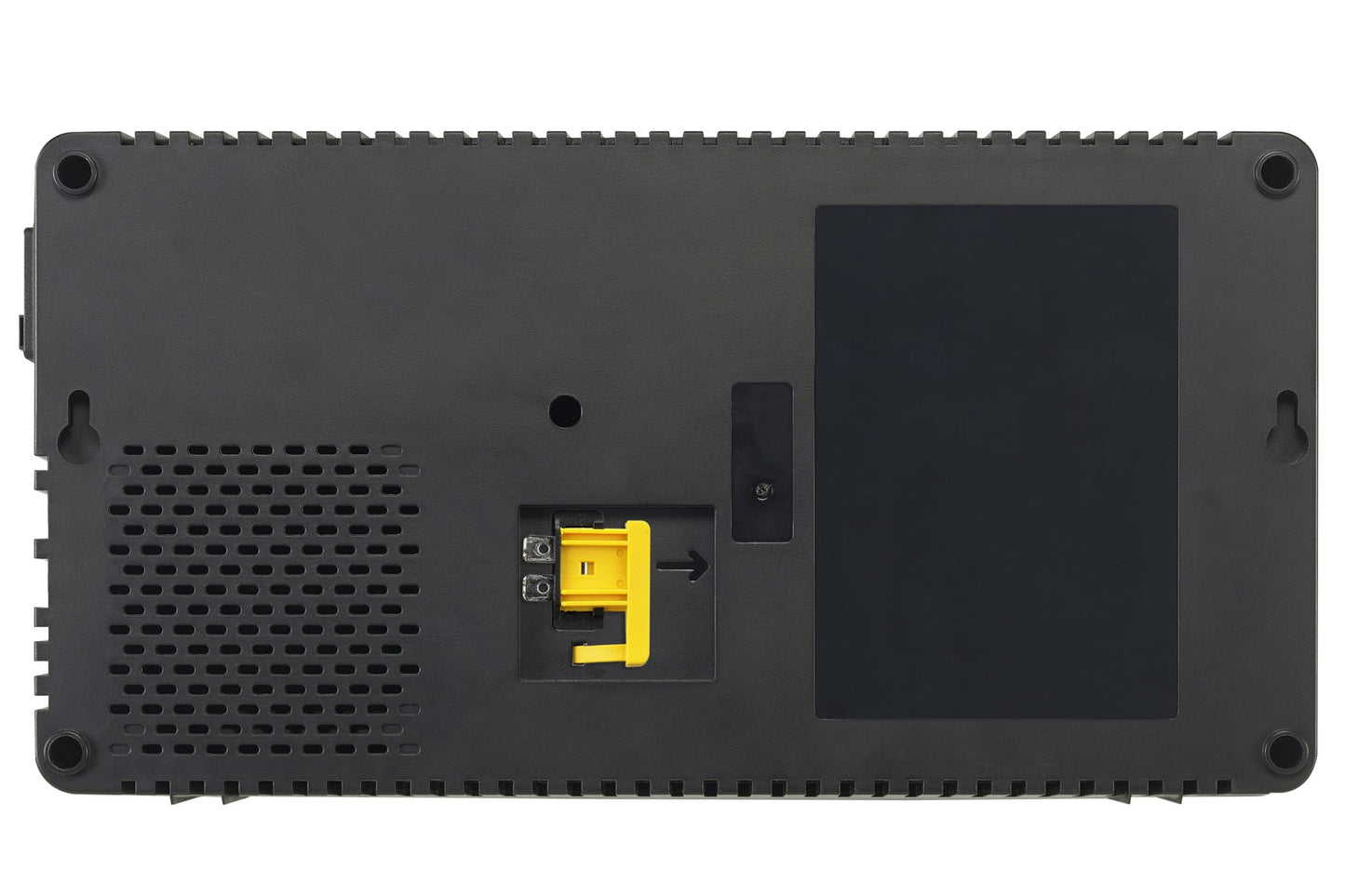

Wall-mount holes

Allow flexibility for setup in tight locations and mounting on wall or other surfaces.

Transformer-block spaced outlets

Protect equipment with input transformer blocks without blocking access to other receptacles.

Sleek design

Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.

Boost Automatic Voltage Regulation (AVR)

Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.

Cold-start capable

Provides temporary battery power when the utility power is out.

Advanced Safety Features

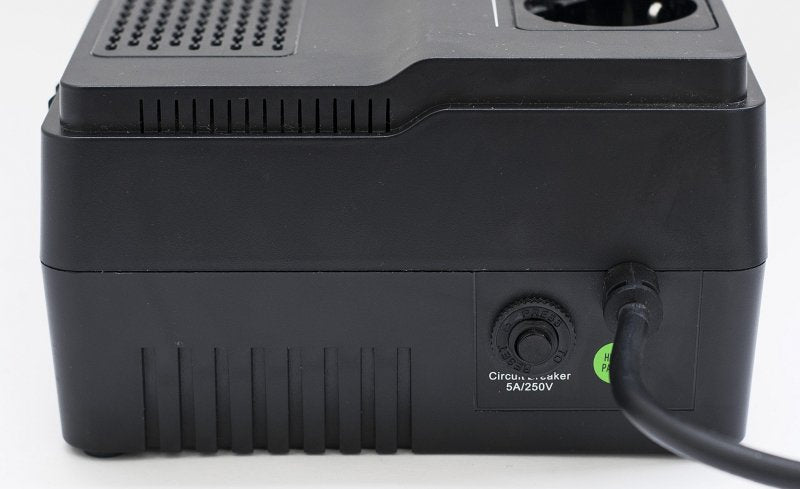

Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

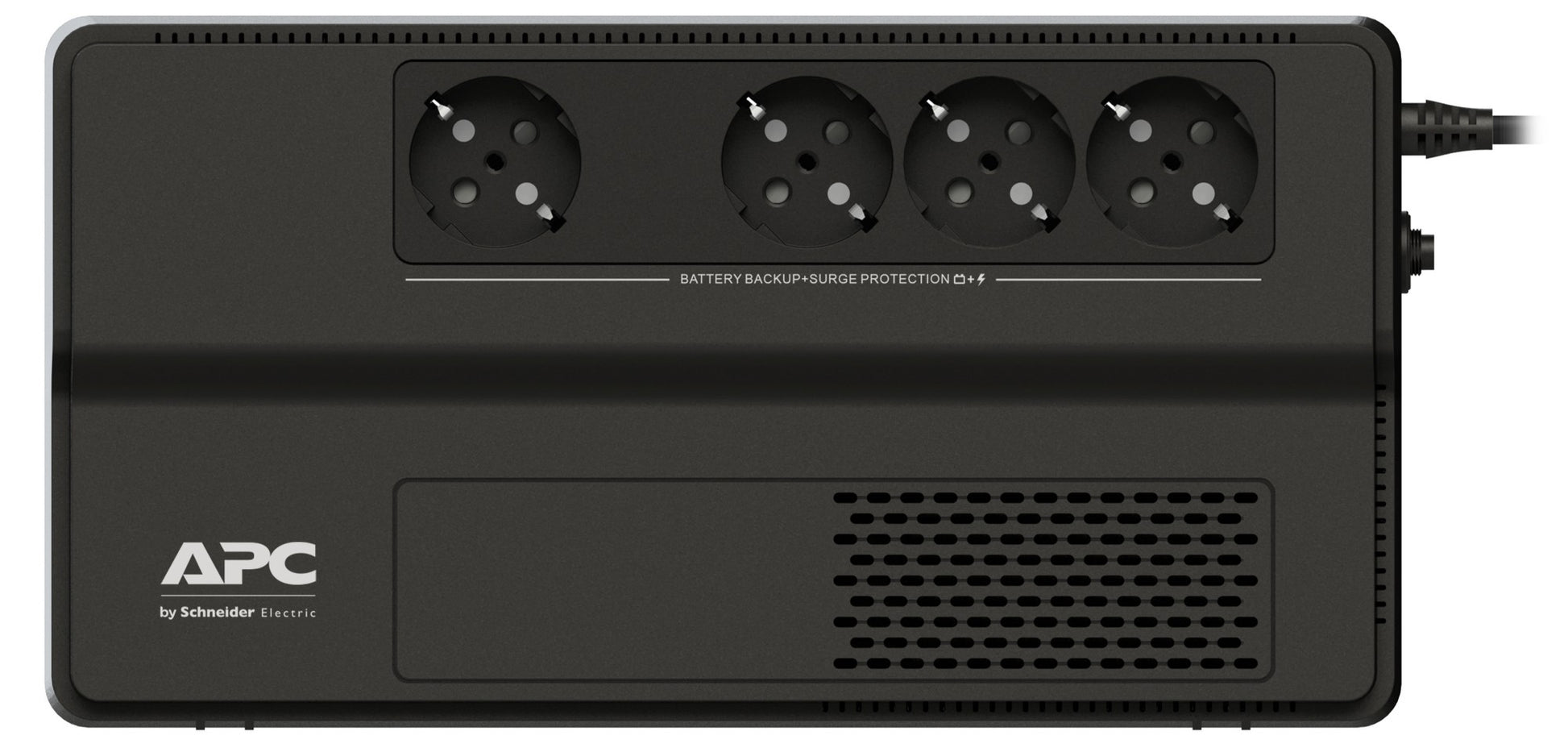

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges and spikes.

Battery backup and surge protection

Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Specifications

Power
Output power	600 W
Input operation voltage (min)	170 V
Input operation voltage (max)	280 V
Surge energy rating	156 J
Output power capacity	1 kVA
Ports & interfaces
Cable length	1.52 m
SmartSlot	No
AC outlets quantity	4 AC outlet(s)
AC outlet types	Type F
SmartConnect port	No
Performance
Audible alarm modes	Alarm when on battery, Low battery alarm, Overload alarm
UPS topology	Line-Interactive
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
Number of output phases	1
Number of input phases	1
LED indicators	Yes
Surge protection	Yes
Noise level	40 dB
Audible alarm(s)	Yes
Transfer time (Line Mode to Battery Mode)	6 ms
Features
Output frequency	50/60 Hz
Input frequency	50/60 Hz
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	8 h
Cold start	Yes
Design
International Protection (IP) code	IP20
Form factor	Compact
Product colour	Black
Certification	CE REACH
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90%
Operating altitude	0 - 2032.1 m
Technical details
Harmonized System (HS) code	85078000
Compliance certificates	RoHS
Packaging content
Management card included	No
Weight & dimensions
Package width	373 mm
Package depth	143 mm
Package height	237 mm
Weight	5.7 kg
Width	160.5 mm
Package weight	6 kg
Height	92.5 mm
Depth	305 mm
Other features
Nominal output voltage	230 V
