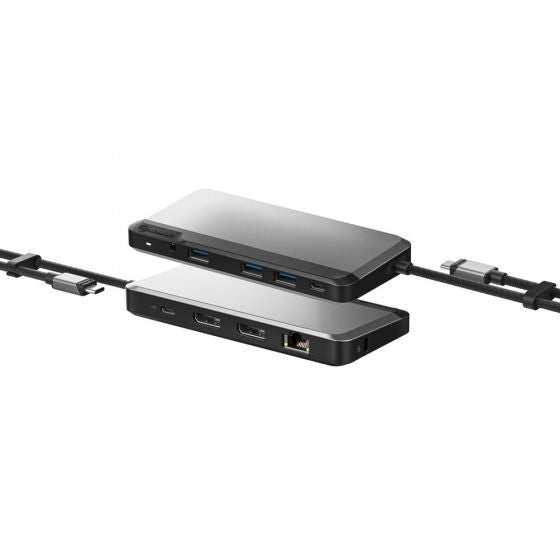

ALOGIC U1CAD-SGR USB-C Docking Station

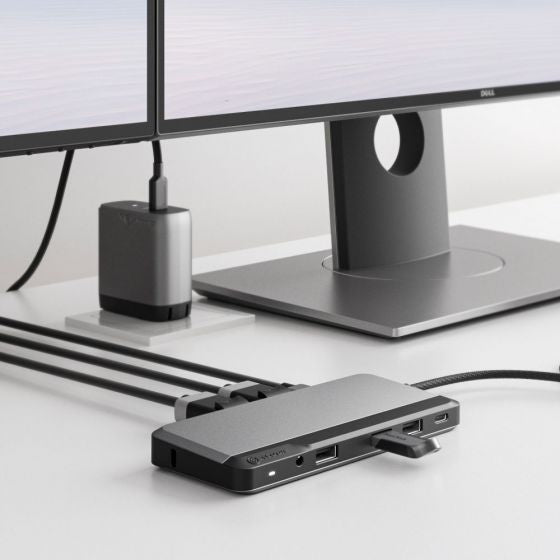

One cable, full desk: the ALOGIC U1CAD-SGR turns your laptop into a workstation with dual displays over a single USB-C connection.

Nine Ways to Enhance Your Workspace Ports for a Better Desk Many modern laptops are missing the ports professionals need to connect essential USB accessories and displays at their desk. With the nine-port MX2 on your desk, you can connect two pristine DisplayPort-enabled computer monitors for multi-screen activities. You can run all your standard IT peripherals, including keyboard, mouse, printer and phone. Play back audio over headphones while you work and connect to Ethernet when you need a reliable connection for activities such as video conferencing. Full HD for Focused Work It’s Clearer in Full HD The MX2 features two DisplayPort ports for dual Full HD [@60Hz] displays on Windows laptops and desktops [with USB-C or Thunderbolt 3&4 with video output] *Dual displays save you time otherwise squandered on toggling between applications on single screens. MX2 users also benefit from sharp display resolutions for visually detailed tasks such as image editing and design and layout work. *See resolution support table below for full details of the resolutions and video outputs your computer is capable of. A Featherweight Dock for Heavyweight Performance Ports. Power. Portability. The MX2 weighs just 138 grams and occupies less space than a mobile phone. With premium metal alloy casing, the warranty-backed dock is a smart choice for households who need a take-anywhere dock for home, office and on the go.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Headphone connectivity	3.5 mm
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
DisplayPorts quantity	2
Microphone in	No
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	85 W
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Product colour	Grey
Card reader integrated	No
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Maximum refresh rate	60 Hz
Weight & dimensions
Weight	138 g
Width	62 mm
Depth	139 mm
Height	16.3 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes

Downloads

• Datasheet (PDF)
