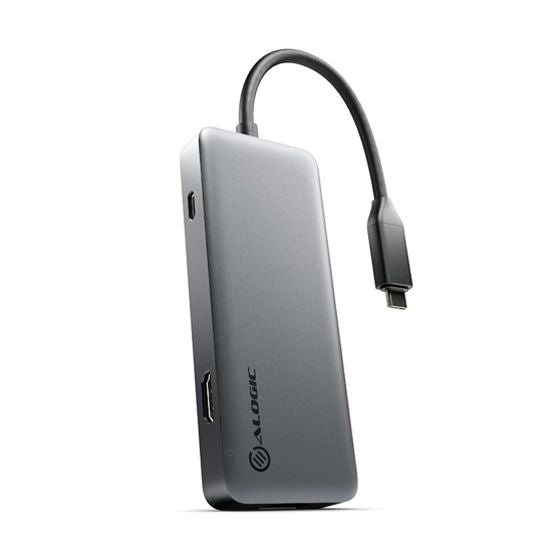

ALOGIC SPARK USB-C Docking Station

One cable, full desk: the ALOGIC SPARK turns your laptop into a workstation with external displays, wired networking over a single USB-C connection.

Next Generation USB 4 Performance
Offering twice the bandwidth as the fastest USB 3 connection, with USB4 you’ll never have to compromise on connectivity again. With a breathtaking 40 gigabits per second transfer speed, USB4 capable of moving files at lightning speeds with more than enough capacity left over to support a multitude of devices, including ultra-high-definition displays.

While USB4 represents the cutting-edge standard of data transfer - future-proofing your setup and allowing you to take advantage of new technologies - it remains completely backwards compatible with existing USB 3 or Thunderbolt ports, so you don’t need to have a cutting-edge computer to take advantage of this new technology.

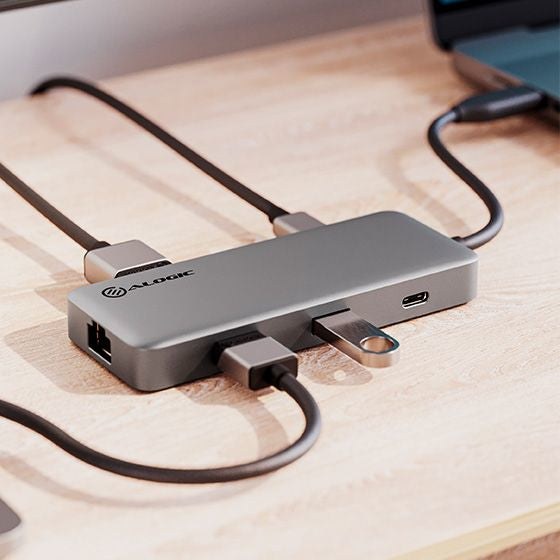

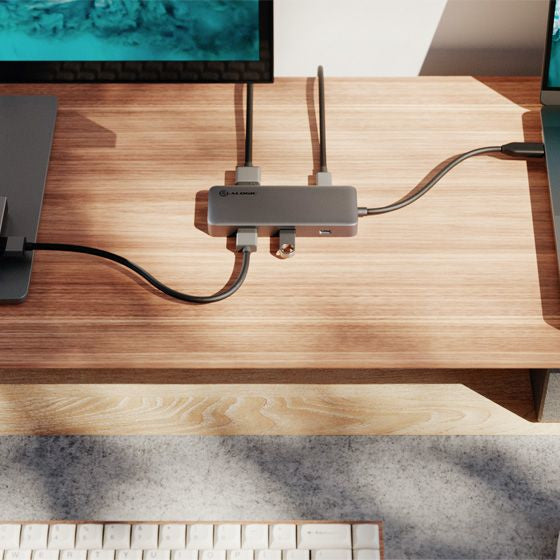

Declutter your desk
Tired of dealing with a tangle of cables and chargers every time you need to unplug a device? Save yourself the hassle with the robust connectivity of the SPARK 6-in-1 USB4 Hub, which provides the expansion ports you need without the desktop footprint that usually goes with them.

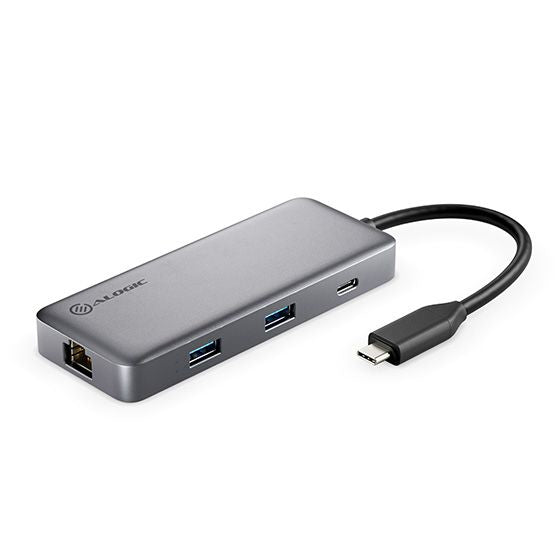

In addition to your USB4 computer connection, the hub’s outputs include 8K HDMI, 10Gbps USB (2x USB-A + 1x USB-C), Gigabit Ethernet and a USB-C PD charging input supporting up to 100W of power, all in a compact box that will complement any setup.

Crystal Clear 8K HDMI Video
Enjoy the crispest video quality available with a HDMI 2.1 connection that supports ultra-high-definition 8K resolutions at a smooth 60Hz*.

Whether you’re multitasking at work, composing your next digital masterpiece, finally catching up on that summer blockbuster or immersing yourself in a virtual world, the SPARK Hub’s ultra-fast USB4 transfer speeds will allow you to make the most of your display, whatever its resolution.

And when you’re ready for that 4K or 8K upgrade? Your ALOGIC SPARK 6-in-1 USB4 Hub will be ready and waiting.

Specifications

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Host interface	USB Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Network
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Product colour	Grey
HD type	8K Ultra HD
Housing material	Metal
Maximum refresh rate	60 Hz
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	100 g
Width	46 mm
Depth	116 mm
Height	14 mm
Packaging content
Manual	Yes
Other features
Cable type	Round cable

Downloads

• Datasheet (PDF)
