ALOGIC DV4 Universal Display USB-C Docking Station

One cable, full desk: the ALOGIC DV4 Universal Display turns your laptop into a workstation with quad displays over a single USB-C connection.

Connect up to 4 Displays
When linked to a computer using USB-C the DV4 dock can connect up to four* external displays via the 3x HDMI and 1x DisplayPort outputs for the ultimate in workstation display capabilities. This dock will also work with older laptops without USB-C, connecting via USB-A and allowing up to two displays to be used.

Expand your laptop’s capabilities
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Powerhouse Companion for your laptop

Connect up to 4 Displays
- Connect up to 4 extended displays with HDMI 2 + HDMI 3 + HDMI 1 + DisplayPort 1
- USB-C DP Alt Mode host required for HDMI 1 and DisplayPort 1 outputs.
- Connect to 2 extended displays with a USB-A host.

Connect up to 3 Displays
- Connect up to 3 extended displays with HDMI 2 + HDMI 3 + HDMI 1 OR DisplayPort 1
- HDMI 1 AND DisplayPort 1 in use will give mirrored displays
- USB-C host required for HDMI 1 and DisplayPort 1 outputs

Three Screens. Endless Possibilities.
See your work in whole new ways. Immerse yourself in the art you love. With your MacBook connected to one stunning 4K display and up to two 1080p screens, you’ll finally have space for everything you need to live your best digital life. Even with all those tabs.

Up to 85W Power Delivery
Equipped with a USB Power Delivery power input, the dock can charge laptops with up to 85W of power when a USB PD power adapter is connected (ALOGIC recommend the DCG1X100 100W Rapid Power Gan power adapter for use with this product - available separately).

Clutter-free desk
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

Truly Universal Plug And Play
With Plug and Display™ support for Windows, macOS and Chromebooks, as well as dual-screen support for legacy USB-A devices, it’s never been simpler to create the perfect workstation or hotdesking environment. Just plug in and you’re ready to go.Text

Specifications

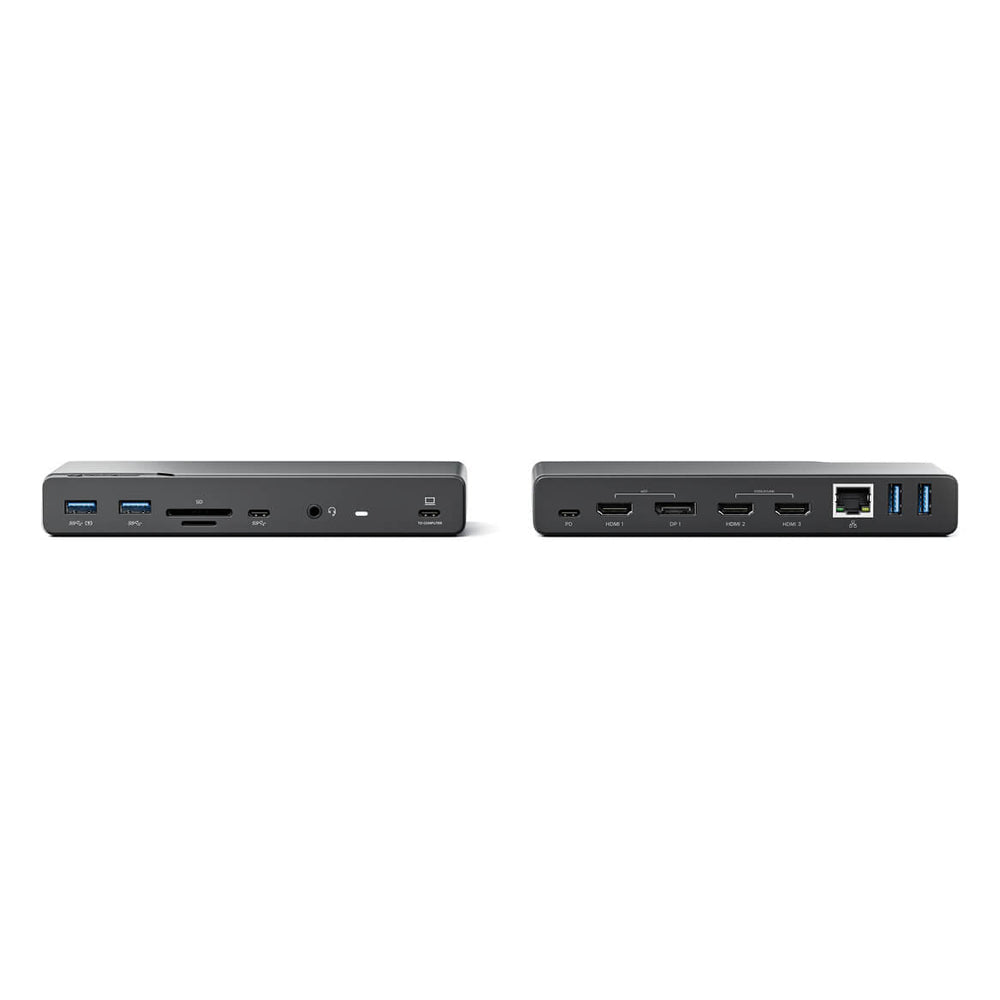

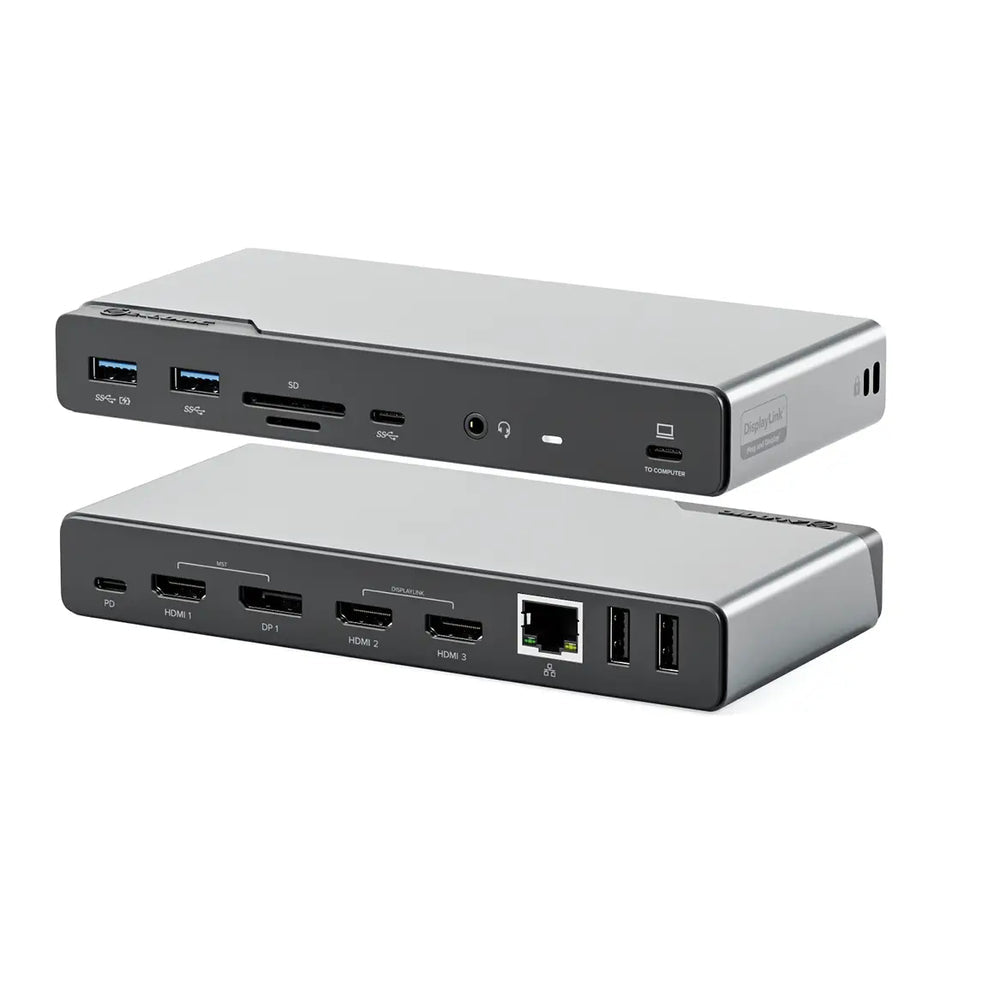

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	3
HDMI version	1.4b/2.0
DisplayPorts quantity	1
Headphone outputs	1
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.4
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Maximum digital resolution	3840 x 2160 pixels
Number of displays supported	4
Product colour	Grey
Card reader integrated	Yes
Cable lock slot	Yes
Plug and Play	Yes
LED indicators	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
HD type	4K Ultra HD
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium
Maximum refresh rate	60 Hz
Power
Power source type	USB
USB cable length	0.8 m
Software
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Other operating systems supported	ChromeOS
Weight & dimensions
Weight	435 g
Width	172 mm
Depth	82 mm
Height	27 mm

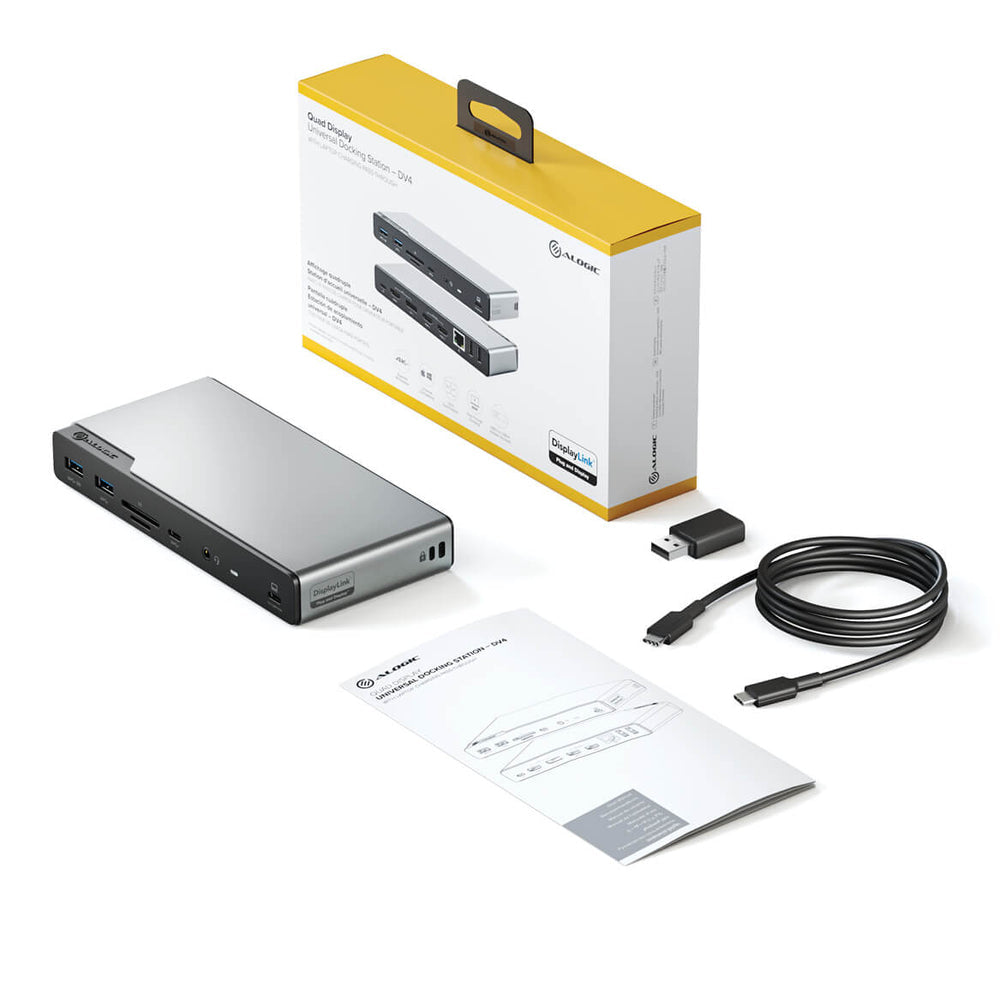

Packaging content
Quick start guide	Yes
Cables included	USB Type-C

Downloads

• Datasheet (PDF)
