ALOGIC Display Alt. Mode USB-C Docking Station 100W

One cable, full desk: the ALOGIC Display Alt. Mode turns your laptop into a workstation with triple displays, 100W charging over a single USB-C connection.

Triple Display

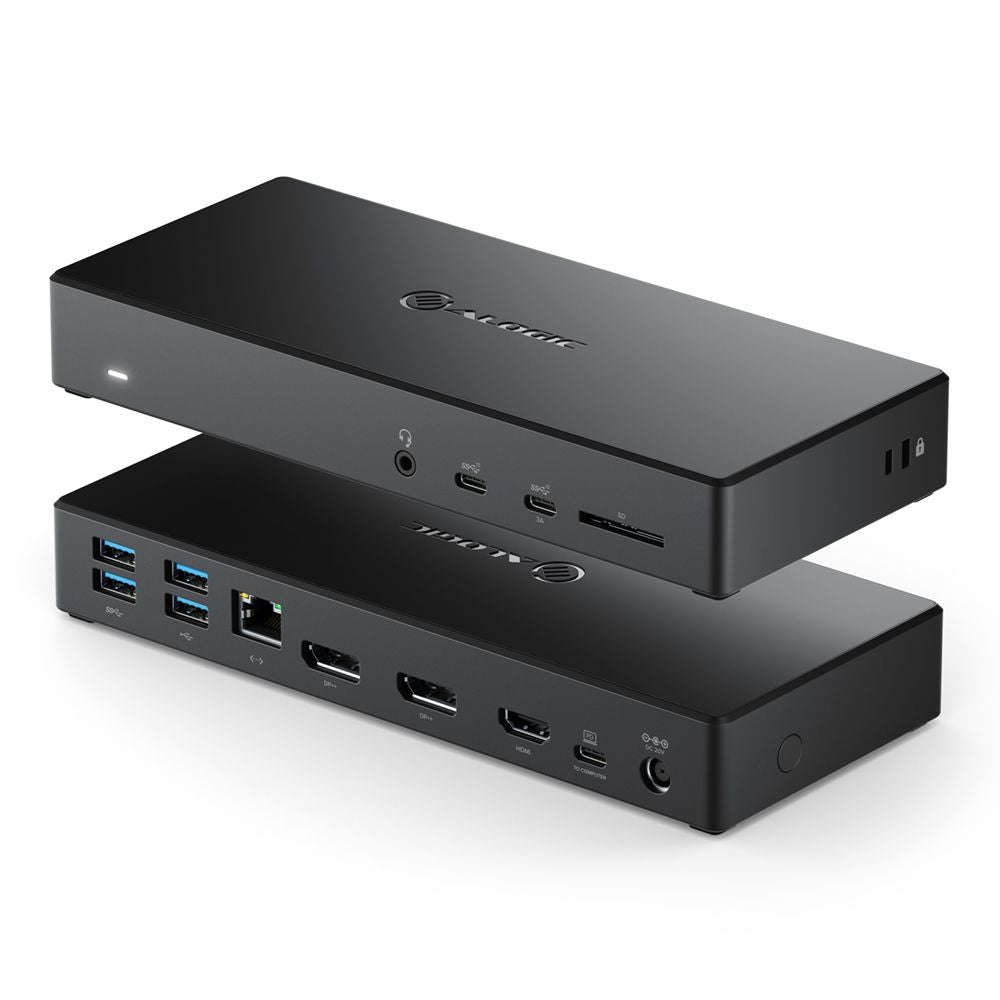

The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

*Refer to the resolution support table for details on different resolutions supported with the dock.

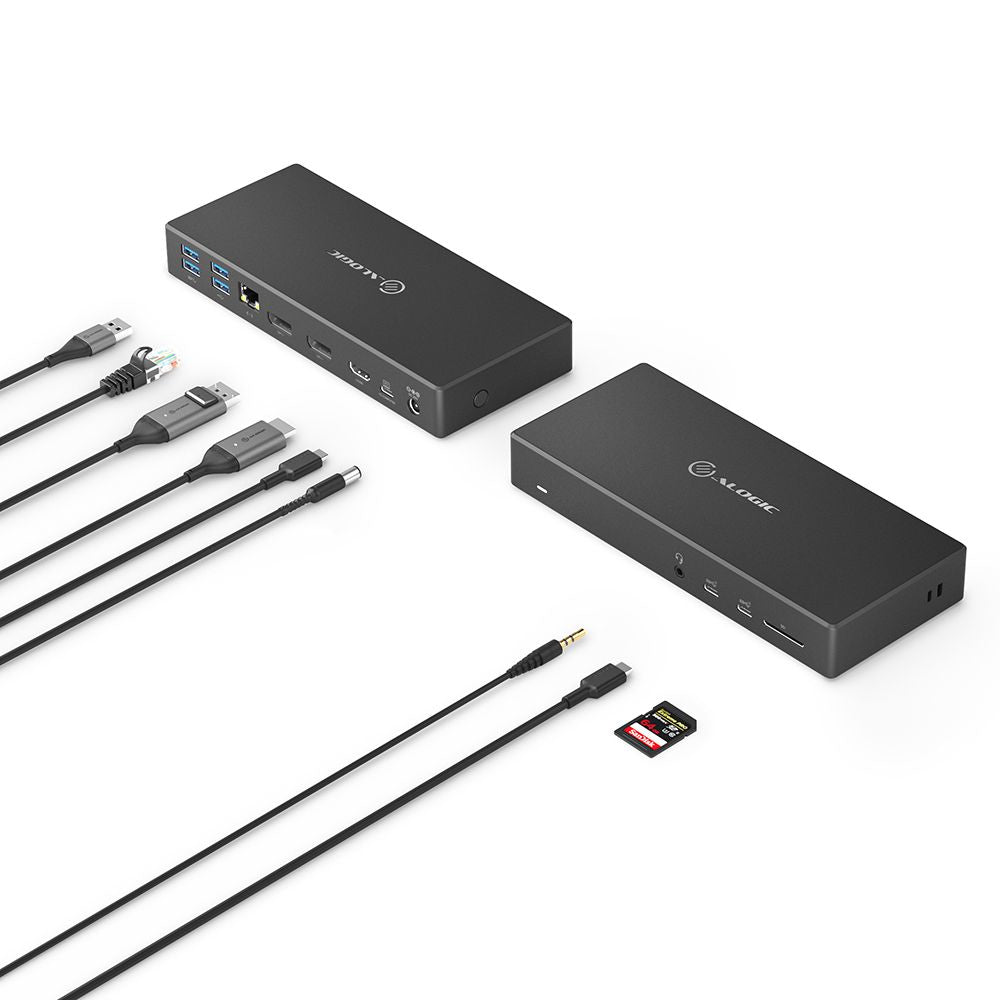

Comprehensive Connectivity

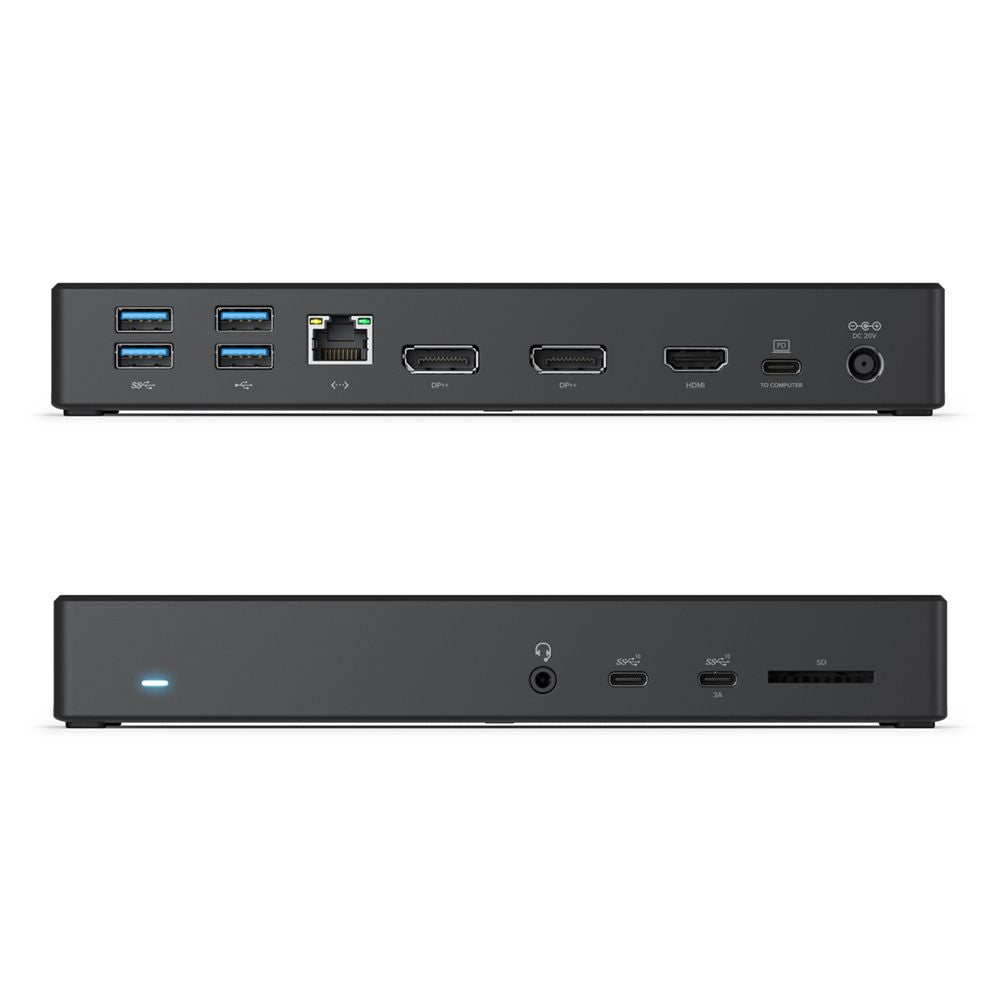

The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card

The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.

*Refer to the resolution support table for details on different resolutions supported with the dock.

100W Laptop Charging/Power Delivery

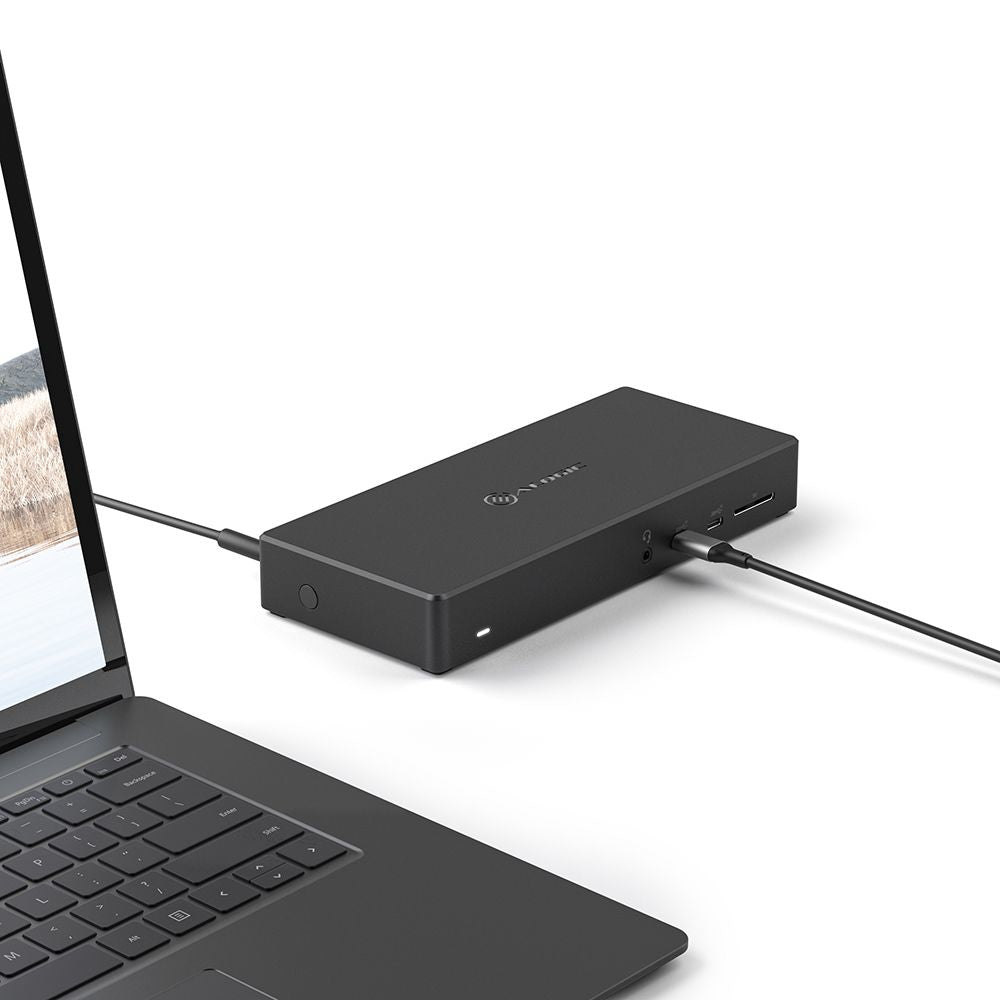

The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.

Plug and Play: Driverless

With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

Specifications

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	2
Microphone in	Yes
DC-in jack	Yes
Connectivity technology	Wired
USB Power Delivery	Yes
USB Power Delivery up to	100 W
DisplayPort version	1.4
Network
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Performance
Maximum digital resolution	5120 x 2880 pixels
Number of displays supported	3
Product colour	Black
Card reader integrated	Yes
Cable lock slot	Yes
LED indicators	Yes
Compatible memory cards	SD, SDHC, SDXC
Certification	FCC, CE
HD type	4K Ultra HD
Technical details
Harmonized System (HS) code	84733020
Compliance certificates	RoHS
Power
Power source type	DC
Power supply	170 W
Software
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows 8.1
Weight & dimensions
Weight	360 g
Width	880 mm
Depth	2100 mm
Height	290 mm
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Cables included	AC
AC adapter included	Yes
