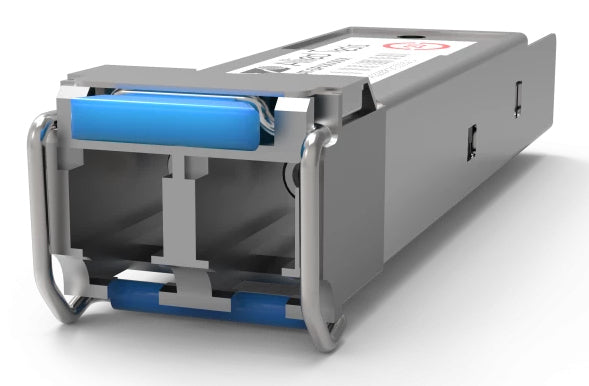

Allied Telesis B-AT-SPFX/2-90 network transceiver module Fiber optic Networking

The Allied Telesis B-AT-SPFX/2-90 network transceiver module Fiber optic is a dependable addition to any modern network installation.

SP100Mbps Series Small Form-Factor Pluggable Modules
The Allied Telesis 100Mbps SP Series offers the latest industry standard in flexible, full-duplex, Fast Ethernet connectivity. These hot-swappable interfaces simply plug into the SFP slot on all SFP-compatible products. Configuration can be optimized to meet a wide variety of distance and service requirements.

Options
Allied Telesis SP 100Mbps Series Small Form-Factor Pluggables (SFPs) offers short-haul and long-haul. This flexibility allows network managers to easily extend network distance and bandwidth.

Compatibility
SP 100Mbps Series SFPs are MultiSourcing Agreement (MSA)-compliant, and fully adhere to industry standard networking regulations. This allows the SP 100Mbps Series to be used with other MSA-compliant platforms that support SFP uplink connections.

Specifications

Performance
SFP transceiver type	Fiber optic
Tx wavelength (max)	1310 nm
Rx wavelength (max)	1310 nm
Link budget	11 dB
Fiber optic connector	LC
Maximum transfer distance	2000 m
Duplex system	Full
Maximum data transfer rate	100 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	No
Multi-mode fiber (MMF) supported	Yes
Ethernet interface type	Fast Ethernet
Fiber ethernet cabling technology	100BASE
Easy to install	Yes
Product colour	Metallic
Plug and Play	Yes
Hot-swap	Yes
Features
Form factor	SFP
RX sensitivity	-31 dB
Certificates
Compliance certificates	Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	0 - 85%
Storage relative humidity (H-H)	0 - 80%
Minimum operating temperature	0 °C
Maximum operating temperature	70 °C
Packaging content
Quantity per pack	1 pc(s)
Other features
Transmit power range	-20 - -14 dBmW

Downloads

• Datasheet (PDF)
