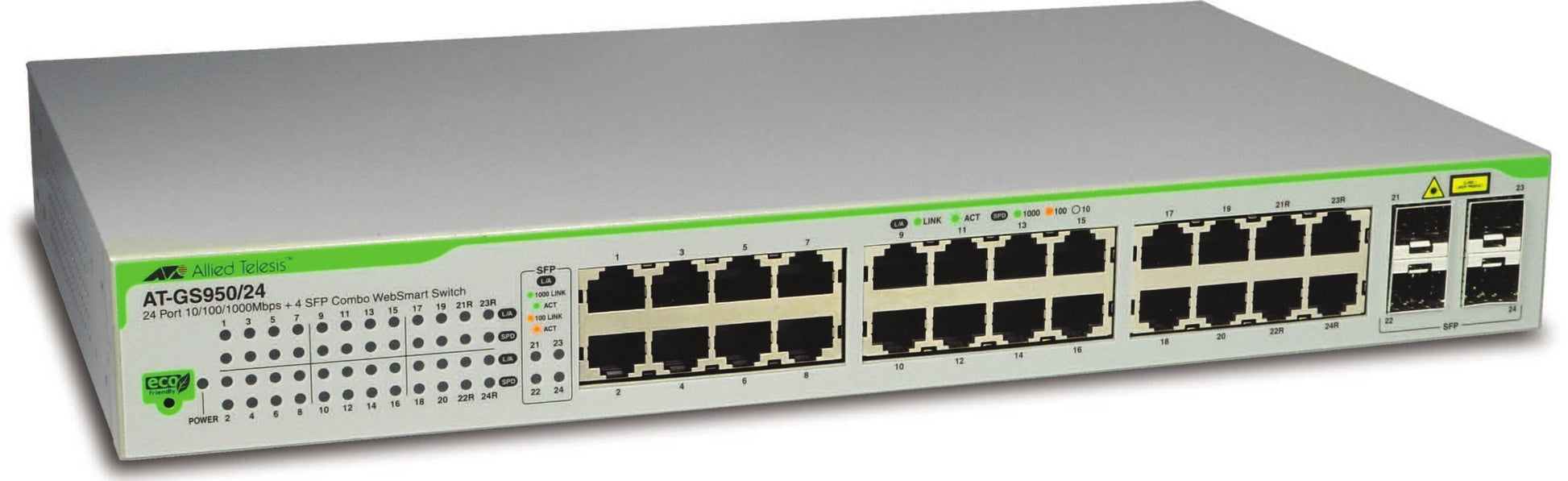

Allied Telesis AT-GS950/24-50 Switch

The Allied Telesis AT-GS950/24-50 keeps your wired network organised.

The Allied Telesis AT-GS950/24 eco-friendly WebSmart switch upholds the Allied Telesis commitment to environmentally friendly processes and products. It is designed to minimize power consumption through the use of a high-efficiency power supply and a low power chipset.

The AT-GS950/24 features 24 x 10/100/1000T ports and an additional four Gigabit SFP combo ports. This WebSmart switch integrates the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective solution for users to integrate management at the edge of their network. The AT-GS950/24 provides key features using the simple web-based management function, such as port-based VLANs, IEEE 802.1p QoS, port trunking/link aggregation, port mirroring, priority queues, and IEEE 802.1x security support.

Specifications

Performance
Packet buffer memory	0.5 MB
Internal memory	8 MB
Flash memory	2 MB
Harmonized System (HS) code	85176990
Management features
Switch type	Managed
Web-based management	Yes
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Combo SFP ports quantity	4
SFP/SFP+ slots quantity	2
Network
Port mirroring	Yes
Link aggregation	Yes
Flow control support	Yes
Data transmission
Maximum data transfer rate	1 Gbit/s
Certificates
Certification	UL 1950 FCC/EN55022 Class A VCCI Class A C-Tick EN60950 (TUV) EN55024 CE
Operational conditions
Non-operating relative humidity (non-condensing)	5 - 95%
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 90%
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Weight & dimensions
Width	330 mm
Depth	200 mm
Height	44 mm
Weight	2.3 kg
Other features
Dimensions (WxDxH)	440 x 257 x 43.2 mm
Security features	802.1X
Power requirements	100-240V AC, 50/60H

Downloads

• Datasheet (PDF)
