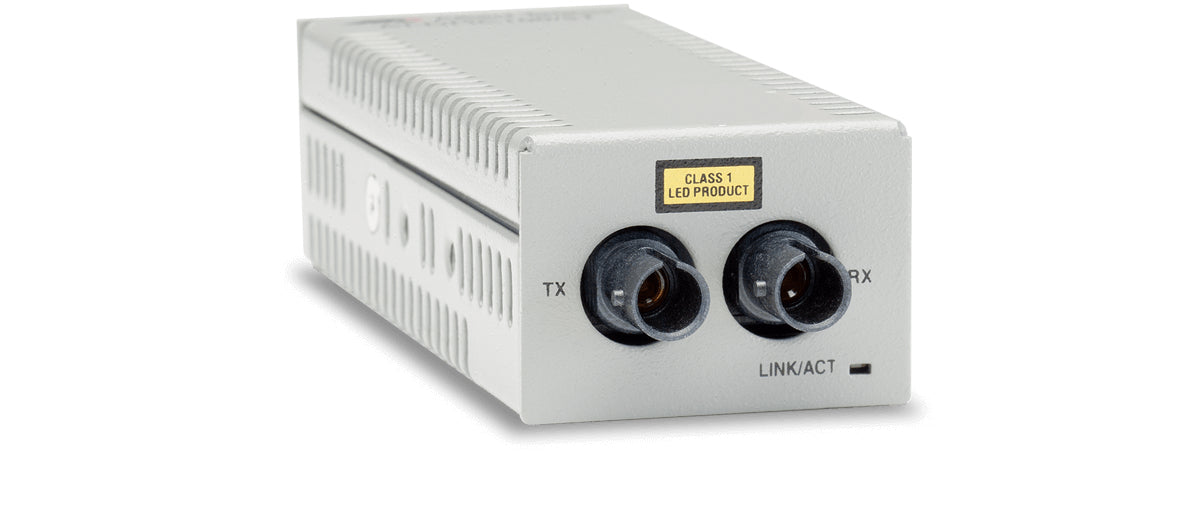

Allied Telesis AT-DMC100/ST-30 network media converter Internal Networking

Allied Telesis AT-DMC100/ST-30 network media converter Internal Networking

£108.35 GBP
£108.35 GBP
Sale Sold out
Taxes included.
Condition

The Allied Telesis AT-DMC100/ST-30 network media converter Internal is a dependable addition to any modern network installation.

This desktop media converter features 100TX to 100FX conversion with multi-mode ST fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.

Specifications

Network
Fiber optic connector ST
Data transfer rate 100 Mbit/s
Packet forwarding rate (100 Mbps) 148800 pps
Packet forwarding rate (10 Mbps) 14880 pps
Packet forwarding rate (1 Gbps) 1488000 pps
VLAN support Yes
Converter input interface 100Base-TX
Networking standards IEEE 802.1Q
Ethernet interface type Fast Ethernet
Duplex system Full, Half
Converter output interface 100Base-FX
Auto MDI/MDI-X Yes
Maximum data transfer rate 100 Mbit/s
Technical details
Wavelength 1310 nm
Maximum transfer distance 2000 m
Fiber mode structure Multi-mode
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Tx power (min) -22.5 dBmW
Tx power (max) -14 dBmW
Rx power (min) -32 dBmW
Internal Yes
Ports & interfaces
Connectivity technology Wired
Indication
LED indicators Yes
Design
Product colour Grey
Power
Power consumption (typical) 1.5 W
Weight & dimensions
Width 31.8 mm
Depth 91.4 mm
Weight 113 g
Height 21.6 mm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 65 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Operating altitude 0 - 3048 m
