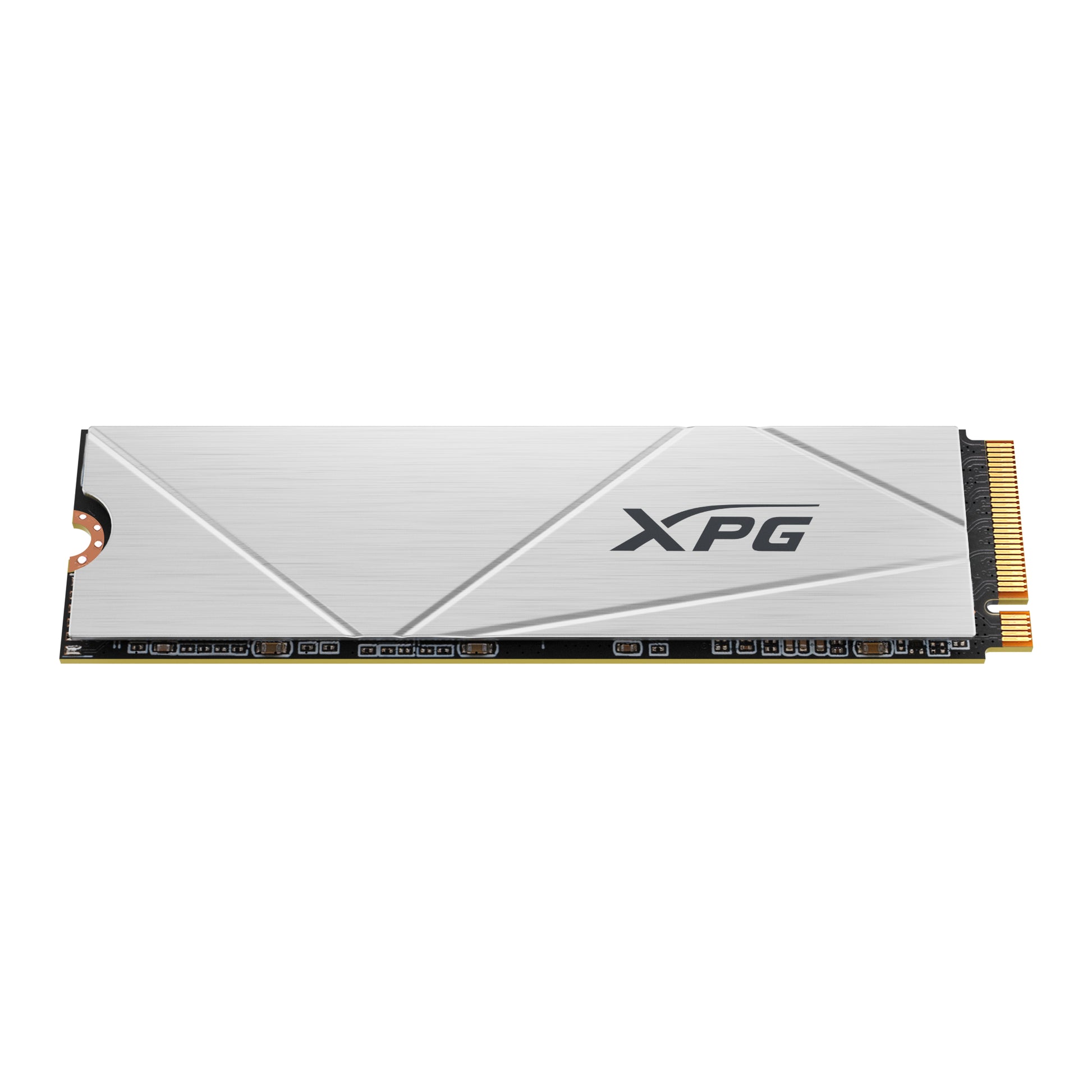

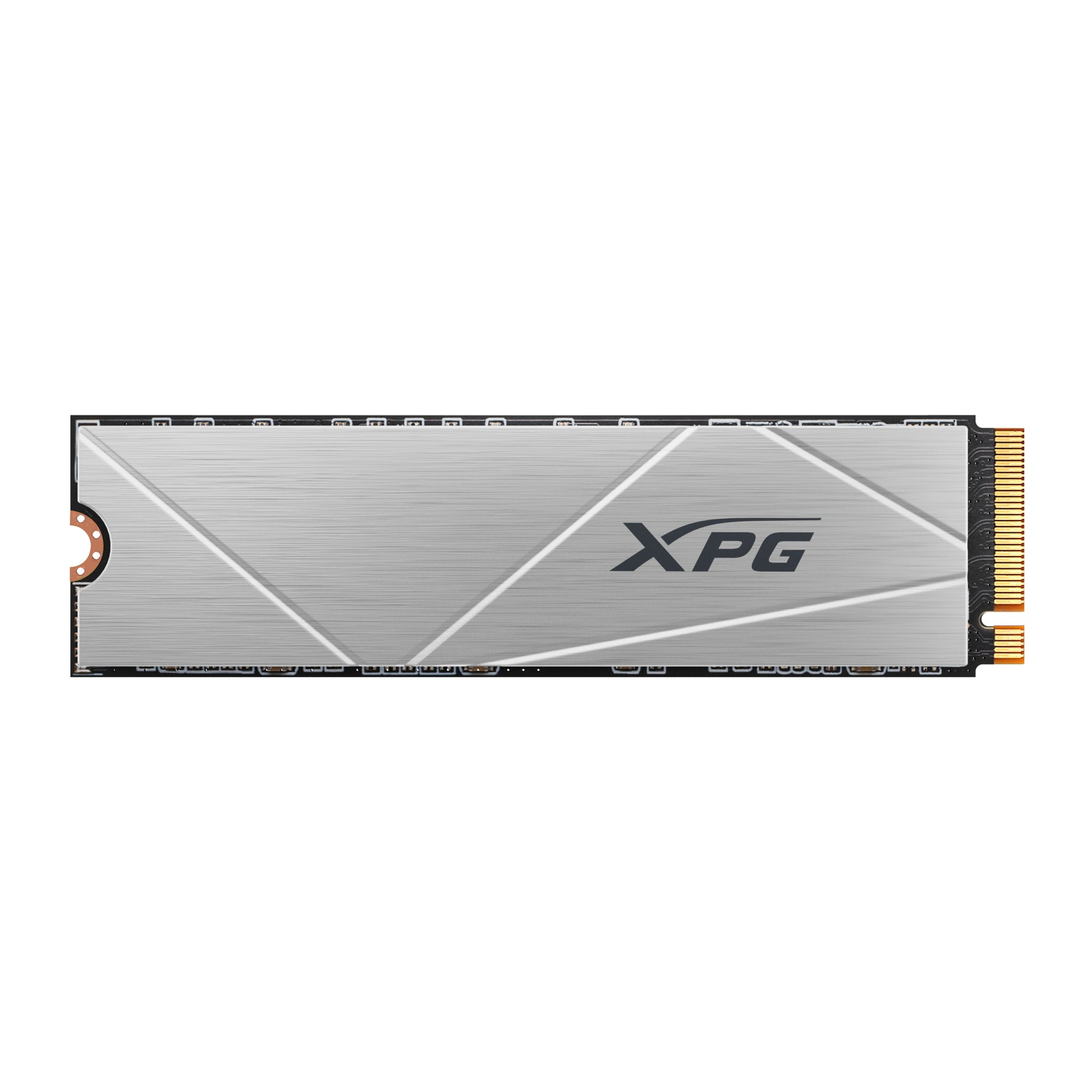

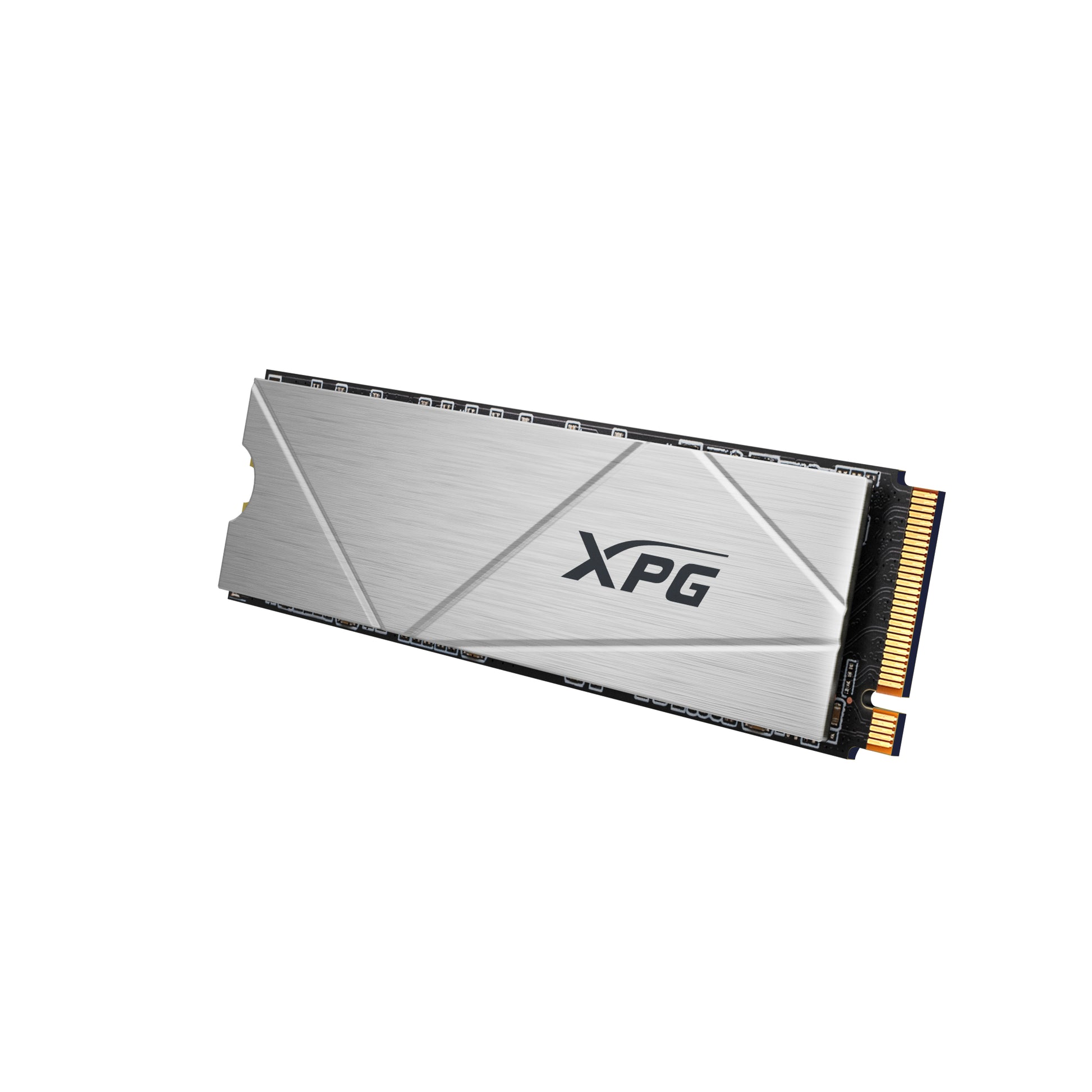

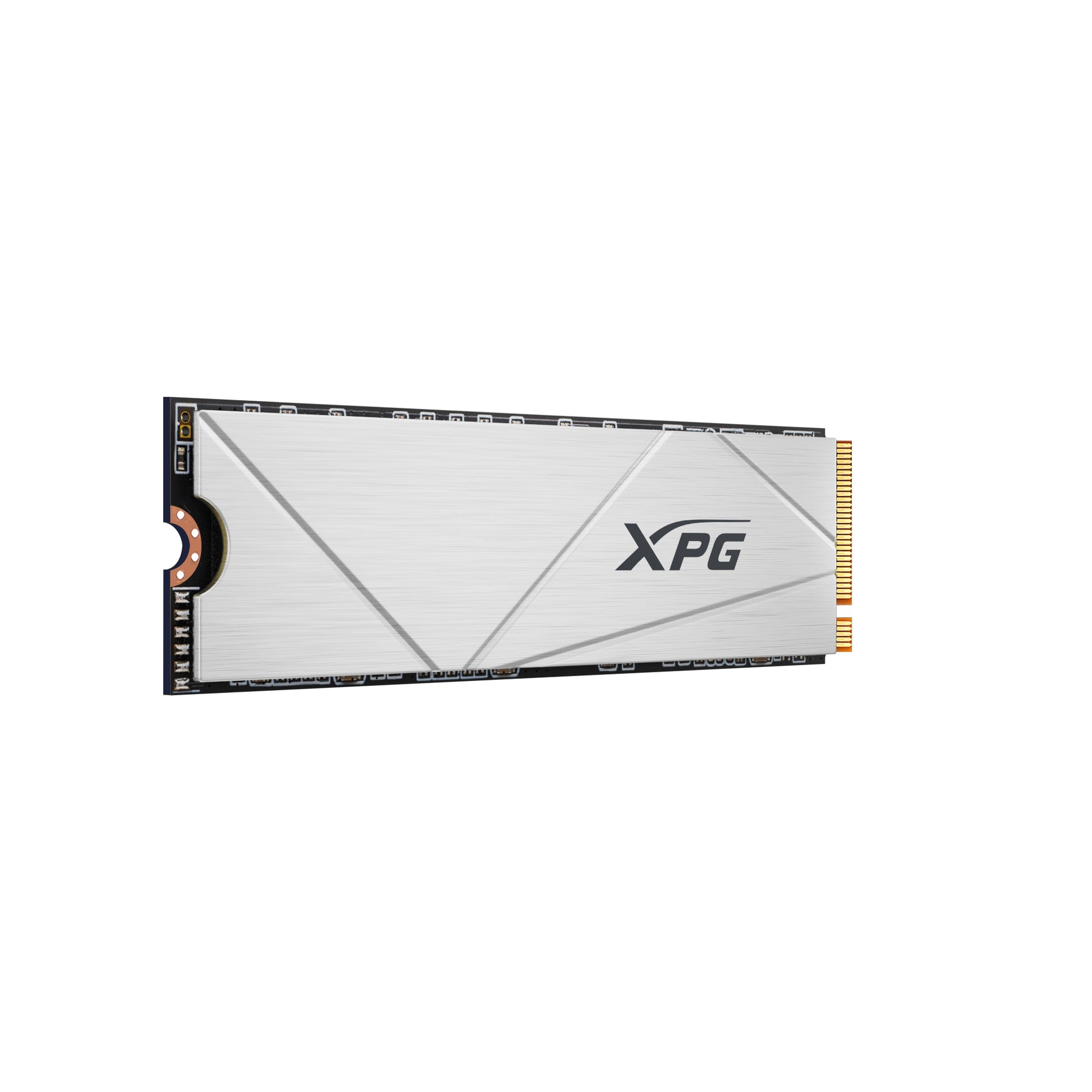

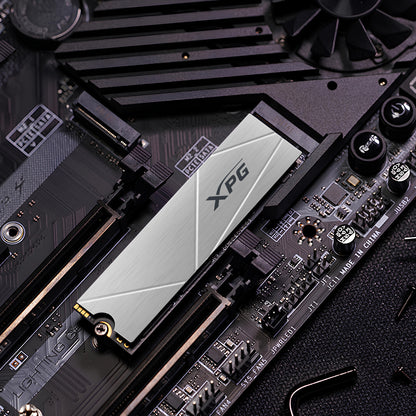

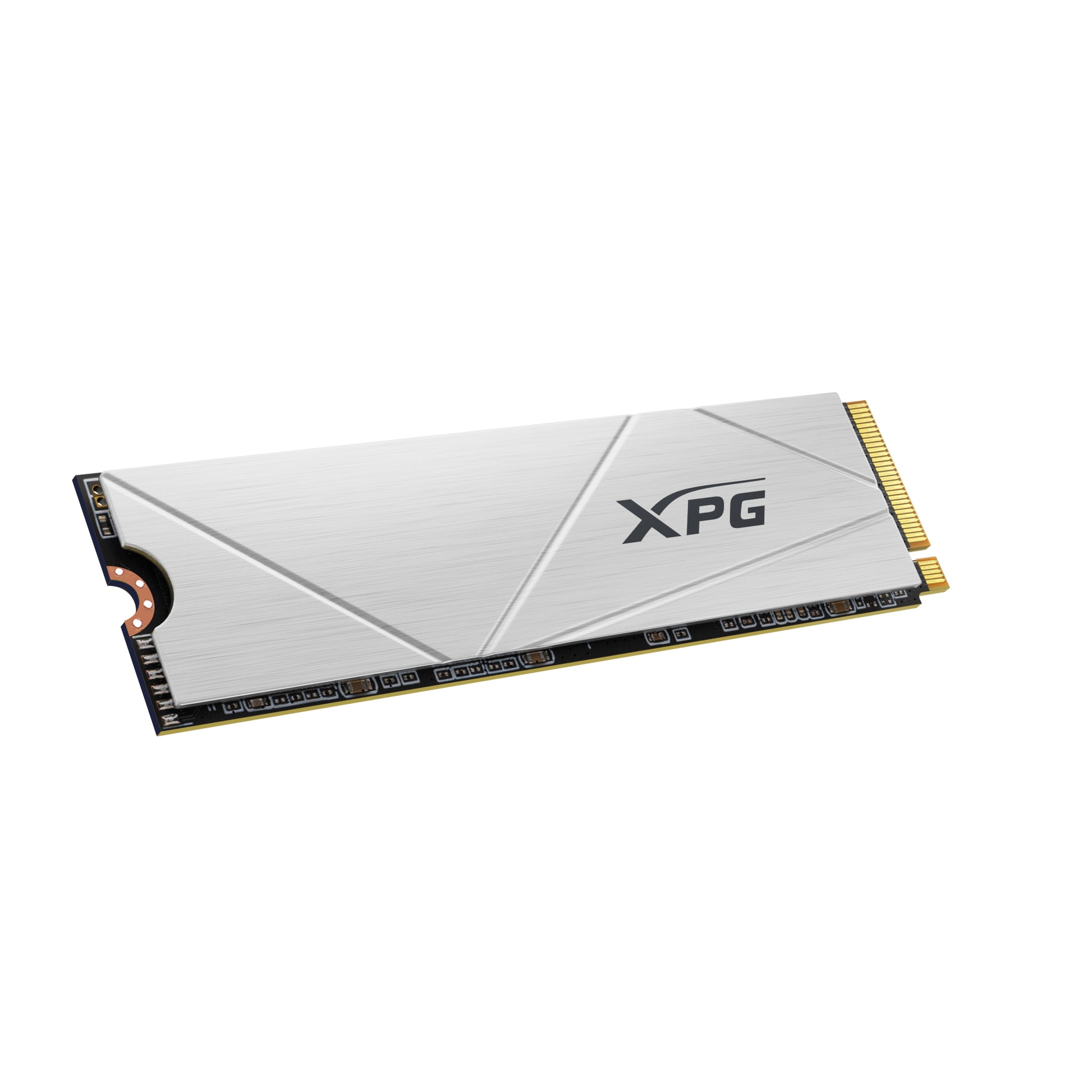

ADATA AGAMMIXS60-1T-CS 1TB M.2 NVMe PCIe Gen4 SSD

Upgrade to solid-state speed: the ADATA AGAMMIXS60-1T-CS delivers 5000MB/s read over its NVMe PCIe Gen4 interface for quicker boots, loads and transfers.

Absolutely Dominate the Competition
Strike back without fear! The GAMMIX S60 is equipped with a PCIe Gen4 x4 transmission interface which can achieve sequential read/write speeds of up to 5,000/4,200MB per second, enough to dominate the latest e-sports platforms. It is twice as fast as standard PCIe Gen3 SSDs and 15 times faster than a SATA SSD. It is fully backward compatible with current PCIe 3.0 platforms and delivers the thrill of crushing your opponents!

Your PS5's Secret Weapon
Running out of drive space after installing a few games?! The GAMMIX S60 is the best solution to the PS5's lack of built-in storage capacity. Not only does its form factor fit perfectly with the PS5's memory slot design, but its performance matches official PS5 requirements. Adding more AAA games will not be a problem.

Attention! Large Capacity Incoming!
Powerful performance no matter the file size. The GAMMIX S60 is available in a spacious 2TB capacity and utilizes a variety of data protection and correction technologies to greatly increase its Total Bytes Written volume (TBW) and durability to meet the needs of various storage applications.

Essential Gaming Performance
The GAMMIX S60 is equipped with a SLC caching algorithm and HMB (Host Memory Buffer), delivering the advantages of caching and improving the efficiency of multi-file processing. The SSD also adopts a LDPC (Low Density Parity Check Code) error correction mechanism and high-level encryption technology to ensure the accuracy and security of data transmission.

SSD ToolBox Software
ADATA SSD Toolbox allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used, plus keeps you up-to-date on firmware.

Specifications

Hard drive
PCI Express interface data lanes	x4
SSD capacity	1 TB
Memory type	3D NAND
Performance
Brand specific technologies	SLC Caching
Interface	PCI Express 4.0
Component for	PC/Laptop
NVMe	Yes
NVMe version	1.4
TBW rating	250
S.M.A.R.T. support	Yes
Read speed	5000 MB/s
Write speed	3200 MB/s
ECC	Yes
Mean time between failures (MTBF)	1500000 h
Hardware encryption	Yes
Compatible products	PlayStation 5
Features
Certification	CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Design
Cooling type	Heatsink
Weight & dimensions
Width	22 mm
Weight	8 g
Height	3.13 mm
Depth	80 mm
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating shock	1500 G

Downloads

• Datasheet (PDF)
