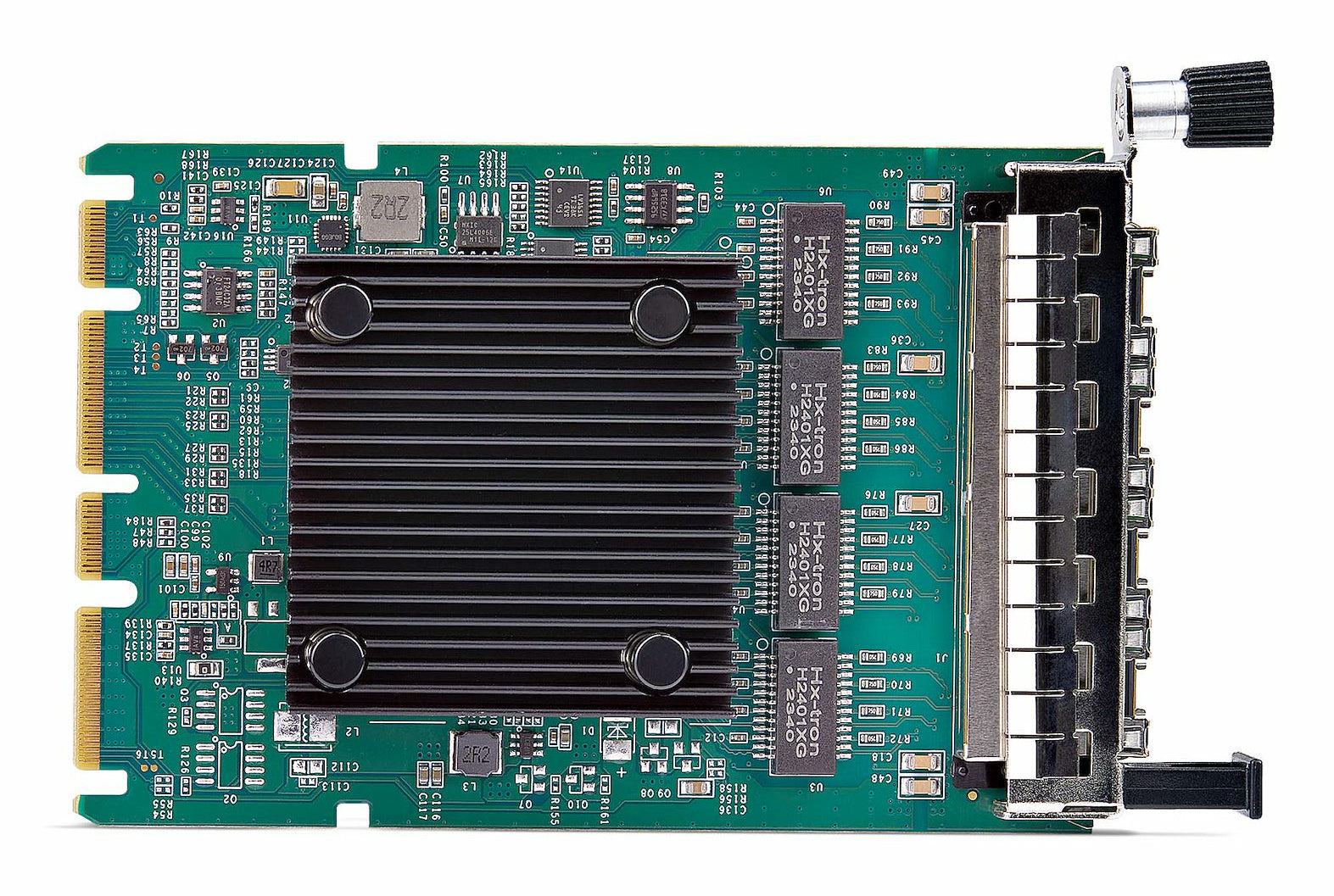

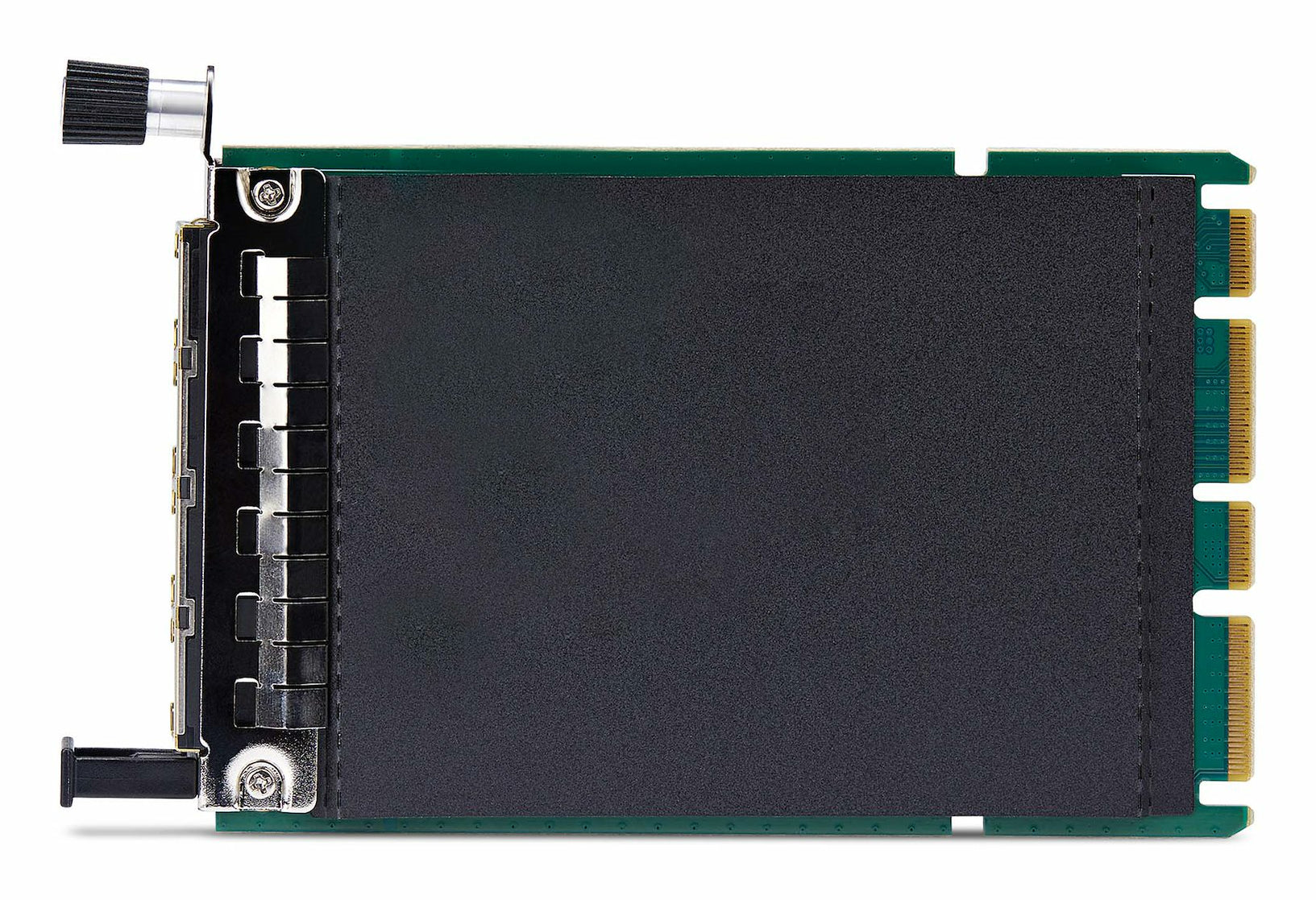

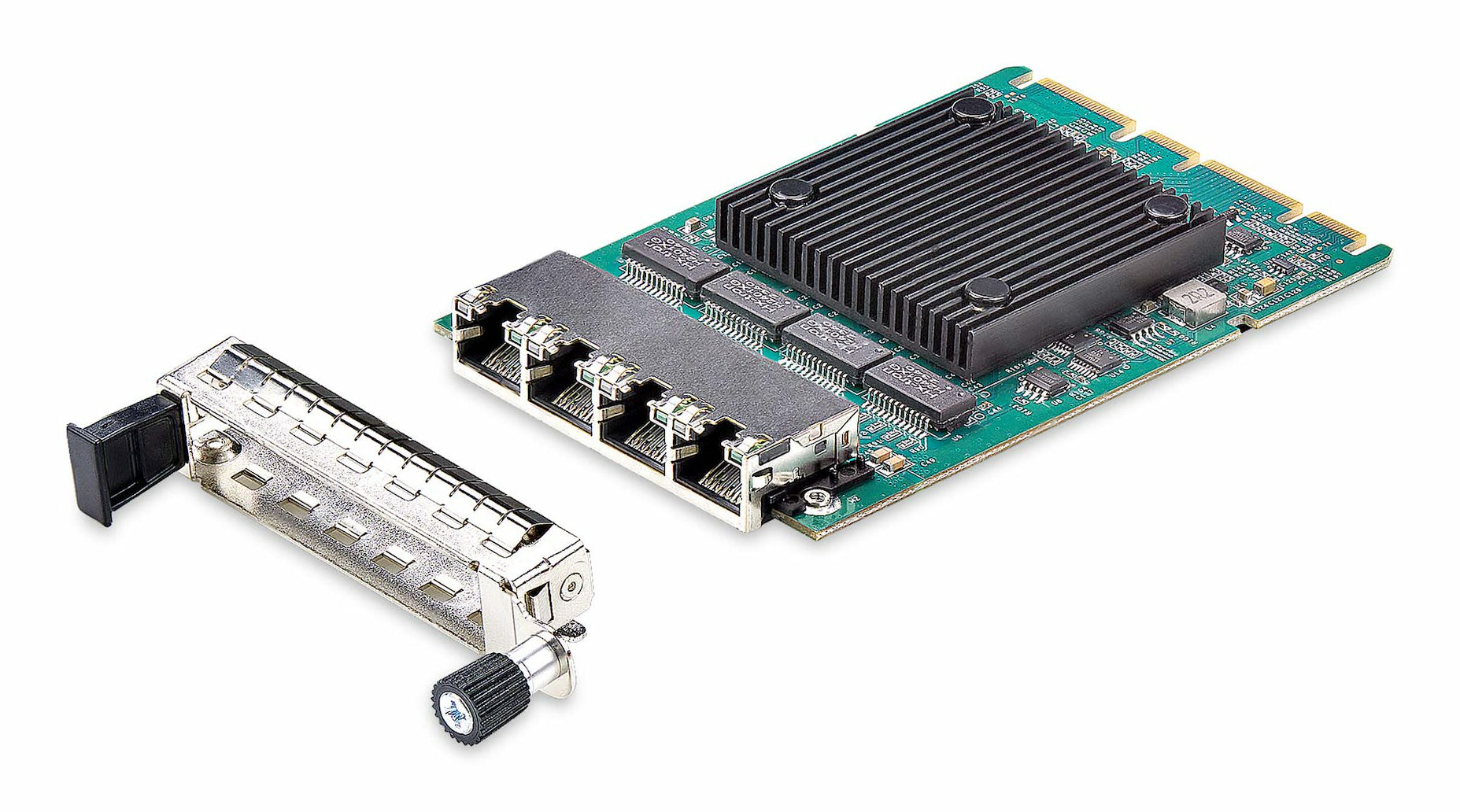

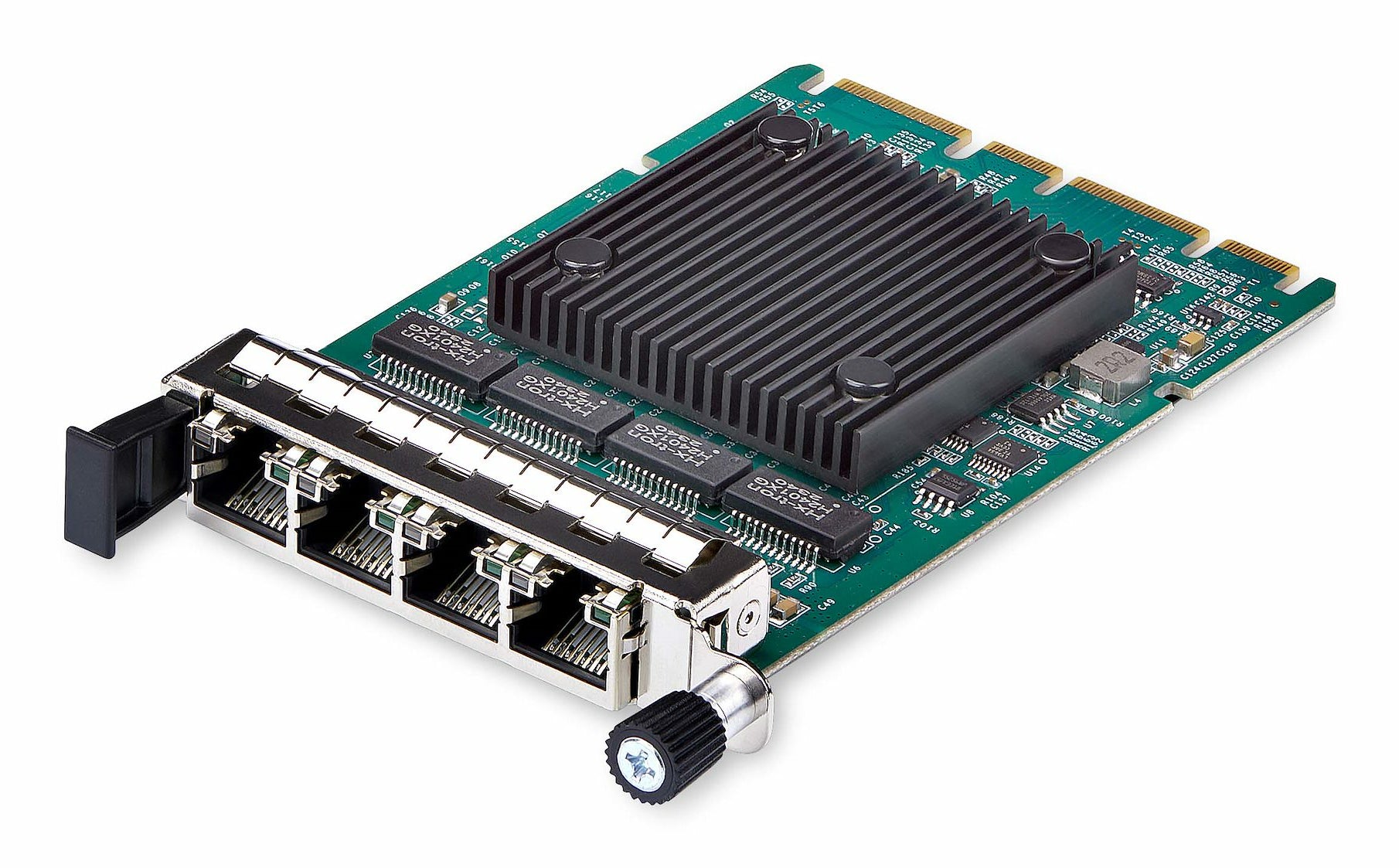

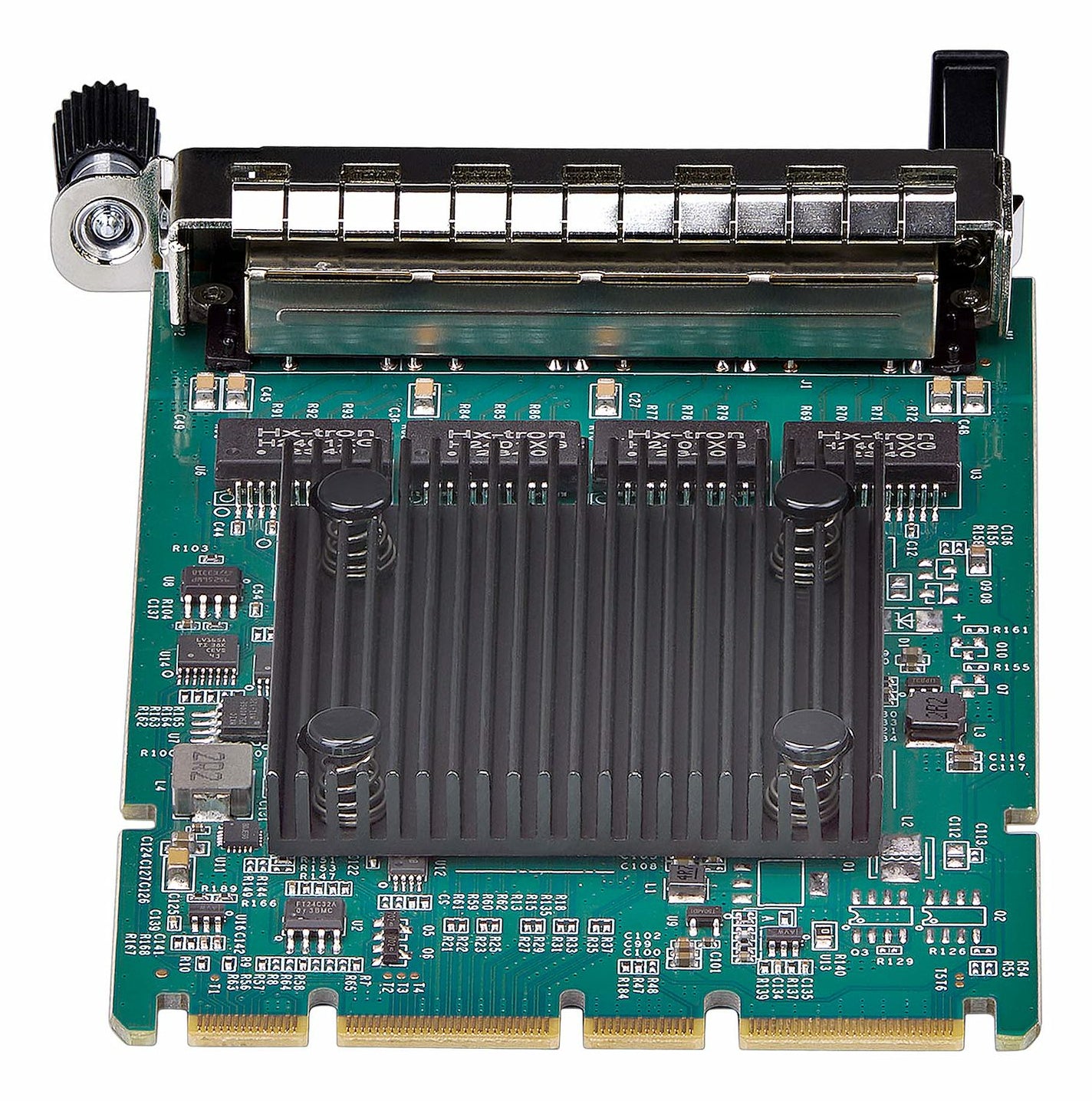

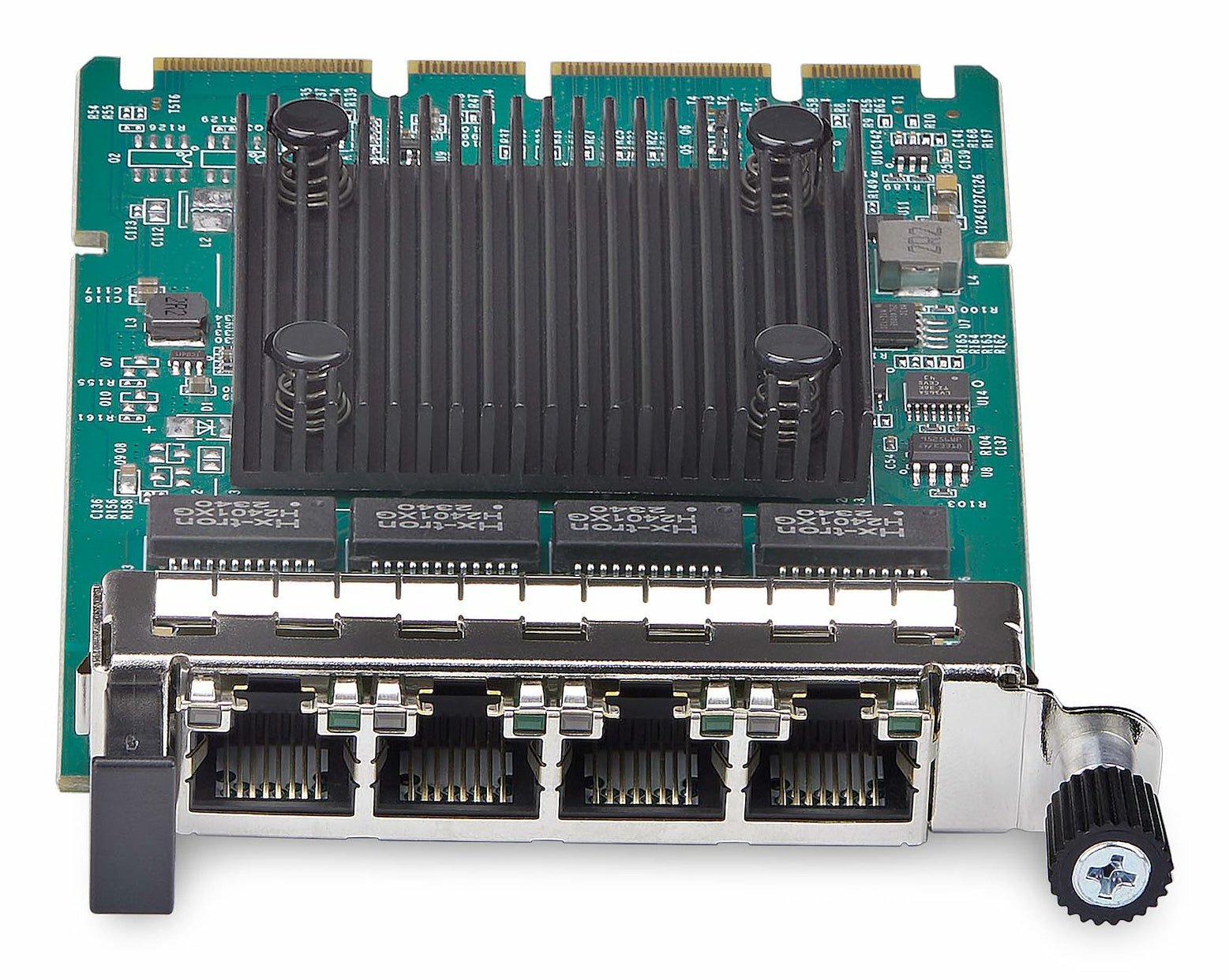

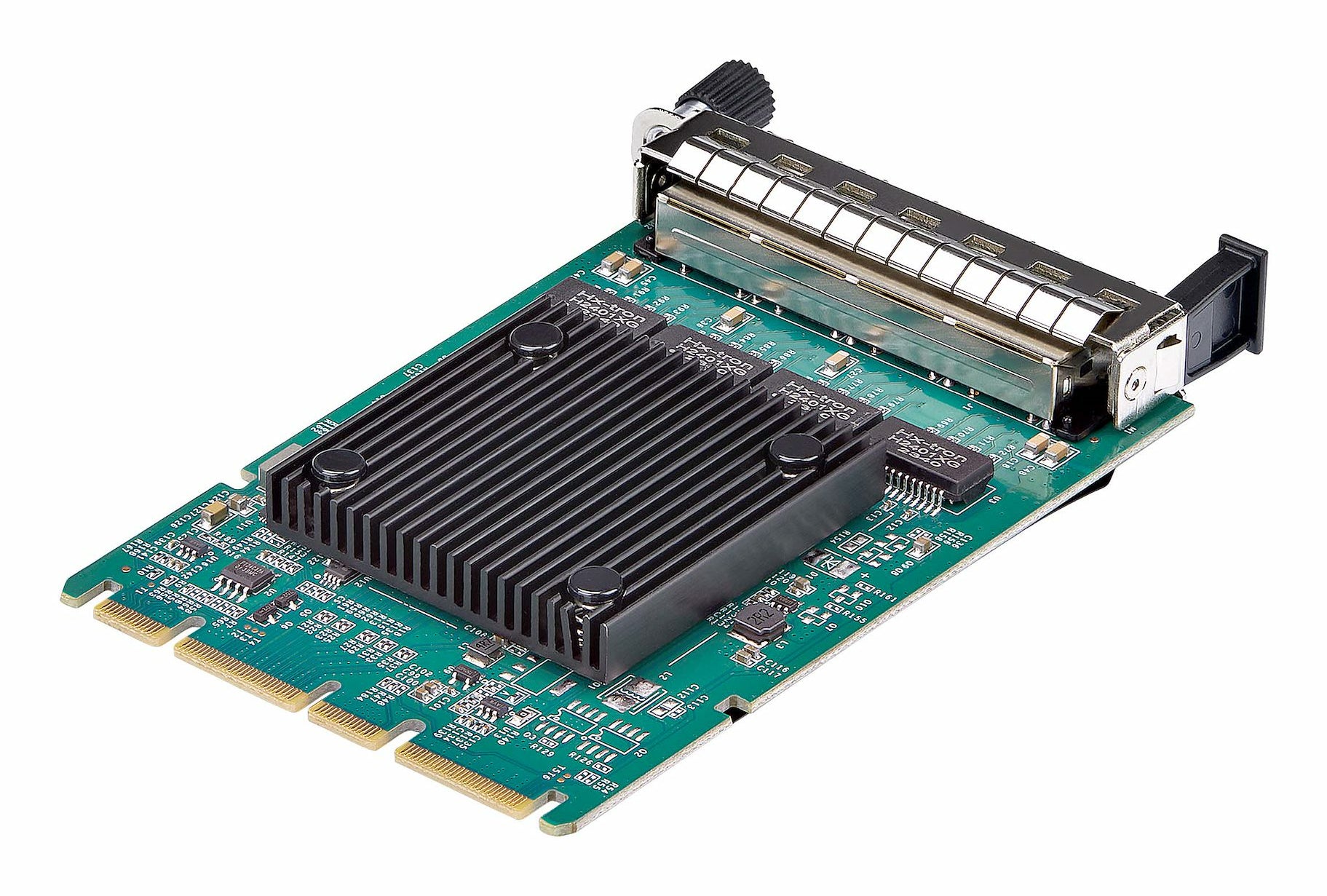

StarTech.com 4-Port RJ45 Gigabit OCP 3.0 Server Network Card w/Intel® I350-AM4, SFF Network Adapter

Upgrade your connectivity with the StarTech.com 4-Port RJ45 Gigabit OCP — ports, speeds and interface details are in the spec table.

Enhance a server's connectivity with this OCP 3.0 quad-port network adapter card featuring Intel® I350 chip

This 4-port RJ45 1Gbps OCP 3.0 Network Interface Card (NIC) features an Intel® i350-AM4 Ethernet Controller, enhancing performance and data integrity. The Ethernet card adheres to OCP 3.0 standards and ensures broad compatibility, making it an ideal solution for reliable network connectivity and robust data transfer capabilities.

Optimized Network Efficiency

Leverage existing Cat5e/Cat6 cabling (or better) up to 100m to maximize existing networks and equipment. The NIC supports variable speed options (10/100/1000 Mbps) with auto-negotiation and 9K jumbo frames to reduce packet overhead, reducing network slowdowns.

Enhanced Hardware

This network adapter leverages the OCP 3.0 standard, a server-specific innovation, that optimizes size and port density while enabling simplified installation, maintenance, and upgrades of Field Replaceable Units (FRUs) through hot swapping. It's designed for the SFF form factor, aligning with W1 4C+ standards. The network adapter is compatible with both TSFF and SFF systems expanding compatibility with different server types.

Advanced Features

The Ethernet card supports Intel® vPro™ for remote management and troubleshooting, PXE boot for expedited deployment or updates, and VLAN support for improved traffic management and reduced network congestion. The NIC is compatible with Windows Server, VMware, and Linux and supports Single Root I/O Virtualization (SR-IOV) to enhance virtual machines' performance with minimal overhead. LAN transformers are included to maintain signal quality and reduce EMI, ensuring reliable communication up to 100m even when using Cat5e.

Specifications

Ports & interfaces
Internal	Yes
PCI version	3.0
Ethernet LAN (RJ-45) ports	4
Interface	Ethernet
Host interface	OCP 3.0
Connectivity technology	Wired
Bandwidth
Full duplex	Yes
Maximum data transfer rate	1000 Mbit/s
Network
Chipset	Intel® I350-AM4
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Jumbo frames	9000
Quality of Service (QoS) support	Yes
Ethernet LAN	Yes
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Link aggregation	Yes
Flow control support	Yes
Technical details
Product colour	Black, Green
Sustainability compliance	Yes
Compliance certificates	RoHS
Design
LED indicators	Activity
Component for	Server
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Yes
Power
Power consumption (typical)	4.65 W
System requirements
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Operational conditions
Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	132 mm
Depth	85 mm
Height	15 mm
Weight	100 g
Package width	216 mm
Package depth	147 mm
Package height	36 mm
Package weight	110 g
Packaging data
Quick installation guide	Yes
Logistics data
Master (outer) case width	453 mm
Master (outer) case length	380 mm
Master (outer) case height	326 mm
Products per master (outer) case	40 pc(s)
