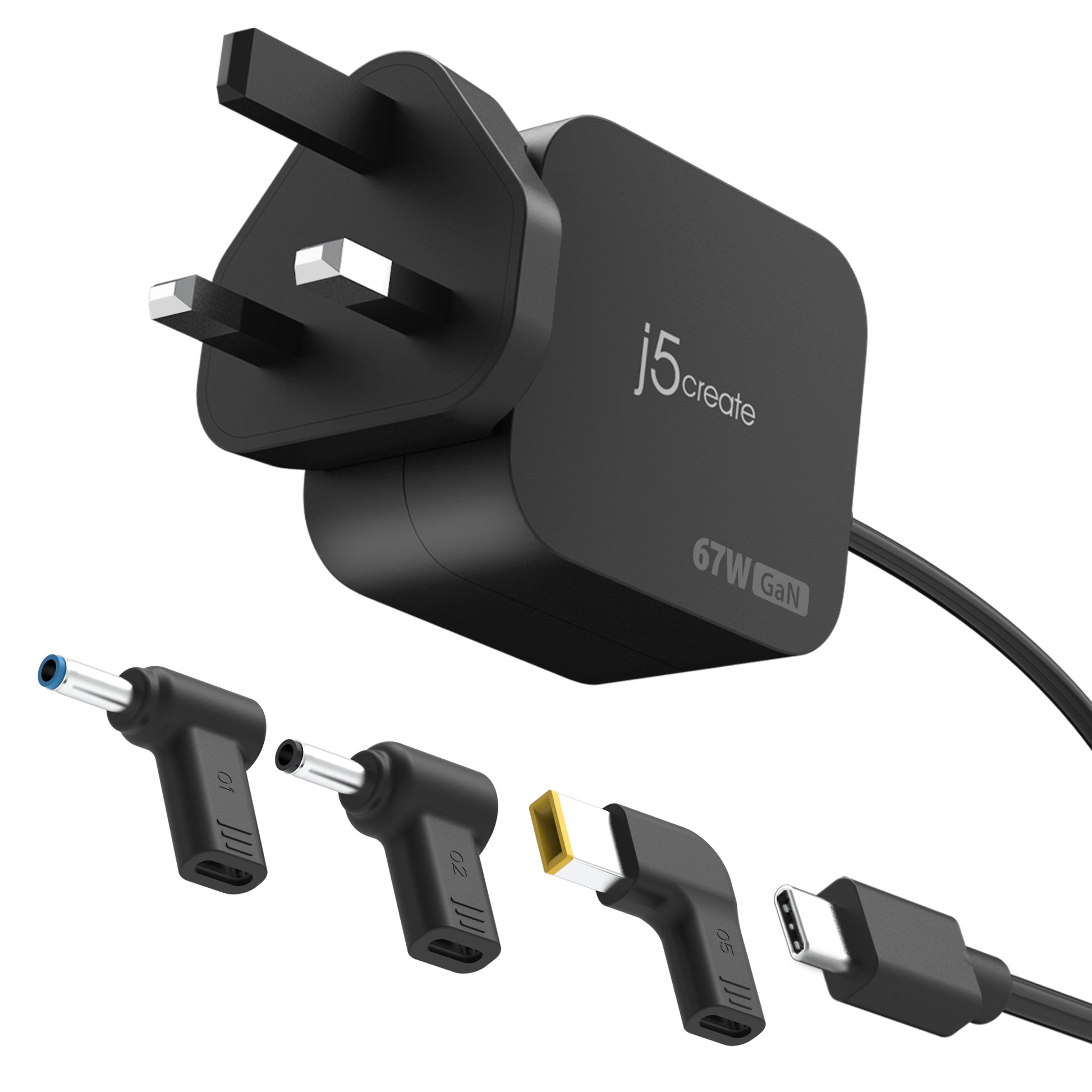

j5create JUP1565DCF3A-FN 67W GaN PD USB-C® Mini Charger with 3 Types of DC Connector

Power up anywhere with the j5create JUP1565DCF3A-FN — wattage and connector details are in the spec table.

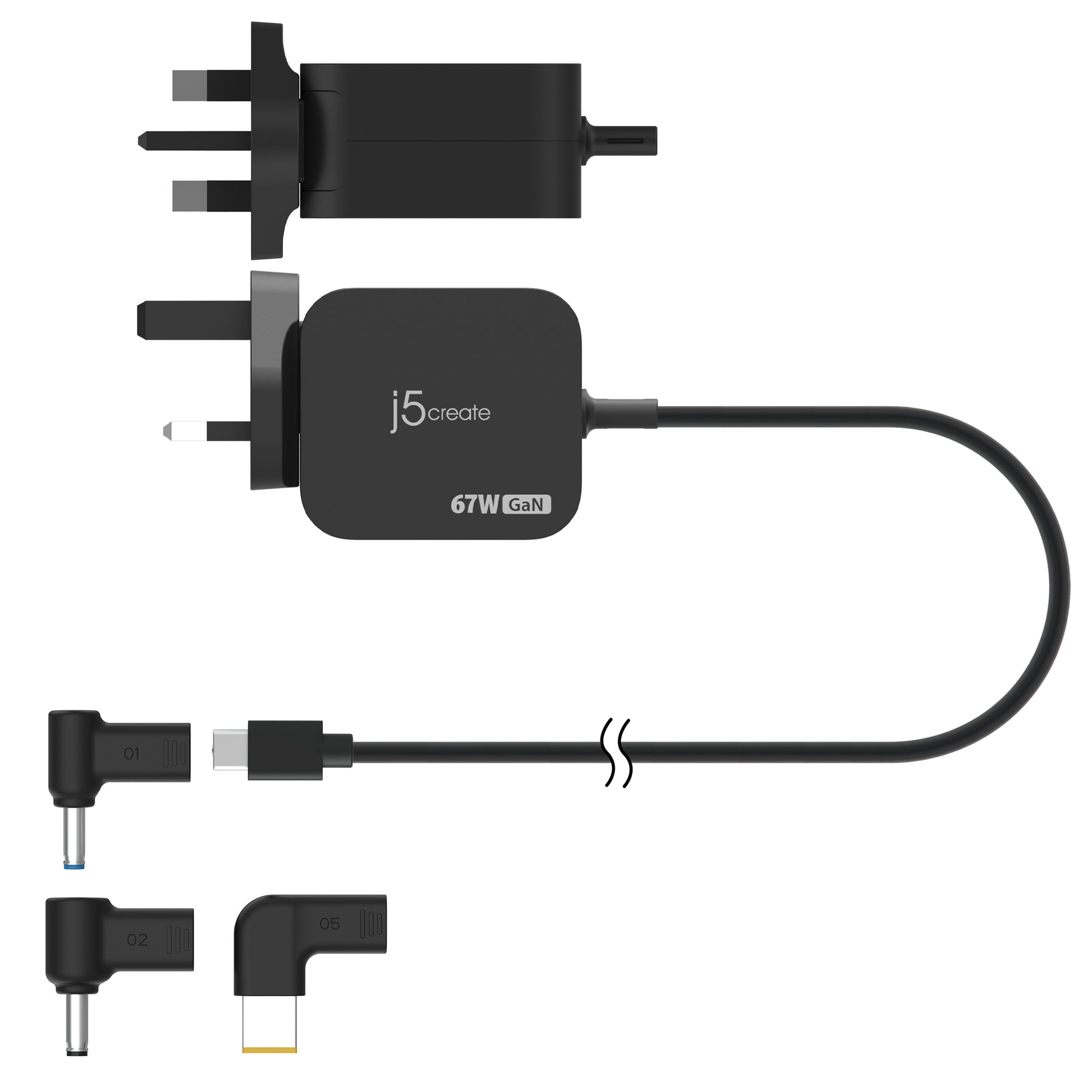

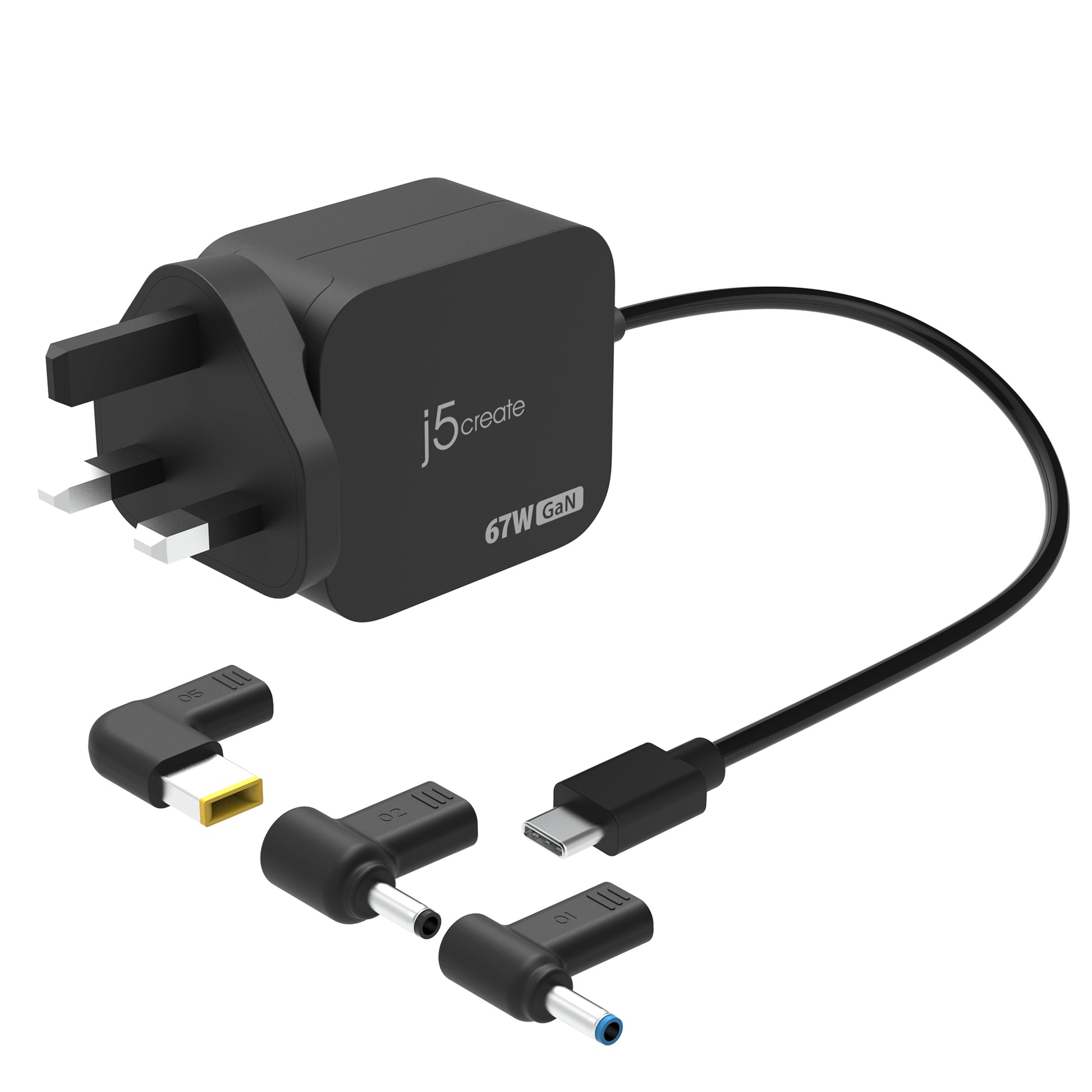

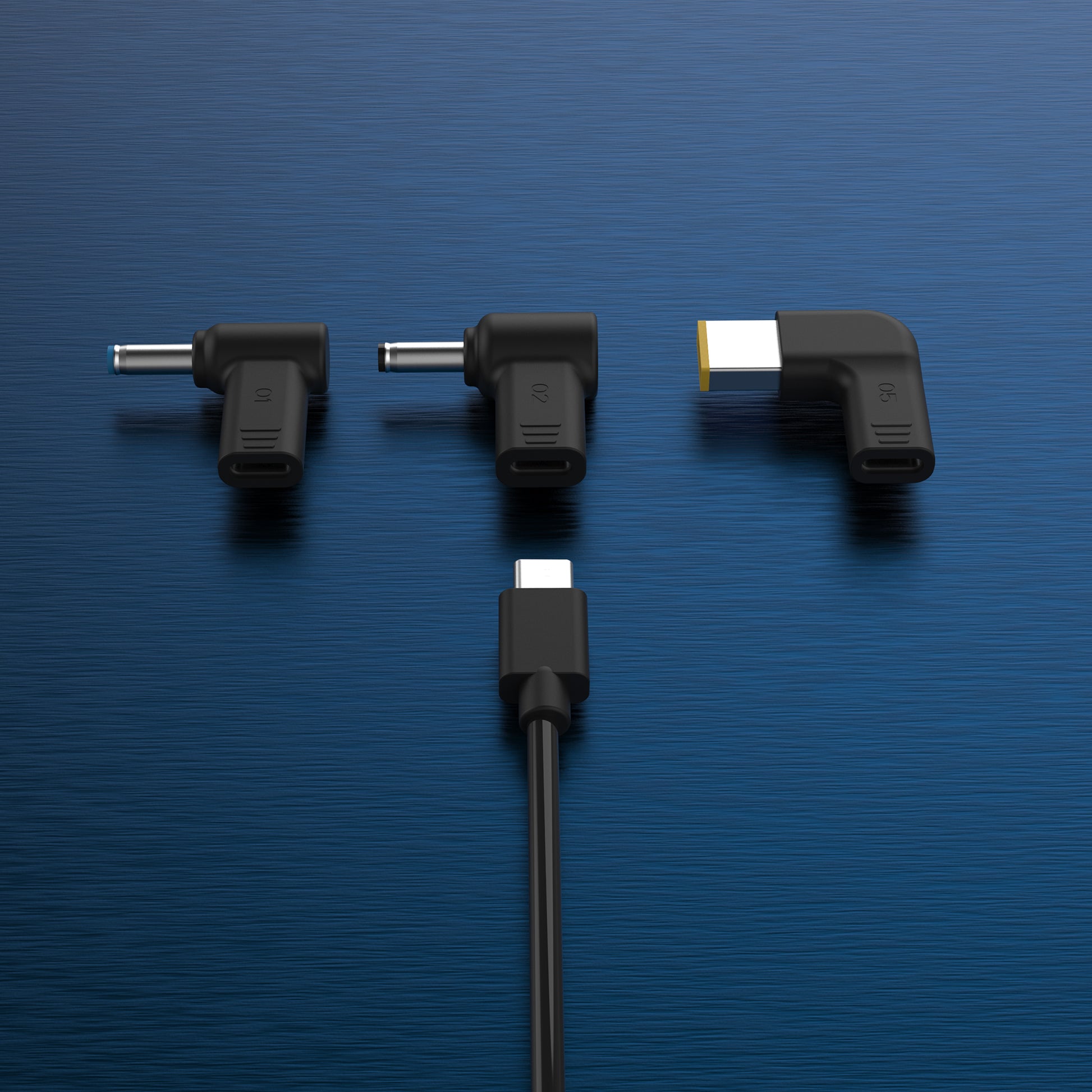

Perfect for a variety of devices, this USB-C® charger can provide up to 67W of power and comes equipped with 3 detachable DC converters, allowing you to change the power connector if needed. The detachable DC connectors are fit to charge older laptops, such as Lenovo™, Dell™, and HP® laptops.

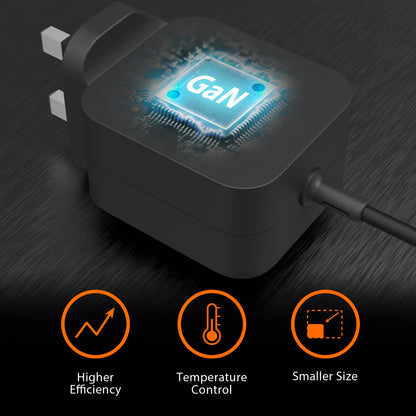

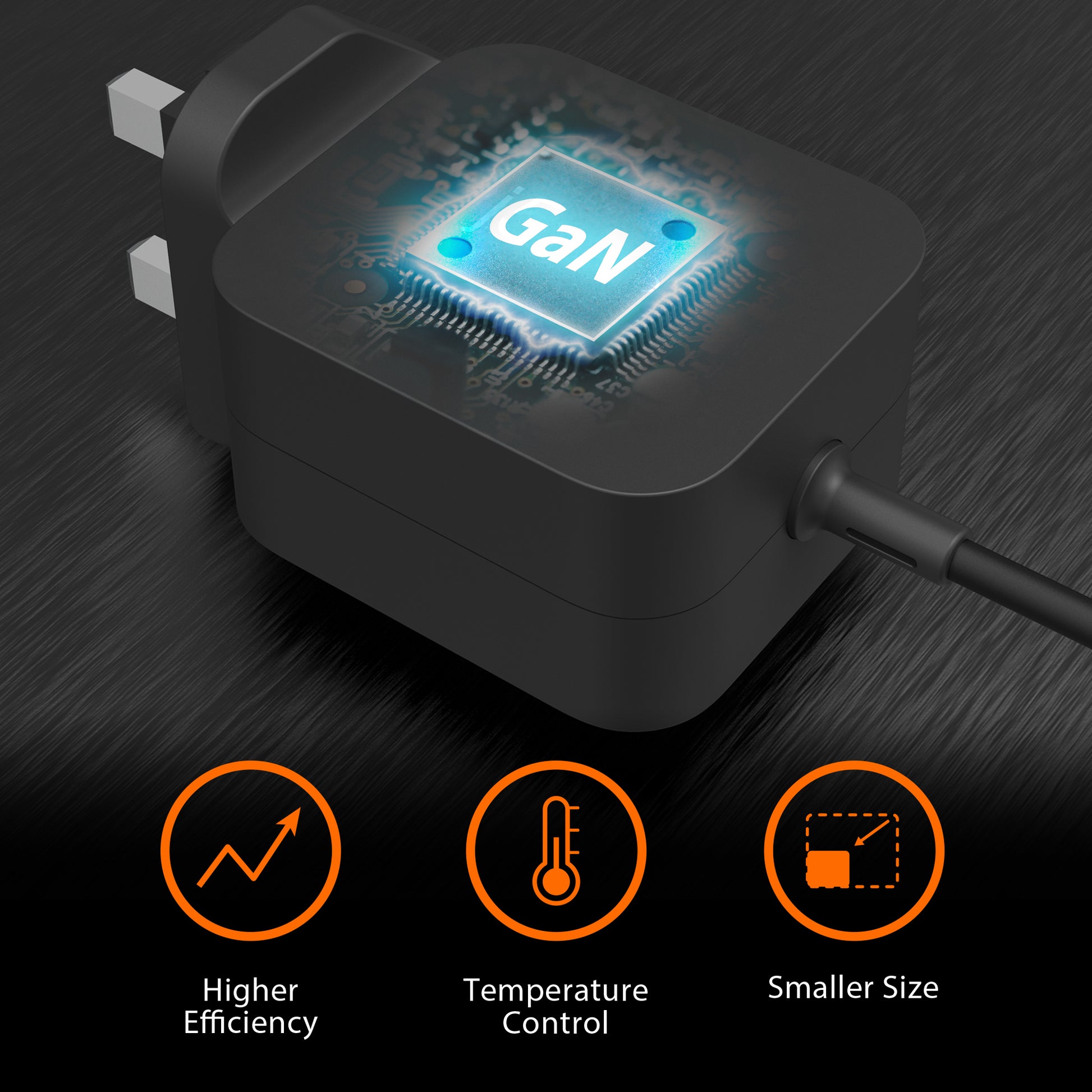

The charger is built with an advanced power integration GaN power chip, this high-speed, high-efficiency, compact charger charges faster than other standard power supplies.

The charger also supports surge, overcharging, overcurrent, and overheating protection to prevent damage to connected devices and ensure safe charging.

Specifications

Design
Product colour	Black
Housing material	Plastic
Power
Input current	1.5 A
Input voltage	100 - 240 V
Output voltage	USB-C® cable: 5V, 9V, 12V, 15V, 20V, 20.3V
Output power	67 W
Technical details
Package type	Box
Power supply type	Universal
Packaging content	• 1 - 67W GaN PD USB-C® Mini Charger with 3 Types of DC Connector (JUP1565DCF3A) • 3 - USB-C® to DC Jack connector (3 Types) • 1 - Quick Installation Guide (QIG)
Weight & dimensions
Width	86 mm
Depth	51.3 mm
Height	41.5 mm
Weight	164 g
Package width	154.9 mm
Package depth	94.9 mm
Package height	39.8 mm
Package weight	216 g
Packaging data
Quantity per pack	1 pc(s)
Operational conditions
Storage temperature (T-T)	-20 - 80 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	20 - 80%
