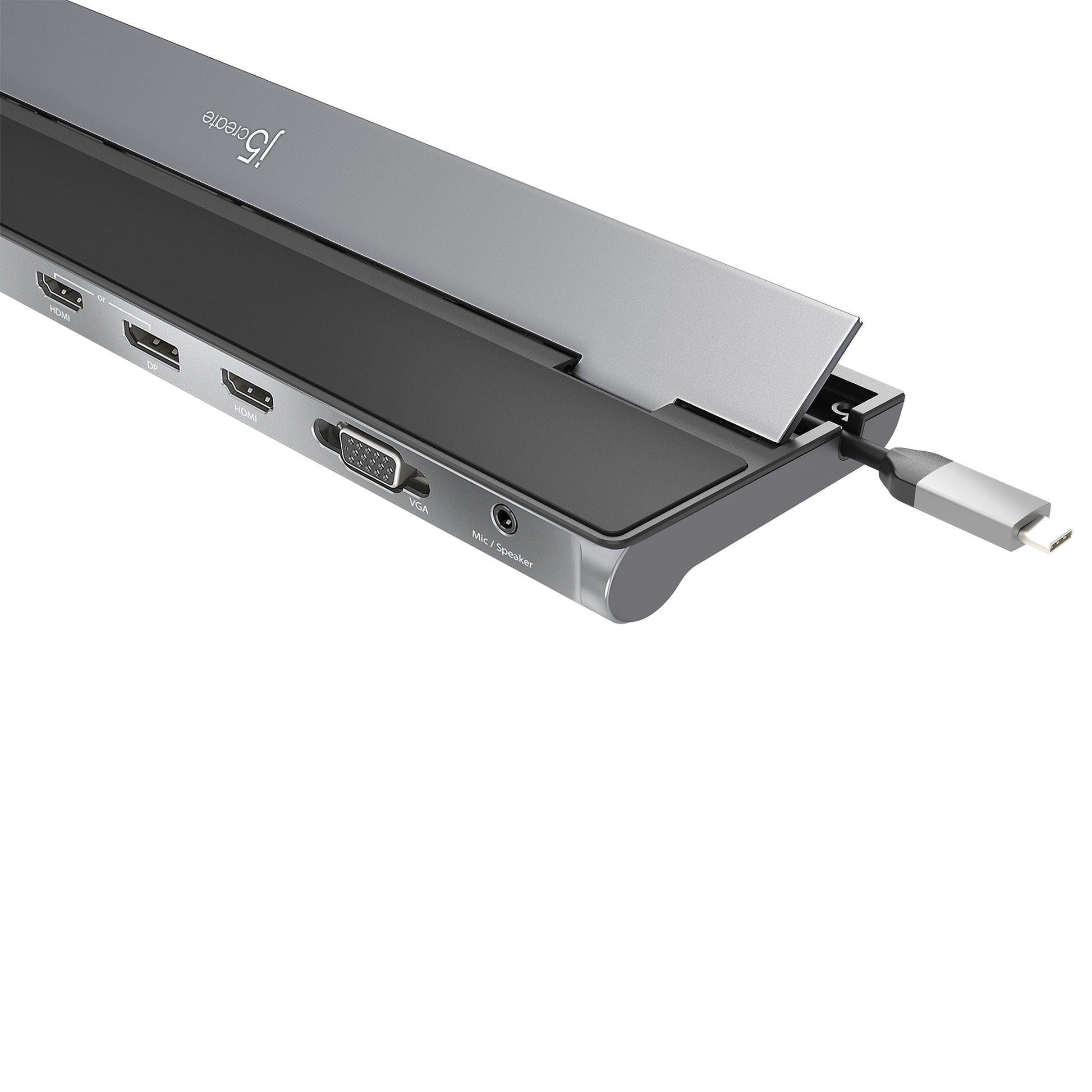

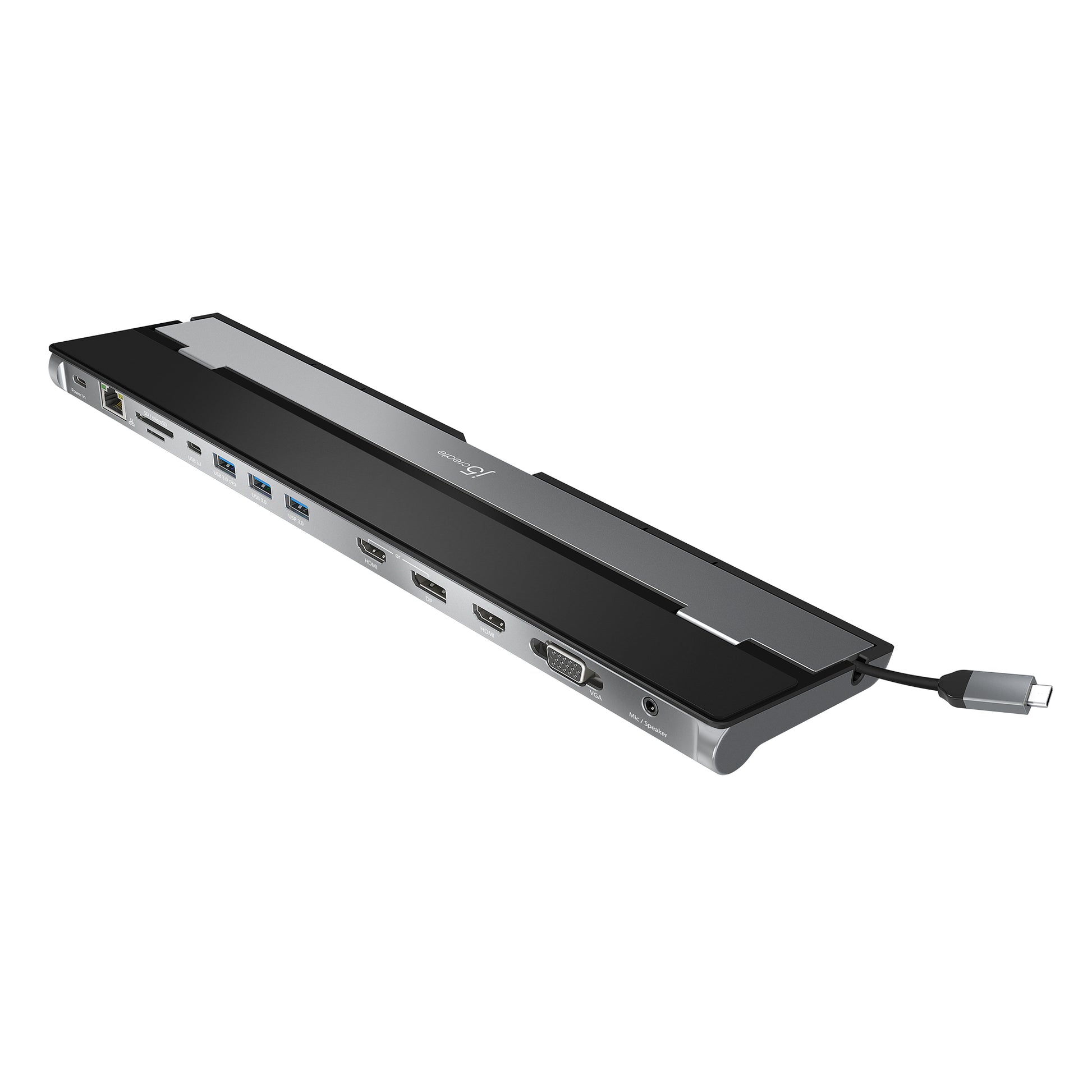

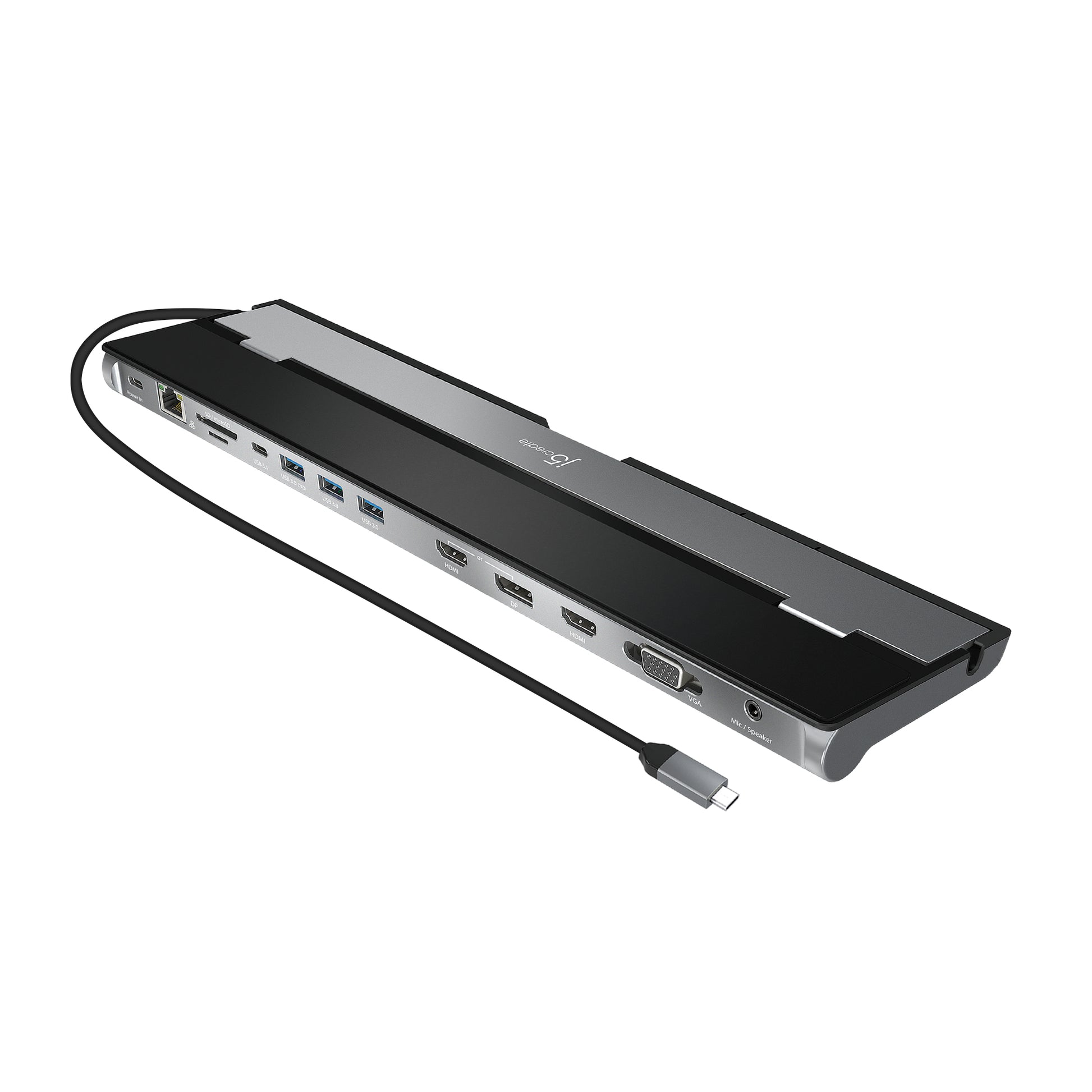

j5create JCD543 USB-C™ Display Docking Station
j5create JCD543 USB-C™ Display Docking Station
Regular price
£72.16 GBP
Regular price
Sale price
£72.16 GBP
Taxes included.
Quantity
Couldn't load pickup availability

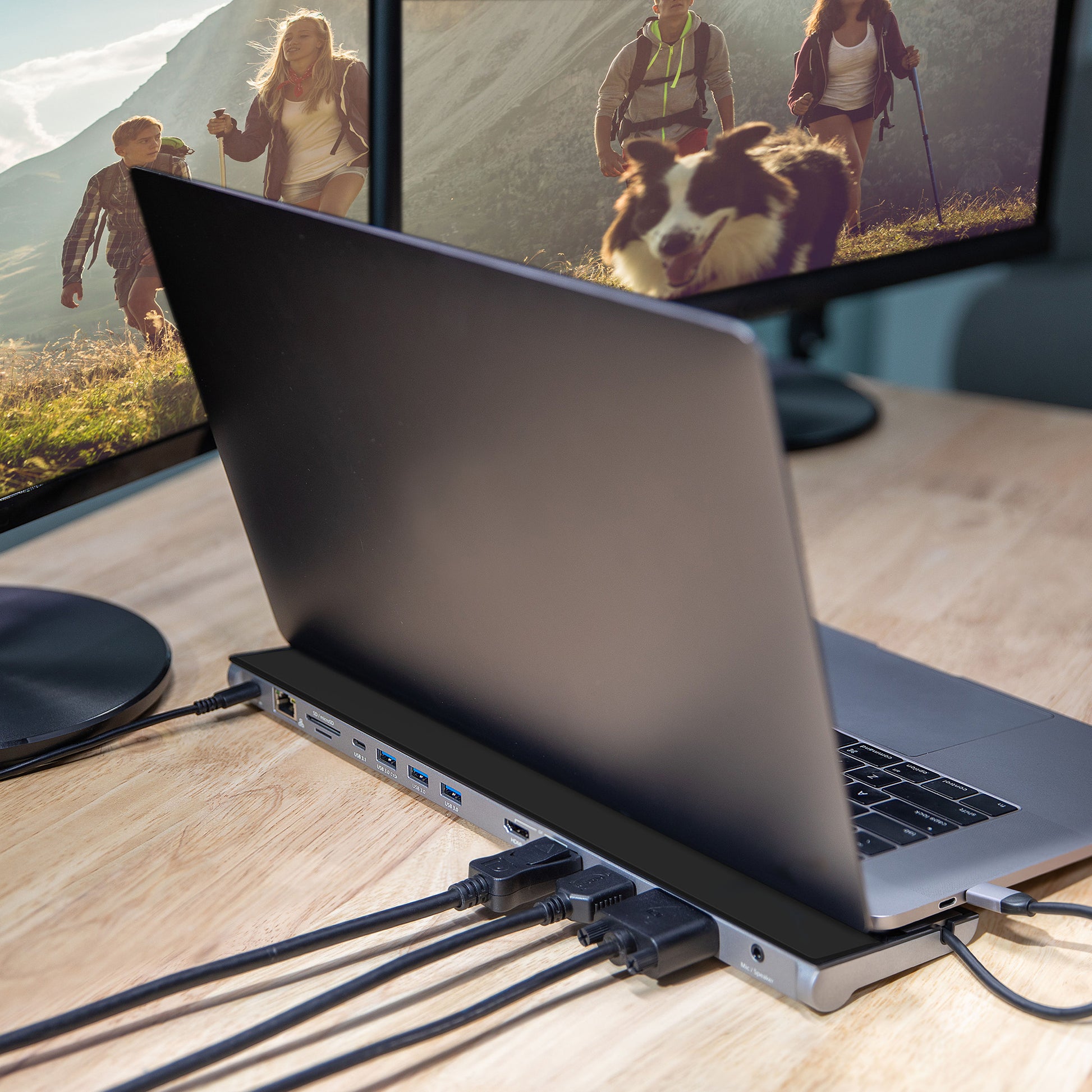

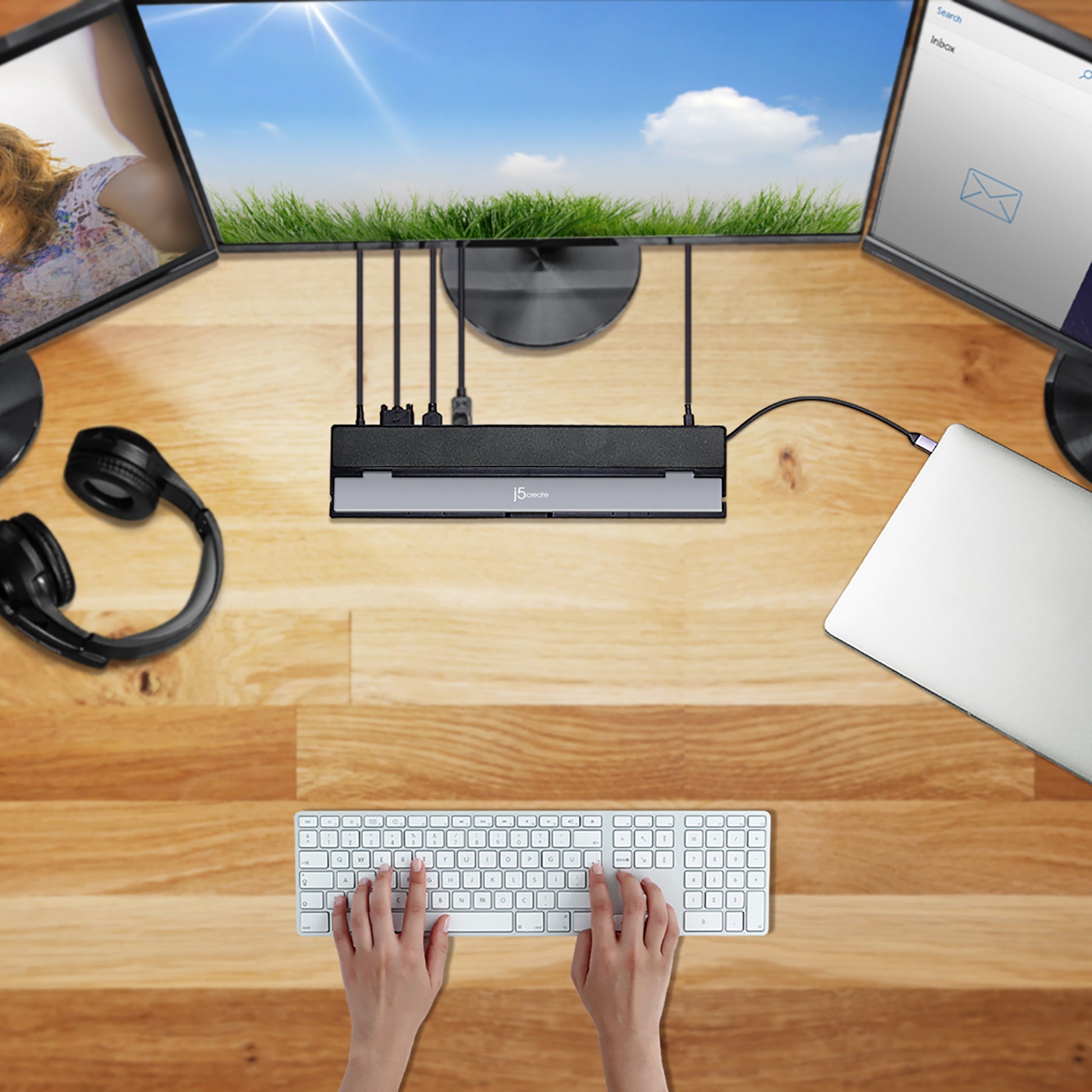

One cable, full desk: the j5create JCD543 USB-C™ Display turns your laptop into a workstation with triple displays over a single USB-C connection.
The USB-C™ Triple Display Docking Station provides extra connectivity from your computer. Extend up to three monitors through HDMI™, VGA, and DisplayPort™ or HDMI™. This docking station is designed to be used as a notebook stand, which assists with heat dissipation. With its flexible USB-C™ cord, it keeps in mind the location of the USB-C™ port on your device, ensuring an easy connection.These multi-adapters allow you to add an additional USB™ 3.1/SD™/microSD™ computer peripheral, HDMI™/DisplayPort™/VGA monitor and Gigabit Ethernet through your USB™ port. One of the USB™ Type-A ports supports fast charging BC1.2 for a smartphone, tablet or iPad®. The USB-C™ port supports power delivery 3.0, allowing you to keep charging your notebook or smartphone while using the adapter.
Specifications
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Number of displays supported | 3 |
| Country of origin | Taiwan |
| Product colour | Black, Silver |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| HD type | 4K Ultra HD |
| Housing material | Aluminium |
| Maximum refresh rate | 60 Hz |
| Hub interfaces | DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Technical details | |
| Maximum operating temperature | 48 °C |
| Cable length | 0.45 m |
| Power | |
| Input current | 5 A |
| Power plug type | Type C |
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 0.9 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11, Yes |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, MacOS, Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Weight | 355 g |
| Width | 82.5 mm |
| Depth | 350 mm |
| Height | 23.4 mm |
| Package weight | 433 g |
| Package width | 88 mm |
| Package depth | 358 mm |
| Package height | 28 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick start guide | Yes |
| Packaging content | 1 x USB-C™ Triple Monitor Docking Station, 1 x Quick Installation Guide, 1 x 100W USB-C™ Power Adapter |
| Manual | Yes |
| Cables included | USB Type-C |
| AC adapter included | No |
