DYMO LabelManager 420P™ ABC Label Printer

Print crisp labels on demand with the DYMO LabelManager 420P™ ABC — print width, speed and connectivity are in the spec table.

CREATE LABELS FAST WITH SMART KEYS
High-performance label maker allows you to pint barcodes or
customized labels with your own fonts and graphics.

A portable, high-performance label maker, the LabelManager® 420P features a convenient rechargeable battery pack, a large backlit display and a user interface with quick access to keys, fonts and text effects. Connect the unit to your PC or Mac®* and use DYMO Label™ software to design labels on your computer screen with barcodes, logos and graphics – or to print batches of labels from text in spreadsheet or database files. Plus, store up to 15 frequently-used labels for quick access and efficient printing.

*Compatible with Windows 8.1 or later and Mac OS® High Sierra v10.13 or later. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac and OS X are trademarks of Apple Inc., registered in the U.S. and other countries.

Specifications

Print quality
Maximum resolution	180 x 180 DPI
Maximum print height	1.49 cm
Printing
Colour	No
Print speed	12 mm/sec
Print technology	Thermal transfer
Display
Display number of lines	4 lines
Display	LCD
Print preview	Yes
Network
Wi-Fi	No
Ethernet LAN	No
Memory
Label memory	15 label(s)
Paper handling
Supported paper width	6, 9, 12, 19 mm
Maximum label width	1.9 cm
Ports & interfaces
PC connected	Yes
Performance

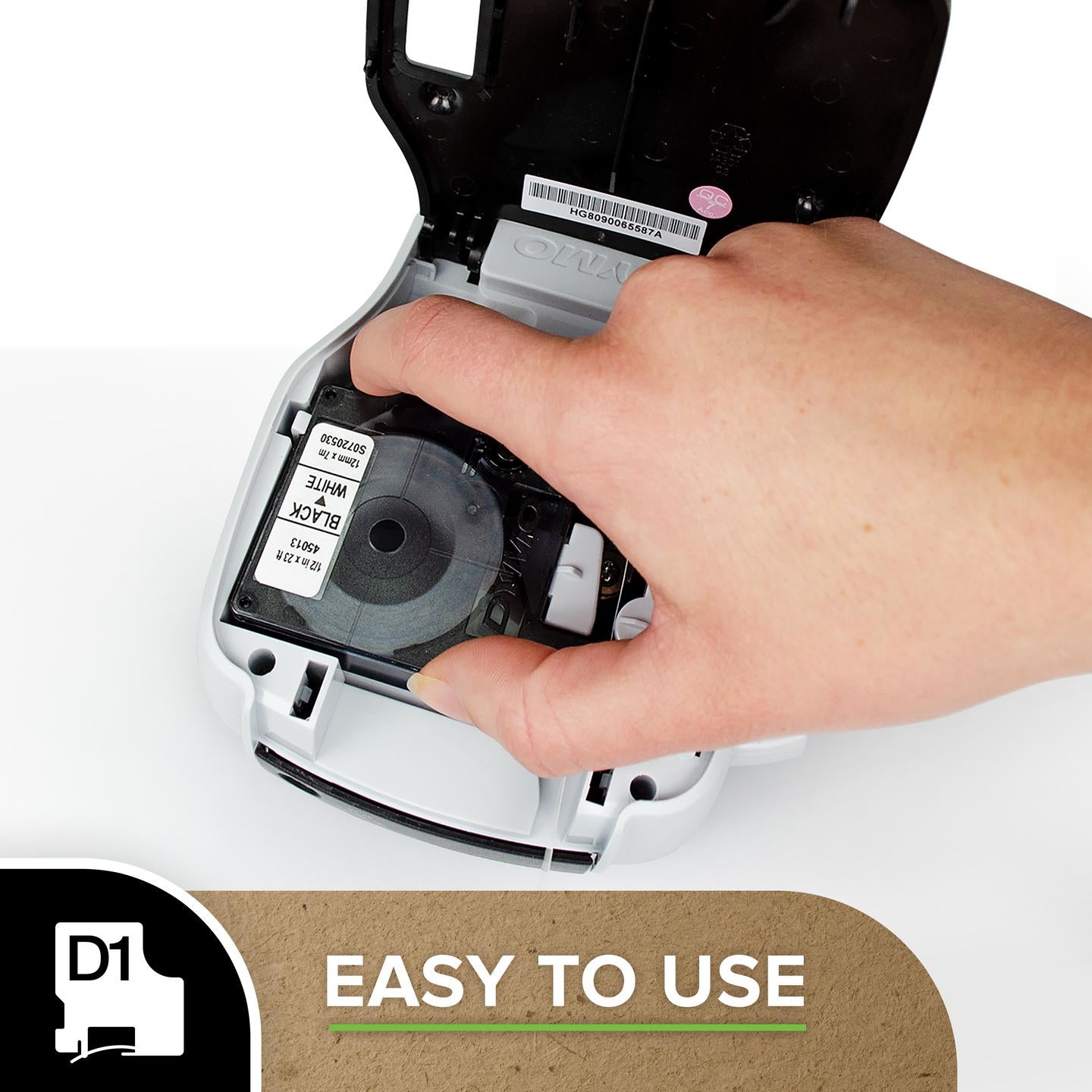

Tape type	D1
Number of styles	10
Number of box types	8
Underline	Yes
Built-in barcodes	UPC-A, UPC-E
Tape cutting	Manual
Design
Product colour	Black
Keyboard layout	ABC
Built-in display	Yes
Power
Number of batteries supported	1
Battery technology	Lithium-Ion (Li-Ion)
Auto power off	Yes
Technical details
Windows operating systems supported	Windows 7, Windows 8, Windows Vista
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Country of origin	China
Master (outer) cases per pallet	144 pc(s)
Harmonized System (HS) code	84433210
Software
Bundled software	DYMO Label 8
System requirements
Mac compatibility	Yes
Weight & dimensions
Package width	265 mm
Package depth	390 mm
Package height	320 mm
Width	215 mm
Depth	57 mm
Height	104 mm
Weight	415 g
Package weight	6.5 kg

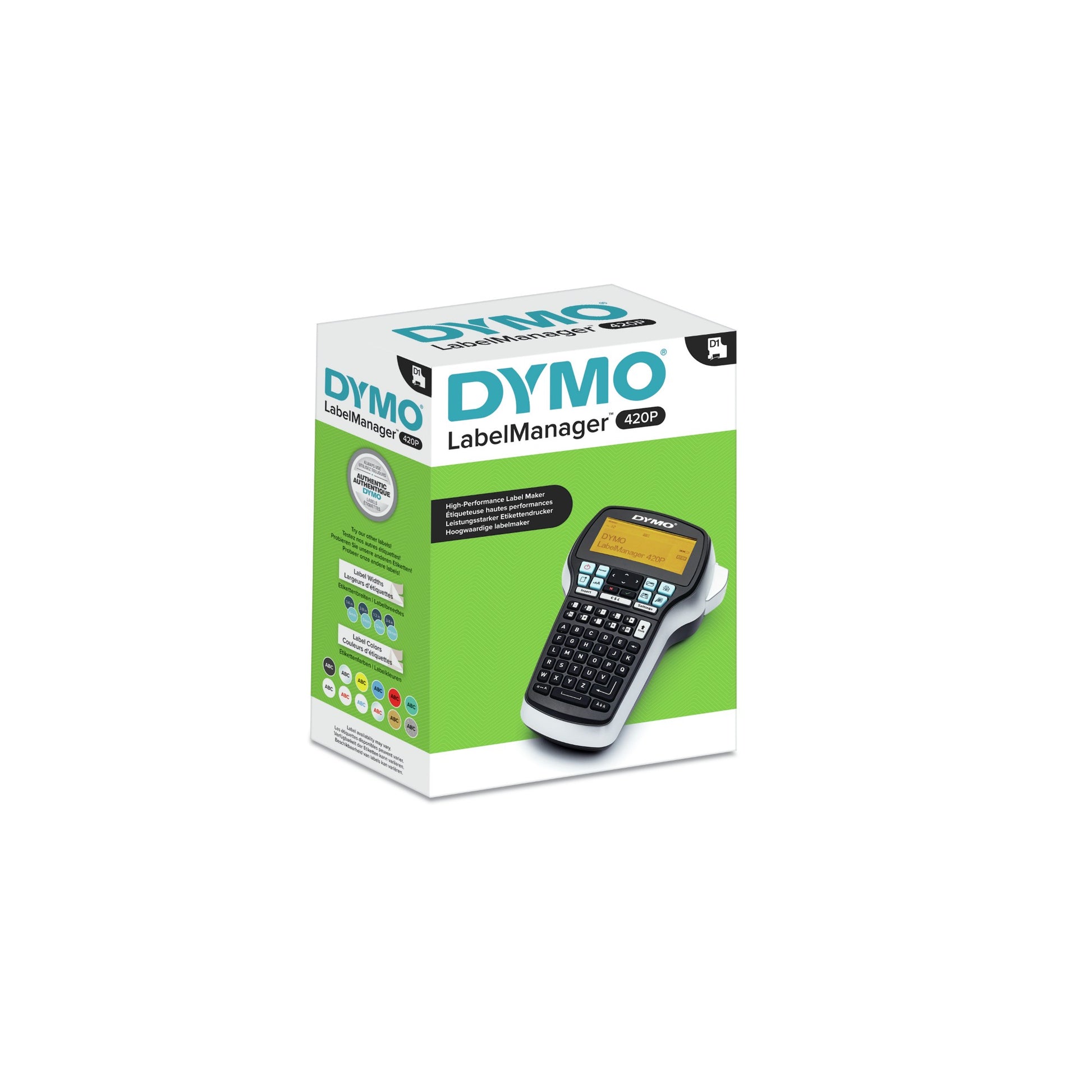

Packaging content
Charger	Yes
Quick start guide	Yes
Cables included	USB
Batteries included	Yes
Cartridge(s) included	Yes
Logistics data
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	111 cm
Pallet gross weight	181.1 kg
