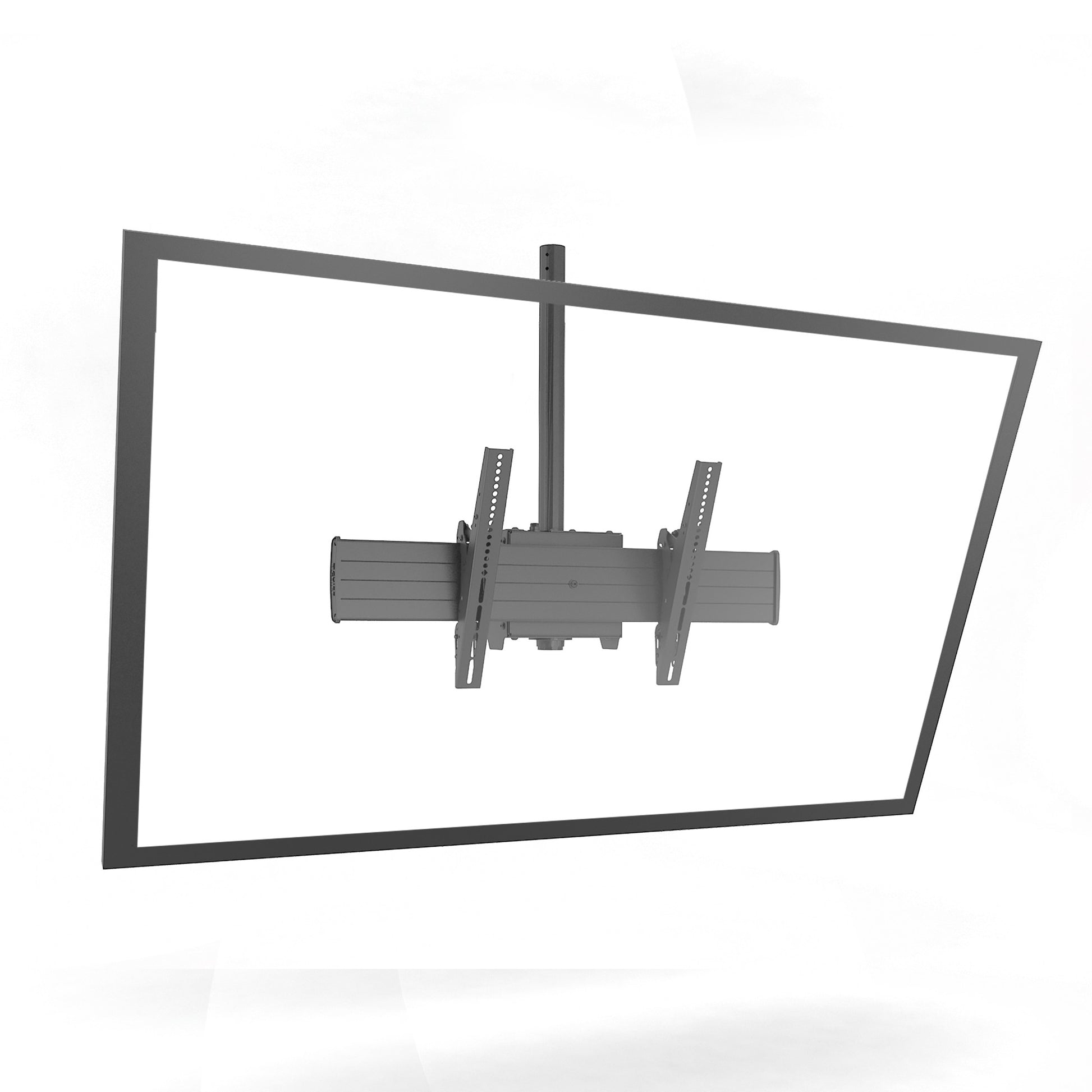

Chief XCM1U, Fusion® Extra-Large Single Pole Flat Panel Ceiling Mounts

Position your screen exactly where you need it with the Chief XCM1U Fusion® Extra-Large Single — VESA fit and load ratings are below.

Chiefs FUSION Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for X-large flat panel screens. Great for digital signage installations.

The XCM1U is a single pole drop ceiling mount perfect for XL displays 5" deep and thinner. For deeper and heavier displays, see Chief's XCM7000 for a dual drop solution.

- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility

REPEATABILITY
- Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.
ACCESSIBILITY
- Simple on/off connection for ease of installation and service.
CENTRIS FINGERTIP TILT
- Effortlessly adjust display using Centris fingertip tilt technology.
SIMPLE & SECURE
- Tool free screen engagement with optional padlock security.
FLEXIBILITY
- Mount swivels to any preferred viewing angle.

Specifications

Mounting
Minimum screen size	152.4 cm (60")
Maximum weight capacity	113 kg
Panel mounting interface	800 x 400 mm
Number of displays supported	1
Mounting type	Ceiling
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	800 x 400 mm
Maximum screen size	2.29 m (90")
Ergonomics
Tilt angle range	0 - 15°
Adjustable	Yes
Design
Housing material	Steel
Certification	UL
Product colour	Black
Weight & dimensions
Width	884.9 mm
Depth	186.8 mm
Height	425.5 mm
Weight	12 kg
Packaging content
Mounting kit	Yes
Manual	Yes
Logistics data
Harmonized System (HS) code	85299097
