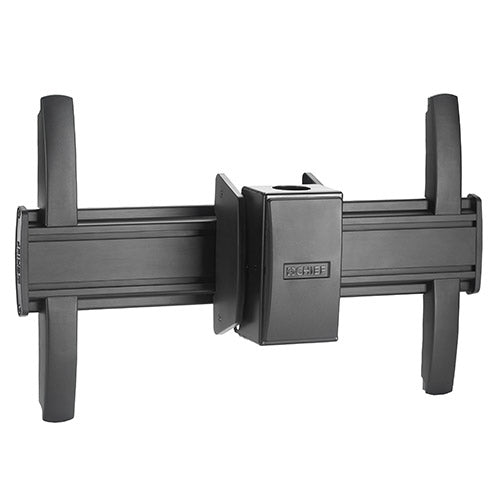

Chief LCM1U, Fusion® Large Flat Panel Ceiling Mount

Position your screen exactly where you need it with the Chief LCM1U Fusion® Large Flat — VESA fit and load ratings are below.

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.

- Ceiling Plate and extension column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility

REPEATABILITY
Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens.

ACCESSIBILITY
Simple on/off connection for ease of installation and service.

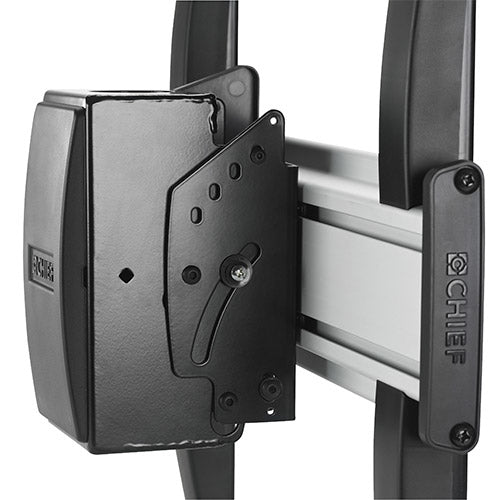

CENTRIS FINGERTIP TILT
Effortlessly adjust display using Centris fingertip tilt technology.

SIMPLE & SECURE
Tool free screen engagement with optional padlock security.

FLEXIBILITY
Mount swivels to any preferred viewing angle.

Specifications

Mounting
Minimum screen size	76.2 cm (30")
Maximum weight capacity	45.4 kg
Number of displays supported	1
Mounting type	Ceiling
Minimum VESA mount	200 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	152.4 cm (60")
Ergonomics
Tilt angle range	-5 - 20°
Design
Housing material	Steel
Product colour	Black
Weight & dimensions
Width	681 mm
Depth	162 mm
Height	419 mm
Logistics data
Harmonized System (HS) code	85299097
